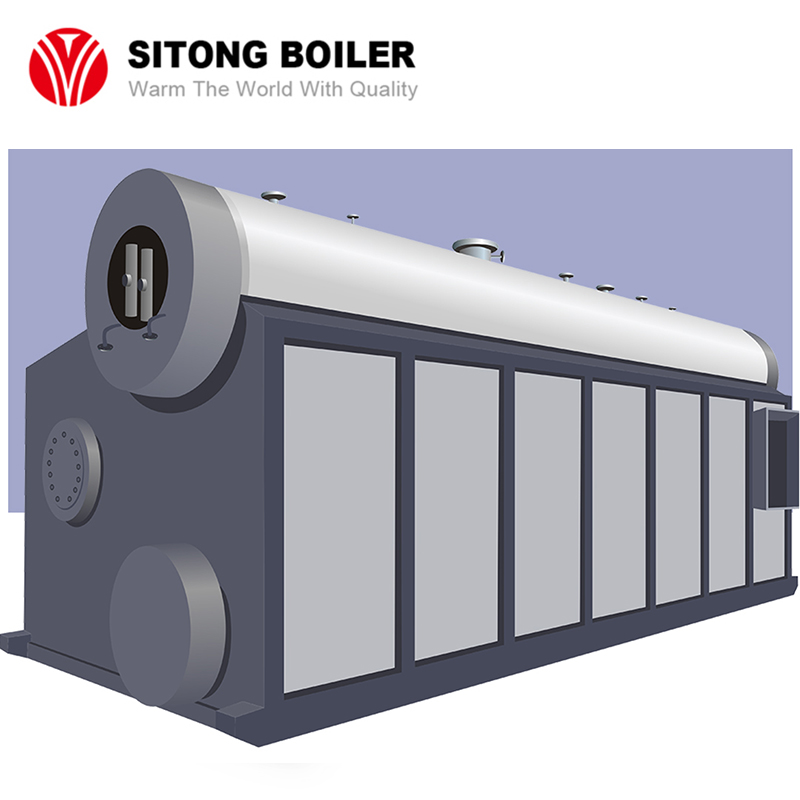

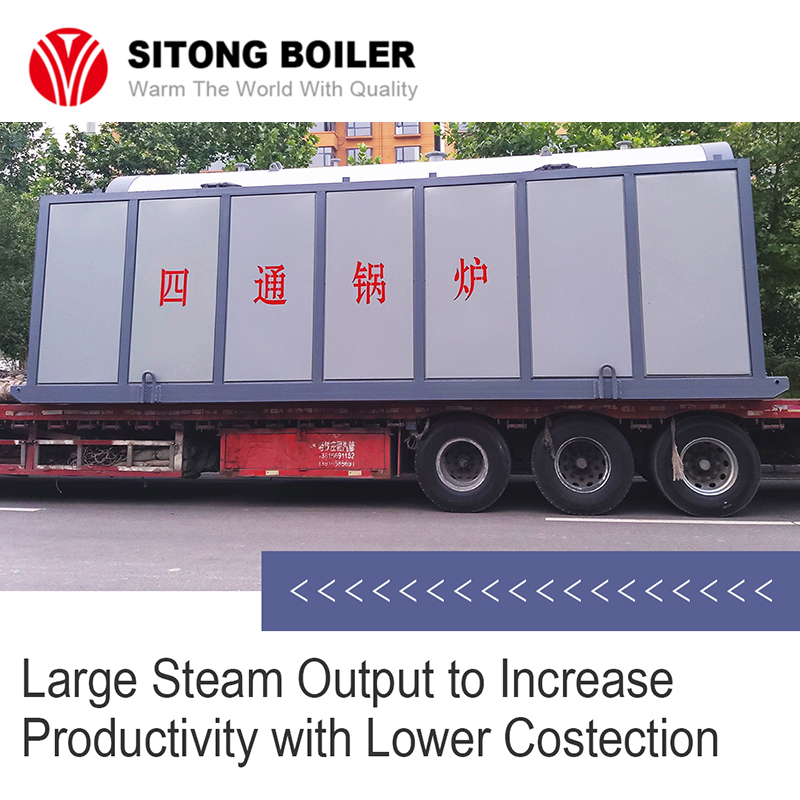

The structure of 10~50 ton Package Steam Boiler is arranged as drum longitudinal type “D” shape, it’s quickly assembled boiler with water tube, has the characteristics of high steam quality, sufficient output, high thermal efficiency, etc. The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload. The layout of economizer at boiler tail could effectively reduces exhaust gas temperature and improve boiler thermal efficiency. This series gas fired water tube boiler is delivered as whole when leave factory, convenient for transportation, and has a short install period. Sitong Boiler has a mature R&D and design team, could customize the boilers based on customers’ requirement.

Application:

10~50 ton Package Steam Boiler is widely used for industrial production which has large steam requirements. The hot water boiler is used for offering hot water to hotel, school, laundry, gym, farm, etc.

1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.

2) Food industry - cooking, drying, vegetable oil refining.

3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.

4) Plastics industry - plastics fired, extruded shape.

5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.

6) Paper industry - drying, corrugated paper processing, calender, glue roller.

7) Wood industry - hot processing, heat setting.

8) Forest products industry - plywood, polystyrene board, fibreboard heating setting.

9) Other industries

Technical Advantages

1. “D” shaped layout

Adopts double drums and “D” type structure, large combustion chamber, good flame fullness degree, sufficient combustion. The boiler has a sufficient output, and excellent overload capacity. Compact structure, covers a small area.



2. Membrane Wall Structure

The furnace adopts membrane cooling wall, and equipped with inner board with whole sealing welding structure, low heat loss, high thermal efficiency.



3. Good Thermal Insulation Property

The boiler shell uses aluminium silicate board for heat preservation, high thermal shielding efficiency, low heat loss, increase the boiler thermal efficiency.



4. Automatic Control

1) Adopts PLC full automatic intelligent control cabinet and interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.

2) Adopts international brand burner, operate automatically, high combustion efficiency, low harmful gas emission and noiseless operation.



5. Safe Operation

1) Equipped with two explosion door at the furnace roof, to ensure the boiler operate safety and efficiently.

2) Complete gas manifolds and protection system, including filter, pressure regulating valve, and solenoid valve, etc., to ensure the safety performance of fuel.

3) Reliable boiler auxiliaries and multiple safety protection devices, such as pressure controller, pressure transmitter, water level alarm, and safety valve, etc.

6. Convenient Maintenance

1) There are manhole and inspection hole on the boiler, convenient for boiler internal installation, inspection and clean.

2) Membrane wall effectively reduce refractory brick quantity and maintenance workload.

Parameter

Steam Boiler

ModelRated Evaporation
(t/h)Rated Steam Temperature
(℃)Working Pressure
(Mpa)Water Supply Temperature
(℃)Heating Area
(㎡)Overall Dimension
(mm)SZS10-1.25-Y(Q)101941.2520340.238500×5865×4670SZS15-1.0-Q151841104632.997970×4628×3470SZS20-1.25-Y(Q)201941.25105556.6412220×6895×4465SZS25-2.45-Y(Q)252252.4510571410860×70000×4850SZS30-1.25-Y(Q)301941.2510576712900×7000×4850SZS35-2.45-Y(Q)352252.4510595812910×7000×4850SZS50-2.45-Y(Q)502252.45105123013200×12000×4700

Note: Parameter is for reference only, if any changes should follow the factory technical data.

Hot Water Boiler

ModelRated Power
(MW)Working Pressure
(Mpa)

Heating Area

 (㎡)

Fuel Consumption

Overall Dimension

 (m)

Light Oil (kg/h)Natural Gas (Nm³/H)SZS7-1.0/115/70-Y(Q)71.01636428067.8×3.4×3.34SZS10.5-1.0/115/70-Y(Q)10.51.025896311377.1×3.66×3.5SZS14-1.25/115/70-Y(Q)141.252451284155110.2×6.6×4.8SZS21-1.25/130/70-Y(Q)211.253941922232212.3×7×5.4SZS46-1.6/130/70-Y(Q)461.611474203492315.6×9.4×7.8SZS70-1.6/130/70-Y(Q)701.616646396775315.9×8.7×8.9SZS116-1.6/130/70-Y(Q)1161.62058106001284816.8×9.6×9.2Note: Parameter is for reference only，we can design the new products based on your requirement.
