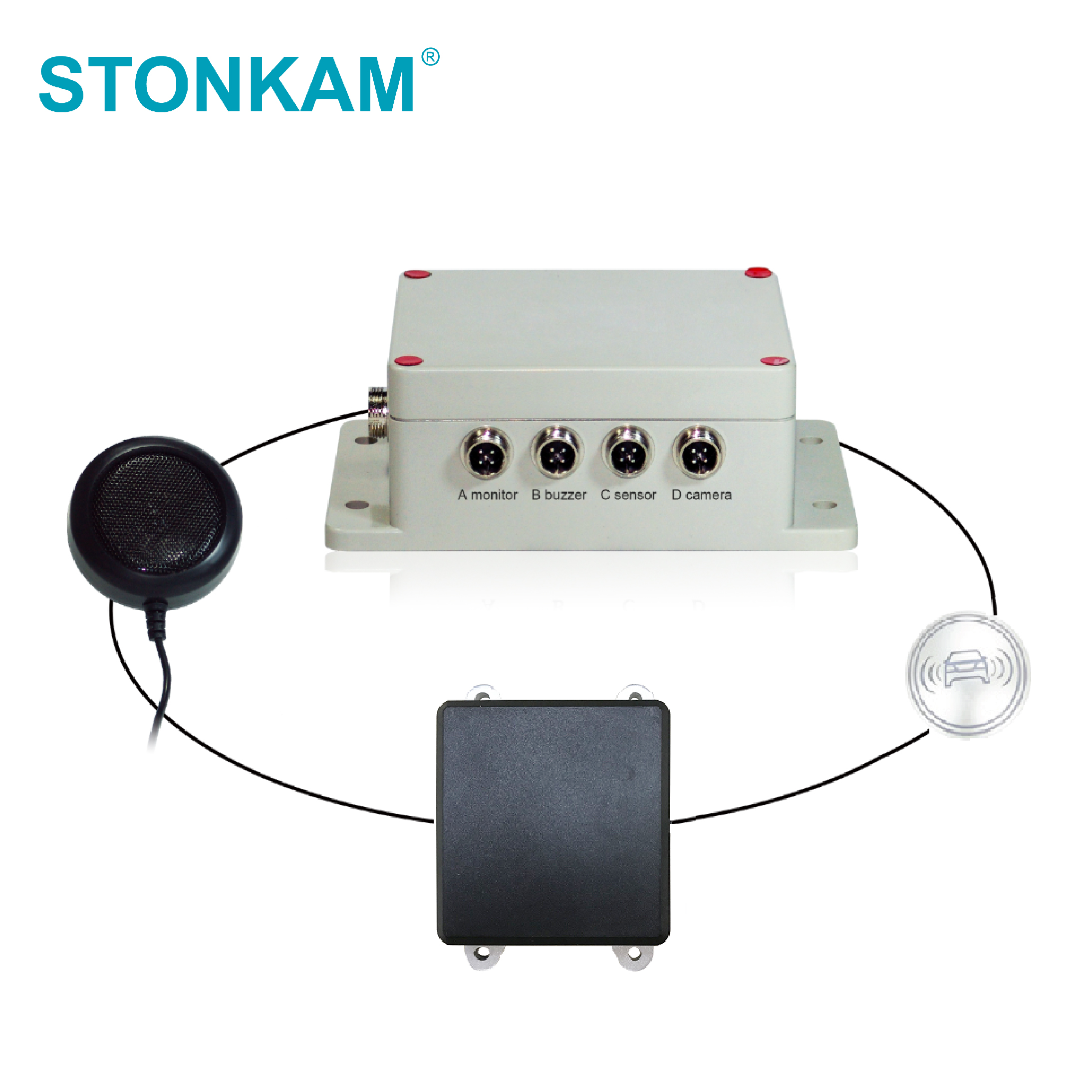

1080P 79GHz Millimeter Wave Radar Detection System from STONKAM adopts 79GHz millimeter-wave radar technology to make it all-weather. It has been widely applied to heavy-duty commercial vehicles like trucks and buses. More radar alarm systems are available here.

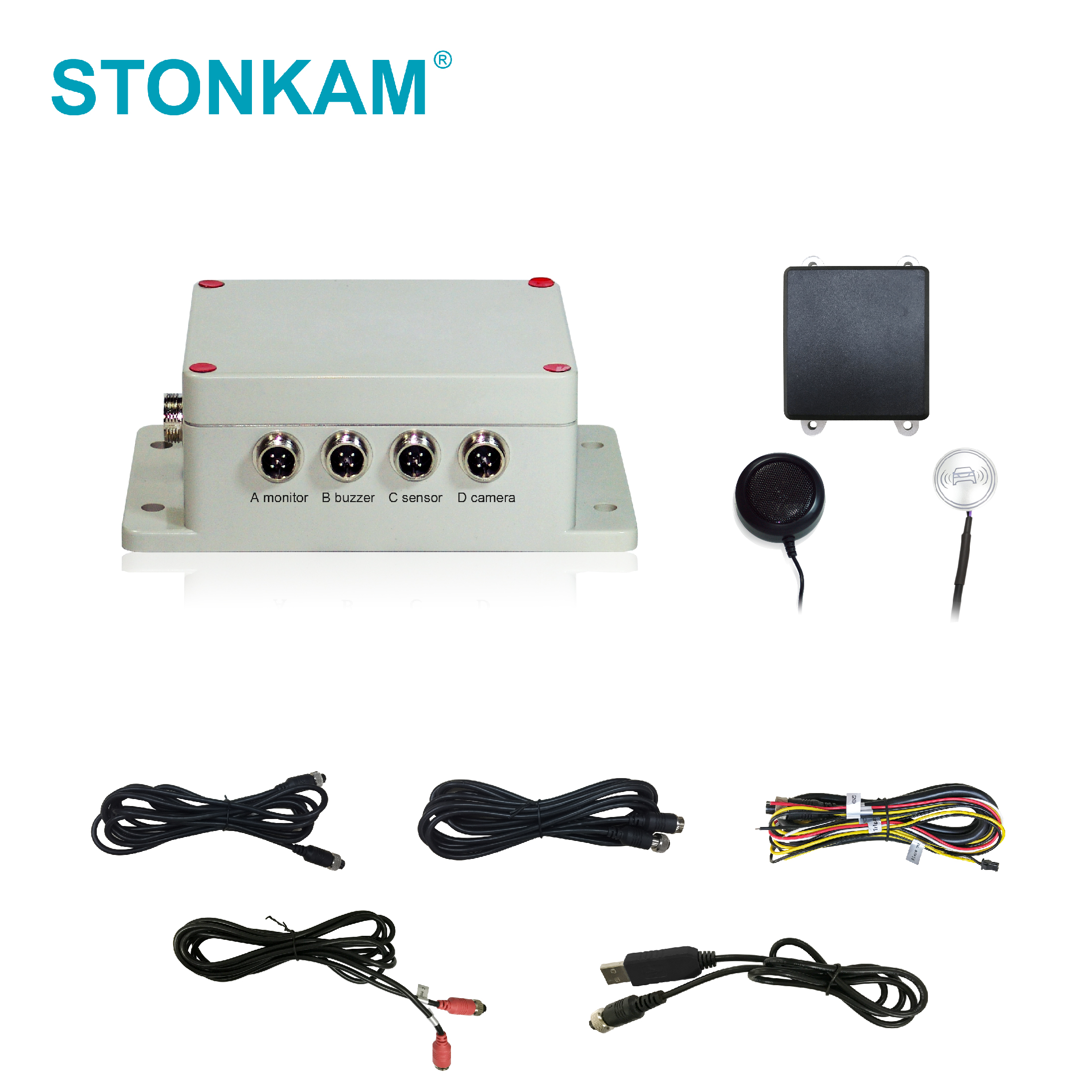

• The millimeter wave radar detection system concludes a 1080P camera (FHD410) and a monitor (HD295D)
• Support high definition 1080P input and output
• 79GHz Millimeter-wave Radar technology
• Radar system will enter detection mode (low speed mode or normal mode) after powered on.
• AHD Image alarm overlapping
• Dual LED lights warning, buzzer warning
• Can detect static and dynamic objects, including pedestrians, bicycles, motorcycles, any transport vehicles, etc.
• All-weather operations; work 24 hours

Specification

Frequency 77-81GHz Transmitter Type FMCW Power Supply 12 to 32V DC Detection Range Horizontal: 0.2~3.5m Vertical: -7~7m Antenna 2T4R Detection Tolerance 0.1m Detection Angle(Horizontal) 150° Trigger Input ×1 Right Trigger Alarm Output ×2 LED Alarm output x1 buzzer alarm output Video format CVBS(PAL/NTSC)、720P(25fps/30fps), 1080P(25fps/30fps) Operating Temperature -20 ~ +70°C Storage Temperature -30 ~ +80°C IP Protection IP67 (sensor),IP66(Control Box) Vibration Rating 5.9G Dimensions Sensor: 69.5(W) ×65(H) ×20(D) mm Control Box: 152.6(W) ×89.2(H) ×53.8(D) mm Weight 141.1Grams (sensor), 240Grams (control box) Mounting Four (4.5mm) diameter mounting holes (sensor) Four (6mm) diameter mounting holes (control box)

Why do you need to install 1080P 79GHz Millimeter Wave Radar Detection System?
Is it useful?
The answer is certainly yes!

With 1080P 79GHz Millimeter Wave Radar Detection System, the following problems can all be solved.

• How to avoid collision and crash when turning or changing the lane?
• How to deal with the blind spot of the rear view mirror where vehicles cannot be seen before change the lane?
• What to do in heavy rains, fog and dark night lights when visibility is limited?
• How to initiatively be alerted to the danger when driving? ......

Unignorable Vehicle Blind Spots

Among all road accidents, those caused by blind spots have taken up a large proportion, which is a great threat to our lives.

It turns out that although A, B or C area is normally not a blind area, lower part of the high vehicle could actually formulate a blind area.

Area A, B, C: Half blind area

Severity of danger depends on the vehicle size.

Area D: Full blind area

Beyond the sight of the driver and 3 rear view mirrors.

Area E: Full blind area

Pillar A near the windshield hinders the vision, which creates the blind spots.

STONKAM® 1080P 79GHz Millimeter Wave Radar Detection Systemsafeguard your driving

Radar detection system adopts microwave technology; it won’t be affected by weather conditions and can work 24 hours.

Double guarantee with dual LED lights + buzzer warning

This radar detection system can provide visual and audible alert to operators to avoid potential danger and allow them to take proper actions in advance.

Wide horizontal detection Angle range: 150°

Two switchable modes help you drive without worries

Low speed mode: vehicle speed＜16km/h
Detection range: horizontal 0-2m and vertical ±6m; detect any object inside detection zone

Normal mode: vehicle speed ≥ 16km/h
Detection range: horizontal 0-3.5m and vertical ±7m; only detect moving object with speed over 10km/h, not detecting static objects

Can detect static and dynamic objects, including pedestrians, bicycles, motorcycles, any transport vehicles, etc

Applications

STONKAM’s 1080P 79GHz Millimeter Wave Radar Detection System is suitable for blind spot detection, and it’s widely applied to all types of vehicles like buses and trucks.

Connection
