Pengfei EPC cement production line project includes process design, equipment supply (including mechanical and electrical parts), civil engineering, installation and commissioning, trial operation, reaching the production standard and final delivery and other services. Mechanical equipment includes limestone crushing and conveying, clay crushing, raw coal crushing, raw coal and auxiliary raw material pre homogenization yard, raw material proportioning station, raw material grinding and waste gas treatment, raw material homogenization silo and raw material feeding into kiln, firing kiln tail, firing kiln middle and tertiary air pipe, firing kiln head, clinker conveying, clinker storage and conveying, pulverized coal preparation and metering conveying, cement proportioning station and clinker Bulk, gypsum, mixture crushing and conveying, cement grinding and conveying, cement storage and conveying, cement packaging, bagged cement loading, cement truck bulk, machine repair workshop and total material warehouse.

Process parameters

(1) Clinker output: ≥ 1500 t / d;

(2) heat consumption: ≥ 840kcal / kg clinker

(3) power consumption: ≥ 110kwh / t cement

(4) water consumption: maximum 1020m3/d

Production process

In cement production, limestone and clay are used as main raw materials, which are crushed, proportioned and milled into raw materials by ball mill, then fed into cement rotary kiln to calcine mature materials, and the clinker is added with a proper amount of gypsum, mixed with some mixed materials or additives, ground into cement by cement grinding, after that transported out of the factory by packaging machine or bulk machine. Cement production equipment usually adopts the dry cement production process. The main advantage of dry production is low heat consumption.

Process description

(1)Limestone & sandstone crushing

The limestone and sandstone are separately crushed by their respective crusher; There are discharged via belt conveyors. The two crushers are located at plant site.

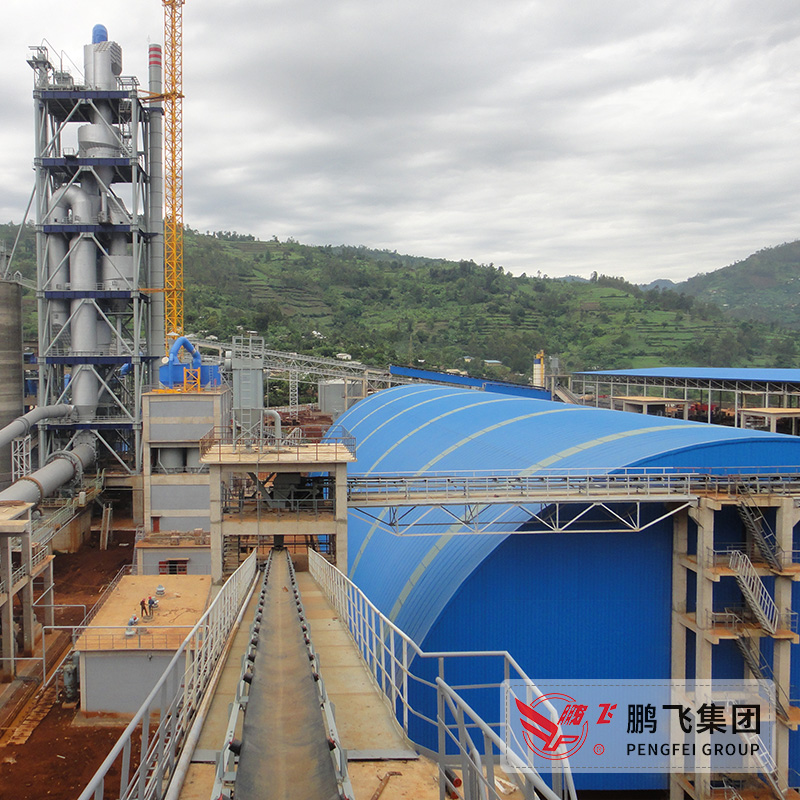

(2) Limestone prehomogenizing and handling

The crushed limestone is stacked in the prehomogenizing hall.

The prehomogenized limestone is retrieved by a reclaimer and transported to raw mill feed bin by belt conveyor.

(3) Sandstone storage and handling

The sandstone is stored in the sandstone storage silo after being crushed. It is extracted from the storage silo by a belt extractor and transported to the raw mill feed bin by belt conveyor.

(4) Clay storage and handling

The clay is transported during dry season, from the clay quarry to the clay storage hall by trucks and stacked by either dozer or loader. From the storage hall, the clay is retrieved by loader and fed into a hopper and transported to the raw mill feed bin by belt conveyor.

The clay bin is equipped with a live bottom to prevent hang-ups and/or bridging of the material at discharge unto weighfeeder.

(5) Raw meal grinding and transport

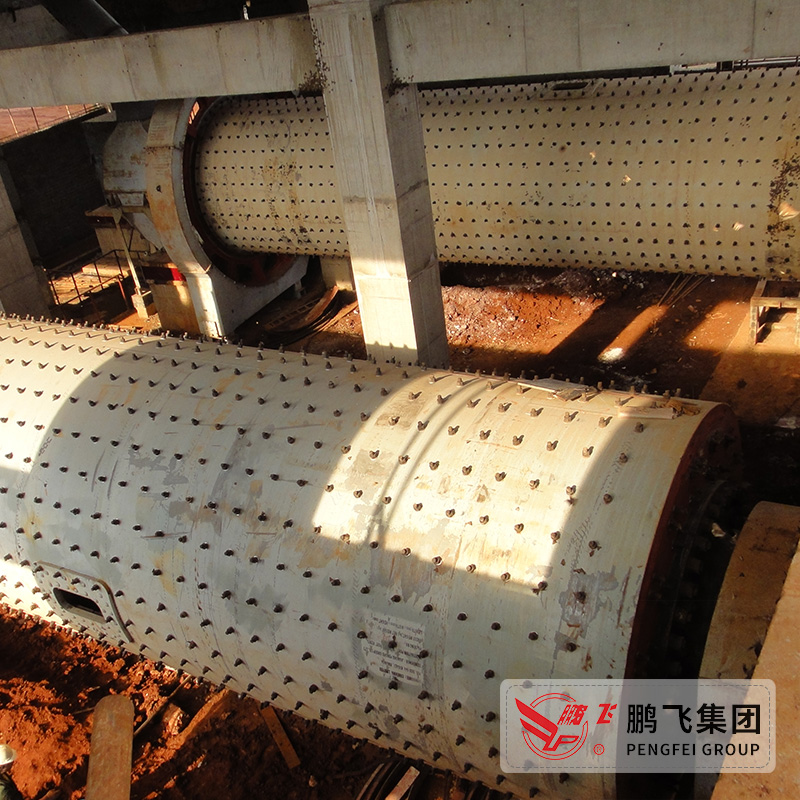

The raw materials are extracted from their respective feed bins by belt type weighfeeders (apron type for clay) and transported by belt conveyor into raw mill system. The raw mill is a closed circuit air swept ball mill.

The raw meal product is transported into blending silo by air slide and bucket elevator.

The hot gas out of preheater is used as the heat source for drying in raw mill. There is also a standby oil furnace for supplying the hot gas when the kiln stops or the hot gas from preheater is not enough.

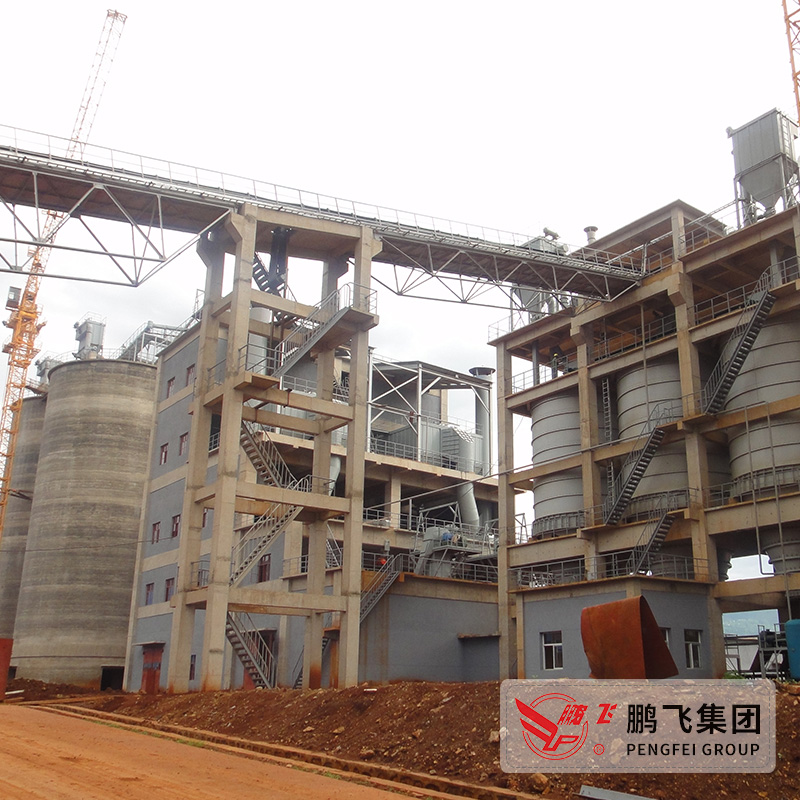

(6) Raw meal homogenizing and feeding into preheater

In the blending silo the raw meal is homogenized to achieve desired level of product consistency. From the blending silo the homogenized raw meal is fed into the preheater via the kiln feed system which consist of level box, flow valve, weight meter, airslide and bucket elevator,etc….

No.Name of WorkshopMain EquipmentWorking Programme
(d/w×h/d)Qty1LimestoneSingle hammer crusher
Feed size:≤800×800×1000mm
Crushing system capacity: 350 t/h
Product size:90% ≤25mm6d/w×7h/d12Sandstone crushing and conveyingHigh efficiency crusher
Feed size:≤215 mm
Crushing system capacity: 50 t/h
Product size:90% ≤20 mm1d/w×7h/d 3Limestone prehomogenizing and conveyingStacker
Capacity:350 t/h6d/w×7h/d1Reclaimer
Capacity:150 t/h7d/w×20h/d14Raw peat
Prehomogenizing
and conveyingFeed hopper with extractor
Peat extractor: 80 t/h
Peat conveying: 30 t/h7d/w×4h/d15Raw material grindingClosed circuit
Ball mill Φ 4.0X9 m (precrushing /drying)
Feed size:≤25mm
Product fineness: Feed moisture:≤ 8%
Product moisture: Capacity: 120 t/h7d/w×20h/d16Peat grindingClosed circuit ball mill
Φ 2.6x(5.25+2.25)m
Feed size: ≤25mm
Product fineness: Feed moisture:max.12%
Product moisture: Capacity: 13-15 t/h6d/w×20h/d17Clinker burning
Temperature @ cyclones outlet
≤350±10°CFive-stage cyclones,
Preheater + precalciner:
C1:2-Φ5450 mm
C2:1-Φ5450 mm
C3:1-Φ5450 mm
C4:1-Φ5700 mm
C5:1-Φ5700 mm
Precalciner:1- Φ 4600 mm
Temperature @ cyclones outlet
≤350±10°C
Rotary kiln : Φ3.5X54m
Heat consumption:
≤840kcal/kg
Capacity: 1500t/d (62.5t/h)
Power:220 kW, DC
Fuel: Fuel oil and peat
Grate cooler:
mechanical drive
Bed area: 39 m2
Capacity:1500t/d7d/w×24h/d18Cement grindingBall mill: Two closed circuit Φ3.2×13m.
Product size: Capacity: 2×50 t/h PC32.5
Power: 2 × 1600 kW7d/w×22h/d29Cement baggingTwo 8 spouts rotating packers
Capacity:2x100 t/h
One bulky station provided.6d/w×12h/d2
