160-400KW DC EV charger
CAMC INTERNATIONAL TRADING CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
160-400KW DC EV charger
CAMC INTERNATIONAL TRADING CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 1200mm*500mm*1700mm
- Color: Off-white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
About this product
- Size: 1200mm*500mm*1700mm
- Color: Off-white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
Product details
| Size | 1200mm*500mm*1700mm |
|---|---|
| Color | Off-white |
Product details
| Size | 1200mm*500mm*1700mm |
|---|---|
| Color | Off-white |
From the supplier
Product Name
160-400kW Split-Type DC EV Charger (360kW Main Cabinet)
Product Overview
Our 160-400kW Split-Type DC EV Charger is a high-power, modular charging system designed for large-scale public and commercial charging scenarios. The system consists of a centralized rectifier cabinet and flexible charging terminals, which can be configured with up to 12 single-gun or 6 double-gun terminals to simultaneously charge up to 12 electric vehicles. This makes it ideal for automobile enterprises, commercial real estate, government facilities, gas stations, and public fast-charging stations. It supports charging for a wide range of EV types, including passenger cars, buses, sanitation vehicles, and heavy trucks, delivering reliable, efficient performance in high-demand environments.
Key Features
Flexible Terminal Configuration: The rectifier cabinet can be configured with 12 single-gun or 6 double-gun charging terminals, enabling simultaneous charging for up to 12 vehicles to meet dense charging demand.

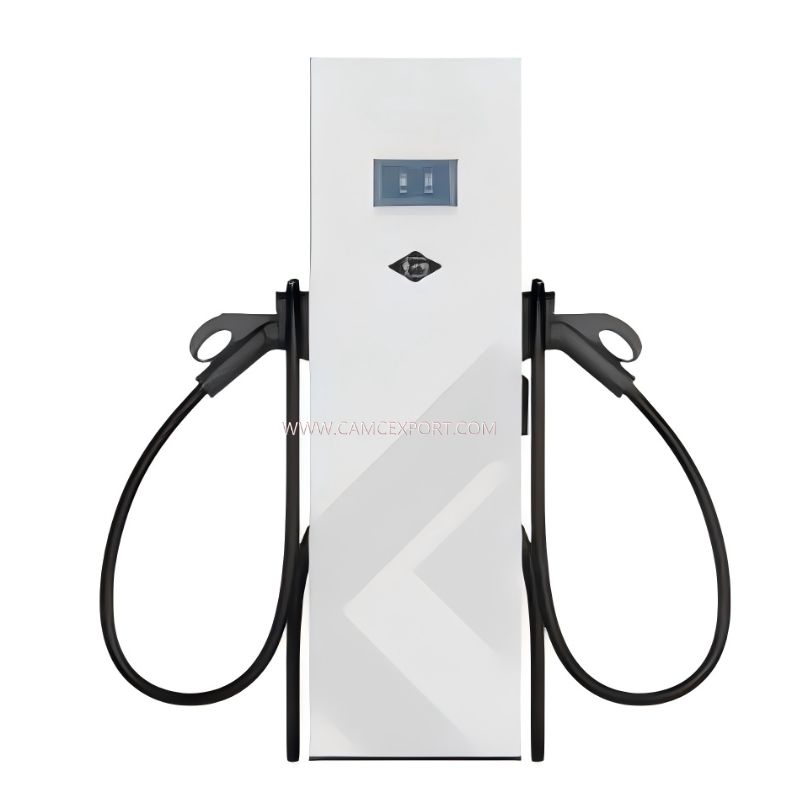

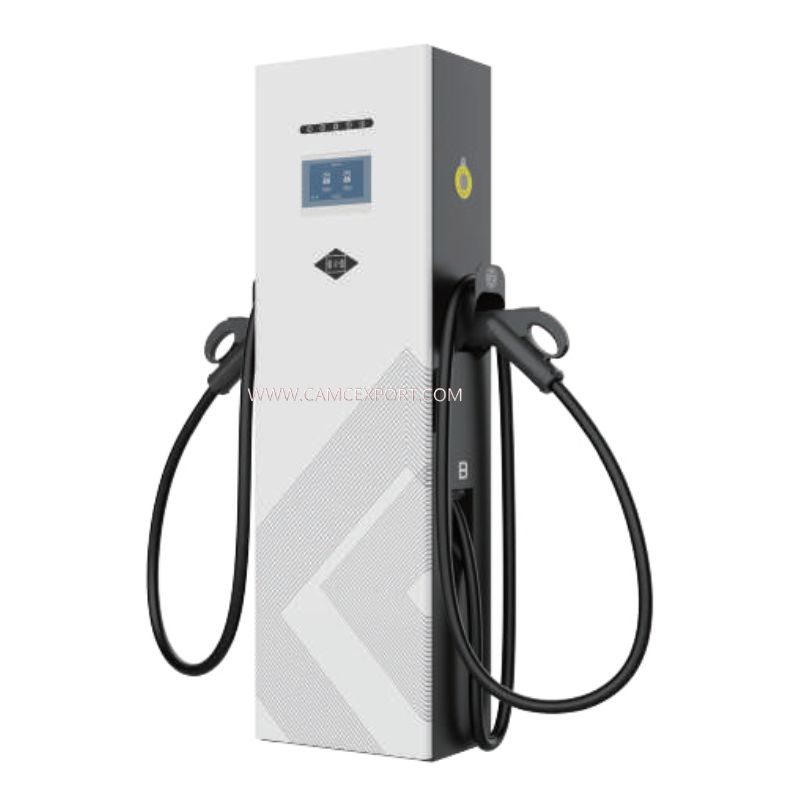

Single/Dual Gun Output: Each terminal supports single or dual gun output, adapting to different vehicle types and user needs.
Parallel Output Power: Supports parallel power output with an optional 30kW per port allocation, enabling dynamic power distribution across connected vehicles for optimized efficiency.
Configurable Output Power: The system offers configurable power output from 160kW to 400kW, allowing operators to adjust capacity based on usage scenarios and fleet requirements.
RFID Support: Integrated RFID card reading and writing functionality for secure user authentication, access control, and payment processing.
Multi-Scenario Application: Designed for diverse use cases, including fleet depots, highway rest stops, parking garages, and urban charging hubs.
Hybrid Operation Mode: The platform supports both standalone and networked operation, enabling seamless integration with charging network management systems.
Technical Specifications
Input: 400VAC / 480VAC (3P+N+PE) at 50/60Hz, compatible with global power grids.
Output Voltage: 200 – 1000VDC, supporting a wide range of modern electric vehicles.
Output Current: 0 to 1200A, delivering ultra-fast charging capabilities for high-capacity batteries.
Parallel Charge Mode (Optional): 30kW per port for dynamic power allocation across multiple terminals.
Efficiency: ≥94% at nominal output power, minimizing energy loss and operational costs.
Power Factor: >0.98, ensuring efficient power usage and grid compatibility.
Operating Temperature: -30°C to 55°C, enabling reliable performance in extreme climates.
Altitude: < 2000m, suitable for most regional environments.
Working / Storage Humidity: ≤ 95% RH || ≤ 99% RH (Non-condensing), ensuring stable operation in humid conditions.
Display: 7” LCD with touch screen for intuitive user operation and status monitoring.

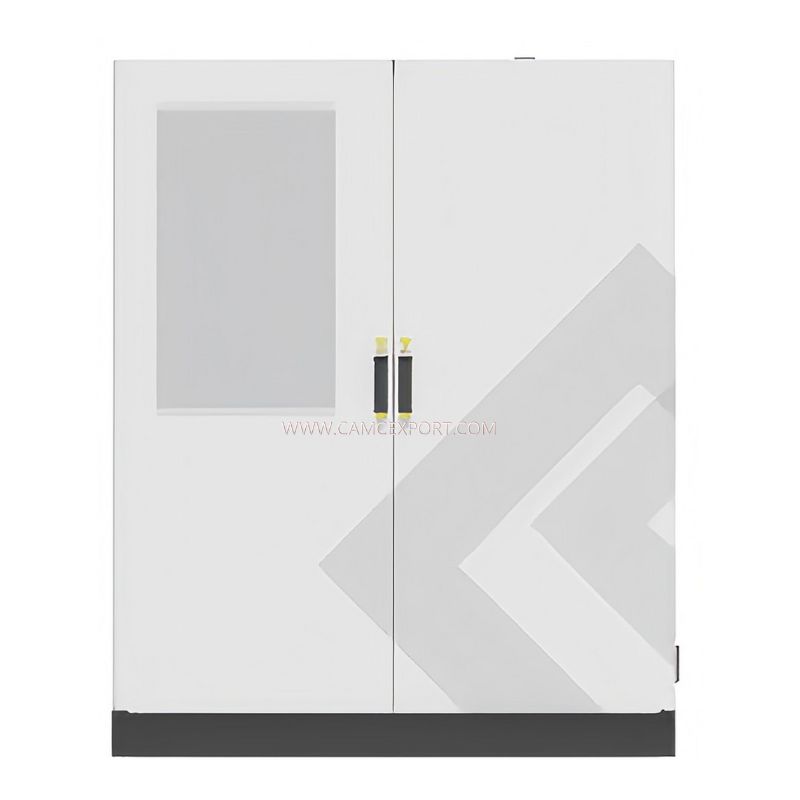

Dimensions (L x D x H): 1200mm x 500mm x 1700mm (main cabinet), optimized for space-efficient installation.
Ingress Protection: IP54 || IK10, providing robust protection against dust, water splashing, and external impact.
Power Electronics Cooling: Air Cooled, with a simple, low-maintenance thermal management system.
Weight: 550kg, ensuring structural stability and durability.
Insulation (Input - output): >2.5kV, guaranteeing electrical safety and reliability.
Regulatory Compliance: CE certified, complying with EMC standards EN 61000-6-1:2007 and EN 61000-6-3:2007/A1:2011/AC:2012.
Charging Protocol Standards: Mode 4 - IEC-61851, ISO-15118, DIN 70121, CHAdeMO 2.0, and GB/T 18487.2023, GB/T 20234.2023, GB/T 27930 2023 for broad interoperability.
Length of charging cable: 5m, providing convenient reach for vehicle connection.
Communication protocol: OCPP 1.6j, enabling seamless integration with leading network management systems for remote monitoring and billing.
Communication: Ethernet (Standard) || 3G/4G Modem (Optional), supporting both wired and wireless connectivity.
Electrical Safety: Comprehensive protection features including GFCI (RCD 30 mA Type A), 20 kA surge protection, over-voltage, under-voltage, over-current, missing ground, and output short-circuit protection. Temperature sensors at the charger coupler and power electronics ensure safe operation, with an emergency stop button for instant power disablement.
User Reviews
“This split-type DC charger has been a game-changer for our fleet operations. The ability to configure up to 12 charging terminals allows us to charge multiple heavy trucks simultaneously, drastically reducing downtime. The configurable power output and OCPP integration have simplified our management and billing processes, making it a highly efficient and reliable solution for our business.”— Fleet Operations Director, Logistics Company
“We installed this 360kW system in our public charging station, and it has exceeded all expectations. The flexible terminal configuration and support for multiple vehicle types have made it accessible to a wide range of users, while the air-cooled design ensures consistent performance even during peak hours. The CE certification and robust safety features give us full confidence in its reliability.”— Public Charging Station Manager
FAQ
Q: Can the system be configured to support different numbers of charging terminals?
A: Yes, the rectifier cabinet can be configured with up to 12 single-gun or 6 double-gun charging terminals, depending on your specific charging needs and space constraints.
Q: What types of electric vehicles can this system charge?
A: It supports a wide range of EV types, including passenger cars, buses, sanitation vehicles, and heavy trucks, with compatibility for all major charging protocols including CCS, CHAdeMO, and GB/T.
Q: Is the system compatible with existing charging network management platforms?
A: Yes, it is fully compliant with OCPP 1.6j, ensuring seamless integration with most leading network management systems for remote monitoring, diagnostics, and billing.
Q: What maintenance is required for this system?
A: The air-cooled design and modular architecture minimize maintenance needs. Routine checks include verifying cable integrity, updating firmware, and ensuring the cooling system is free of debris. The system’s self-diagnostic capabilities proactively detect potential issues for timely resolution.
From the supplier
Product Name
160-400kW Split-Type DC EV Charger (360kW Main Cabinet)
Product Overview
Our 160-400kW Split-Type DC EV Charger is a high-power, modular charging system designed for large-scale public and commercial charging scenarios. The system consists of a centralized rectifier cabinet and flexible charging terminals, which can be configured with up to 12 single-gun or 6 double-gun terminals to simultaneously charge up to 12 electric vehicles. This makes it ideal for automobile enterprises, commercial real estate, government facilities, gas stations, and public fast-charging stations. It supports charging for a wide range of EV types, including passenger cars, buses, sanitation vehicles, and heavy trucks, delivering reliable, efficient performance in high-demand environments.
Key Features
Flexible Terminal Configuration: The rectifier cabinet can be configured with 12 single-gun or 6 double-gun charging terminals, enabling simultaneous charging for up to 12 vehicles to meet dense charging demand.
Single/Dual Gun Output: Each terminal supports single or dual gun output, adapting to different vehicle types and user needs.
Parallel Output Power: Supports parallel power output with an optional 30kW per port allocation, enabling dynamic power distribution across connected vehicles for optimized efficiency.
Configurable Output Power: The system offers configurable power output from 160kW to 400kW, allowing operators to adjust capacity based on usage scenarios and fleet requirements.
RFID Support: Integrated RFID card reading and writing functionality for secure user authentication, access control, and payment processing.
Multi-Scenario Application: Designed for diverse use cases, including fleet depots, highway rest stops, parking garages, and urban charging hubs.
Hybrid Operation Mode: The platform supports both standalone and networked operation, enabling seamless integration with charging network management systems.
Technical Specifications
Input: 400VAC / 480VAC (3P+N+PE) at 50/60Hz, compatible with global power grids.
Output Voltage: 200 – 1000VDC, supporting a wide range of modern electric vehicles.
Output Current: 0 to 1200A, delivering ultra-fast charging capabilities for high-capacity batteries.
Parallel Charge Mode (Optional): 30kW per port for dynamic power allocation across multiple terminals.
Efficiency: ≥94% at nominal output power, minimizing energy loss and operational costs.
Power Factor: >0.98, ensuring efficient power usage and grid compatibility.
Operating Temperature: -30°C to 55°C, enabling reliable performance in extreme climates.
Altitude: < 2000m, suitable for most regional environments.
Working / Storage Humidity: ≤ 95% RH || ≤ 99% RH (Non-condensing), ensuring stable operation in humid conditions.
Display: 7” LCD with touch screen for intuitive user operation and status monitoring.
Dimensions (L x D x H): 1200mm x 500mm x 1700mm (main cabinet), optimized for space-efficient installation.
Ingress Protection: IP54 || IK10, providing robust protection against dust, water splashing, and external impact.
Power Electronics Cooling: Air Cooled, with a simple, low-maintenance thermal management system.
Weight: 550kg, ensuring structural stability and durability.
Insulation (Input - output): >2.5kV, guaranteeing electrical safety and reliability.
Regulatory Compliance: CE certified, complying with EMC standards EN 61000-6-1:2007 and EN 61000-6-3:2007/A1:2011/AC:2012.
Charging Protocol Standards: Mode 4 - IEC-61851, ISO-15118, DIN 70121, CHAdeMO 2.0, and GB/T 18487.2023, GB/T 20234.2023, GB/T 27930 2023 for broad interoperability.
Length of charging cable: 5m, providing convenient reach for vehicle connection.
Communication protocol: OCPP 1.6j, enabling seamless integration with leading network management systems for remote monitoring and billing.
Communication: Ethernet (Standard) || 3G/4G Modem (Optional), supporting both wired and wireless connectivity.
Electrical Safety: Comprehensive protection features including GFCI (RCD 30 mA Type A), 20 kA surge protection, over-voltage, under-voltage, over-current, missing ground, and output short-circuit protection. Temperature sensors at the charger coupler and power electronics ensure safe operation, with an emergency stop button for instant power disablement.
User Reviews
“This split-type DC charger has been a game-changer for our fleet operations. The ability to configure up to 12 charging terminals allows us to charge multiple heavy trucks simultaneously, drastically reducing downtime. The configurable power output and OCPP integration have simplified our management and billing processes, making it a highly efficient and reliable solution for our business.”— Fleet Operations Director, Logistics Company
“We installed this 360kW system in our public charging station, and it has exceeded all expectations. The flexible terminal configuration and support for multiple vehicle types have made it accessible to a wide range of users, while the air-cooled design ensures consistent performance even during peak hours. The CE certification and robust safety features give us full confidence in its reliability.”— Public Charging Station Manager
FAQ
Q: Can the system be configured to support different numbers of charging terminals?
A: Yes, the rectifier cabinet can be configured with up to 12 single-gun or 6 double-gun charging terminals, depending on your specific charging needs and space constraints.
Q: What types of electric vehicles can this system charge?
A: It supports a wide range of EV types, including passenger cars, buses, sanitation vehicles, and heavy trucks, with compatibility for all major charging protocols including CCS, CHAdeMO, and GB/T.
Q: Is the system compatible with existing charging network management platforms?
A: Yes, it is fully compliant with OCPP 1.6j, ensuring seamless integration with most leading network management systems for remote monitoring, diagnostics, and billing.
Q: What maintenance is required for this system?
A: The air-cooled design and modular architecture minimize maintenance needs. Routine checks include verifying cable integrity, updating firmware, and ensuring the cooling system is free of debris. The system’s self-diagnostic capabilities proactively detect potential issues for timely resolution.
