2 Axles 40FT Container Skeleton Semi Trailer

Technical Parameters

DIMENSIONS

Tare  Weight

5400kg

Overall     Length

12400mm

Overall  Width

2500mm

Payload

28000kg

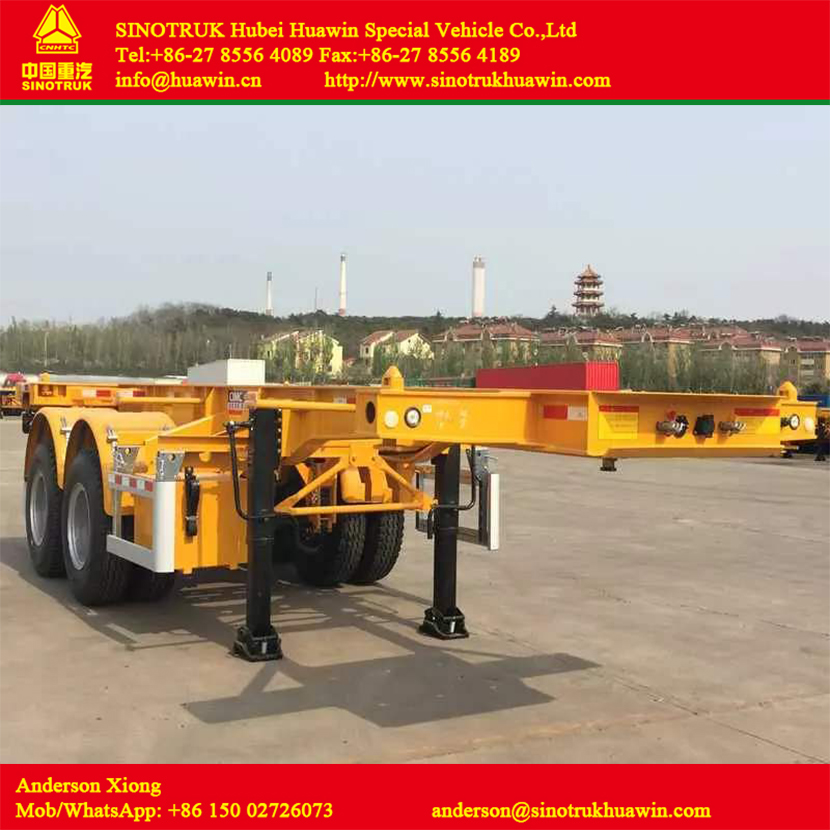

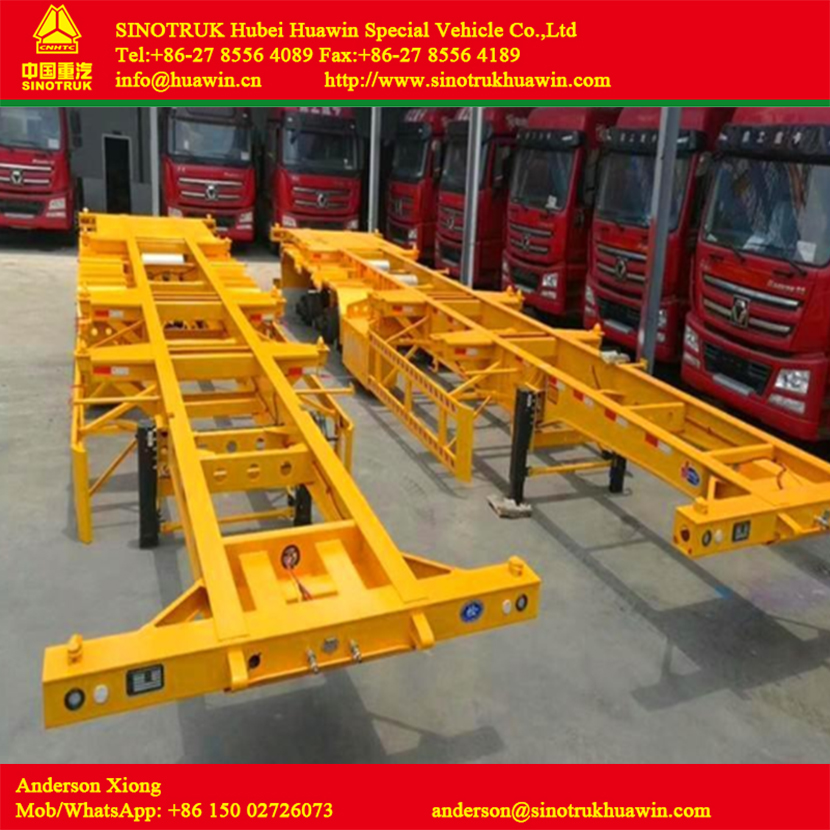

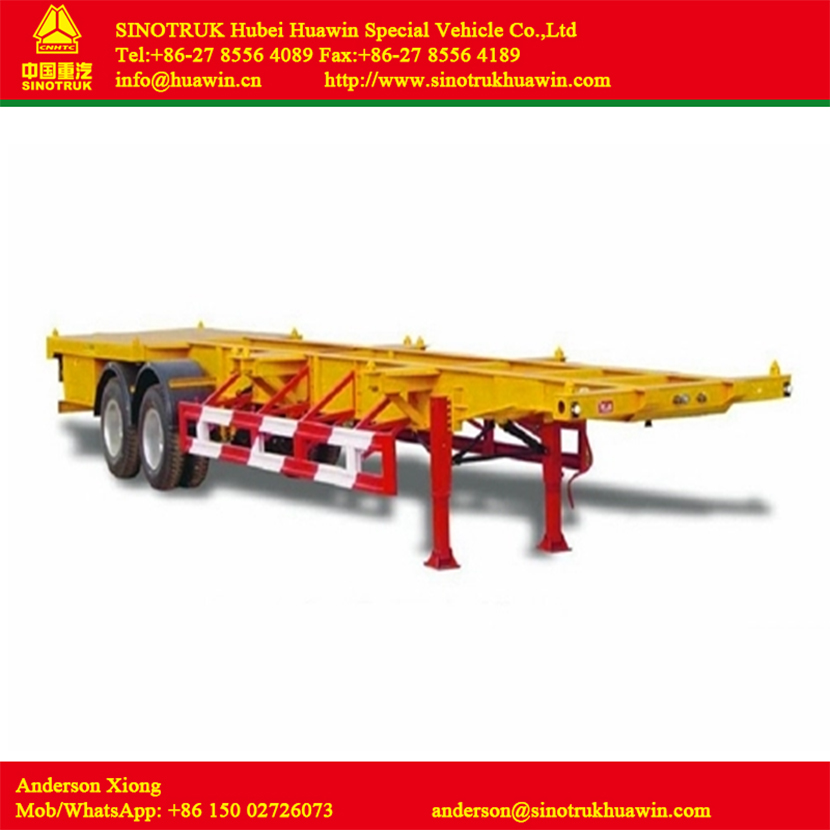

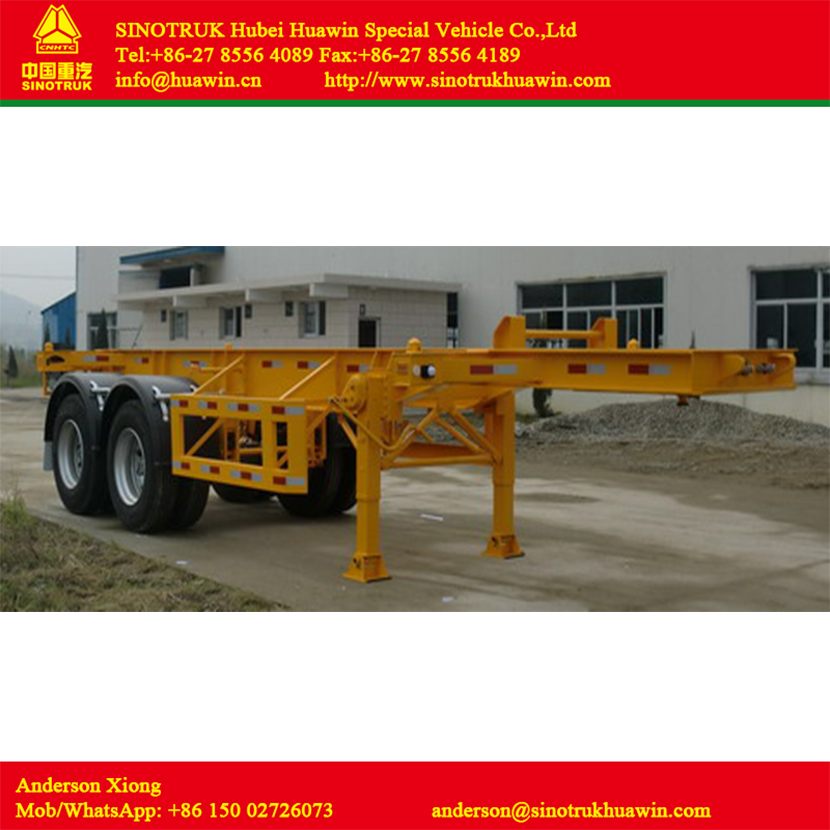

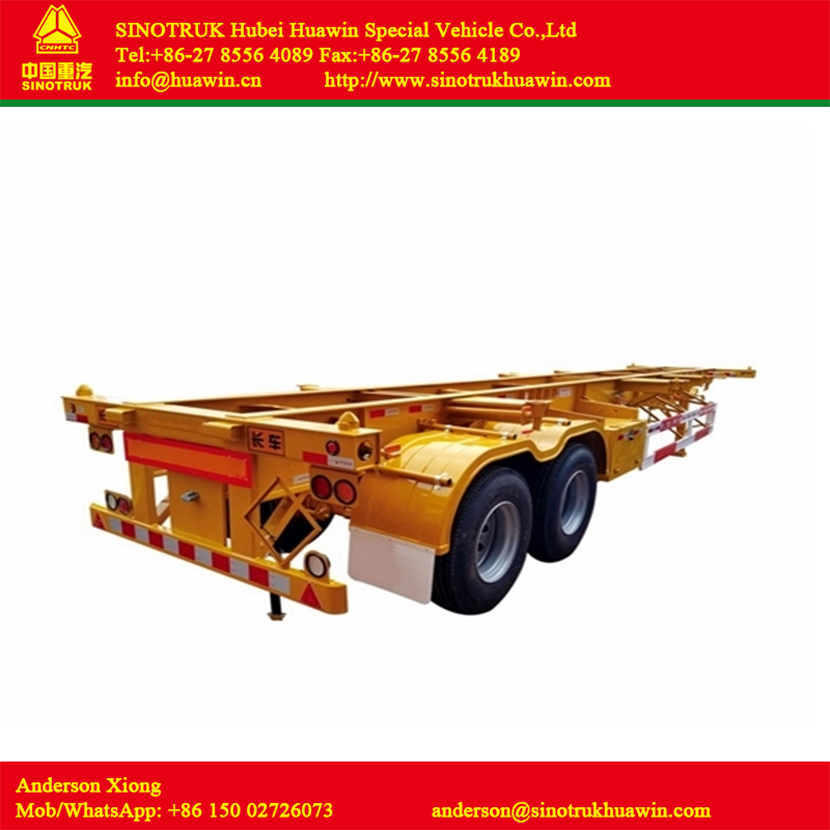

Photo for reference. Final products can be made according to exact requirements

SPECIFICATIONS

I Beam & Chassis

Heavy duty and extra durability designed I beam; high tensile steel Q345, welded by automatic Submerged-Arc processes.

Axle

2 axles

FUWA 13 ton

Suspension

Mechanical spring suspension

Floor

3mm checker plate

King Pin

2” Bolt-in King Pin

Landing Gear

Two-speed, manual operating, heavy duty landing gear

Wheel Rim

9.0-22.5 wheel rim

Tire

12R22.5 tubeless tire 9 pieces including one spare

Twist Lock

12 nos. of ISO twist lock for 1x40ft container, the retractable central locks can be laid down.

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks,with ABS

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box
