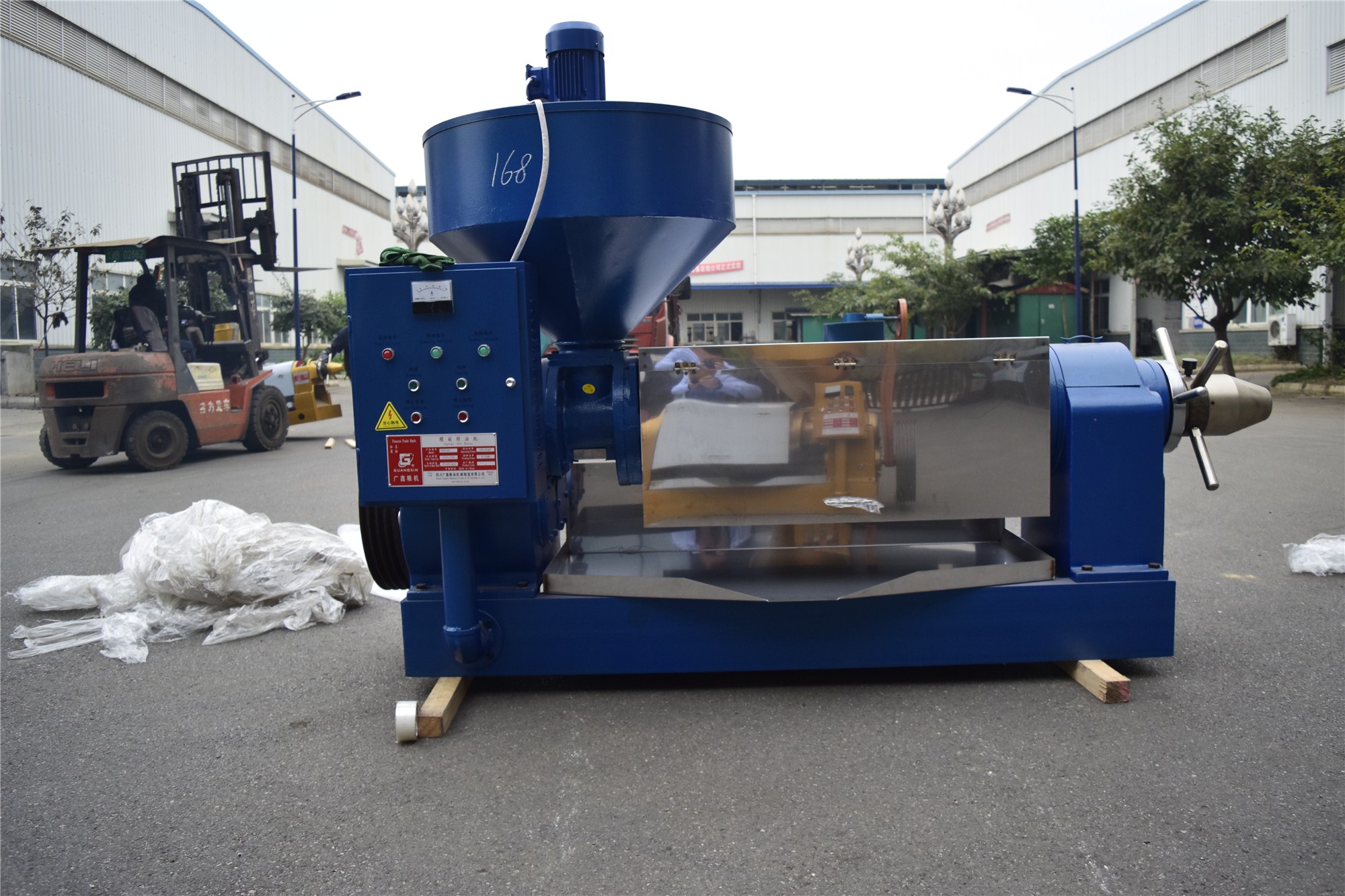

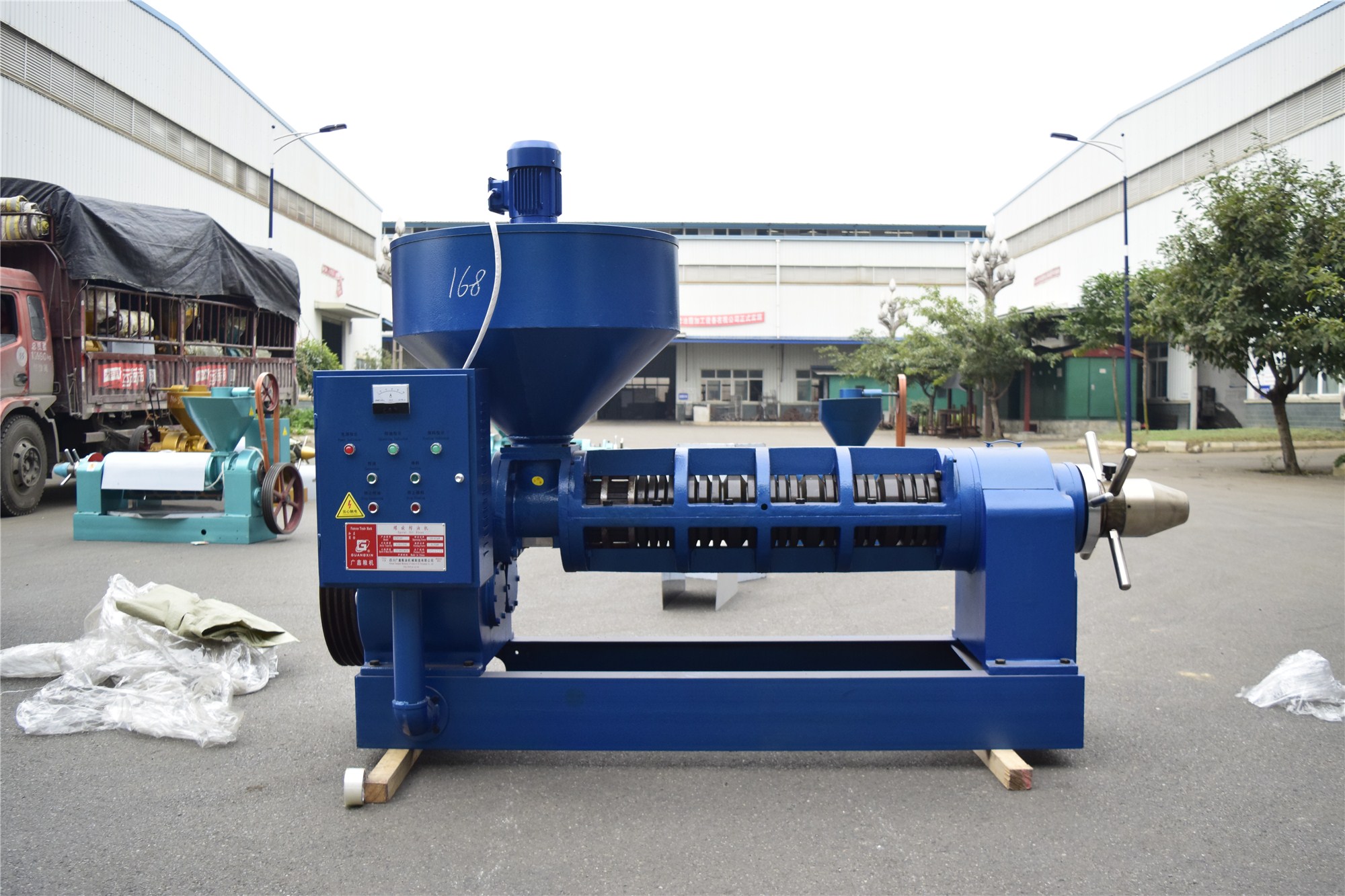

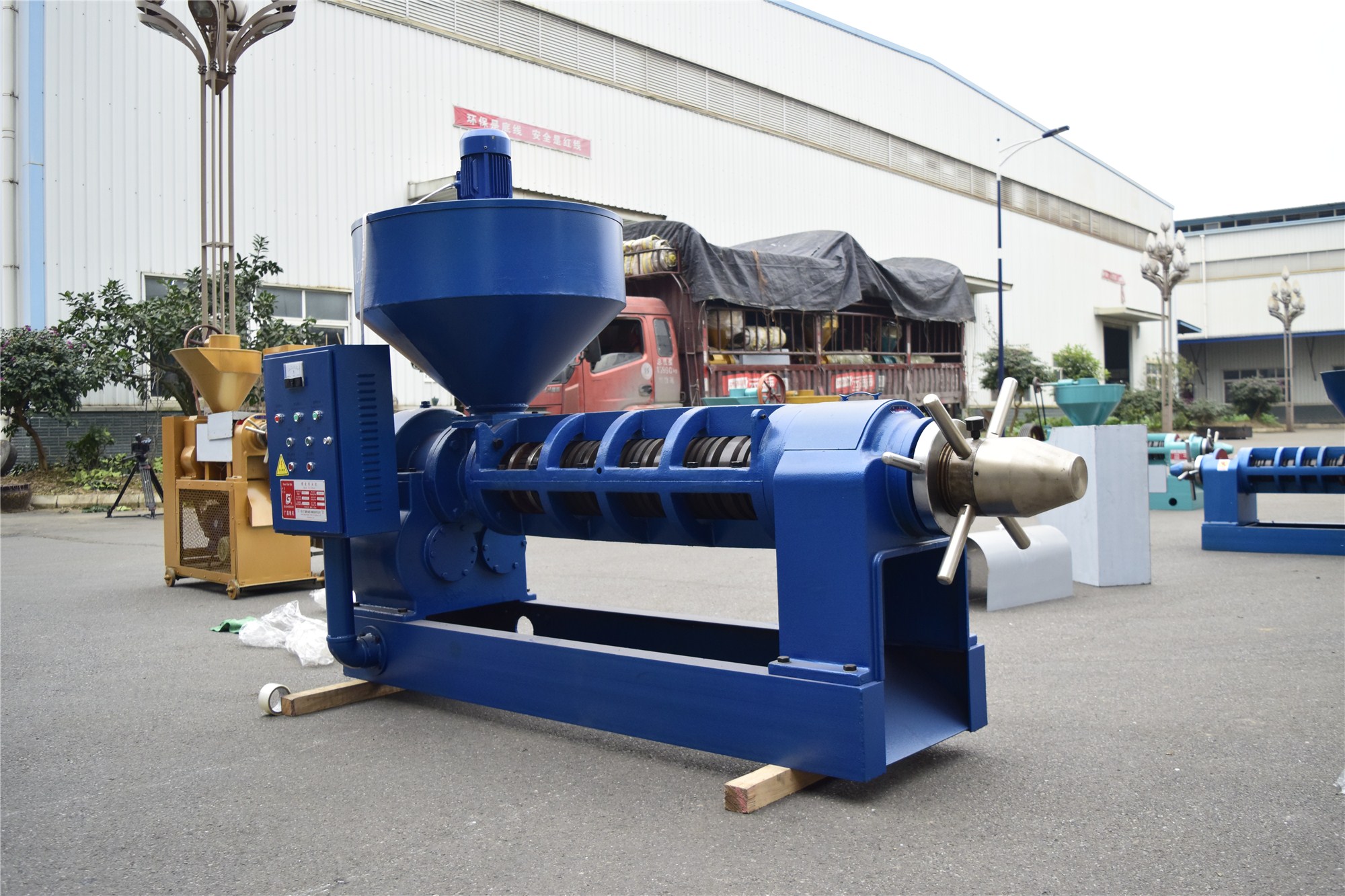

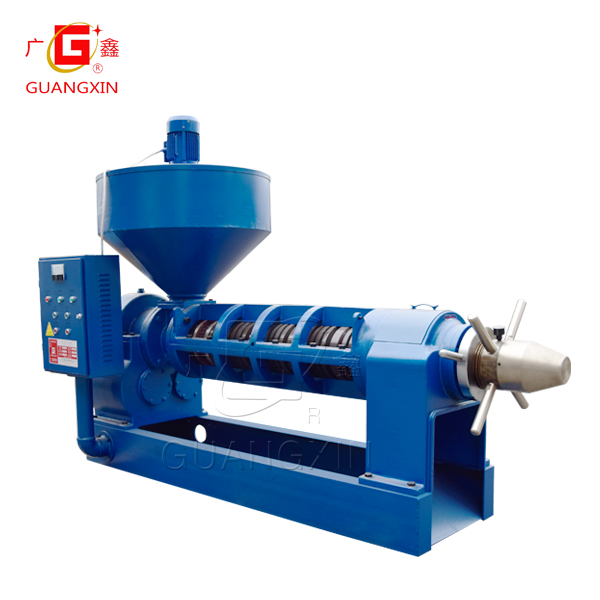

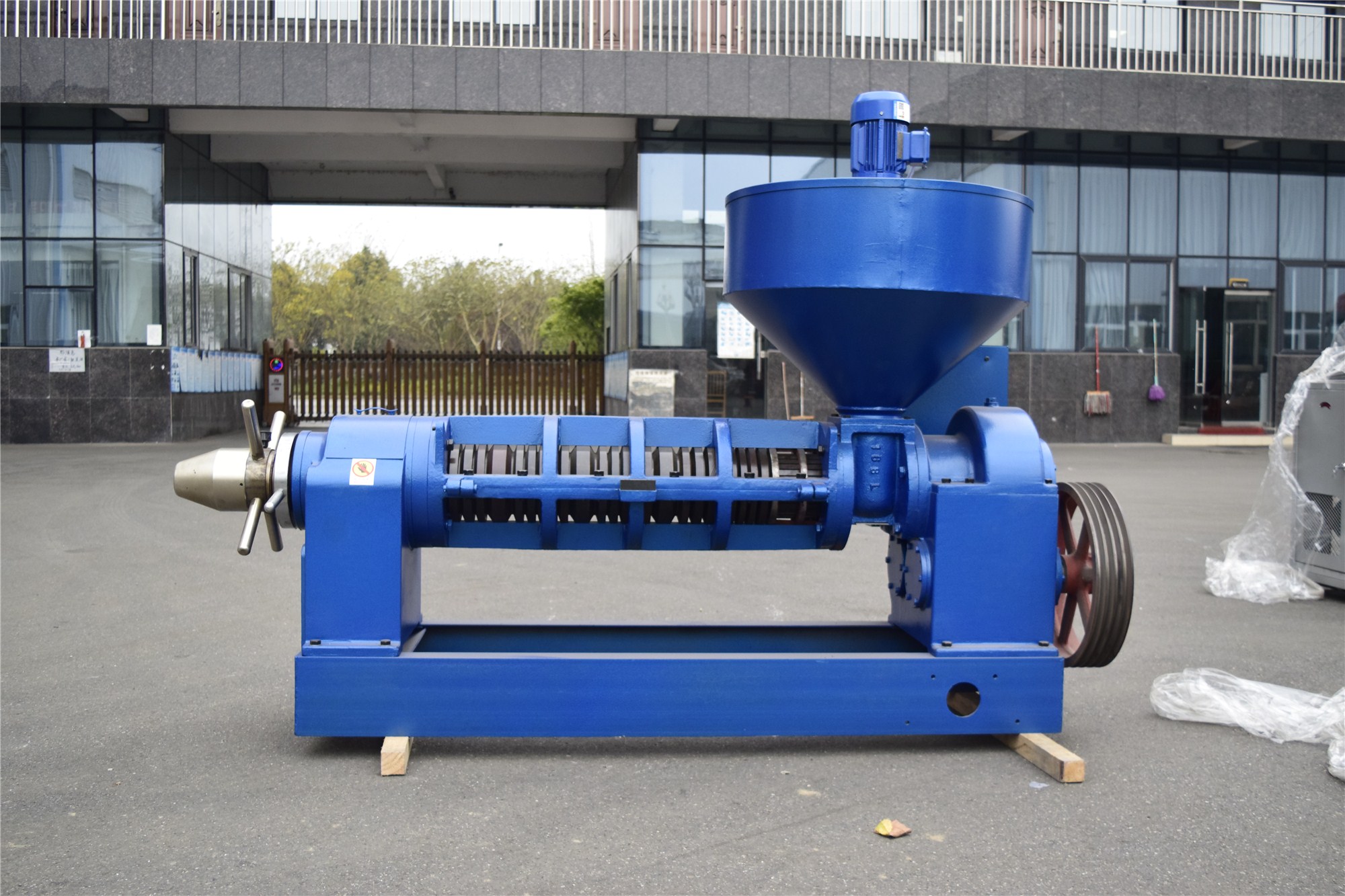

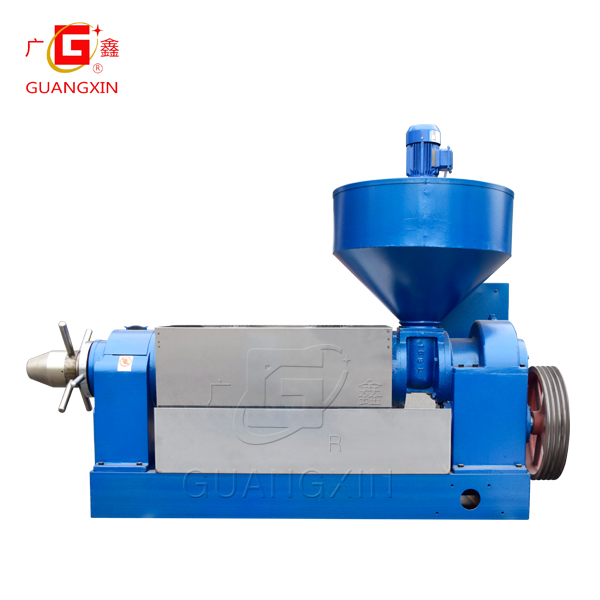

20TPD sunflower Oil Press Machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
20TPD sunflower Oil Press Machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L2750*W1100*H1830
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: stainless steel,carbon steel,iron
- Size: L2750*W1100*H1830
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L2750*W1100*H1830 |
| Color | Blue |
Product details
| Materials | stainless steel,carbon steel,iron |
|---|---|
| Size | L2750*W1100*H1830 |
| Color | Blue |
From the supplier
Technical Specification:
ITEM
YZYX168B
YZYX168C、 YZYX168
Revolving speed of spiral axis (r/min)
32-38
Power required（kw）
37-45（6 pole）
Feeding power（kW）
0.55
Measurement (mm)
2500×1008×1726
2670×1008×1726
Weight (kg)
17101800
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity
Oil content of
Dry cakes (%)
Oil Yield Efficiency (t/24h)
Electricity Consumption (kw.h/t)
Rapeseed
≥20
≤7.4
≥84
≤34
Cotton seeds
≥20
≤6.3
≥80
≤54
Soybean
≥17
≤6.2
≥69
≤51
Peanut
≥20
≤6.3
≤92.5
≤34
Performance Characteristics:
YZYX168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
YZYX168B is basic 2-step-squeezing spiral oil press.
YZYX168C is 3-step squeezing spiral oil press, suitable for most defferent oil material.
YZYX168 is 4-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
From the supplier
Technical Specification:
ITEM
YZYX168B
YZYX168C、 YZYX168
Revolving speed of spiral axis (r/min)
32-38
Power required（kw）
37-45（6 pole）
Feeding power（kW）
0.55
Measurement (mm)
2500×1008×1726
2670×1008×1726
Weight (kg)
17101800
Note:
This weight is without electro-motor’s weight.
Main technique features:
Below features are based on oil plants with above average quality smoothly and continuously hot squeezed with all auxiliary equipments after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity
Oil content of
Dry cakes (%)
Oil Yield Efficiency (t/24h)
Electricity Consumption (kw.h/t)
Rapeseed
≥20
≤7.4
≥84
≤34
Cotton seeds
≥20
≤6.3
≥80
≤54
Soybean
≥17
≤6.2
≥69
≤51
Peanut
≥20
≤6.3
≤92.5
≤34
Performance Characteristics:
YZYX168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
YZYX168B is basic 2-step-squeezing spiral oil press.
YZYX168C is 3-step squeezing spiral oil press, suitable for most defferent oil material.
YZYX168 is 4-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
