Visit the HUADE MECHANICAL & EQUIPMENT CO.,LTD QUANZHOU store

22kw Direct Drive Screw Air Compressor

10/10 fairsIndustry and Trade CompanyModel LG-30G

$2,41000–$2,50000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$3,172 / unit

range $3,114–$3,230 · total ≈ $317,229

Quantity

FOB goods (100): $245,500
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $8,593
Section 301 tariff (25.0%): $61,375
Customs fees (MPF/HMF): $941

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

Visit the HUADE MECHANICAL & EQUIPMENT CO.,LTD QUANZHOU store

22kw Direct Drive Screw Air Compressor

10/10 fairsIndustry and Trade CompanyModel LG-30G

$2,41000–$2,50000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$3,172 / unit

range $3,114–$3,230 · total ≈ $317,229

Quantity

FOB goods (100): $245,500
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $8,593
Section 301 tariff (25.0%): $61,375
Customs fees (MPF/HMF): $941

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: IRON
Size: 1000*800*1280
Color: Gray
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others

$2,41000–$2,50000/ unit FOB

The supplier did not say what one unit is (piece, set, box). We confirm this when we get the quote.

MOQ 1 unit

Estimated landed cost

$3,172 / unit

range $3,114–$3,230 · total ≈ $317,229

Quantity

FOB goods (100): $245,500
Ocean freight + handling (1.0 CBM): $820
US duty (3.5%): $8,593
Section 301 tariff (25.0%): $61,375
Customs fees (MPF/HMF): $941

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Get a quote from this supplier See all sourcing services

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

Materials: IRON
Size: 1000*800*1280
Color: Gray
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others

Product details

Materials	IRON
Size	10008001280
Color	Gray

From the supplier

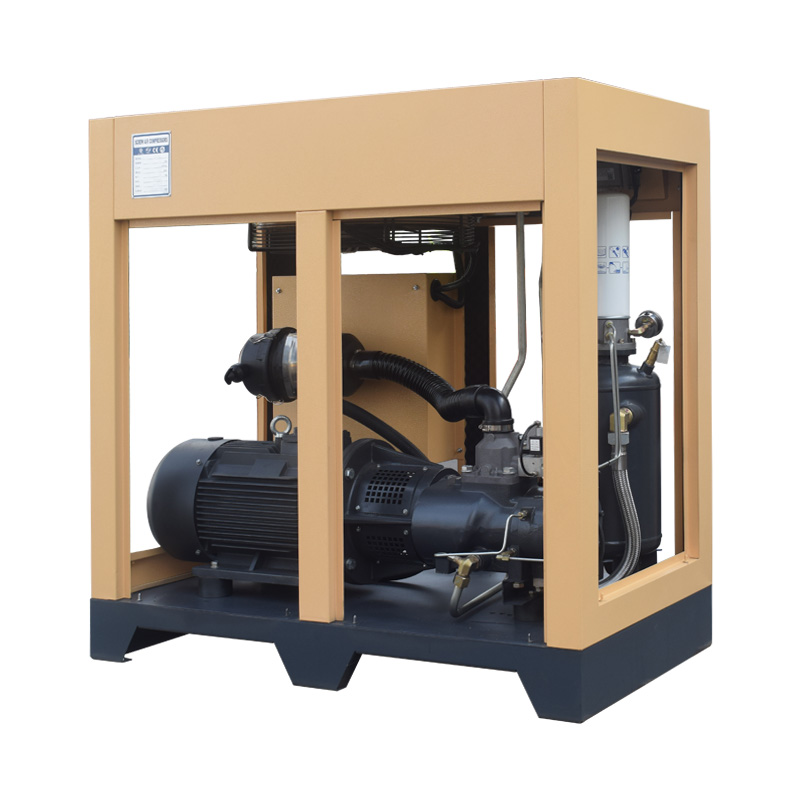

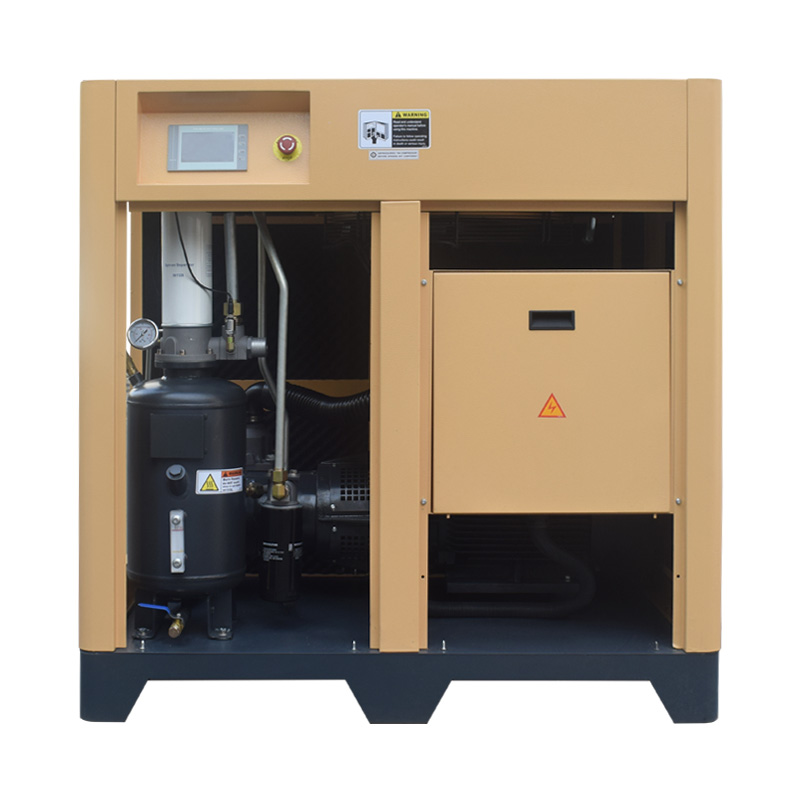

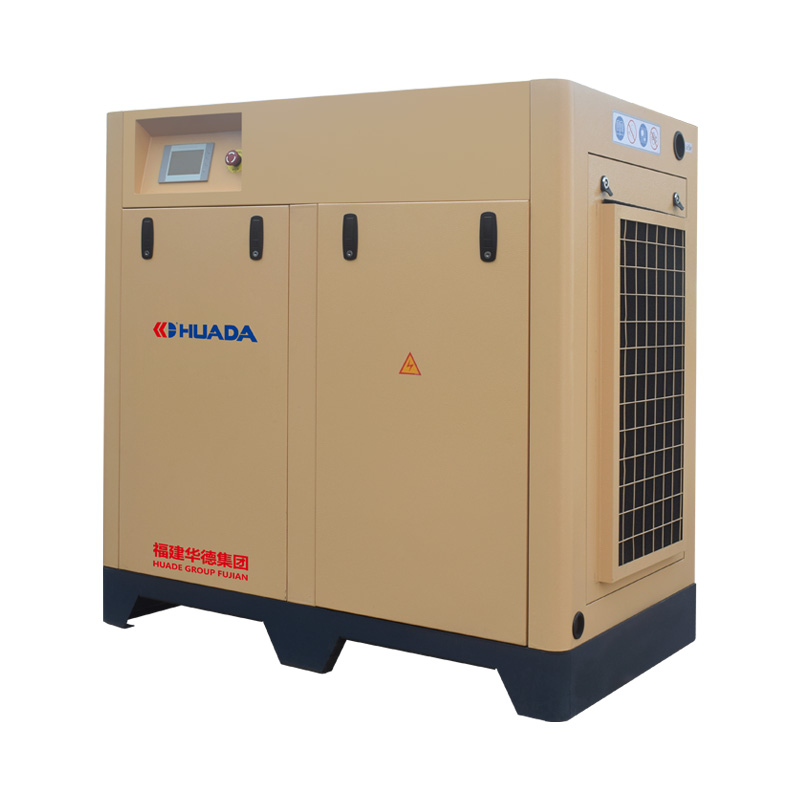

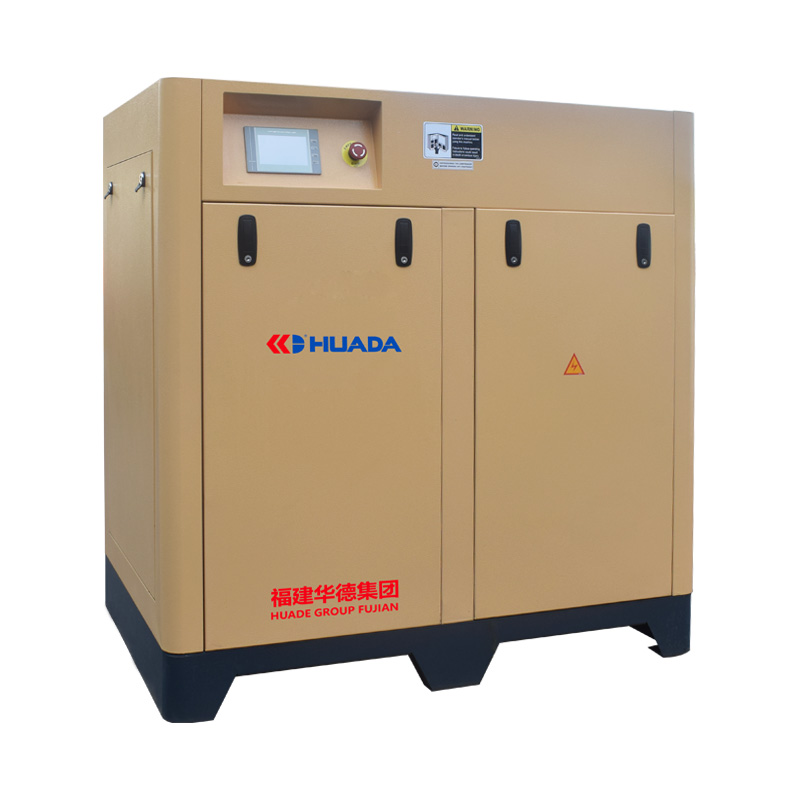

22kw Direct Drive Screw Air Compressor

Be different from belt drive system,which is due to the wear and slip of belt reduce efficiency and increase energy consumption,Huade direct drive system is to ensure high efficiency of energy transmission and constant flow output.

1.Loss-free power transmission from motor to Compressor stage

Energy efficient thus reducing electricity costs

2.Small footprint

Space-saving technology, which also allows installation in confined spaces. Good accessibility for all service and maintenance work.

3.Reduced wear and tear

No need to replace the drive belts and therefore lower maintenance costs. Longer service life of the compressor stage due to a significant reduction of the radial load on the bearings.

4.Reliability

No risk of drive belt failure due to breakage or wear

5.Highly efficient IE3 motors contribute to significant energy reduction

6.Easy to use control system

Easy to use control system that shows you all import- ant values in a clear and concise display.

Model
LG-30GDischarge Pressure(Mpa)
0.8Air Delivery(m³/min)
3.8Power(kW)
22Lubricant(L)
16Driving way
Direct Drive
Cooling
Air
Discharge Temperature(℃)
＜Ambient Temperature＋15℃~18℃
Noise Level(dB(A))
65±3
Starting Method
Y-△Starter
Electricity(V/Hz)
380V/50Hz
Dimension(mm)
1320*800*1300Weight(kg)
650Air Outlet Pipe Diameter(inch/mm)
G1''

1、Company Advantage

Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.

2、Workshop & Equipment

We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.

3、Qualification Certificate

We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.

4、Global Parter

Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
