About this product
- Materials: PC (P type), ABS (A type), HIPS ( H type)
- Size: 315*360*109mm
- Color: White/Grey transparent/ Yellow transparent
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Russia
- Made in: Guangdong, China
About this product
- Materials: PC (P type), ABS (A type), HIPS ( H type)
- Size: 315*360*109mm
- Color: White/Grey transparent/ Yellow transparent
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Russia
- Made in: Guangdong, China
Product details
| Materials | PC (P type), ABS (A type), HIPS ( H type) |
|---|---|
| Size | 315*360*109mm |
| Color | White/Grey transparent/ Yellow transparent |
From the supplier

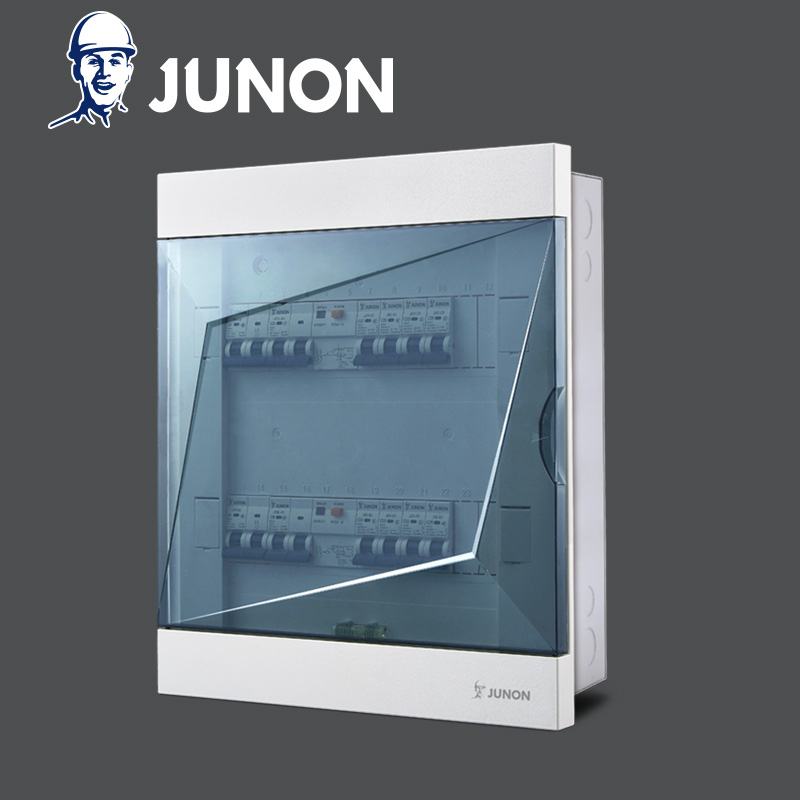

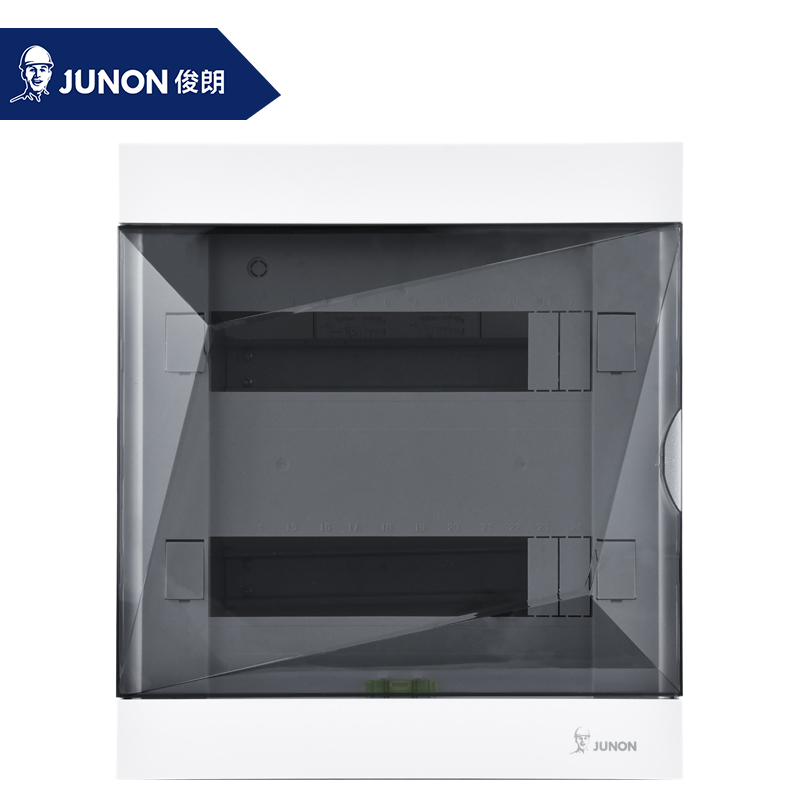

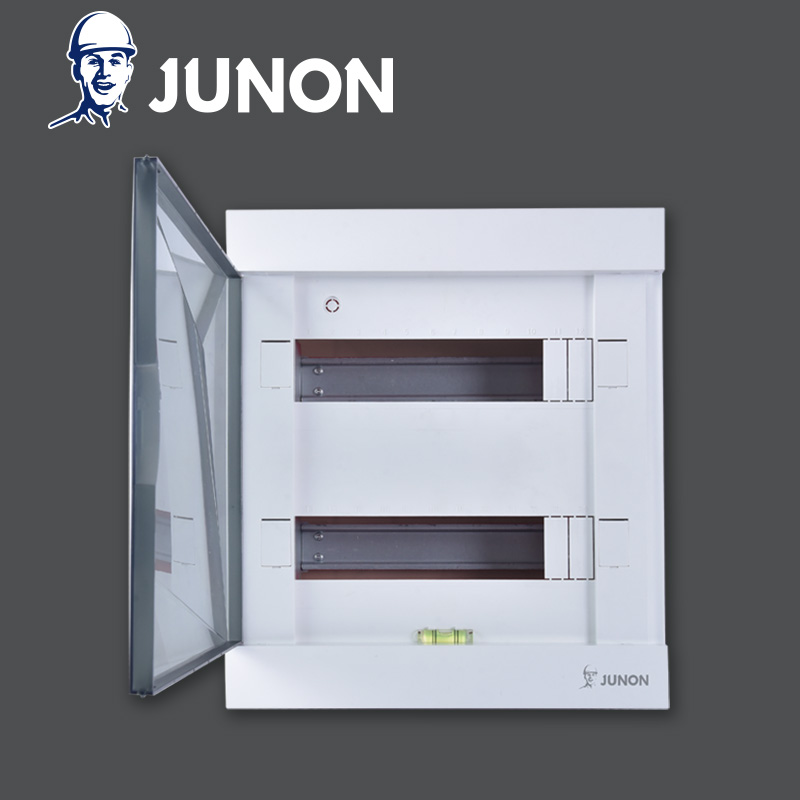

C6 series 24way distribution box is a kind of indoor distribution box, installing low-voltage electrical products, such as MCB, RCCB, disconnecting switch, surge protective device and so on. This distribution box is an empty box excluding the low voltage electrical components. This distribution box is gathering JUNON 30 years of distribution board manufacturing strength, incorporating a new concept of "dynamic adjustment", reinterpreting the new standard for Consumer Unit.
C6 series distribution box, is a high quality distribution panel box with competitive price. It is becoming more and more popular since we launched it to the market. The panel box cover has three kinds of colors, which can meet different style of your house. The base box we have metal material and plastic material for your choice. We have surface mounted and flush mounted two installation ways. 4-36 way are available.

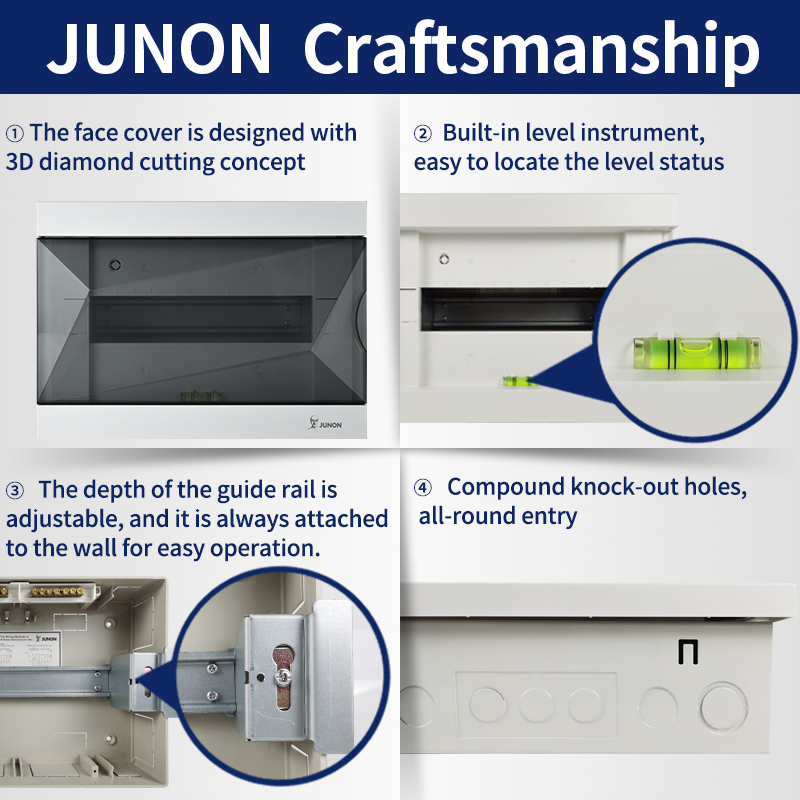

Product Features
- Diamond cutting design • Decorative beautiful living home: The cover is designed with 3D diamond cutting concept to enjoy the trend aesthetic experience
- Dynamic adjustment, easy positioning: built-in level meter, easy to position horizontal state; adjustable guide rail depth, always attached to the wall, easy to operate
- Composite knock-out hole, all-round incoming line: the bottom box is reserved for round hole, round hole and elliptical hole to realize all-round incoming line.
More Information

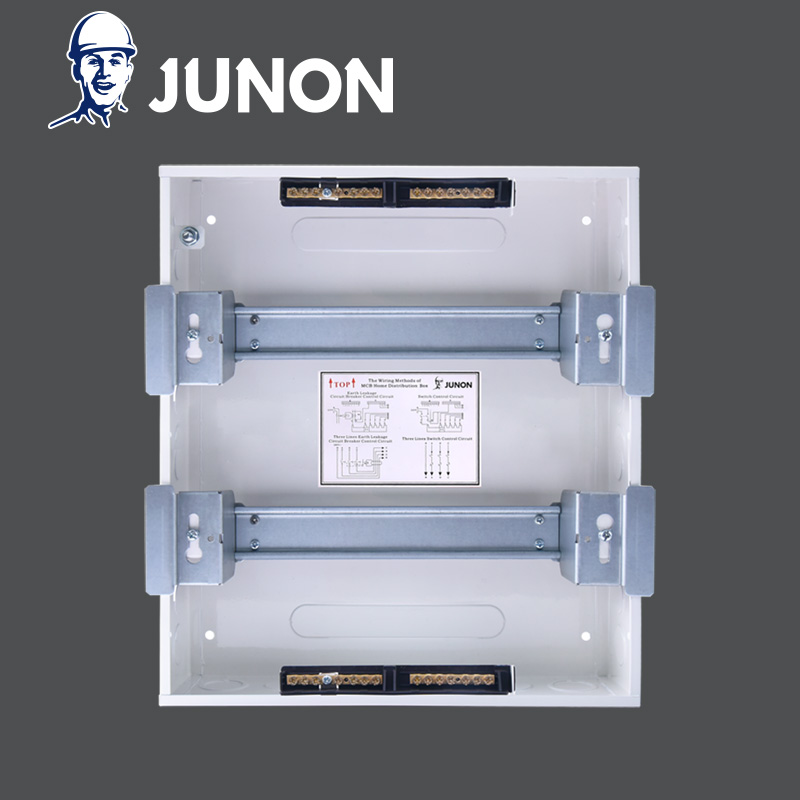

This distribution box includes cover, frame, base box, guide rail, neutral
copper bar and earth copper bar. It has surface mounting type and flush
mounting type. Flush mounting is fixed inside the wall, and surface mounting
is hung on the wall surface. There are both plastic base and metal base for the

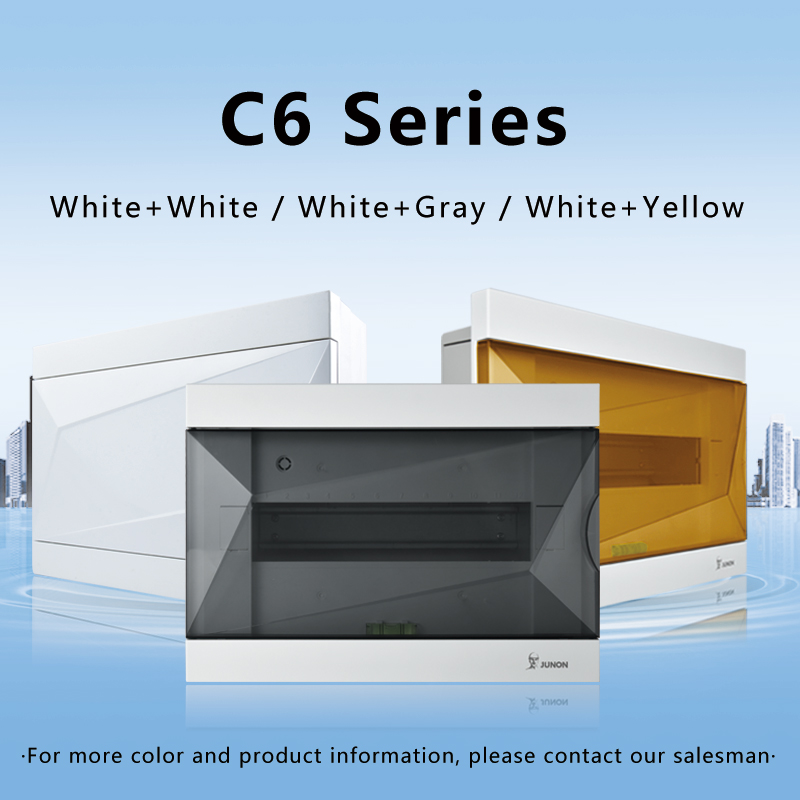

flush mounting distribution box. Surface mounting type has plastic base only. There are three color options for the cover : White + Gray, White + White, White + Yellow. This distribution box has totally 8 kinds of specifications as 4 units, 8 units, 12 units, 16 units, 20 units, 24 units, 32 units, and 36 units. The distribution box less than 20 units (including 20 units) is single row. The ones with 24 units and 32 units are double rows. The 36 units distribution box is triple rows.
Product Details
Model No.: DX6-A24TWB
Unit: 24 Way
Installation: Flush Mounted
Base type: Metal
Rated Voltage: 230V/400V
Rated current: 125A
Rated frequency: 50/60Hz
MOQ: 500pcs
Package: 5 PCS/CTN, master carton size: 58.5*33.3*38.3CM
Brand: JUNON/OEM
Fire resistence:650℃/30s
Ambient temperature(℃):-5~+40
Storage temperature(℃):-40~+75
Patent Number: CN201830774521.1
3 Kinds of Material for the cover: PC (P type), ABS (A type), HIPS ( H type)
Din Rail Material: 1.0mm galvanized steel sheet
Neutral & Earth Bar Material: copper
Cover Color: White + Grey
IP Rating: Level IP30
Why Us?
1. Manufacturer
Place your order directly to the factory, no intermediate costs.
2. Strict QC inspection
Quality is most important in our business. We will make QC inspection strictly before ship out, make sure every pc of our products is good quality.
3. Stable Supply
As the first-class manufacturer, we have sufficient stable supply.
4. Fast delivery
Orders normally can be delivered within 30-45 days.
5. Professional sale team with the best after-service
A professional and experienced sale team will provide you with an excellent service.
About the supplier
Main products: Switch,Plug,LED Tube,Earth Leakage Circuit Breaker,Small breaker ( low-voltage apparatus),Power distribution box,LED down light,LED spot light
