Product Description

1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.



SPECIFICATION



ModelMR-13A Grinding RangeΦ2-Φ13(Φ15)Point Angle95°(90°)~135°PowerAC220VMotor120WSpeed4400rpmDimension32*18*19Weight10kgStandard EquipmentGrinding wheel :CBN (for HSS)×1Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13Collet chuck:(Φ2-Φ14)×1 Option EquipmentGrinding wheel :SD (for Carbide)Collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15Collet chuck:Φ15



Details:

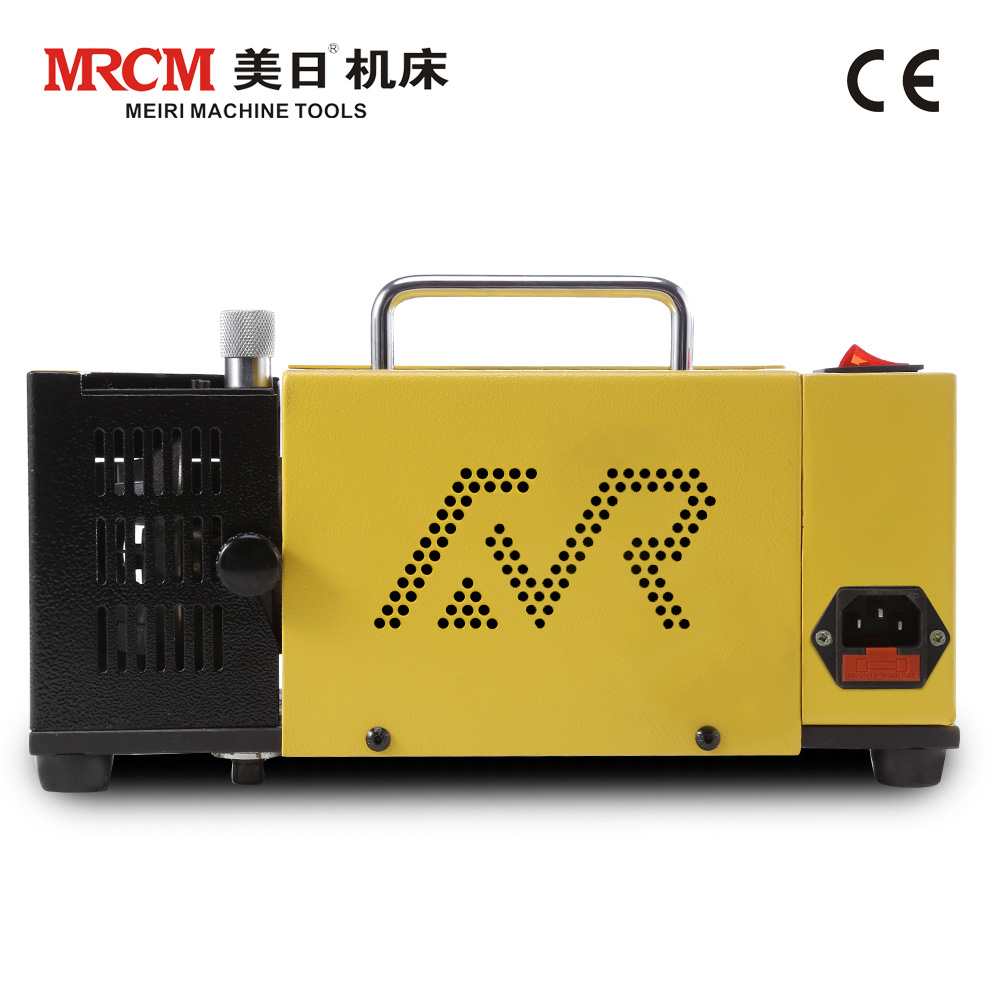

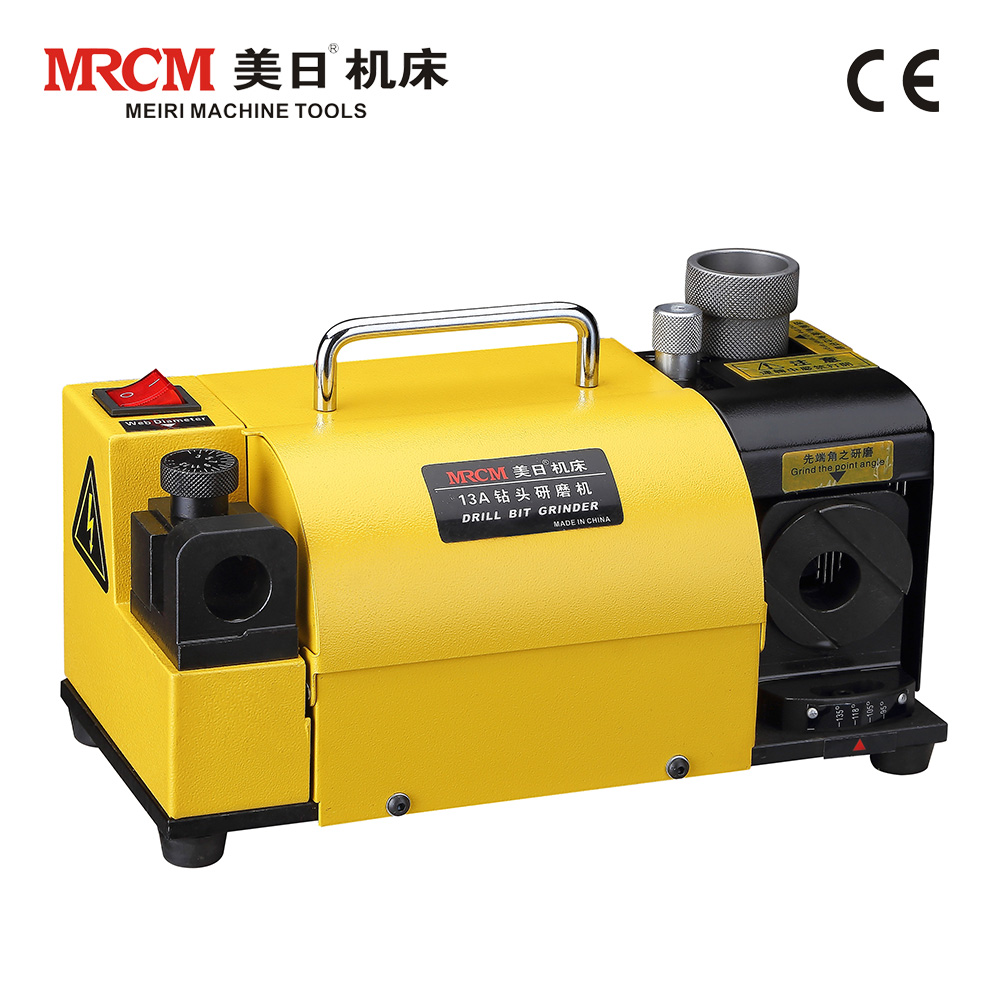

MR-13A

            DRILL BIT SHARPENER

                  More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATIONStill use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results

INSISTING ON ORIGINAL DESIGN FROM CHINA

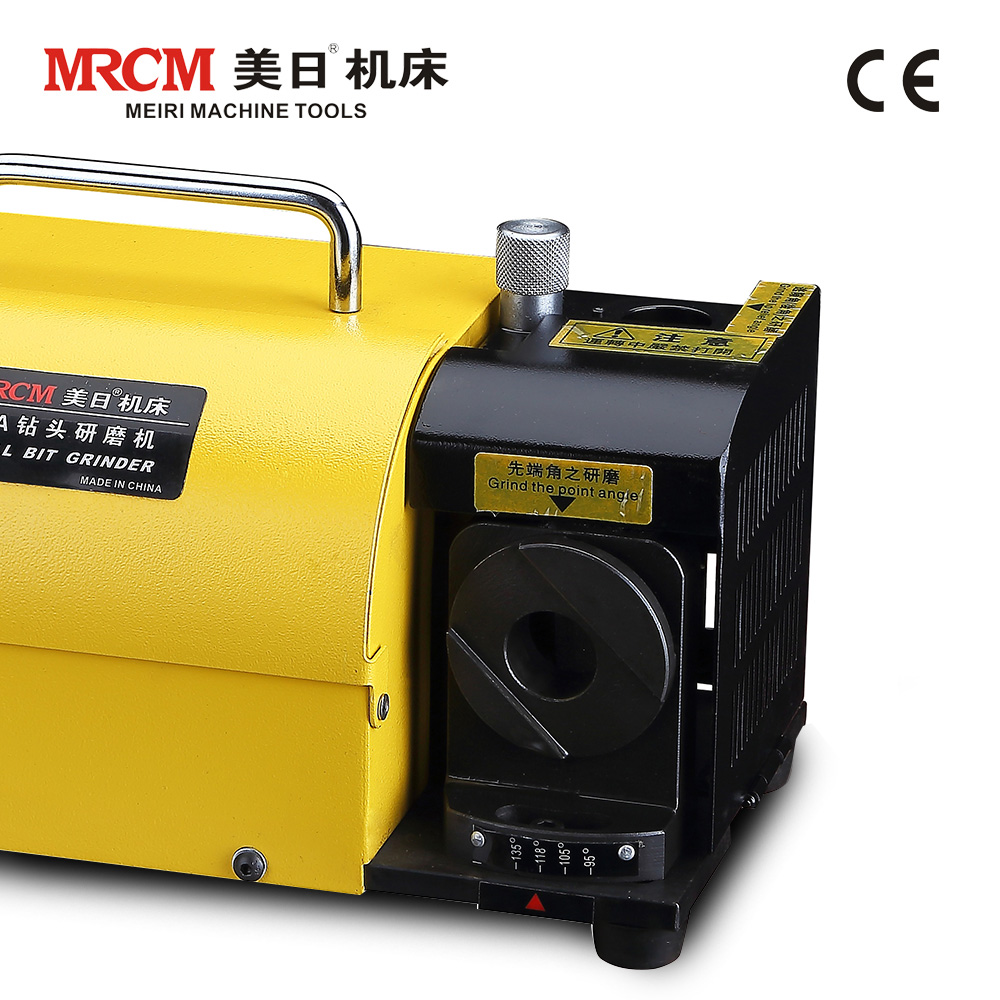

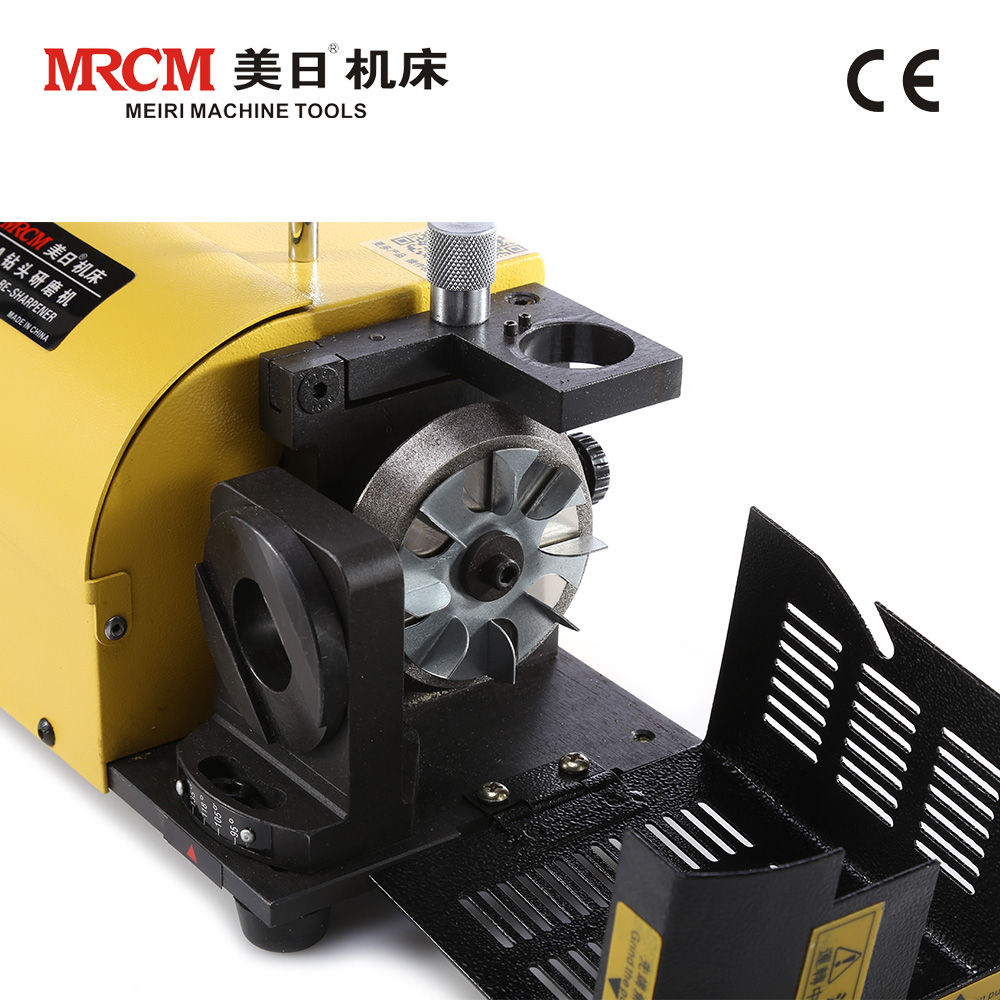

 Lip relief angle grinding         Point angle griniding

 10 SECONDS FAST GRINDING, MAKE DRILL RE-USE

                  SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.

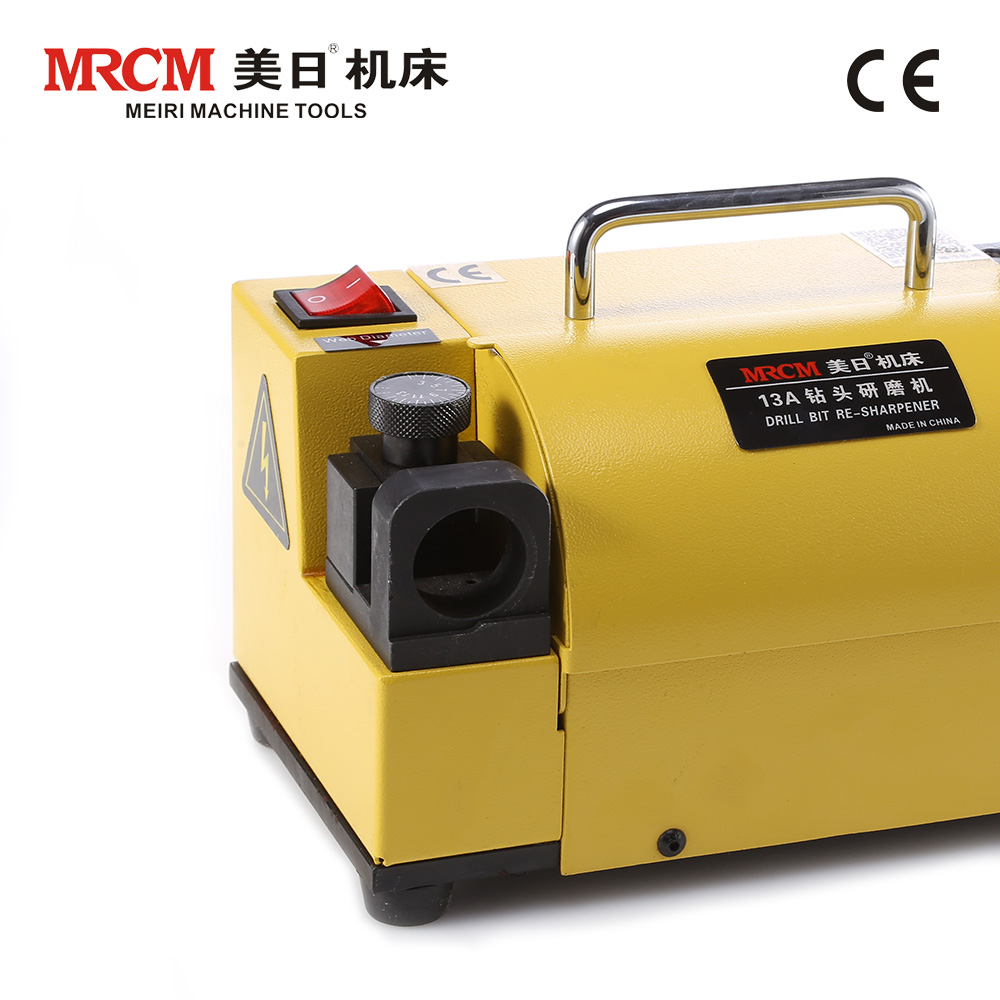

EASY TO DO THE DRILL SETTING

According the diameter of the drill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

EASY FOR DRILL GRINDING

According the parallel line of the grinding hole, insert the chuck, rotate left and right.

It can be finished at one time.

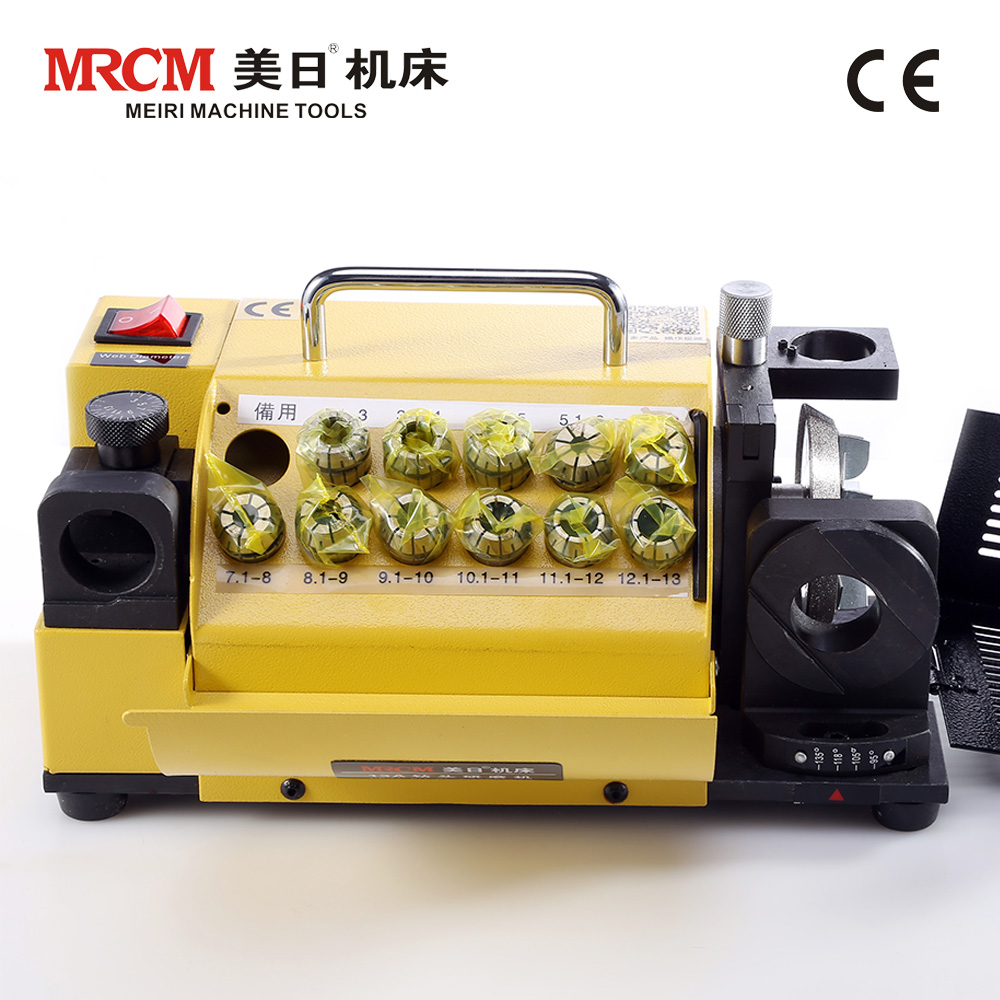

Standard accessories:



Collets ×11 pcs  (Φ3-Φ13mm)

Grinding wheel ×1 piece

Standard is CBN for HSS material

Collet chuck ×1 piece





More products



 Drill bit sharpenerEND MILL SHARPENERSCREW TAP GRINDERDRILL&MILL SHARPENERDRILL BIT SHARPENERCHAMFERUNIVERSAL CUTTER GRINDERLATHE TOOL GRINDERSAW BLADE GRINDERBAND SAW BLADE ......VISESUCKER&LIFTERMAGNETIC DRILL MACHINETAPPIING MACHINEUNIVERSAL TOOL GRINDERPackaging & Shipping

 EXPORTING PACKAGE, SAFE AND STABLE

Company Information

MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we’ve been committed to research, develop and produce the grinding tools. We’ve been started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve the working life of tools and reduce production costs.

Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero positioning, and so on.

Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We’ve passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.



FAQ

 1.What is your advance?                                                                                                                                  A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.

(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
