About this product
- Materials: Steel
- Size: 2090*1100*2030mm
- Color: Yellow
- Tire certification: ISO
- Drive wheel: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2090*1100*2030mm
- Color: Yellow
- Tire certification: ISO
- Drive wheel: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2090*1100*2030mm |
| Color | Yellow |
| Tire certification | ISO |
| Drive wheel | Other |
| Horsepower | Other |
| Power source | Other |
| Load capacity | 1-10t |
| Engine capacity | Other |
Product details
| Materials | Steel |
|---|---|
| Size | 2090*1100*2030mm |
| Color | Yellow |
| Tire certification | ISO |
| Drive wheel | Other |
| Horsepower | Other |
| Power source | Other |
| Load capacity | 1-10t |
| Engine capacity | Other |
From the supplier

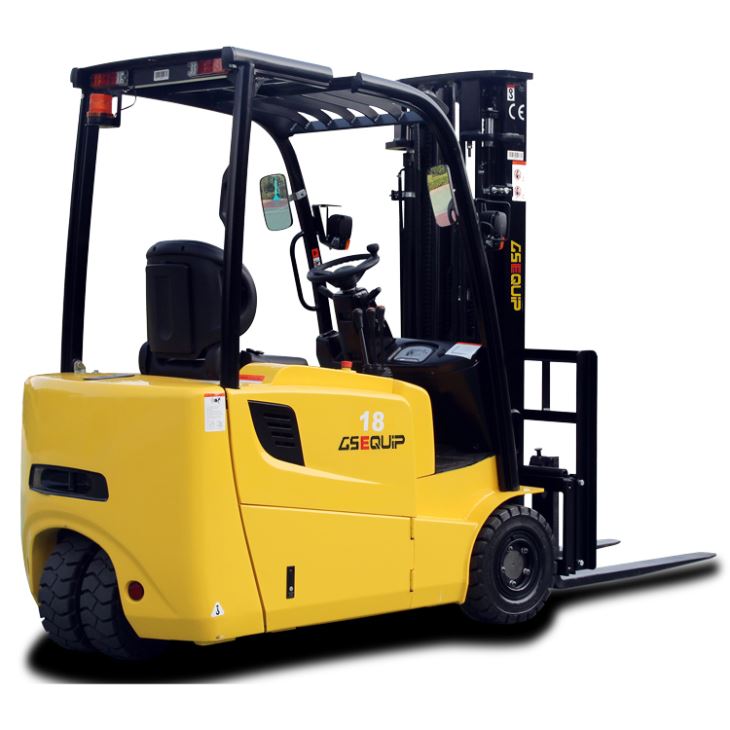

This is the description of 1.8T Three Wheel Electric Forklift
● Comfortable
Magnetic brake on driving axle ,the truck can automatic parking in slope or flat.
Rear handle with horn function contributes to stable sitting pose when travelling backward and driving comfort and safety.
Automobile type direction switch effectively improve driving comfort level.
Sensor operated power steering(option),more comfortable.
Side battery as option, easy replacement.
Finger switch as option, more speedy operation.
● Improved driver’s view
Newly designed wide-view mast with special chains enlarges operator’s view effectively.
Larger arc shape of the overhead guard and grid tray with proper angle increase operator’s upward view.
● Safety
Better loading capacity at high position.
Automatic deceleration on curved road, more intelligent and safe.
Standard configuration of warning light and drive OPS system improve whole truck’s safely.
1
Model
FB18S
2
Power Type
Electric
3
Rated Capacity
kg
1800
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
920*120*35
7
Mast Tilt Angle
F/R
Deg
5°/7°
8
Front Overhang (Wheel centre to fork face)
mm
410
9
Tread
F/R
mm
930/208
10
Ground Clearance (Bottom of mast)
mm
90
11
Fork Spread
Min./Max.
mm
200/950
12
Overall Dimension
Length to face of fork (without fork)
mm
2090
13
Overall Width
mm
1100
14
Mast Lowered Height
mm
2030
15
Mast Extended Height (With backrest)
mm
4010
16
Overhead Guard Height
mm
2055
17
Turning Radius (outside)
mm
1690
18
Min.insecting aisle
mm
2300
Performance
19
Speed
Travel (Empty load)
km/h
14
20
Lifting (Full load)
mm/s
300
21
Max.Gradeability
%
15
Chassis
22
Tire
Front
18*7-8
23
Rear
16*6-8
24
Wheelbase
mm
1460
25
Service weight
kg
3200
Power & Transmission
26
Motor
Drive Motor
kw
4.5*2
27
Lift Motor
kw
8.6
28
Battery
Voltage/Capacity
V/Ah
48/490
29
Controller
Manufacture
CURTIS
30
Type
AC
31
Operating Pressure for Attachment
Mpa
14.5
From the supplier
This is the description of 1.8T Three Wheel Electric Forklift
● Comfortable
Magnetic brake on driving axle ,the truck can automatic parking in slope or flat.
Rear handle with horn function contributes to stable sitting pose when travelling backward and driving comfort and safety.
Automobile type direction switch effectively improve driving comfort level.
Sensor operated power steering(option),more comfortable.
Side battery as option, easy replacement.
Finger switch as option, more speedy operation.
● Improved driver’s view
Newly designed wide-view mast with special chains enlarges operator’s view effectively.
Larger arc shape of the overhead guard and grid tray with proper angle increase operator’s upward view.
● Safety
Better loading capacity at high position.
Automatic deceleration on curved road, more intelligent and safe.
Standard configuration of warning light and drive OPS system improve whole truck’s safely.
1
Model
FB18S
2
Power Type
Electric
3
Rated Capacity
kg
1800
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
920*120*35
7
Mast Tilt Angle
F/R
Deg
5°/7°
8
Front Overhang (Wheel centre to fork face)
mm
410
9
Tread
F/R
mm
930/208
10
Ground Clearance (Bottom of mast)
mm
90
11
Fork Spread
Min./Max.
mm
200/950
12
Overall Dimension
Length to face of fork (without fork)
mm
2090
13
Overall Width
mm
1100
14
Mast Lowered Height
mm
2030
15
Mast Extended Height (With backrest)
mm
4010
16
Overhead Guard Height
mm
2055
17
Turning Radius (outside)
mm
1690
18
Min.insecting aisle
mm
2300
Performance
19
Speed
Travel (Empty load)
km/h
14
20
Lifting (Full load)
mm/s
300
21
Max.Gradeability
%
15
Chassis
22
Tire
Front
18*7-8
23
Rear
16*6-8
24
Wheelbase
mm
1460
25
Service weight
kg
3200
Power & Transmission
26
Motor
Drive Motor
kw
4.5*2
27
Lift Motor
kw
8.6
28
Battery
Voltage/Capacity
V/Ah
48/490
29
Controller
Manufacture
CURTIS
30
Type
AC
31
Operating Pressure for Attachment
Mpa
14.5
About the supplier
Main products: Forklifts, Other Construction Machinery, Other Construction and Agriculture Machinery（Outdoor Open Area）
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2017
- Exhibited at 10 of the last 10 Canton Fairs
- Industry and Trade Company
- Founded 2017
