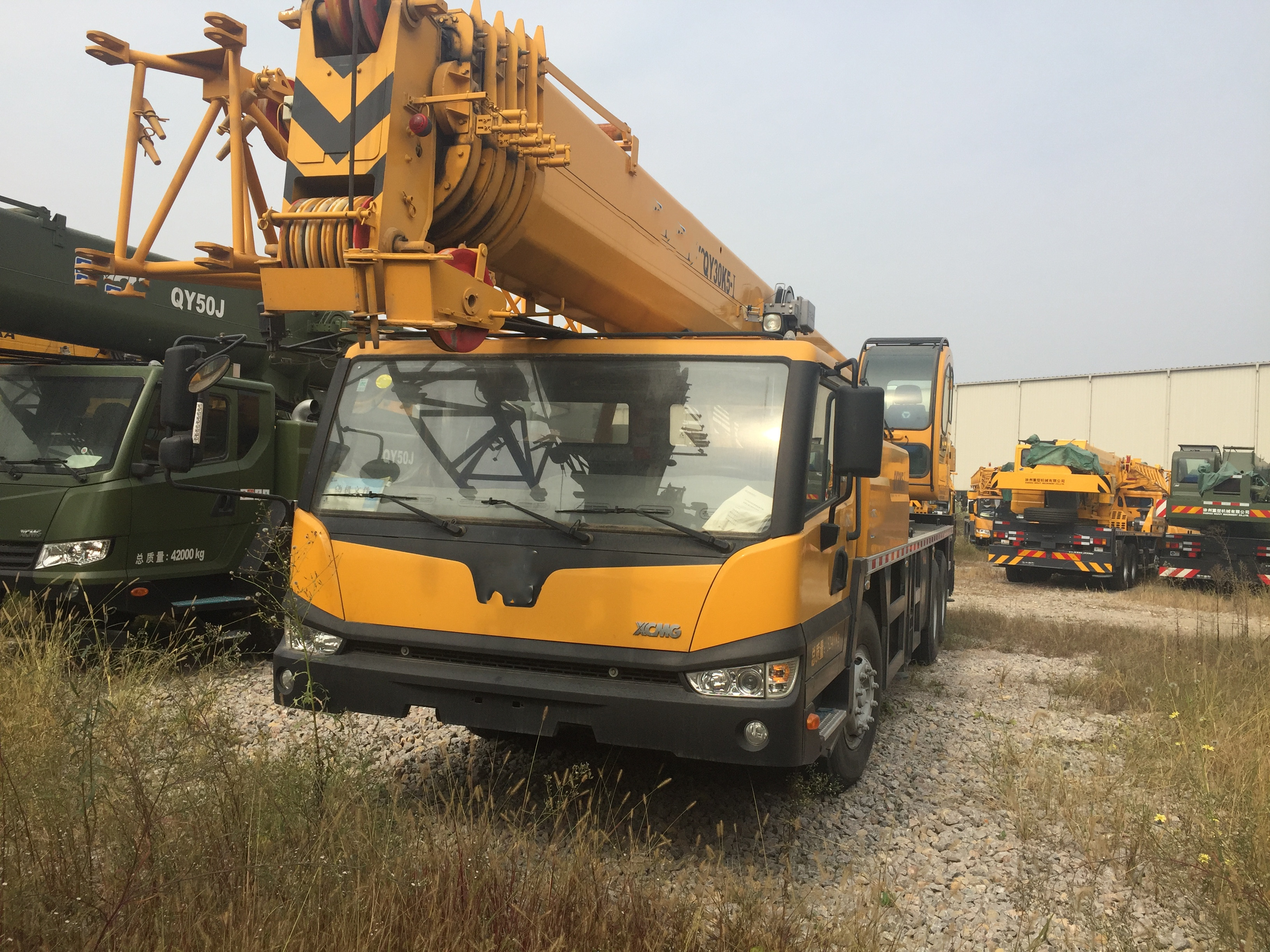

30t truck crane
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
30t truck crane
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Metal
- Size: 12570*2500*3390mm
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
About this product
- Materials: Metal
- Size: 12570*2500*3390mm
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
Product details
| Materials | Metal |
|---|---|
| Size | 12570*2500*3390mm |
| Color | yellow |
From the supplier
Summary

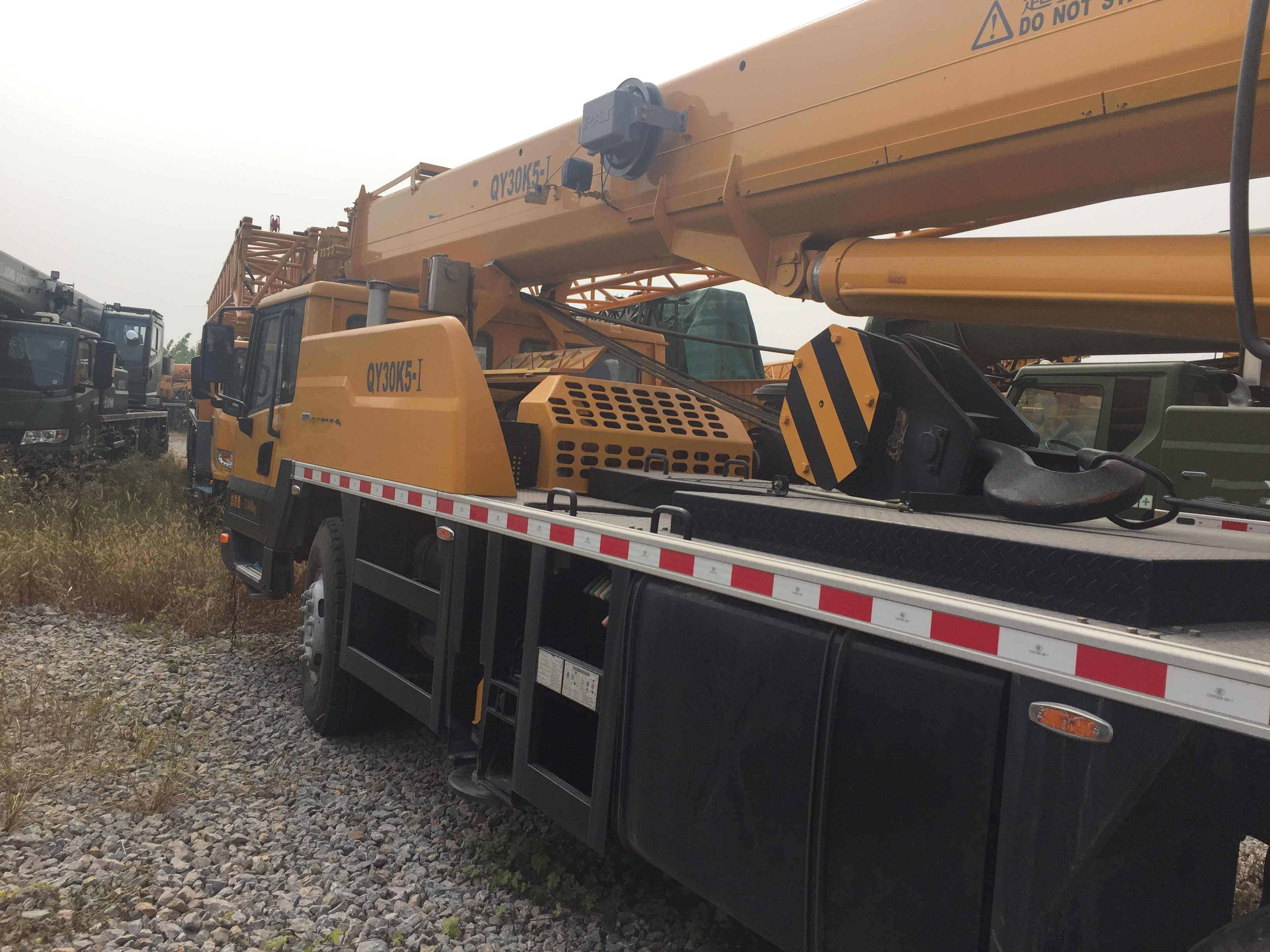

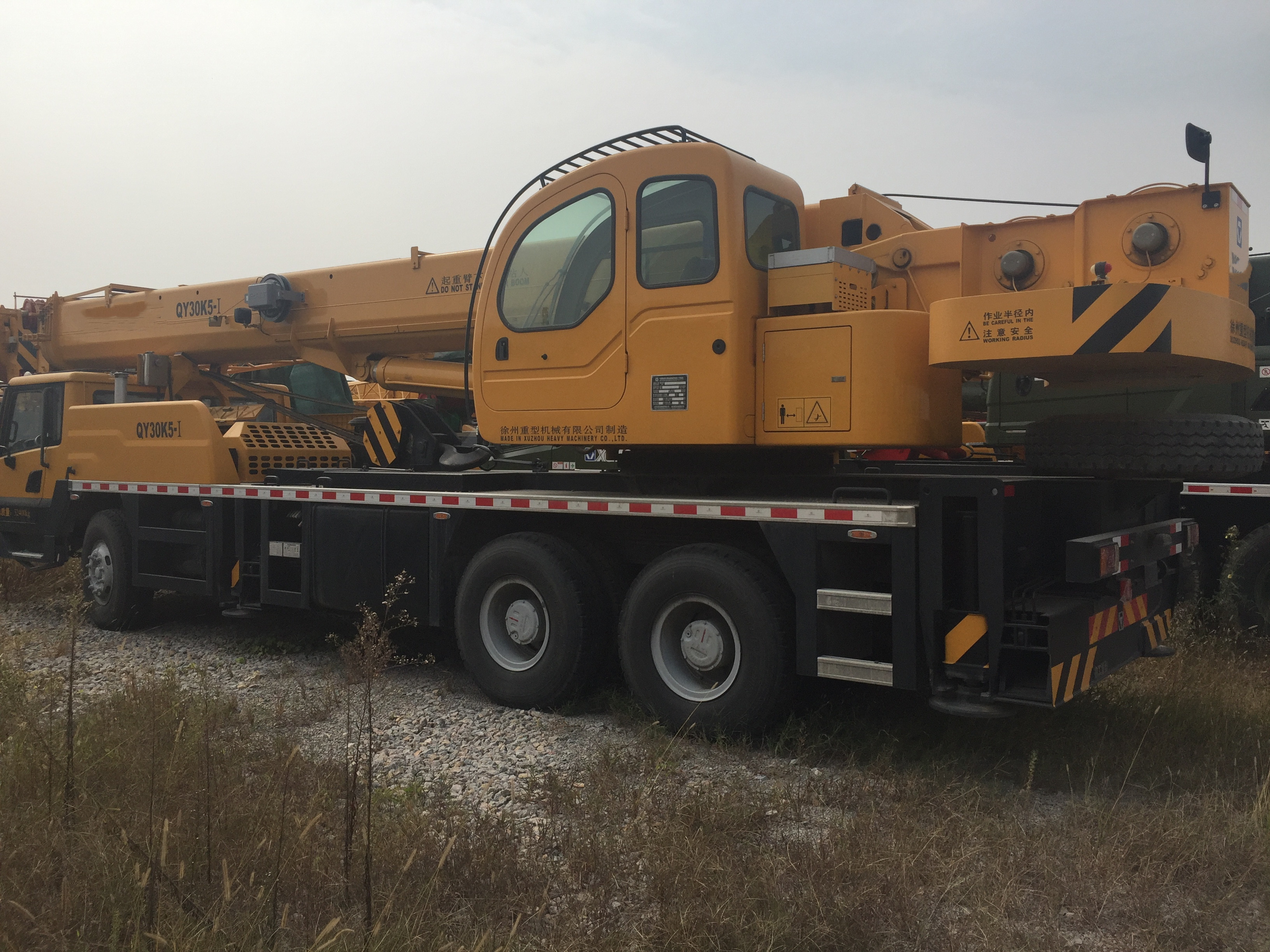

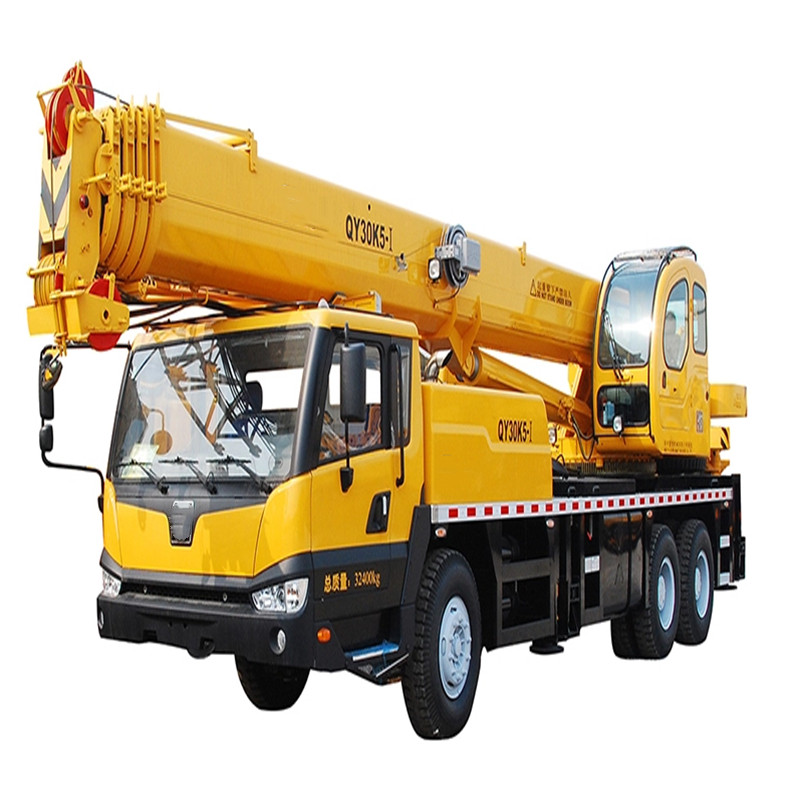

Model Number:QY35K5-I
Place of Origin:China
Span:Longitudinal5.85m/Lateral6.0m
Max. Lifting Height:47.7
Max. Lifting Load:30t
Rated Lifting Moment:1025kN.m
Rated Loading Capacity:30t
Application:Construction Industry
Certification:ISO9001/CE
Details
Product Name:QY35K5-I
Display online time:2018-11-21
weight:32400.000kg
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:wheel
Advantage
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.
Parameter
Ⅰ.Main Technical Data Table in Travel configuration
Description
Unit
Parameter value
Overall length
mm
12570
Overall width
mm
2500
Overall Height
mm
3390
Wheel Base
mm
5025+1350
Track
mm
2074/1834/1834
Total vehicle mass in travel configuration
kg
32400
Axle load
Front axle
kg
7600
Rear axle
24800
Engine Model
SC8DK280Q3
Engine rated power
kw/(r/min)
206/2200
Engine rated torque
N.m/(r/min)
1112/1400
Max. travel speed
km/h
80
Min. turning diameter
m
22
Min. ground clearance
mm
291
Max. grade ability
%
40
Approach angle
°
19
Departure angle
°
13
Braking distance (at 30 km/h, full load )
m
≤10
Oil consumption per 100km
L
40
Exterior noise level during acceleration traveling
dB (A)
88
Noise level at seated position
dB (A)
90
Ⅱ.Main Technical Data Table for Lifting Operation
Max. total rated lifting capacity
t
30
Min. rated working radius
m
3
Turning radius at turntable tail
mm
3065
Max. load moment
Base boom
KN.m
1025
Fully-extended boom
630
Outrigger span
Longitudinal
m
5.85
Lateral
6.0
Hoist height
Base boom
m
10.7
Fully-extended boom
40.4
Fully-extended boom + Jib
47.7
Boom length
Base boom
m
10.6
Fully-extended boom
40.4
Fully-extended boom + Jib
48.7
Jib offset angle
°
0, 15, 30
Time for boom raising
s
68
Time for boom extending fully
s
150
Time for boom retracting fully
s
140
Max. slewing speed
r/min
2.5
Outrigger extending and retracting time
Outrigger
beam
Extending
Simultaneously
s
35
Retracting
Simultaneously
30
Outrigger
jack
Extending
Simultaneously
40
Retracting
Simultaneously
35
Hoisting speed
(single line
Main winch
Full load
m/min
75
No load
120
Auxiliary winch
Full load
75
No load
120
Exterior noise level
dB (A)
≤118
Noise level at seated position
dB (A)
≤90
