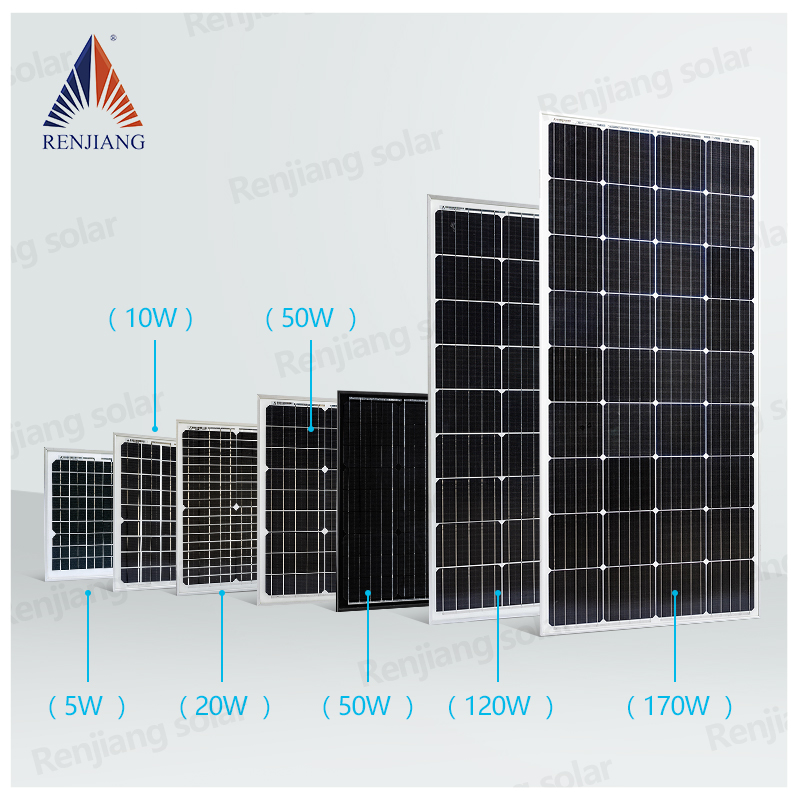

Product Model: Monocrystalline solar panel from 5watt to 170watt.

Application:

Off-grid photovoltaic application areas:

1. Electricity-free areas: plateaus, islands, pastoral areas, border posts and other military and civilian life electricity.

2. Transportation field: traffic / railway signal lights, traffic warning / signage lights, power supply for unattended road guards, etc.

3. Communication field: broadcasting / communication / paging power system, small communication machine, soldier GPS power supply, etc.

4. Outdoor lighting: road lights, courtyard lights, camping lights, mountain climbing lights, fishing lights, black light lights, tapping lights, energy saving lights, etc.

5. Photovoltaic water pump: solve drinking and irrigation of deep water wells in areas without electricity.

6. Cars / boat: new energy vehicles, trucks, golf carts, tricycles, bicycles, motorcycles, motor homes, boat, etc.

Product advantage:

1. Panel products are controlled according to the quality system of big modules

2. Appearance 100% EL twice detection, avoid hidden crack and black chip, short circuit and film phenomenon

3. Before packing, 100% final inspection and visual inspection should be made to prevent the module from running out due to insufficient power and virtual welding

4. The incoming material through 100% single-cell power testing and 100% single-cell EL screening to prevent the mixed use of different power cells.

Features:

1. Guaranteed output tolerance (±3%); withstands high winds (2400Pa) and snow loads (5400Pa).

2. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

3. High light transmittance and low iron toughened glass, achieve excellent energy even at low light conditions.

4. IP65 rated junction box provides complete protection against environmental particles.

5. Easy to install, can be used for many different applications, Compatible with on-grid and off-grid inverters.

6. 25-year linear output power warranty, after 25 years, the cells still provide 80% power.

7. Conversion rates above 18.6%.

8. Certificates: TUV/ CE/ SGS/ IEC/ ISO/ CQC/ INMETRO.

Product Performance Table

Temperature Coefficient of Voc: -0.38%/°C

Temperature Coefficient of Isc: +0.04%/°C

Temperature Coefficient of Power: -0.47%/°C

NOCT: 45±3℃

Working Temperature Range: -40℃~＋80℃

Maximum Series Fuse Rating(A): 10

Maximum System Voltage(V): 600

Standard Test Conditions: 1000W/㎡; 25℃; AM1.5

No. of cells and Connections: 36(4*9)

Pmp(W)/ power tolerance: ±3% 　 　 　 　 　 Model Voc(V) Isc(A) Vmp(V) Imp(A) Dimension(mm) RJ005M6-36 21.92 0.29 17.86 0.28 305*187*17 RJ010M6-36 22.39 0.63 17.42 0.574 420*260*25 RJ020M6-36 21.53 1.29 17.33 1.15 435*350*25 RJ050M6-36 21.58 3.24 17.55 2.85 540*680*30 RJ050M6-36(black glass) 21.58 3.24 17.55 2.85 540*680*30 RJ120M6-36 22.28 7.03 18.15 6.61 1230*680*30 RJ170M6-36 23.27 9.32 19.08 8.91 1520*680*30 M6 represents the cell: Mono&6inch 　 　 　 　 　

Company Profile:

Founded in 1998, Renjiang Technology is headquartered in Xiangdong Industrial Park, Pingxiang City, Jiangxi Province, with a land area of 50,000 square meters and a registered capital of 50 million yuan. Main products: silicon wafers, solar cells, photovoltaic modules (polycrystalline silicon), photovoltaic modules (monocrystalline silicon), flexible modules (Sunpower), foldable solar panel, solar street lights, solar mobile power, photovoltaic power plant design, development, production, sales ,after-sales integrated manufacturing enterprise. The company's products are sold to Germany, the United Kingdom, the United States, Chile, Peru, Tanzania, Kenya and other more than 20 countries around the world. It is one of the most complete solar photovoltaic module companies in China.

Won the "CQC", "TUV", "IEC", "CB", "CE", "COC", "PVOC", "SEC", "leader", "high-tech enterprises" and other authoritative organizations certification.

While pursuing product quality and market influence, the company adheres to the concept of "providing quality products and services and bringing solar energy into life" with a culture of "customer-centric, striving-oriented, long-term hard work". . Efforts to provide mass customization and personalized services for solar modules for customers around the world. Renjiang Group is willing to go hand in hand with you to achieve unlimited career and dream

Q & A

1. 1. What is your delivery time?

15days after order confirmed.

1. 2. Are you manufacturer or trading company? / mainly market?

We are a manufacturer of solar module since 2011, our customer mainly from Africa, Mid-East, Europe and North America.

1. 3. How about your capacity?

200/300 Megawatt per year.

1. 4. How many employees in your company?

300-500 employees in factory.

1. 5. Do you support customization?

Certainly, customization is our strength, please let us know your required power, voltage,

and module dimension, then we'll design the drawing to you.

1. 6. How about the packing details?

Big module usually by pallet packing, smaller panel by inner and outer carton, as you required.

Enterprise Image:
