450/750V PVC Insulation Sheath Control Cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
450/750V PVC Insulation Sheath Control Cable
Zhengzhou Jinshui Industry and Commerce Co.,Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Color: black，white，red etc.
- Exports to: Africa, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
About this product
- Color: black，white，red etc.
- Exports to: Africa, Southeast Asia, South Asia, Latin America
- Made in: Henan, China
Product details
| Color | black，white，red etc. |
|---|
Product details
| Color | black，white，red etc. |
|---|
From the supplier
PVC Insulation Sheath Control Cable
1.Standard
Control cable can be produced according to the standard GB9330-1988,and the factory can also manufacture the cables in accordance with other standards.
2.Scope of Application
Control cable are suitable for the wiring of electrical controlling equipments and instrument,monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3.Type& Specification
Type
Name
Section Area(mm2)
No. of Core
Application Site
KVV
Copper Conductor,PVC Insulated and Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KVVP
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KVVRP
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
1.5 2.5
4-48
KYJV
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KYJVP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KYJV22
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 6
4-14
10
4-10
KYJVP2
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
4-14
10
4-10
KYJVR
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KYJVRP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
0.5 0.75 1.0
4-61
4.Performance Characteristics
1)YZ model rated voltage Uo/u is 300/500V,T=YC model is 450/750V.
2) Long time allow working temperature of wire core is not more than 65℃
3)W model cable has the property of durability,so it is suitable for outdoor work and the work touching oil pollution.
4) ZR model cable has the property of fire-resistance.
5.Model Name and Usage:(See Table1)
Model
Name
Main Usage
YQ,YQW
Light Model Rubber Sheath Flexible
Used for light portable electric equipment and tools
YZ,YZW
Middle Model Rubber Sheath Flexible Cable
Used for various portable electric equipment and tools
YC,YCW
Heavy Model Rubber Sheath Flexible Cable
Used for various portable electric equipment which can bear larger mechanical force effect

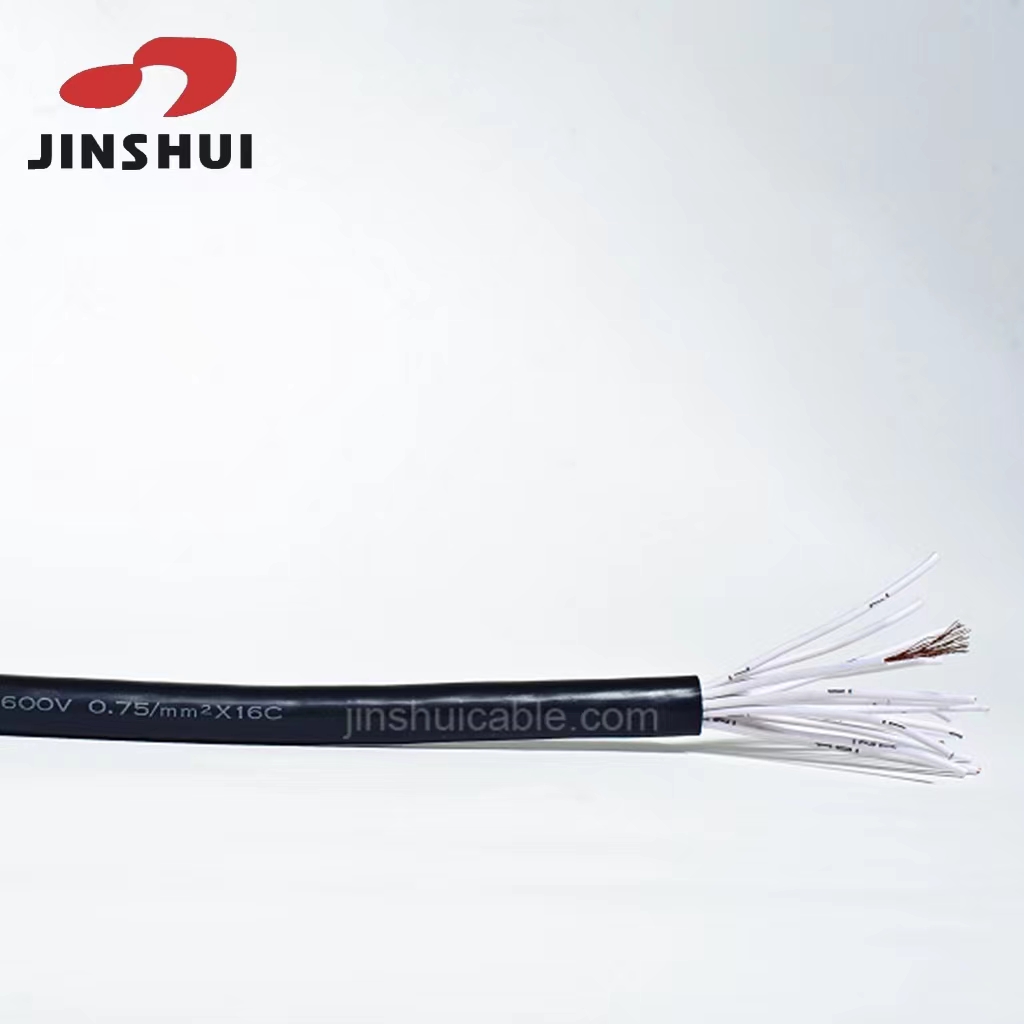

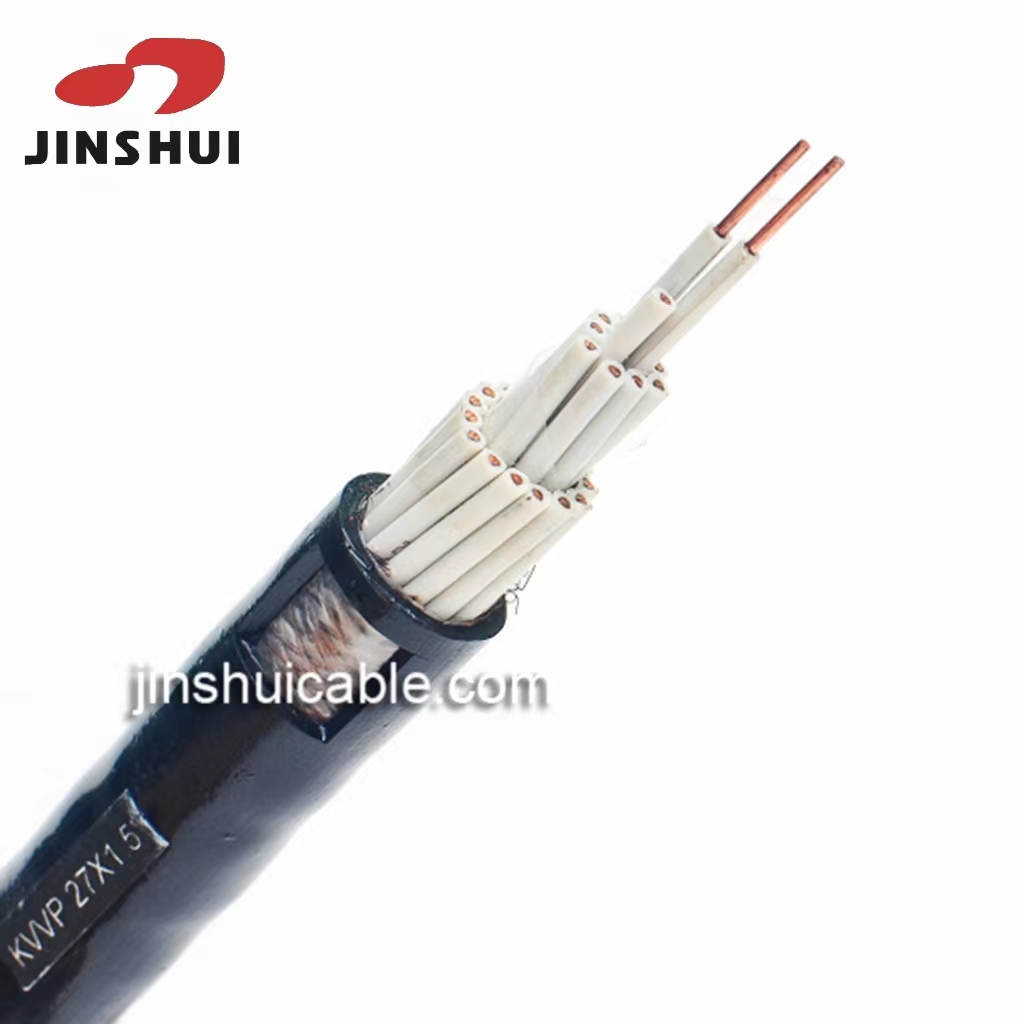

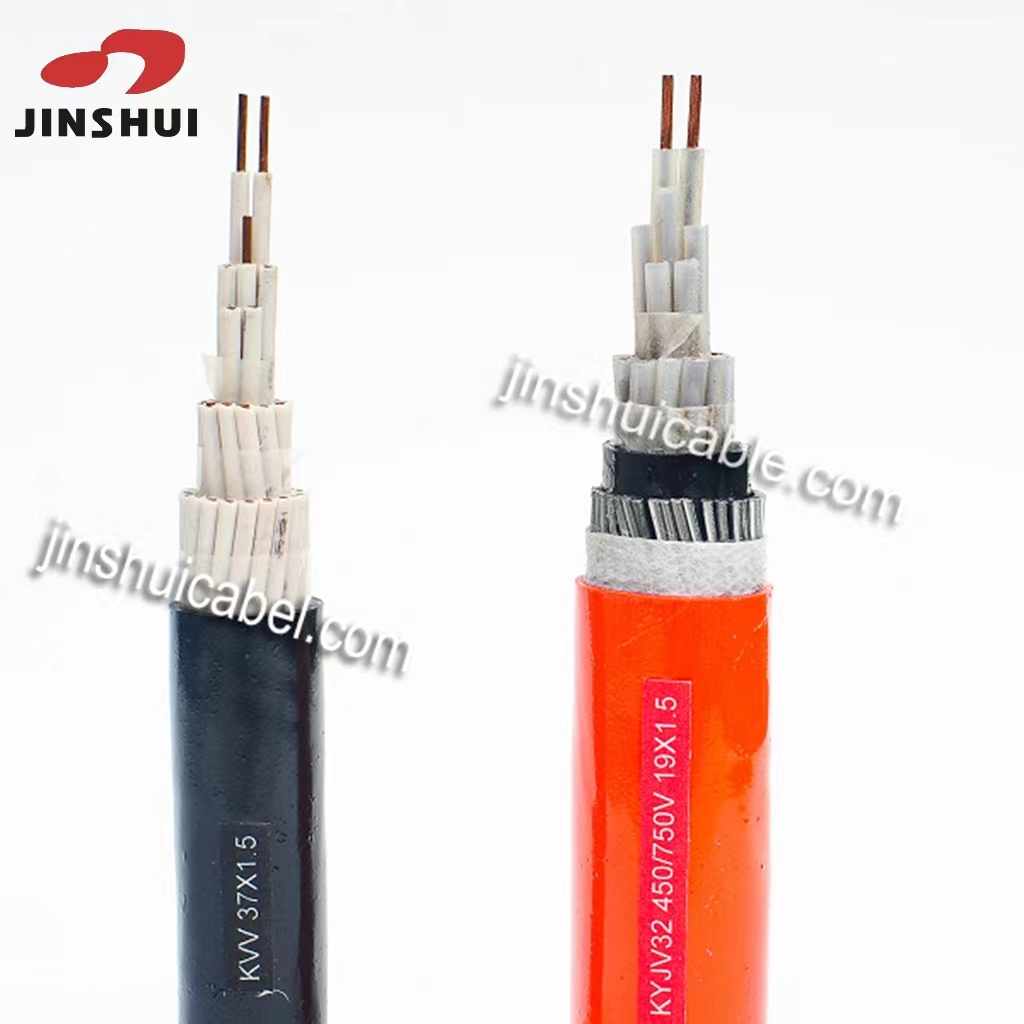

Product pictures
Our Factory
Clean sanitation environment, the working atmosphere of solidarity and cooperation, for our workers high-quality production products to provide a good environment, excellent technical equipment, comprehensive machinery and machinery more reliable guarantee of product quality.
Packaging & ShippingWe have professional handling equipment and packaging technology to ensure product delivery.
The FairWe take part in many fairs and exhibitions in China and abroad.
Company InformationJinshui Wire & Cable Group is also a key company of high and new technology industry on state level in China. With strong capabilities of R&D and innovation Jinshui Wire & Cable Group has owned a number of exclusive essential manufacture technologies and has passed the certification of ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS18001 Occupational Heath Management System, ISO10012 Measurement Management System and others from China and abroad.Our AdvantageAbundant experience as first exporter of Henan Province;
15 years experience of manufacturing ;
cover 50 countries of marketing;
well-controlled qualitiy;
thoughtful after-sale service as well as VERY competitive price.
We sincerely welcome your kind enquiry!
