About this product
- Materials: Steel
- Size: 3252*1835*2230mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 3252*1835*2230mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 3252*1835*2230mm |
| Color | Yellow |
From the supplier

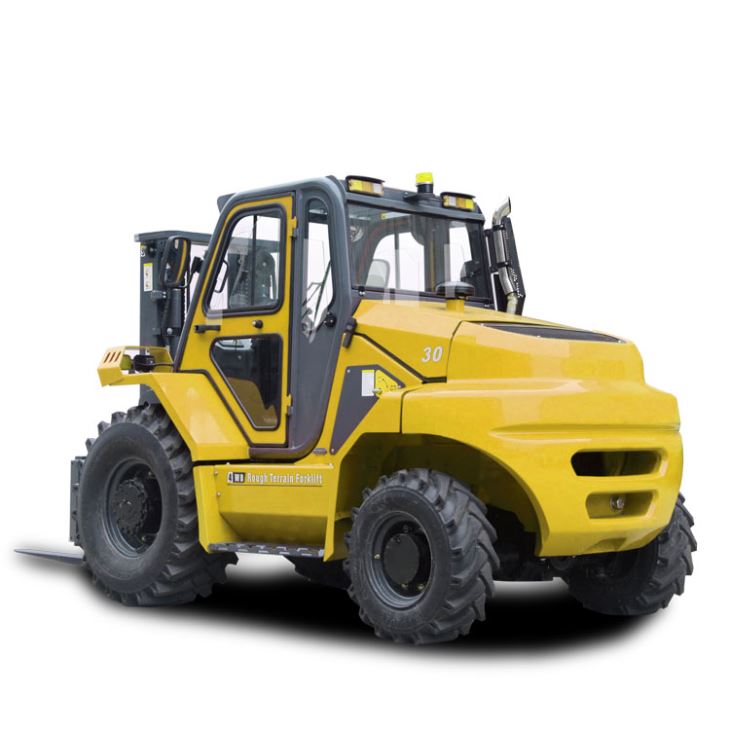

This is the description of 3Ton Rough Terrain Forklift
GS 4 Wheel Drive 3Ton Rough Terrain Forklift Features:
Powerful Engine
Hatz 4H50TIC Meeting Euro stage 3B & USA EPA Tire 4 standard, engine power up to 54.9KW.
High Efficient Transmission System
Using switch to control between two wheel drive and four wheel drive, using two wheel mode driving on general road, more fuel efficient and environmentally friendly.
when driving on muddy roads, the four wheel drive mode help the vehicle pass smoothly and safety.
The forklift using 4 wheel driving system, both front and rear drive axles have adaptive limited slip differentials.
Excellent off road performance, any one wheels slip will not affect the driving.
Easy Maintenance
The cabin has power rollover function for the cabin, when need maintenance, simply pressing the electronic switch to tilt the cabin, easy access to all the important component like electric control box, air filter, battery etc. And no need to tools to assembly or dismounting
Reliable Lifting System
Wide view mast provide drive perfect view, compare with normal mast it’s 10% wide, which provide more efficient and safety.
Excellent Lighting System
The full machine equipped with LED lights, low energy consumption, long service life etc. Additional front and rear LED light for options.
High Position Intake and SpaceExhaust System
Vertical exhaust with good drainage performance, provide all weather operations. Vertical exhaust effectively prevent ground dust and rain from entering the inlet.
1
Model
FD30RT4
2
Power Type
Diesel
3
Rated Capacity
kg
3000
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
1220*125*45
7
Mast Tilt Angle
F/R
Deg
10°/12°
8
Ground Clearance（Bottom of mast）
mm
135
9
Overall Dimension
Length to face of fork(without fork)
mm
3252
10
Overall Width
mm
1835
11
Mast Lowered Height
mm
2230
12
Mast Extended Height(With backrest）
mm
4245
13
Overhead Guard Height
mm
2250
14
Turning Radius (outside)
mm
4380
15
Min.insecting aisle
mm
3040
Performance
16
Speed
Travel (Full/Empty load)
km/h
24/25
17
Lifting (Full/Empty load)
mm/s
480/500
18
Max.Gradeability
%
30
Chassis
19
Tire Size
Front
405/70-20-14PR
20
Rear
10.0/75-15.3-12PR
21
Wheelbase
mm
1990
22
Service weight
kg
5700
23
Battery
Voltage/Capacity
V/Ah
12/120
24
Engine
Model
4H50TIC
25
Manufacture
HZTZ
26
Rated output/r.p.m.
kw
54.9/2600
27
Rated torque/r.p.m.
N·m
240/1600-1900
28
No.of Cylinder
4
29
Bore*Stroke
mm
84*88
30
Fuel Tank Capacity
L
80
31
Transmission
Model
Hydraulic
32
Drive Type
2WD/4WD
