About this product
- Size: 3800*2250*2500
- Color: blue and white
- Control method: Closed-Loop Control
- Certification: ISO 9001CE
- Process usage: Metal-Cutting CNC Machine Tools
- Movement method: Point to Point ControlLinear ControlContour Control
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 3800*2250*2500
- Color: blue and white
- Control method: Closed-Loop Control
- Certification: ISO 9001CE
- Process usage: Metal-Cutting CNC Machine Tools
- Movement method: Point to Point ControlLinear ControlContour Control
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 3800*2250*2500 |
|---|---|
| Color | blue and white |
| Control method | Closed-Loop Control |
| Certification | ISO 9001CE |
| Process usage | Metal-Cutting CNC Machine Tools |
| Movement method | Point to Point ControlLinear ControlContour Control |
| Numerical control | CNC/MNC |
| Performance classification | High-End CNC Machine ToolsEconomical CNC Machine Tools |
| Processing precision | 0.02~0.03 |
Product details
| Size | 3800*2250*2500 |
|---|---|
| Color | blue and white |
| Control method | Closed-Loop Control |
| Certification | ISO 9001CE |
| Process usage | Metal-Cutting CNC Machine Tools |
| Movement method | Point to Point ControlLinear ControlContour Control |
| Numerical control | CNC/MNC |
| Performance classification | High-End CNC Machine ToolsEconomical CNC Machine Tools |
| Processing precision | 0.02~0.03 |
From the supplier

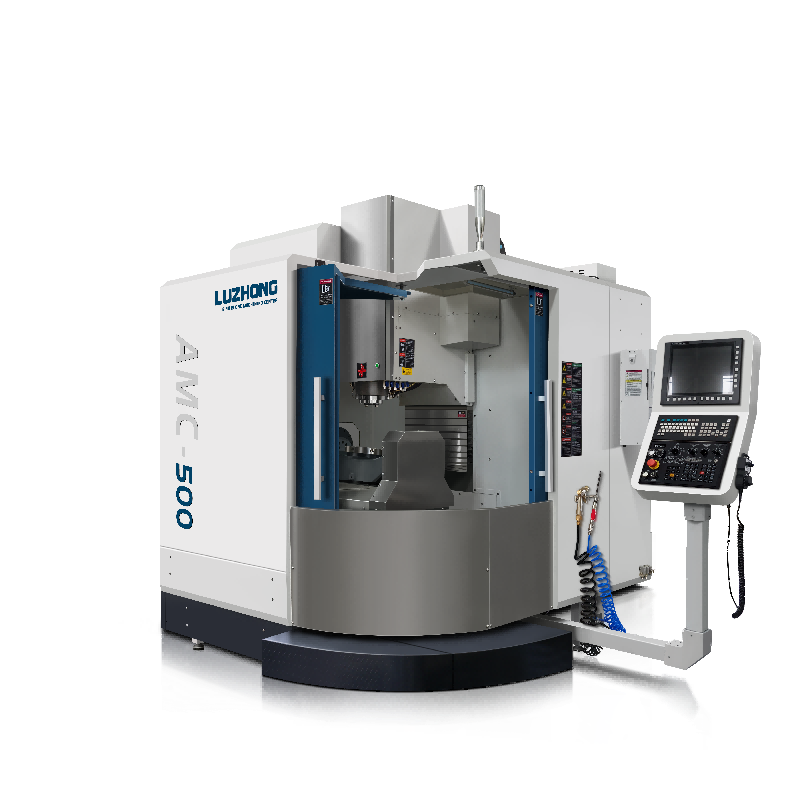

5 Axis CNC Machining Center The five-axis machining center has the characteristics of high efficiency and high precision. The workpiece can complete complex processing in one clamping. It can adapt to the processing of modern molds such as automotive parts and aircraft structural parts. The five-axis machining center has five axes: x, y, z, a, and c. The xyz and ac axes form five-axis linkage processing. It is good at spatial curved surface processing, special-shaped processing, hollow processing, punching, oblique holes, bevel cutting, etc.
Machine Configuration：
l GSK25i control system , can achieve 5 axis linked .
l X, Y, Z, A, C axes .
l AC direct-drive rotary table
l Direct drive spindle 20000RPM
l Taiwan OKADA 24T disc tool magazine
l Spindle oil cooling
Specification：
SPECIFICATIONS
Units
AMC500
X/Y/Z-axis travel
mm
600/600/600
Max.Distance from Spindle End Face to C-Axis Disc Surface (when horizontal)
mm
20-620
Max.Distance from Spindle Center to C-Axis Disc Surface at 90° A-Axis
mm
300(Optional420）
Distance from Spindle Center to Column Guide Surface
mm
620
Spindle Specification
mm
150
Spindle Taper
--
BT40
Max.Spindle Speed
RPM
12000
Spindle Motor Power
KW
7.5/11
X/Y/Z Rapid Traverse
m/min
48/48/48
Cutting Feed Rate
mm/min
1-12000
Rotary Table Drive Type
--
Direct Drive
Rotary Table Diameter
mm
320
Rotary worktable diameter
mm
500
Max loading capacity of the Rotary worktable
kg
100
Tool Magazine
T
24
Tool Change Time
s
3
Max.Tool Diameter (Full Fill/Adjacent)
mm
70/120
Max.tool length
mm
300
Max.tool weight
kg
8
Machine weight
T
5.5
Machine overall size(L*W*H)
mm
2600*2500*2750
From the supplier
5 Axis CNC Machining Center The five-axis machining center has the characteristics of high efficiency and high precision. The workpiece can complete complex processing in one clamping. It can adapt to the processing of modern molds such as automotive parts and aircraft structural parts. The five-axis machining center has five axes: x, y, z, a, and c. The xyz and ac axes form five-axis linkage processing. It is good at spatial curved surface processing, special-shaped processing, hollow processing, punching, oblique holes, bevel cutting, etc.
Machine Configuration：
l GSK25i control system , can achieve 5 axis linked .
l X, Y, Z, A, C axes .
l AC direct-drive rotary table
l Direct drive spindle 20000RPM
l Taiwan OKADA 24T disc tool magazine
l Spindle oil cooling
Specification：
SPECIFICATIONS
Units
AMC500
X/Y/Z-axis travel
mm
600/600/600
Max.Distance from Spindle End Face to C-Axis Disc Surface (when horizontal)
mm
20-620
Max.Distance from Spindle Center to C-Axis Disc Surface at 90° A-Axis
mm
300(Optional420）
Distance from Spindle Center to Column Guide Surface
mm
620
Spindle Specification
mm
150
Spindle Taper
--
BT40
Max.Spindle Speed
RPM
12000
Spindle Motor Power
KW
7.5/11
X/Y/Z Rapid Traverse
m/min
48/48/48
Cutting Feed Rate
mm/min
1-12000
Rotary Table Drive Type
--
Direct Drive
Rotary Table Diameter
mm
320
Rotary worktable diameter
mm
500
Max loading capacity of the Rotary worktable
kg
100
Tool Magazine
T
24
Tool Change Time
s
3
Max.Tool Diameter (Full Fill/Adjacent)
mm
70/120
Max.tool length
mm
300
Max.tool weight
kg
8
Machine weight
T
5.5
Machine overall size(L*W*H)
mm
2600*2500*2750
