50 sq mm electrical power ABC cable

Application and Constructure:

50mm electrical power ABC cable is applied to overhead power line with rated voltage 0.6/1kv and 10KV and is mainly used for electric power tranmission, rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

1kv abc cable, 11kv abc cable, 33kv abc cable

1 .Type:Duplex Service Drop, Triplex Service Drop, Quadruplex Service Drop

50mm electrical power ABC cable

a Duplex Service Drop

Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.

b Triplex Service Drop

Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90maximum for XLPE insulation .

c Quadruplex Service Drop

Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s service head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed75 for PE insulated conductors or 90 for XLPE insulated conductors.

2 . Construction

50mm electrical power ABC cable
a Phase Conductor construction:

The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.

b Neutral Conductor Construction
Cable assemblies are available with the following neutral conductors:

Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded

Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded

Aluminum alloy 6201-T81, concentric-lay-stranded

c Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)

Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is

available upon request.

3. Specification

50mm electrical power ABC cable

Code Name

Phase Conductor

Bare Neutral Messenger

Weight Per 1000ft (lbs)

Ampacity(amps)

Size AWG

Stranding

Insulation Thickness(mls)

Size AWG

Stranding

Breaking Strength(lbs)

XLPE

Poly

XLPE

Poly

6201 ALLOY NEUTRAL-MESSENGER

Minex

6

Solid

45

6

7

1,110

106.6

102.9

85

70

Hippa

6

7

45

6

7

1,110

113.2

105.7

85

70

Prawn

4

Solid

45

4

7

1,760

158.4

154.1

115

90

Barnacles

4

7

45

4

7

1,760

168.3

158.2

115

90

Shrimp

2

7

45

2

7

2,800

253.7

239.7

150

120

Gammarus

1/0

7

60

1/0

7

4,460

411.7

386.0

205

160

Leda

1/0

19

60

1/0

7

4,460

402.7

386.0

205

160

Dungenese

2/0

7

60

2/0

7

5,390

506.8

476.3

235

185

Cyclops

2/0

19

60

2/0

7

5,390

495.3

476.3

235

185

Dlustra

3/0

19

60

3/0

7

6,790

611.4

589.1

275

215

Lepas

4/0

19

60

4/0

7

8,560

757.1

730.5

315

245

Other sizes can also be produced as you required.

4. Standards

50mm electrical power ABC cable
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Company Information

Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 Environmental Management Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.

We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier in alibaba. And we are confident that we can offer the best service and quality for you .

Our product range is as following :

*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)

* Aerial Bounded Cable (Duplex, Triplex,Quadruplex)

* PVC insulated wire (Rated voltage to 450/750V)

* PVC insulated Power Cable

*XLPE insulated Power Cable

*Rubber sheathed Cable

*Control Cable

*Welding Cable

*Cable Accessories

Product pictures

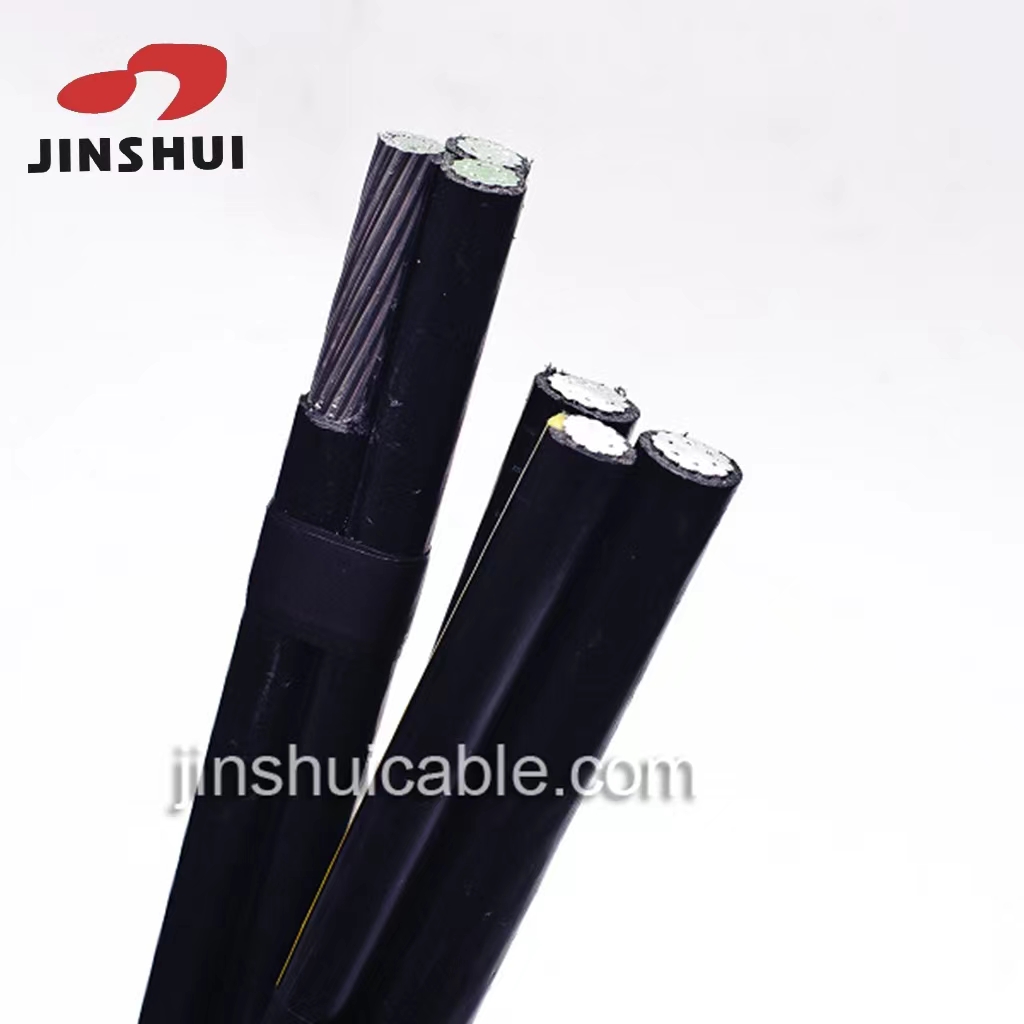

Pictures of 50mm electrical power ABC cable

The company and part of our certification

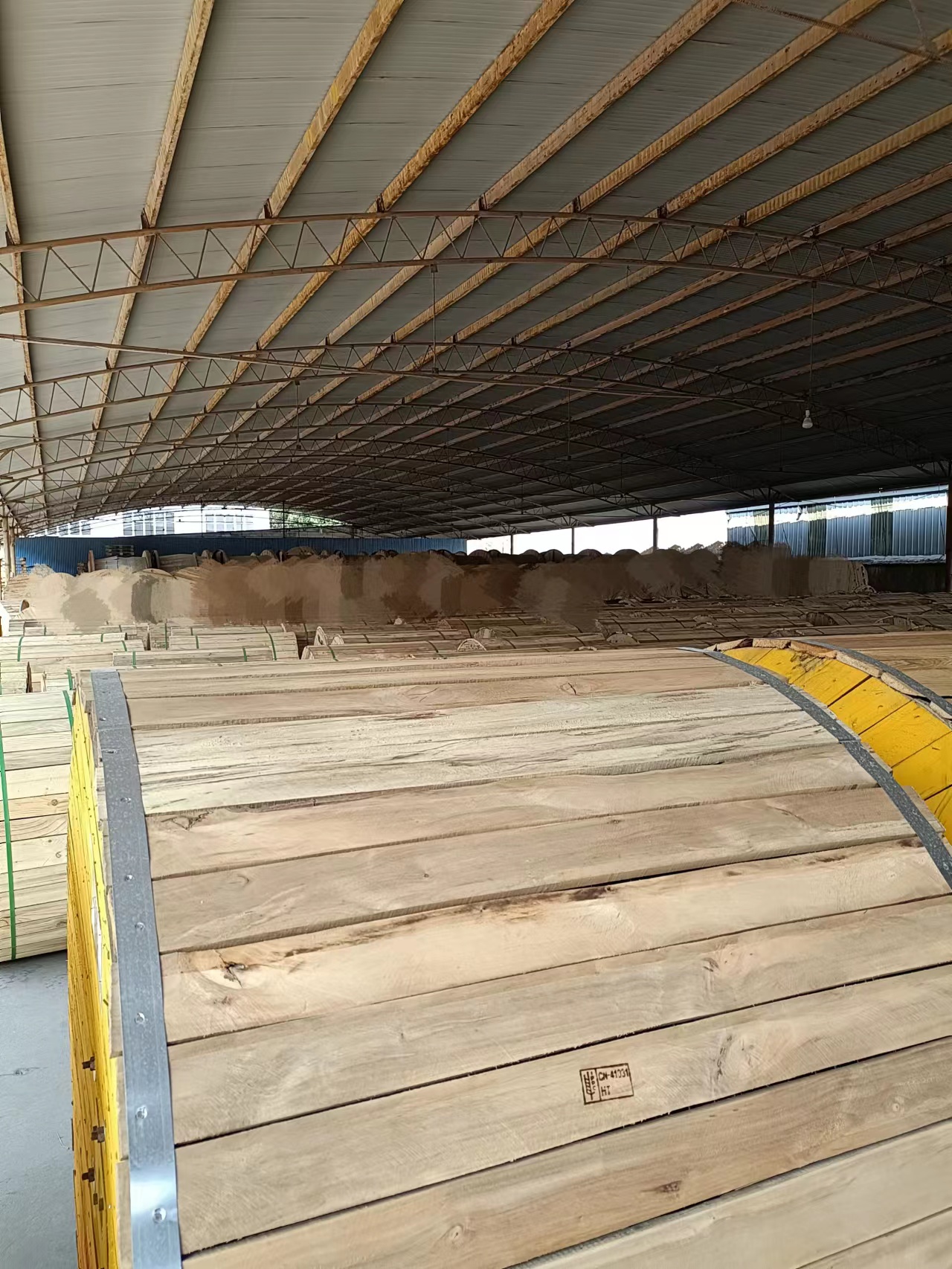

Packaging & Shipping

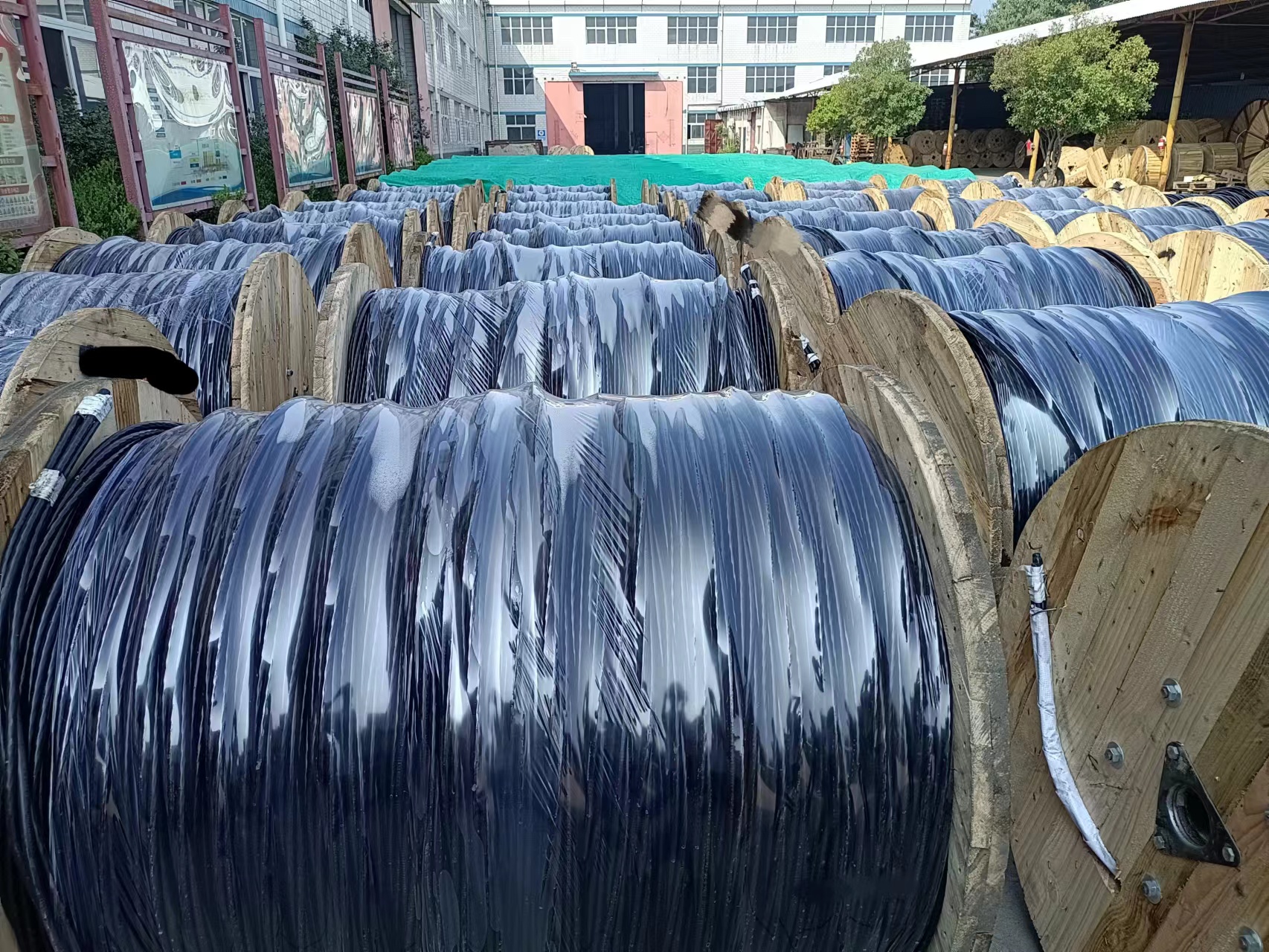

The packaging of 50mm electrical power ABC cable
