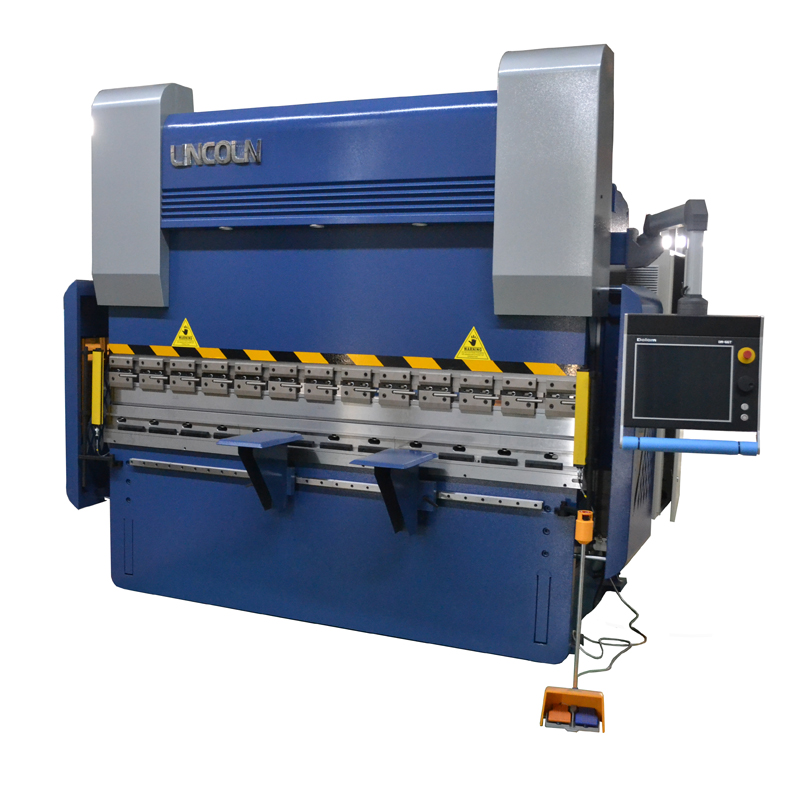

6+1 Axis CNC Press Brake
SHANDONG LINCOLN MACHINERY MANUFACTURER CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
6+1 Axis CNC Press Brake
SHANDONG LINCOLN MACHINERY MANUFACTURER CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Steel Plate
- Size: 2800x1500x2600 mm
- Color: Dark Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Steel Plate
- Size: 2800x1500x2600 mm
- Color: Dark Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Steel Plate |
|---|---|
| Size | 2800x1500x2600 mm |
| Color | Dark Blue |
Product details
| Materials | Steel Plate |
|---|---|
| Size | 2800x1500x2600 mm |
| Color | Dark Blue |
From the supplier

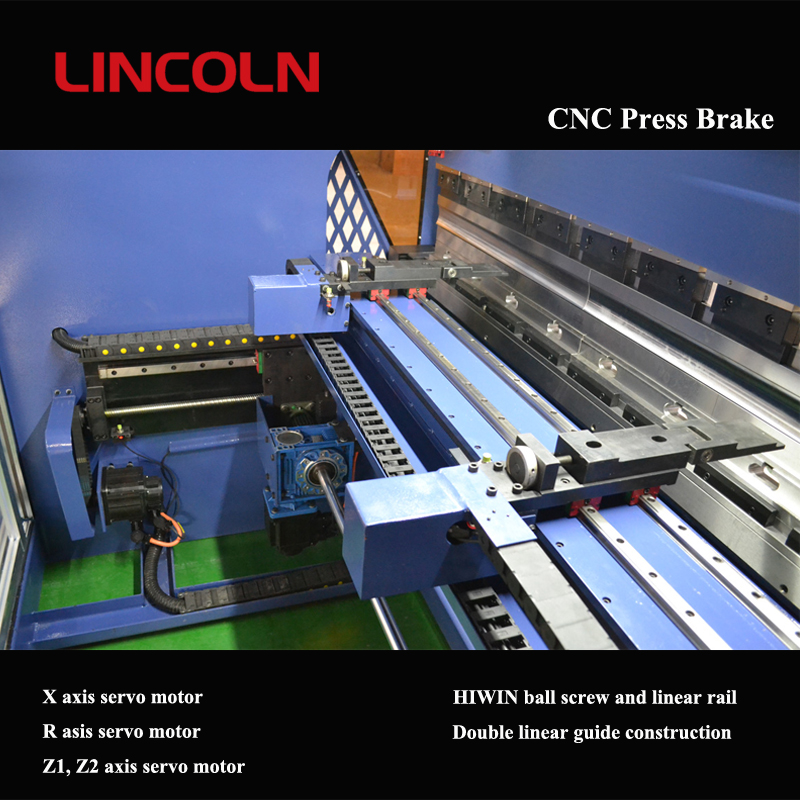

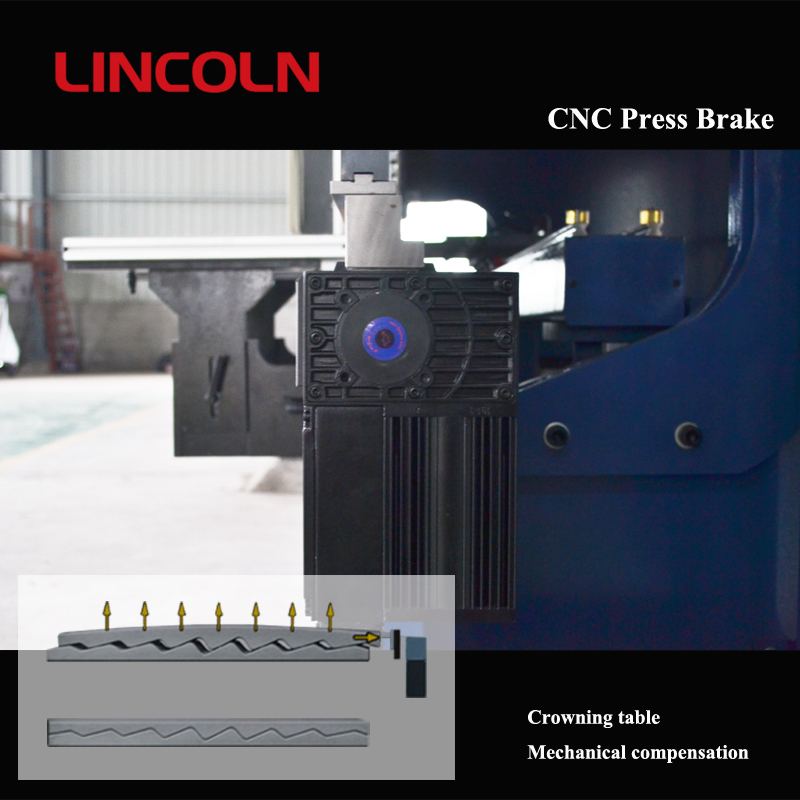

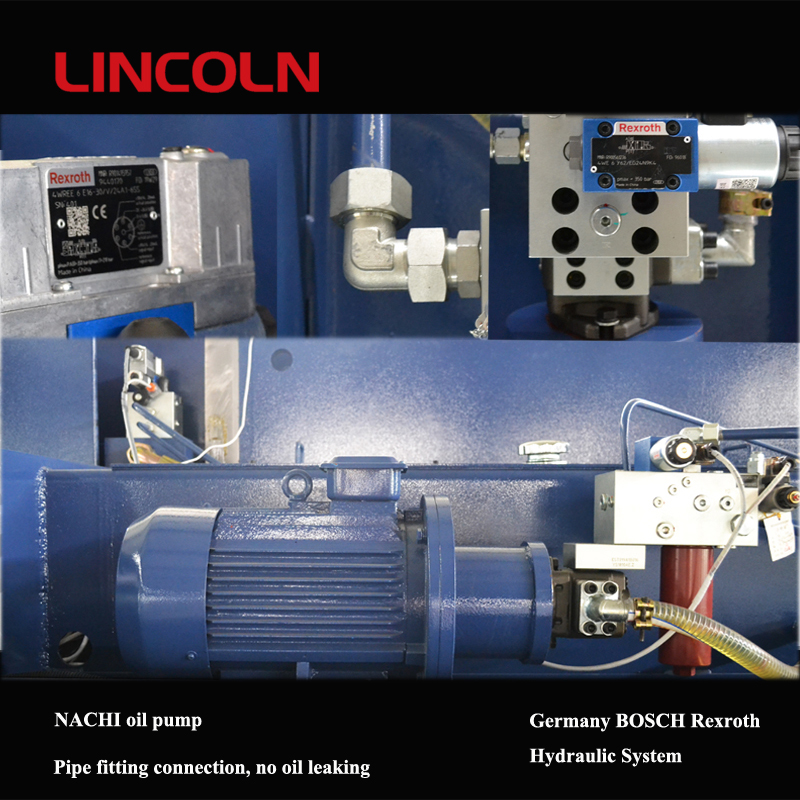

Shandong Lincoln Machinery produces high quality CNC Press Brake, all made for the USA and Euro market in the highest standard. Our press brake builds with rugged frame, high speed and high precision. Electro hydraulic servo system, improve movement precision for slide stroke up and down. Mechanical compensation on crowning of workable, ensuring good bending strength. Backgauge equips with serve moto, ball screw and guided by linear way.
Model: FCNC-100T/2500
Bending Capacity
Bending force
Tons
1000
Max. Bending Length
Fold Length
MM
2500
Distance Between Frames
Spacing
MM
2200
Throat Depth
Throat Depth
MM
300
Cylinder Stroke
Cylinder Stroke
MM
160
Day Light Opening
Opening Height
MM
420
Die Setting Height
Opening Height
MM
470
Main Motor
Main motor power
KW
7.5
Oil Volumn
Oil Volume
L
250
Fast Approach Speed
Drive Forward
MM/SEC
200
Bending Speed
Press
MM/SEC
13
Return Speed
Return Stroke
MM/SEC
160
Dimension
Machine External Dimensions
MM
2800*1500*2270
Weight
Weight
KG
5800
All data are approximate. Design and specifications subject to change without notice.
From the supplier
Shandong Lincoln Machinery produces high quality CNC Press Brake, all made for the USA and Euro market in the highest standard. Our press brake builds with rugged frame, high speed and high precision. Electro hydraulic servo system, improve movement precision for slide stroke up and down. Mechanical compensation on crowning of workable, ensuring good bending strength. Backgauge equips with serve moto, ball screw and guided by linear way.
Model: FCNC-100T/2500
Bending Capacity
Bending force
Tons
1000
Max. Bending Length
Fold Length
MM
2500
Distance Between Frames
Spacing
MM
2200
Throat Depth
Throat Depth
MM
300
Cylinder Stroke
Cylinder Stroke
MM
160
Day Light Opening
Opening Height
MM
420
Die Setting Height
Opening Height
MM
470
Main Motor
Main motor power
KW
7.5
Oil Volumn
Oil Volume
L
250
Fast Approach Speed
Drive Forward
MM/SEC
200
Bending Speed
Press
MM/SEC
13
Return Speed
Return Stroke
MM/SEC
160
Dimension
Machine External Dimensions
MM
2800*1500*2270
Weight
Weight
KG
5800
All data are approximate. Design and specifications subject to change without notice.
About the supplier
Main products: Press brake,Shear Machine,Other Metal Cutting Machinery
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2014
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2014
- Canton Fair Premium Supplier
