About this product
- Materials: Copper
- Size: 240mm2 - 1600mm2
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
About this product
- Materials: Copper
- Size: 240mm2 - 1600mm2
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
Product details
| Materials | Copper |
|---|---|
| Size | 240mm2 - 1600mm2 |
From the supplier
66kV-220kV power cable
1.Product Application
Product is suitable for transmission and distribution power lines with current of 50Hz,with general fire protection requirements and external sheath with certain insulation requirements.

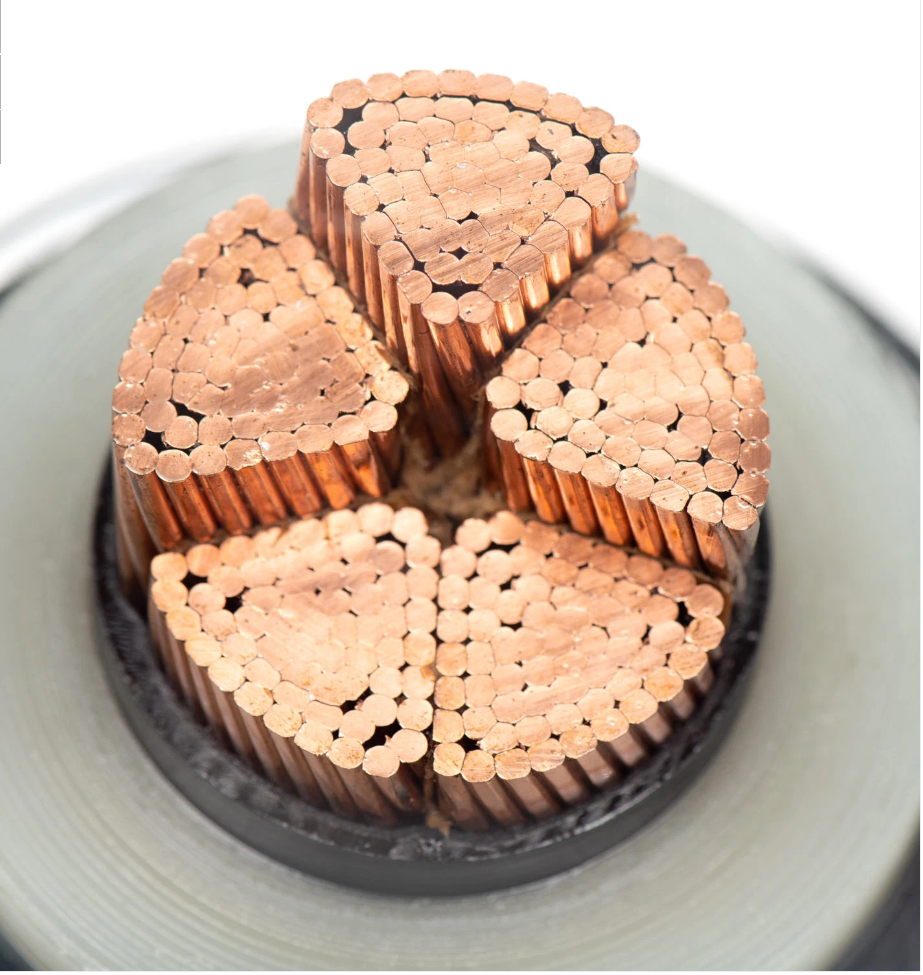

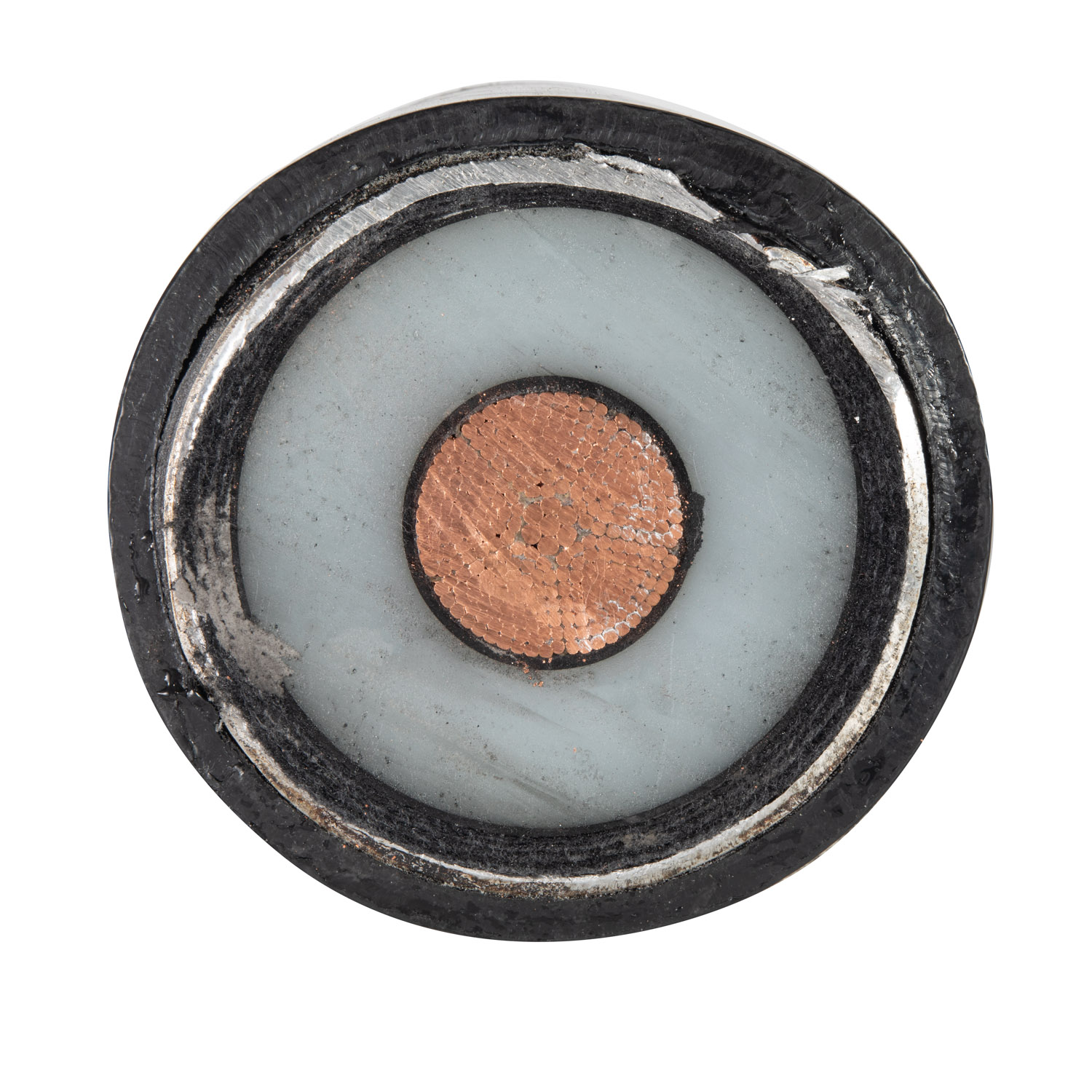

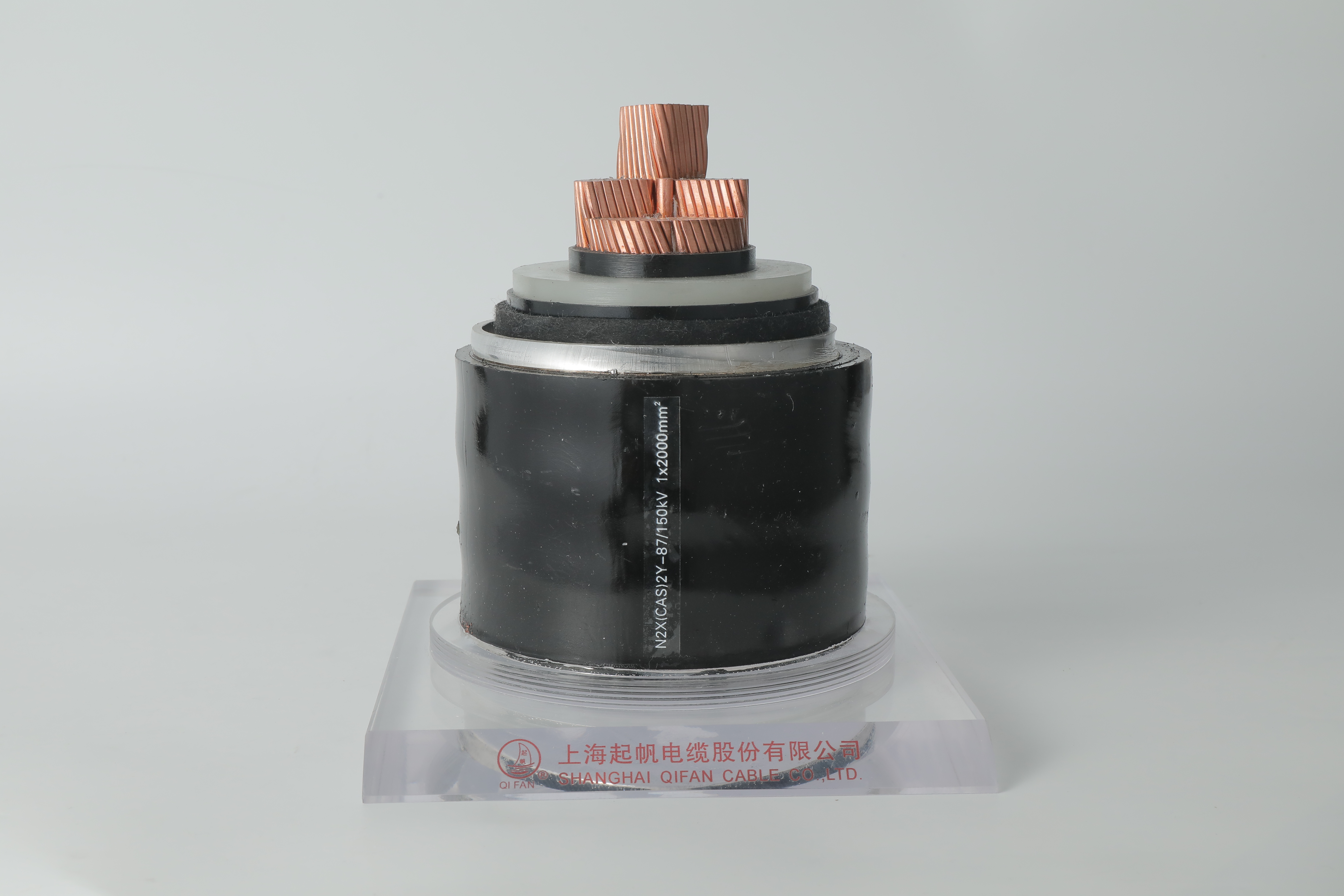

2.Product Structure
1）Annealed soft copper conductor
2）Conductor screen
3）XLPE Insulation
4）Insulation screen
5）Semi-conductive buffer water blocking tape
6）weld corrugate aluminum sheath
7）Anticorrosive asphalt
8) PE sheath (optional PVC sheath)
9) Graphite coated
3.Voltage
66kV，110kV，132kV，150kV，220kV
4.Temperature characteristics:
Conductor operating temperature: -40℃~90℃
Min. temperature laying condition: 0℃
Conductor short-circuit operating temperature (5s): 250℃
