75HP Two-Stage Permanent Magnet Variable Frequency Screw Compressor
- FOB goods (100)
- $1,082,693
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $37,894
- Section 301 tariff (25.0%)
- $270,673
- Customs fees (MPF/HMF)
- $1,988
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
75HP Two-Stage Permanent Magnet Variable Frequency Screw Compressor
- FOB goods (100)
- $1,082,693
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $37,894
- Section 301 tariff (25.0%)
- $270,673
- Customs fees (MPF/HMF)
- $1,988
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: IRON
- Size: 1860*1200*1700
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: IRON
- Size: 1860*1200*1700
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | IRON |
|---|---|
| Size | 1860*1200*1700 |
| Color | Grey |
From the supplier

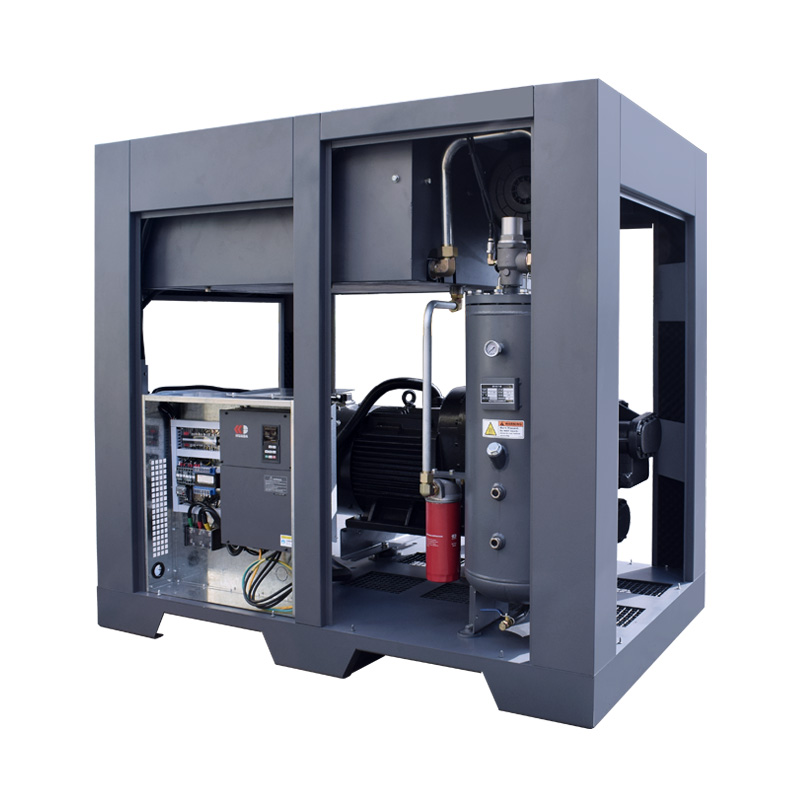

75hp Two-stage Permanent Magnet Variable Frequency Screw Compressor
The 55kw permanent magenta variable frequency compressor is high-efficiency save power machine.It is designed in the FEM strength analysis to ensure the stability and reliablility of each part,and to realize long term operation with no faults,low noise and long life.
1.Electric control system
Reliable quality of Schneider electric element to ensure the long-term,without machine avoidance operation,low energy consumption,reduced low operation cost.
2.Safe,efficient air filter system
Long life filter design,filter large area,small air breathing resistance,in deep keep air clean and free of impurities.
3.Efficient oil filter
More effectively remove impurities in lubricating oil quality and deterioration ,the maximum in deep the service life of the host.
4.Efficient separation of oil and gas
Large volume of oil and gas in the whole barrel the internal pressure ratio optimization,stability fixed source.
5.Oil and gas separation effect is excellent,by cyclone separation,gravity separation,oil the three stage of the oil separation and fine processing.After the compressed air oil products the amount is controlled in an ideal range.

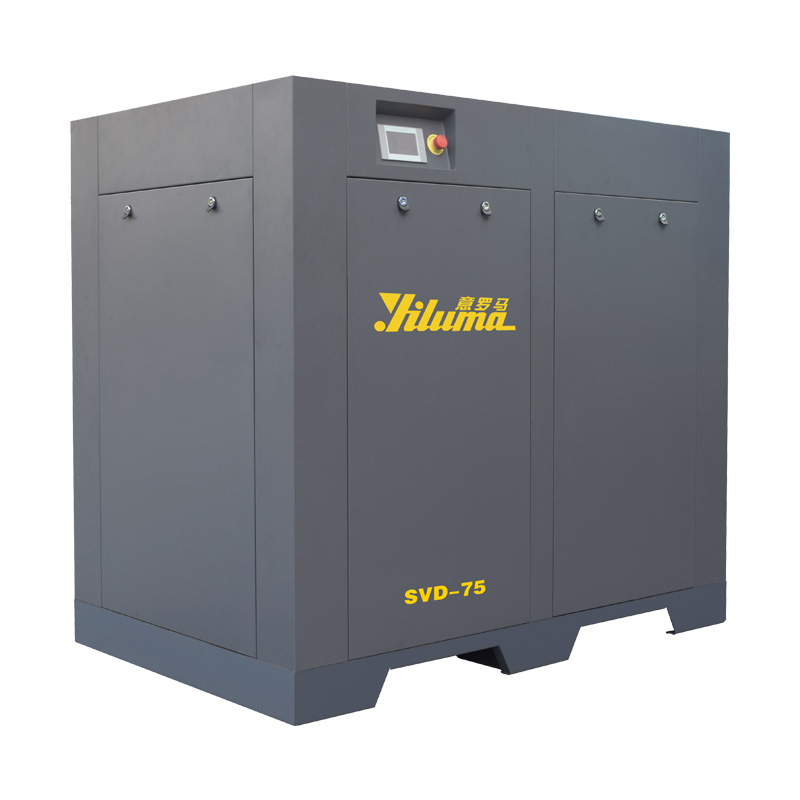

SVD-75
Discharge Pressure(Mpa)
0.8Air Delivery(m³/min)
11.4Power(kW)
55Lubricant(L)
42Drive Method
Variable frequency starting
Cooling
Air
Discharge Temperature(℃)
≤Ambient temperature±15℃
Electricity(V/Hz)
380V/50Hz
Weight(kg)
1350Dimension(mm)
1860*1200*1700
Air Outlet Pipe Diameter(inch/mm)
G2''
1、Company Advantage
Quanzhou Huade Electric Machinery & Equipment Co., Ltd Fujian PRC (formerly Quanzhou city of Fujian province Huada Machinery Co.,Ltd) is located in West Coast city of Quanzhou.Our company is one of the Air Compressor professional manufacturers with the largest domestic and the equipment is the most advanced currently.And our company is an innovative and high-technology enterprise.We specialized in developing,designing,and producing series of piston and screw air compressors.Our company have obtained the certification ISO9001:2000,Chinese Universal machinery certification,and the quality testing of CCC certification,CE certification,CQC certification,and ETL certification.In 2002,we have cooperated with the air end manufacturer in Germany that are GHH-RAND and ROTORCOMP and AERZEN and COMER to improve production technique.And the production update,quality and global sale is our company market strategy all the time.
2、Workshop & Equipment
We have advanced air compressor production equipment and perfect production line.We practice strict quality control procedures throughout the entire production process from procuring of raw materials,processing of components,assembly of machine,to testing machines' performance.
3、Qualification Certificate
We have passed ISO 9001:2015、ISO 14001:2015、IATF16949:2016 certifications.Most of products have passed CE、RoHS、TUV、3C、CNAS、CQC certifications through authoritative institutions.
4、Global Parter
Our air compressors radiate to the whole world, export to more than 100 countries and regions, and maintain long-term stable cooperative relations.Annual traning is offered to global agents and after-sales engineers,for mastering new product,new technology,new material,new crafts in order to offer most advancing high quality product service.
About the supplier
Main products: Compressor
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2003
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Industry and Trade Company
- Founded 2003
- Canton Fair Premium Supplier
