Product Description

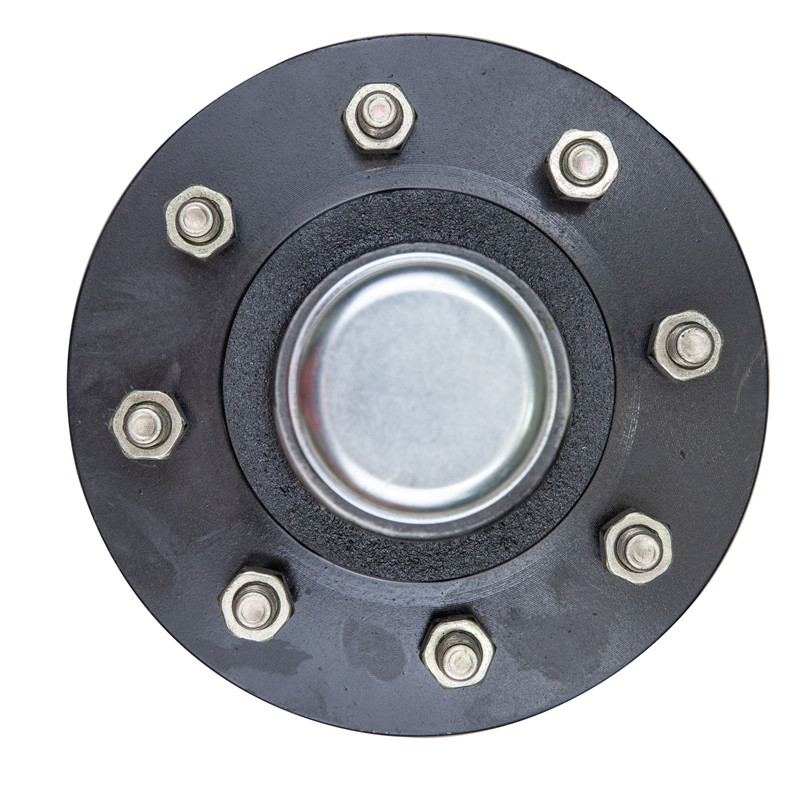

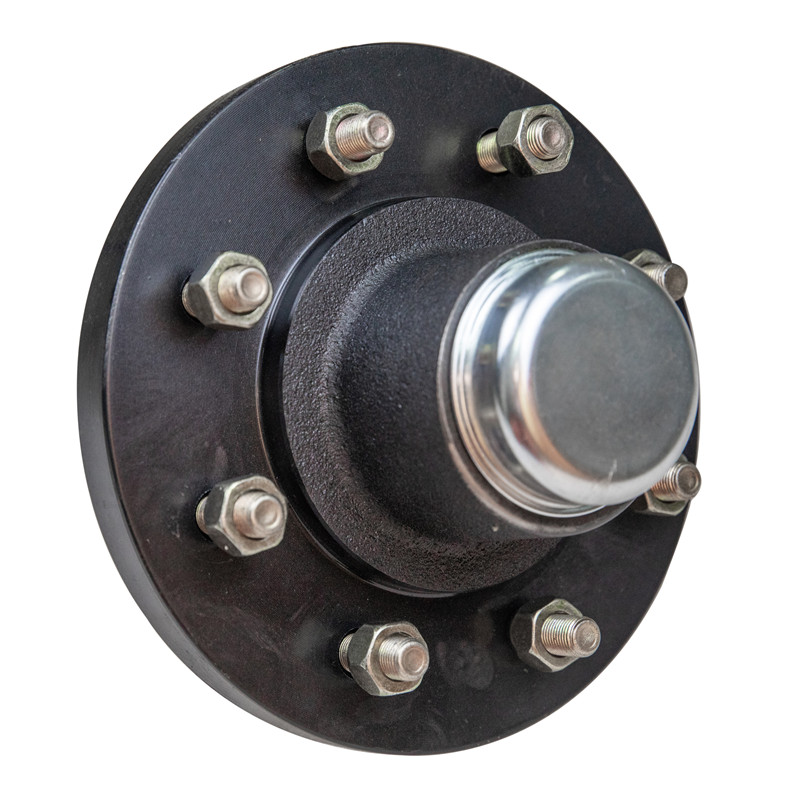

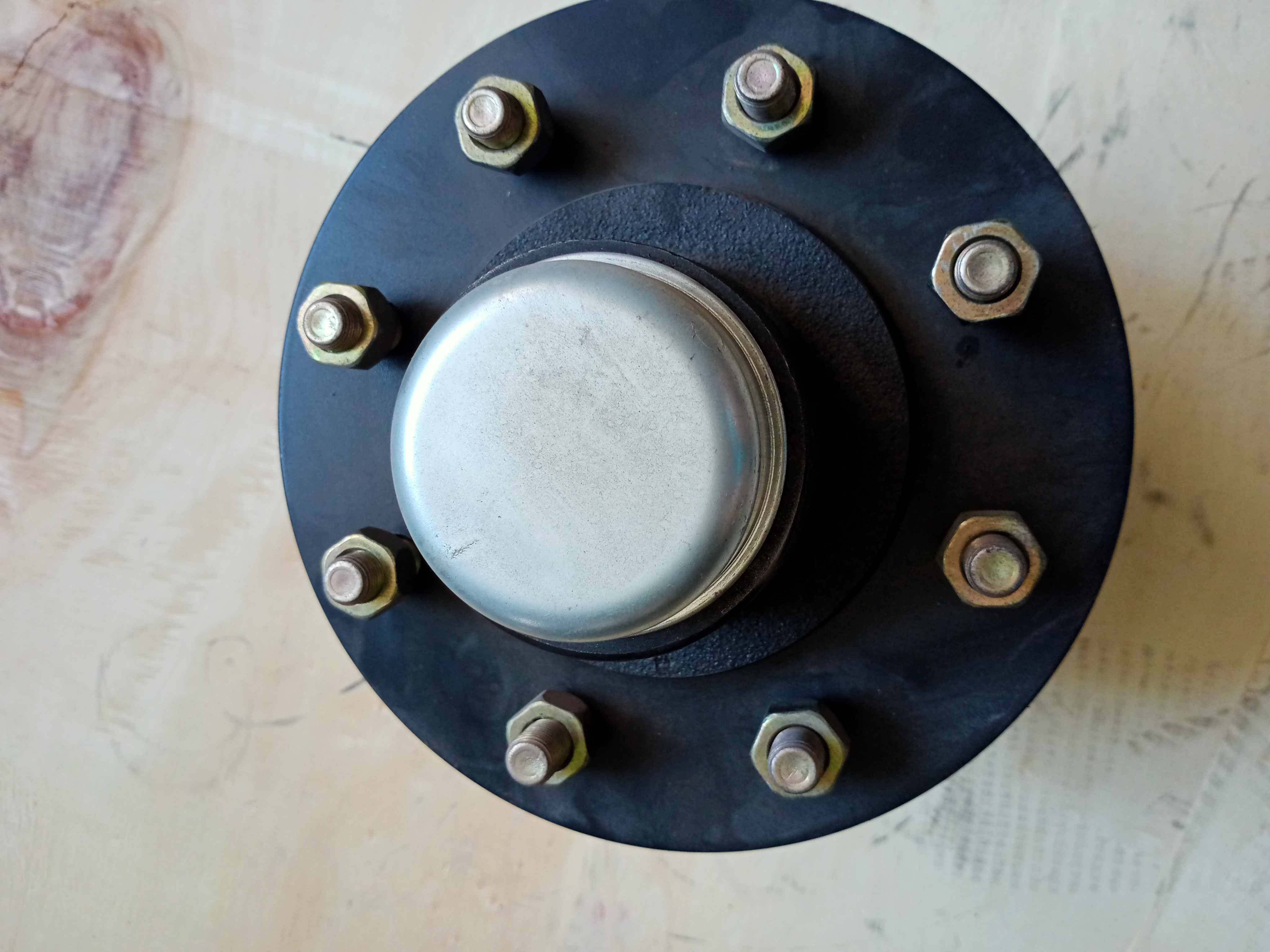

8 Lug Trailer Accessories Half Axle Hub With Spindle

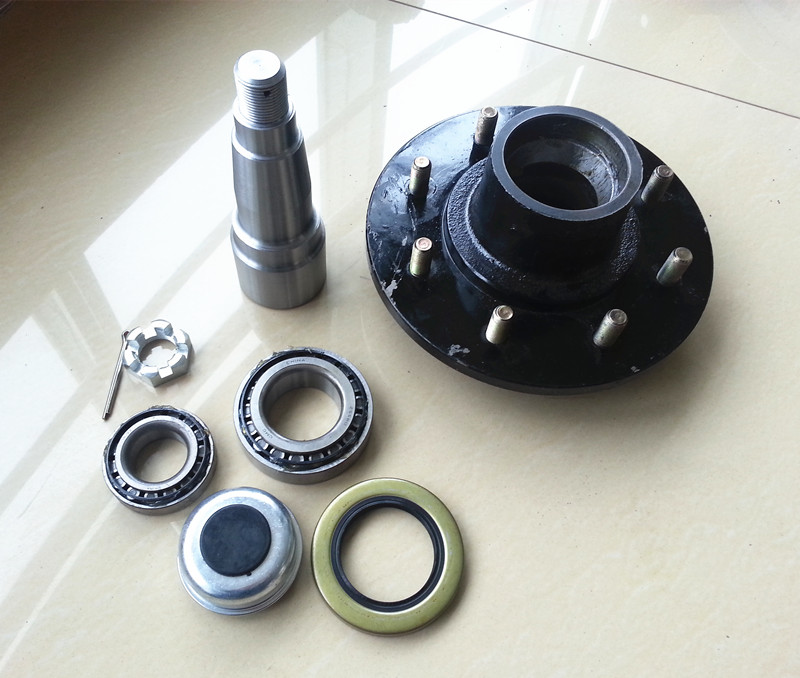

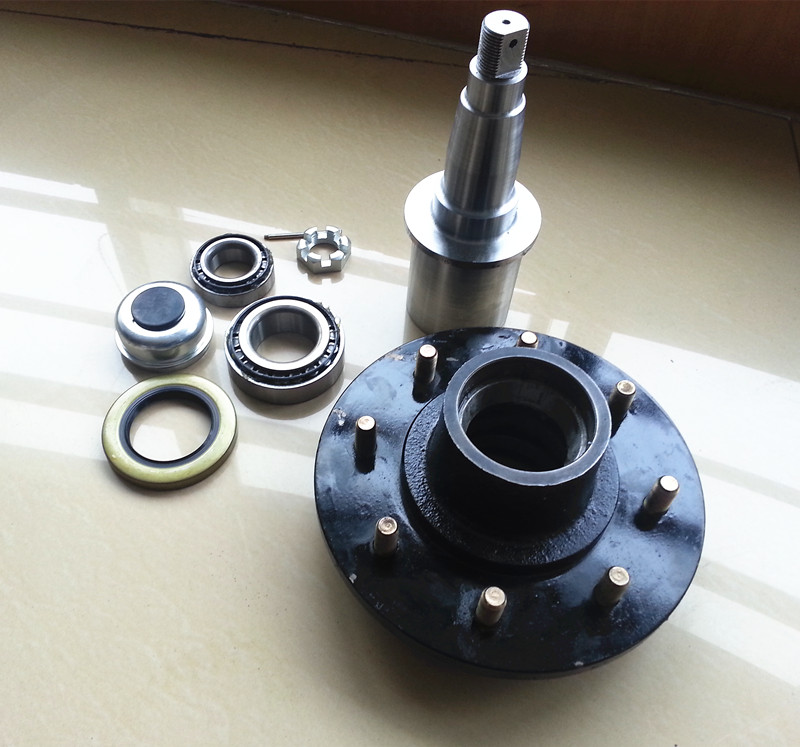

Hub is designed for use on trailer idler axles. Fits 5,200-lb to 7,000-lb axles with spindles that require a 2-1/8" ID grease seal. Inner bearing (25580) and race, outer bearing (14125A) and race, seal, cap, wheel bolts, and lug nuts included.

Features:

Trailer hub assembly fits idler axles

Bearings, races, seal, grease cap, wheel bolts, and lug nuts are included

Sturdy iron construction

Zinc-enriched paint finish

Specs:

Application: 5,200-lb to 7,000-lb trailer axles with spindles that require a 2-1/8" ID grease seal

Also fits spindles that take a 2-1/4" inner diameter grease seal - requires RG06-070 (sold separately)

Wheel size: 16" to 17-1/2"

Bolt pattern: 8 on 6-1/2"

Grease cap flange diameter: 2.72"

Wheel stud diameter: 1/2"

Weight capacity: 3,500 lbs

Bearing, Race, and Seal Information

Bearings (included)

Inner bearing: 25580 (1.75" inner diameter)

Outer bearing: 14125A (1.25" inner diameter)

Races (included)

Inner race: 25520

Outer race: 14276

Grease seal (included): GS-2125DL

Inner diameter: 2.125"

Outer diameter: 3.376"

NO

Description

QTY

1

Grease seal

1

2

Bearing cone 25580

1

3

Bearing cup 25520

1

4

Bearing cup 14125A

1

5

Bearing cup 14276

1

6A

Grease cap for 7K

1

6B

Rubber plug

1

7

5/8" -18 flange nut

8

7

5/8" -18 nut cone 90

8

8

Oil filter cap

8

9

washer

8

10

5/8" -18 press-in stud

8
