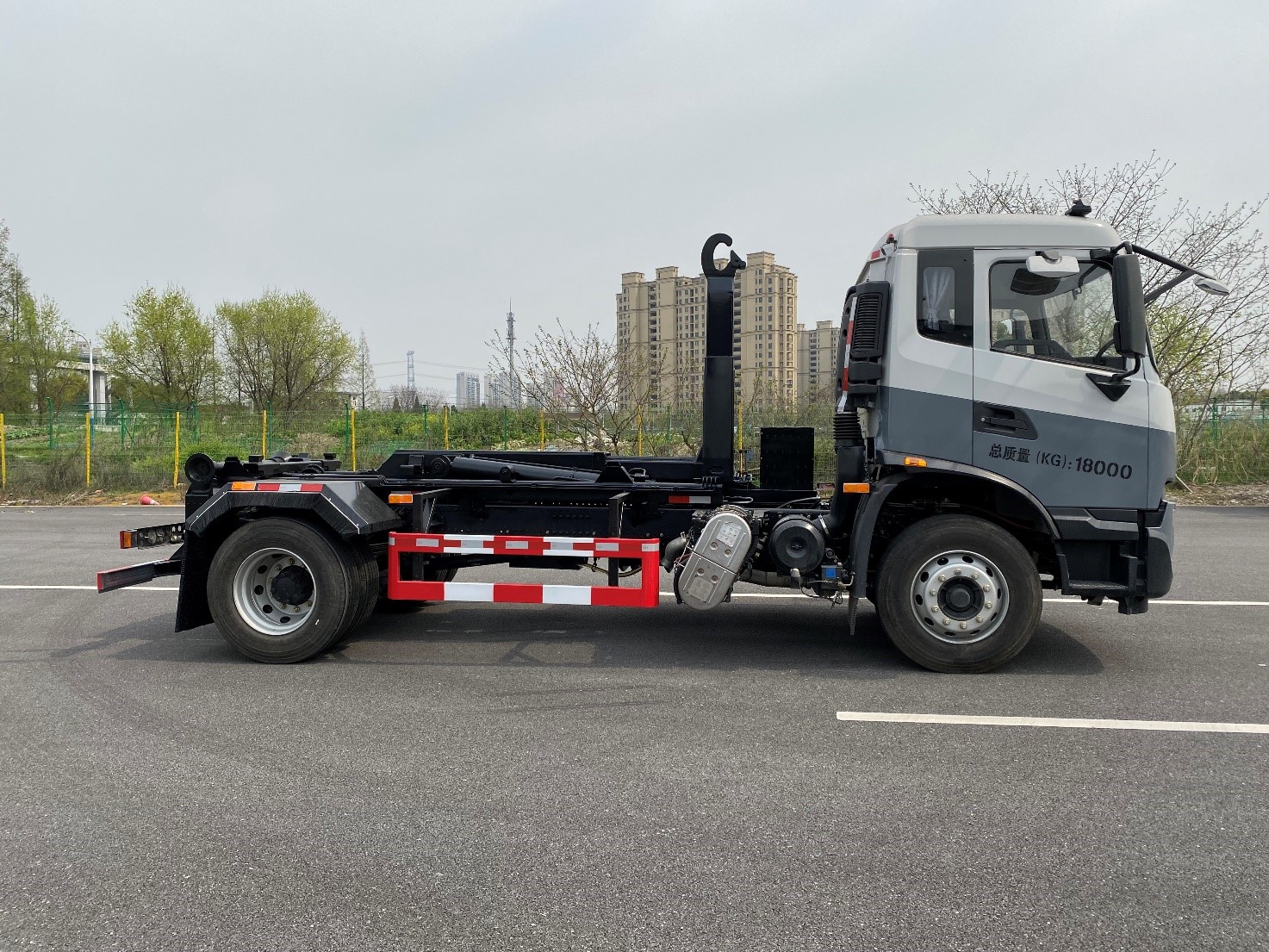

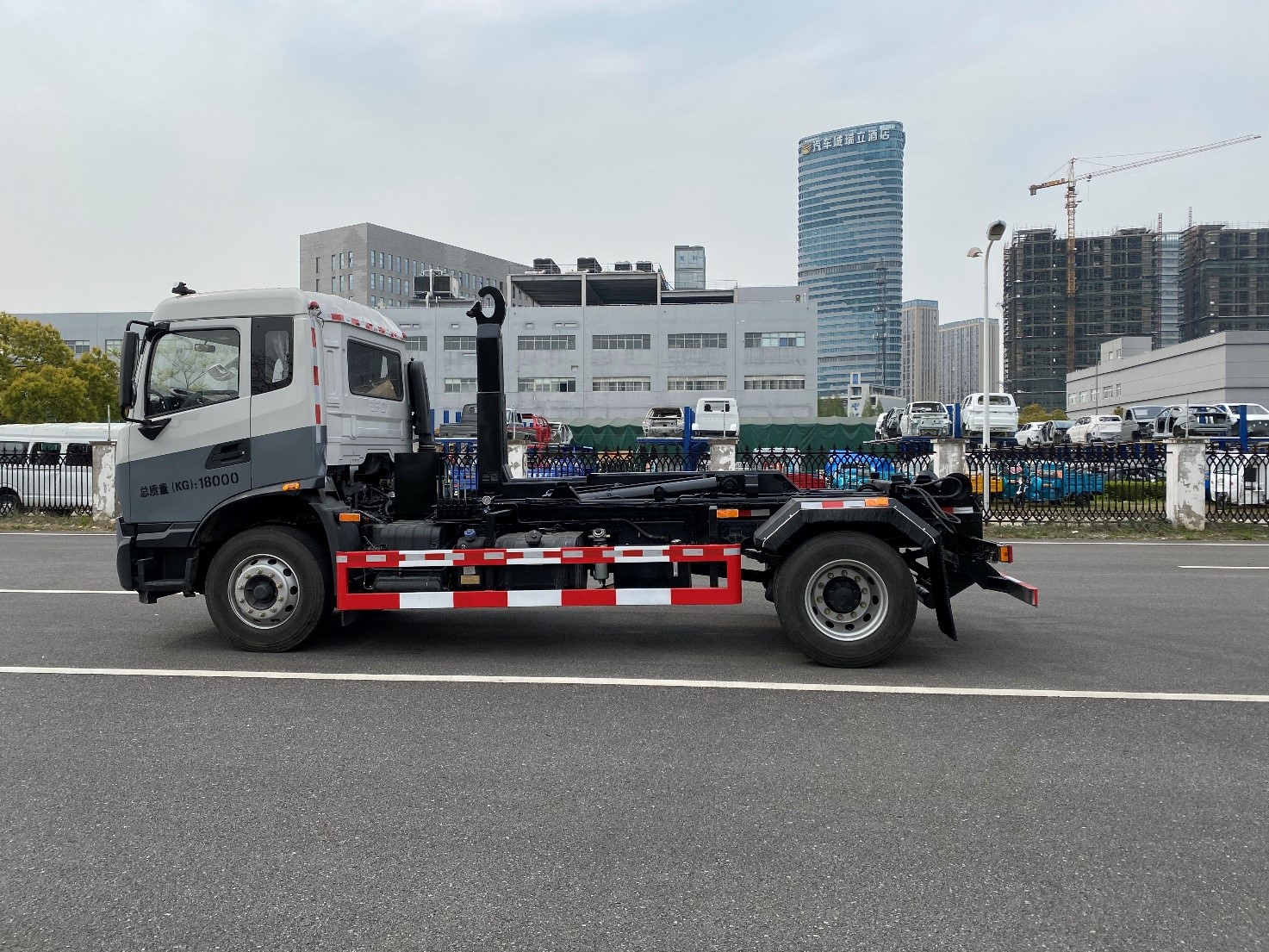

8Ton Detachable Box Garbage Truck

8T detachable container garbage truck

Application and Description

Application and introduction

Detachable Container Garbage Truck - Also known as arm truck or hook truck, used for transferring municipal waste in specialized containers. Comprises auto chassis, main arm hydraulic cylinder, sub-frame, tipping frame, support legs (optional), locking frame, multi-way valve. Pulls garbage and container together for transport to incineration plants or landfills with self-dumping capability. One truck matches multiple containers, reducing equipment costs and space. Primary use: municipal sanitation and large industrial waste transport. Also transports ash, sand, stone, soil, bulk building materials, ore, and coal.

detachable container garbage truck is also called pull arm car, hook arm car, is used for the transfer of urban garbage loaded in the special garbage box special vehicles.The car is composed of chassis, main oil cylinder of pull arm, attached frame, overturn frame, supporting leg (optional), locking frame, locking cylinder and multi-way valve, etc.The vehicle can be loaded with rubbish and rubbish bins and transported to the central disposal area such as waste incineration plant or landfill site, with self-unloading. Can achieve a car matching multiple bins, greatly reduce the cost of equipment and space, and so on. It is mainly used for carrying all kinds of garbage in various municipal sanitation and large industrial and mining departments. It can also carry bulk building materials such as ash, sand, stone and earth, and also carry ore or coal in mines or coal mines.

Main Technical Indicators And Operating Performance

Detailed description of main technical indexes and operation performance of goods

Serial Number

SN

Technical Specifications And Performance

Serial number technical index and performance description

1

Vehicle Model: Saiwuo SAV5180ZXXE6 Detachable Garbage Truck

Vehicle model: SAV SAV5180ZXXE6 detachable container garbage truck

2

Chassis Model: Dongfeng DFH1180EX8 (Emission Standard: National VI)

Chassis model: Dongfeng DFH1180EX8 (emission standard: National VI)

3

Engine Model: Cummins D4.5NS6B190, Max Power (Kw): 135

Engine model: CUMMINS D4.5NS6B190 Maximum net power of engine 135KW

4

Engine Rated Power (kW): 169

power of engine 169KW

5

Wheelbase (mm): 4500/4200/3800 Wheelbase (mm): 4500/4200/3800

6

Overall Dimensions (Length x Width x Height) (mm): 7220x2550x3050

7

Total Mass (kg): 18000 Total Mass (kg): 18000

8

Lifting Capacity (T): Not less than 10 Lifting capacity (T): not less than 10

9

Features Woler LBH10 Lifting Arm Device

The world famous brand Waller LBH10 arm pulling device is adopted

10

Lift Arm Hook Height: 1570mm

The hook center height of the arm pulling device is 1570mm

11

Simple Pull Arm Structure, Light Weight, Large Rated Load Capacity

The drawarm has simple structure, light dead weight and high rated load.

12

Equipped with Anti-Tilt Stability Device and Rear Support Roller, Provides Effective Support for Heavy Load Operations, Prevents Vehicle Tilting and Safety Issues, Ensures Stable Loading/Unloading Operations

It is equipped with anti-warping head stabilization device and rear supporting roller device, which can effectively support the heavy load operation, prevent the occurrence of vehicle warping first class unsafe phenomenon, and ensure the smooth loading and unloading operation of vehicles.

13

Vehicle Equipped with Hydraulic Locking Device, Ensures Effective Locking of Accompanying Garbage Bin During Transportation and Unloading, Guarantees Safe Operation in Transportation and Working Conditions

The vehicle is equipped with a hydraulic locking device, which can ensure the vehicle in the process of transportation and unloading supporting dustbins, supporting dustbins for effective locking, to ensure safe use in transportation and working state.

14

Pull arm hook with self-locking safety block, effectively prevents box slippage during transport

The safety block with self-locking function of the arm hook can effectively prevent the box from falling off the arm hook in the process of transportation.

15

Can Control Lifting Arm Operations from Inside Cab.

It can operate the pull arm in the cab.

16

Cab with Air Conditioning

The cab is equipped with standard heating and cooling air conditioning.
