AM35 tubular roller shutter motor with electronic limit,Tubular motor diameter 35 mm adapters,designed for a quiet,widely uesd for roller blinds, windows, shops, projection walls or blinds.

• BRAND:

  A-OK

• ITEM NO.:

  AM35

• COLOR:

  Yellow or custom

• LEAD TIME:

  30 days(A-OK standard)

• ORDER(MOQ):

  1000 PCS

• WARRANTY:

  up to 5 years

• CERTIFICATE:

  CE/CB/TUV/C-TICK/R&TTE/FCC/RoHS/C-UL-US/C-TUV-US

Features:

• Stop automatically when detect obstacle
• Displacement can be automatically corrected;
• International leading mute patented technology helical gear mute structure design; mute operation, the noise value is as low as 30db
• Support external hand control switch;
• Simple operation process, making the setting easier;
The motor is stable for a long time;
• Support RS485/232 computer control function, easy to integrate central control.

• PRODUCT DETAIL

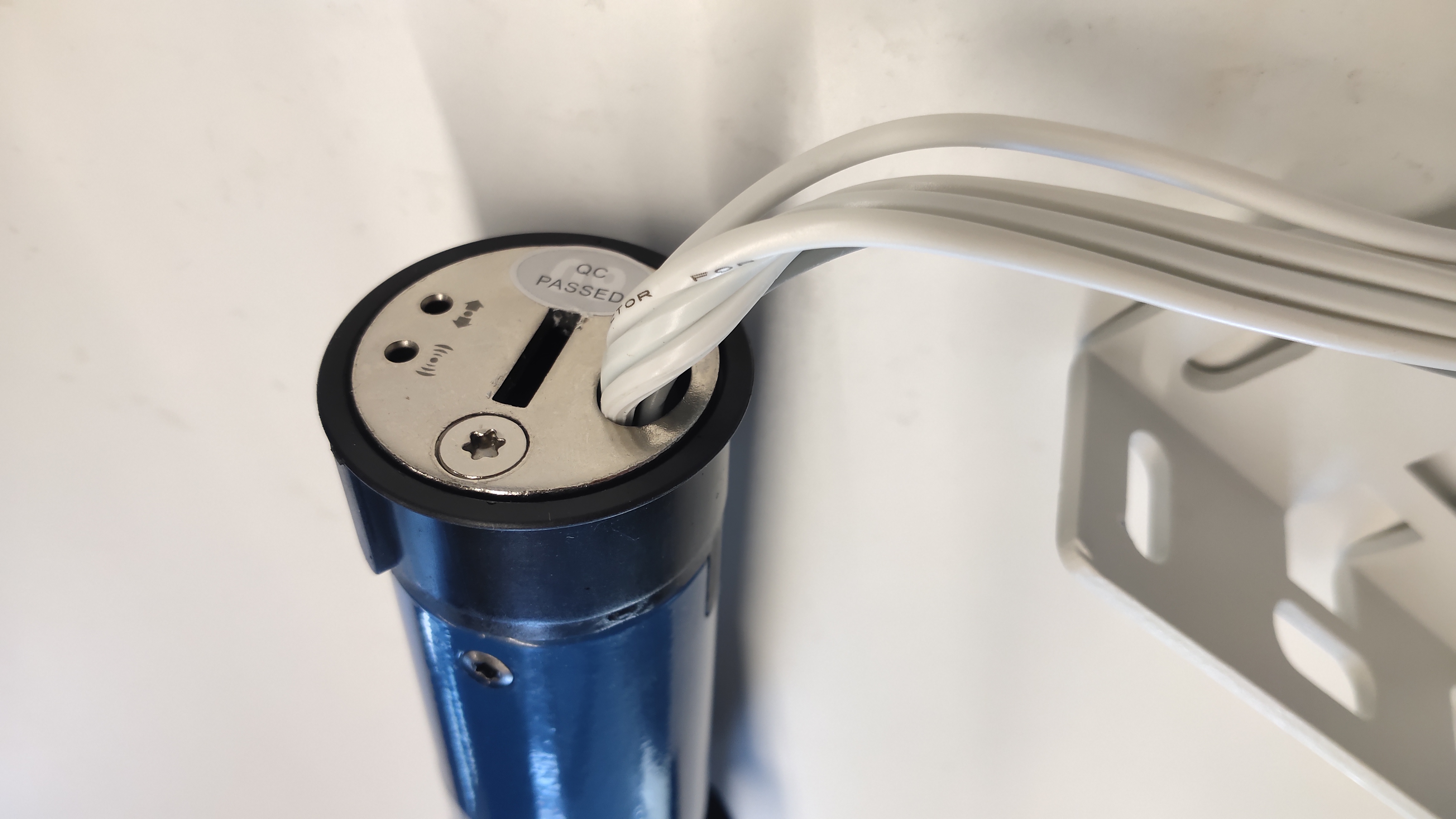

AM35 helical gear multiple electronic limits tubular motor

Specifications:

Model No. Rated Torque Rated RPM Motor Diameter Rated Voltage Rated Power Rated Current IP Class 230V AC 50/60Hz AM35-6/28-MEL-PZ 6N.m 28rpm 35mm 230V 115W 0.485A IP44 AM35-8/19-MEL-PZ 8N.m 19rpm 35mm 230V 115W 0.485A IP44 120V AC 60Hz AM35-6/28-MEL-PZ 6N.m 28rpm 35mm 120V 115W 1.1A IP44 AM35-8/19-MEL-PZ 8N.m 19rpm 35mm 120V 115W 1.1A IP44

Application:

AM35 helical gear multiple electronic limits tubular motor is mainly used in electric roller blinds, pleated blinds, Shangri-La blinds, electric screens, blinds and other products.

Controling:

Wireless remote control: operate with remote control, Easy operation and adjustment
