Our factory mainly supply coal based activated carbon which can be divided into pellet carbon , granular carbon , impregnated carbon , acid washed carbon , powder carbon and briquette carbon and so on , more than 6 kinds and hundreds of specification . The products can be used in desulfurization purpose , solvent recovery , catalyst carrier , water characteristics , air purification , all-purpose protection and so on . The characteristics of the products used on the developed micropores of Taixi Coal inherent , adjusting pore and making transition hole and large pore distribution extent according to customers’ demands . It has been a breakthrough in only use etheric wastern coal as raw material to produce before , and now the raw material species covering inner Mongolia , Shanxi and other kinds of coal . Today , we will mainly introduce the 6 kinds of activated carbon .

Profile :

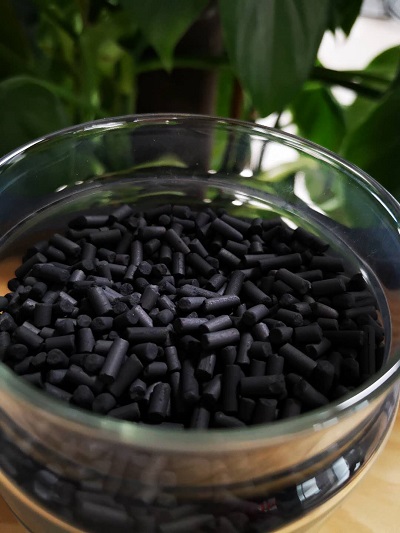

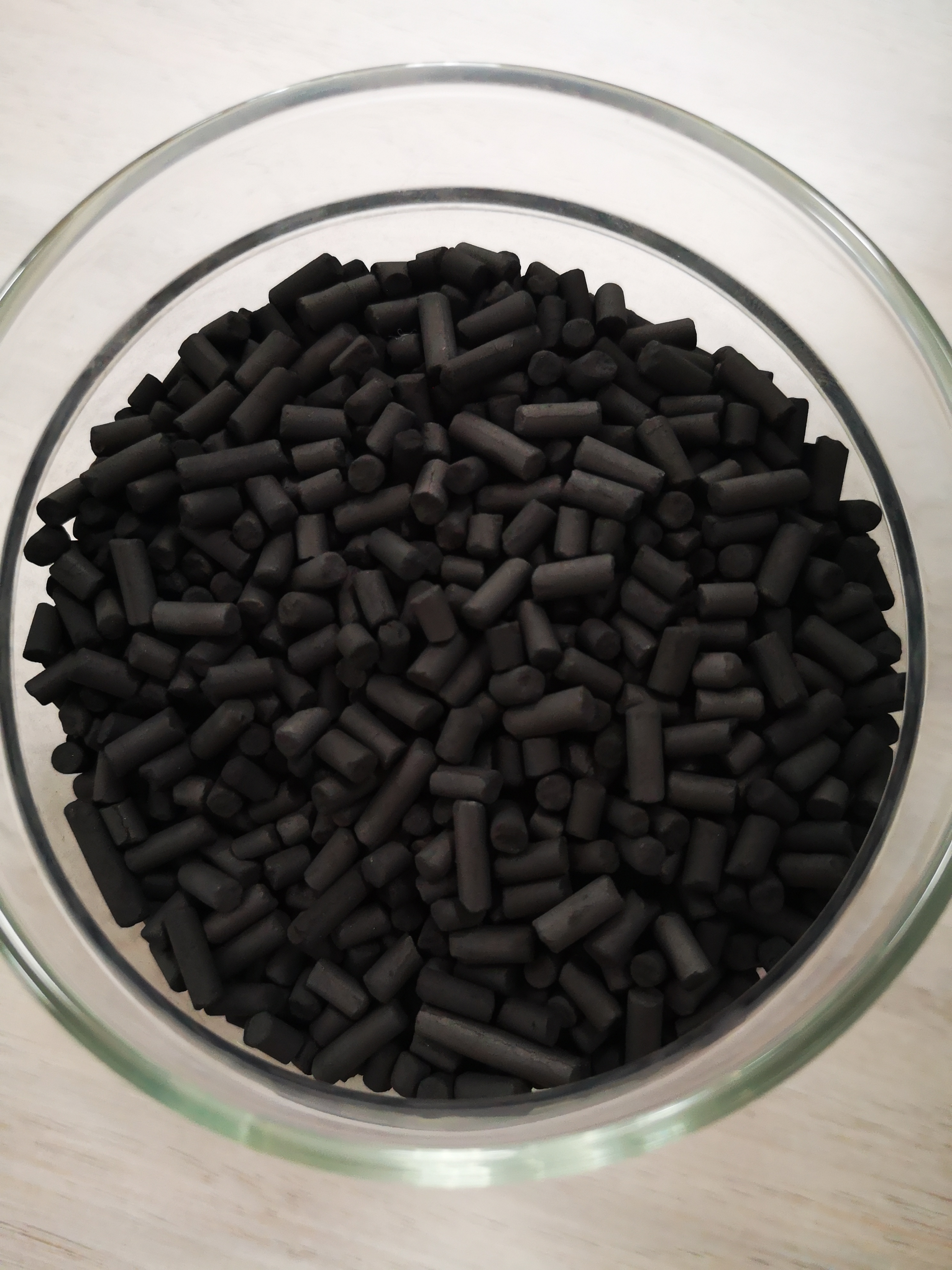

Pellet carbon , which is the first main product of our company . We can be supplied from the range of 0.9mm till 9.0mm in diameter according to clients’ requirement . This kind of carbon is made of high standard Taixi anthracite , processed through grinding , mixture , extrusion , carbonization and steam activation and so on . Due to the high mechanical hardness , highly developed pore structure and huge specific surface area , it can be widely used in both of gas-phase and fluid-phase purification and adsorption , and also as catalyst carrier , poison and security protection .

Main Usage

1. 1.The high adsorption carbons mainly used for air purification , solvent recovery  and high purity gas treatment . And we can manufacture carbon for oil-gas recovery of vehicle with ASTM BWC 9.0-14.0 .
2. 2.The super low ash content carbons are mainly used in drinking water treatment , the purification of highly purified gases , in food processing and pharmaceutical industries ;
3. 3.The macropore developed carbons are mainly used as catalyst carriers and for after processing ;
4. 4.The super fine carbons are mainly used for gas defense and poison protection .
5.
6. Main Technical Specification

   Spec / Type

   Diameter (mm)

   Ash Content(%)

   Hardness (%)

   Density (g/L)

   CTC Absorption(%)

   Lodine (mg/g)

   Water Soluble ash(%)

   A-0.9

   0.9

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-1.5

   1.5

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-2.0

   2.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-3.0

   3.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-4.0

   4.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-5.0

   5.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-6.0

   6.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-7.0

   7.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-8.0

   8.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

   A-9.0

   9.0

   2-15%

   ≥90

   300-600

   25-125

   500-1300

   ≤0.5

Granular Activated Carbon , which is the second main products following pellet carbon of our company , can be produced in various distribution , the specification produced through the year includes 8x30mesh , 12x40mesh , 5x7mesh , 12x30mesh , 20x40mesh and so on .

Granular activated carbon is the extension and supplement on products manufacturing and service of pellet series . This type of activated carbon is finished by mechanical breaking and screening of pellet series . Therefore ,it has the pore characteristics of pellet activated carbon .

Main Technical Specification

Ash :5-15

Hardness >85%

Density:350-500(g/L)

Lodine :800-1100mg/g

Methylene Blue :180-250mg/l

Water capacity:80-110(%)

Water soluble Ash :

Bituminous activated carbon

Bituminous activated carbon is the specific carbon which is different with pellet series, and it takes soft coal as raw material . This kind of activated carbon is produced by scientific formulation of several types appropriate coal , grinding into powder , non-bondable extrusion , carbonization and steam activation . The main characteristics manifested in highly developed macropore and mesopore structure and low floating rate , which are the best choice for the decolorized usage of fluid –phase and water treatment and so on .

Powder   Activated Carbon

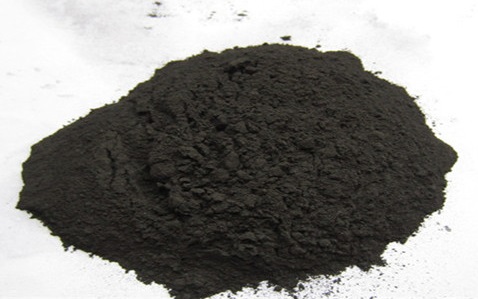

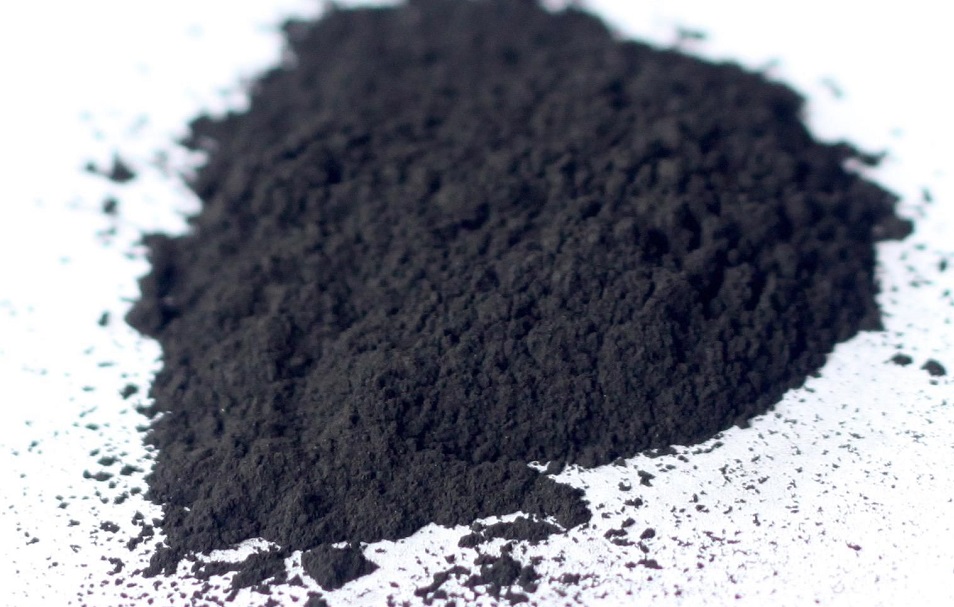

Powder activated carbon , which is grinded into suitable powder size with qualified activated carbon , is the third main products of our company . Because of its powder state , better diffusivity , it can full touch to the rection material . Meantime , it is applying to disposable recovery treatment of filling water and industrial waste water with its high efficient adsorption , moreover , also used for refining and decolorization of liquid . The types we manufacture through the year include 30*200mesh , 60*200mesh , 100*200mesh , 325mesh and so on .

Main Technical Specification

Type

Specification (mesh)

Properties

30x200mesh

30x200

+30mesh ≤3% , -200mesh ≤20%

60x200mesh

60x200

+60mesh ≤3% , -200mesh ≤20%

100x200mesh

100x200

100x200mesh ≥80%

200mesh

-200 mesh ≥90%

325mesh

-325 mesh ≥90%

Activated Carbon for Oil-Gas Recovery of Automobile

This kind of carbon is used in ORVR system , with its petrol steam adsorption value ranges GWC 35-50g/L and organic combination of high adsorption capacity and high desorption performance . By using it for a long period , its adsorption performance . By using it for a long period , its adsoption and desorption performance can get more than 81% of initial performance. In additition , BWC RECHES 9.0-14.0G/100ML USING ASTM method .

Activated Carbon for Solvent Recovery

Main Usage

The series activated carbon for solvent recovery is mainly applied for recovery and separation of organic sovent and its vapors , for example ether , ketone , alcohol , chloroform , fluorinform , aromatic , tetrahydrofuran , carbon disulfide and so on .

Main Technical Specification

Spec/Type

Moisture content(%)

Hardness (%)

Ash content(%)

CTC LEVEL(%)

Density (g/L)

Size (mm)

A-20/90

≤3

≥95

≤15

≥90

410±20

2.0

A-20/100

≤3

≥90

≤12

≥100

400±20

2.0

A-20/110

≤3

≥90

≤12

≥110

380±20

2.0

A-30/80

≤3

≥95

≤12

≥80

430±20

2.0

A-30/90

≤3

≥95

≤15

≥90

400±20

2.0

A-30/100

≤3

≥90

≤12

≥100

380±20

2.0

A-40/80

≤3

≥95

≤12

≥80

430±20

2.0

A-40/90

≤3

≥90

≤15

≥90

400±20

2.0

A-40/100

≤3

≥90

≤12

≥100

380±20

2.0

A-70/70

≤3

≥95

≤12

≥70

430±20

2.0

Activated Carbon for water purification

Main usage

The series activated carbon is mainly used for the deep purification treatment of drinking water , industrial waste and urban waste water . Moreover , It’s also used to obtain high purity water in electronic infustry and pharmaceutical industry . The organic substance , which are harmful to human health and environment , can be effectively removed .

Technical Properties of Our product

In recent years , our company aims at developing the deeply purify craft of domestic drinking water and property of water quality . The main technological properties as follows :

Low ash content

Having this property is mainly due to choose “ Taixi” anthracite as raw material of coal based activated carbon , and it’s the foundation   that makes Ningxia activated carbon live off . It possible to make activated carbon applied in purification water rejuvenate more times .

High hardness

The main purpose of carboninzation is to raise hardness of finished material and to separate out the light fraction from molding material and to form into primary pore organization , also to provide channel of further reaction for activation craft . In the meantime , to activate the semi finished carbonized material with high hardness , thus it ensures the high hardness of finished products .

Low floating rate

Through manufacturing craft of milling into powder , mixture and extuding , we achieve the homogenization of raw coal , break the different property of microcrystalline structure when raw coal is in natural mineralization . Then through stairs-shaped preoxidation carbonization craft , we get the excellent semi-finished products with high hardness , and thus ensured the stability of finished products and decrease the floating rate as well . This property meets the requirement on floating rate of activated carbon for water purification , and it depends on manufacturing craft of Ningxia activated carbon .

Main Technical Specification

Spec/ Type

Moisture Content(%)

Hardness

(%)

Ash Content(%)

Lodine (mg/g)

Methylene Blue(mg/g)

Density (g/l)

Floater (%)

Ph Value

A-1.5

≤3

≥95

≤12

≥950

≥180

480±20

≤2

8-11

A-8X16

≤3

≥90

≤12

≥950

≥180

440±20

≤2

8-11

A-8X20

≤3

≥90

≤12

≥950

≥180

440±20

≤2

8-11

A-8X30

≤3

≥90

≤12

≥950

≥180

450±20

≤2

8-11

A-12X40

≤3

≥90

≤12

≥950

≥180

440±20

≤2

8-11

A-200

≤5

---

≤12

≥950

≥180

---

8-11

A-325

≤5

---

≤12

≥950

≥180

---

8-11

 Activated Carbon Shipping:

Package:

1.Small bag:25kg/20kg PP bag,
2. Big bag:500kg-550kg bag,

3. 25kg Kraft paper bag
4.According to customer's requrements.
Shipping:

1. 20GPFCL:10tons,

2. 40HQ:20-22tons,

3.40HQ fcl:22tons,or 26 tons,The above quantity without pallet.

Stroage:

 1.Must be stored in fireproof

2. Not be mixed with oxidizing agent,3.Storage place must ban naked frame.

The above quantity without pallet, the goods will be sent within 7-15days after receiving your order.
