Product Application

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.

This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90 ºC and its voltage of service for all the applications is 600 V.

Power cables for energy supply are used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test data. Overall, where increased electrical and also mechanical protection are required. Those cables are installed in open air, in underground, in water, indoors and in cable ducts. The concentric conductor (C) is allowed to use as PE-, PEN-conductor or as shield. due to the typical construction of concentric conductors it is possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.

Product Standard

LV and MV polymeric insulated cables for use by distribution and generation utilities. Specification for distribution cables of rated voltage 0.6/1 kV. XLPE insulated combined neutral and earth copper wire concentric cables with copper or aluminium conductors

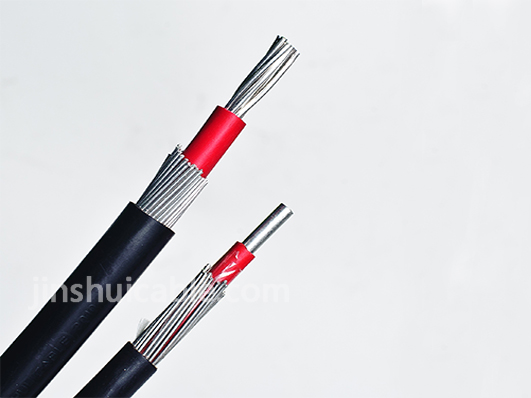

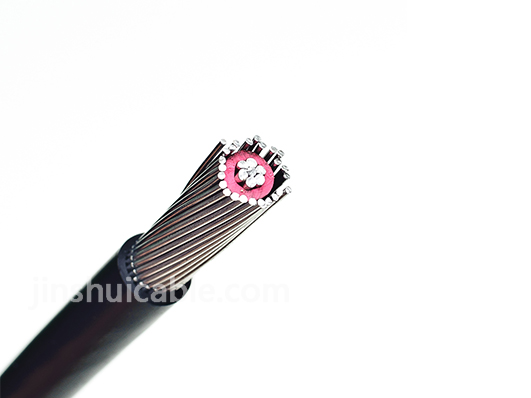

Product Structure

Conductors: Stranded Annealed Copper

Insulation: XLPE (Cross-linked Polyethylene)

Concentric layer: Single layer of plain annealed copper wires

Sheath/Jacket: XLPE (Cross-linked Polyethylene)

Voltage: 600/1000v

Operating temperature: Maximum 90°C, minimum -30°C

Common Used Colours:

For insulation: White, Black and Red.

For external jacket: Black

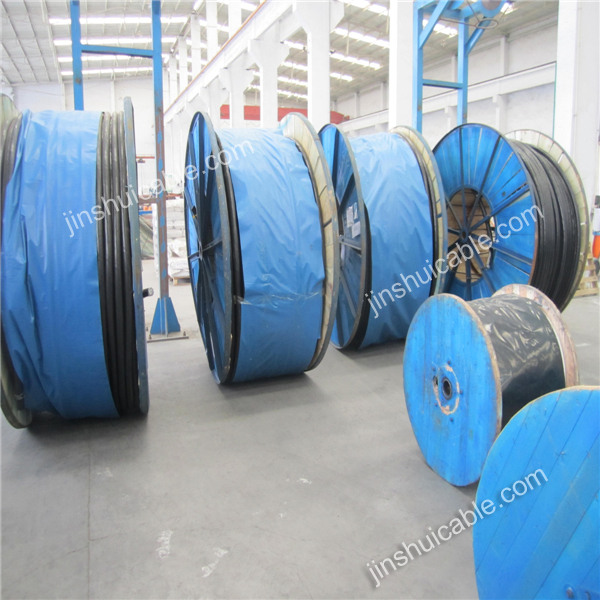

PACKAGING:

Wooden Drum

Or length to the client's requirement.

Available Size: MM2, AWG or MCM

Welcome your inquiry!!!!
