About this product
- Materials: ALUMINUM
- Size: 50x50, 75x75, 100x100, 150x150, 200x200mm
- Color: white, black, red, wood,yellow
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: ALUMINUM
- Size: 50x50, 75x75, 100x100, 150x150, 200x200mm
- Color: white, black, red, wood,yellow
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | ALUMINUM |
|---|---|
| Size | 50x50, 75x75, 100x100, 150x150, 200x200mm |
| Color | white, black, red, wood,yellow |
From the supplier
Basic Info.

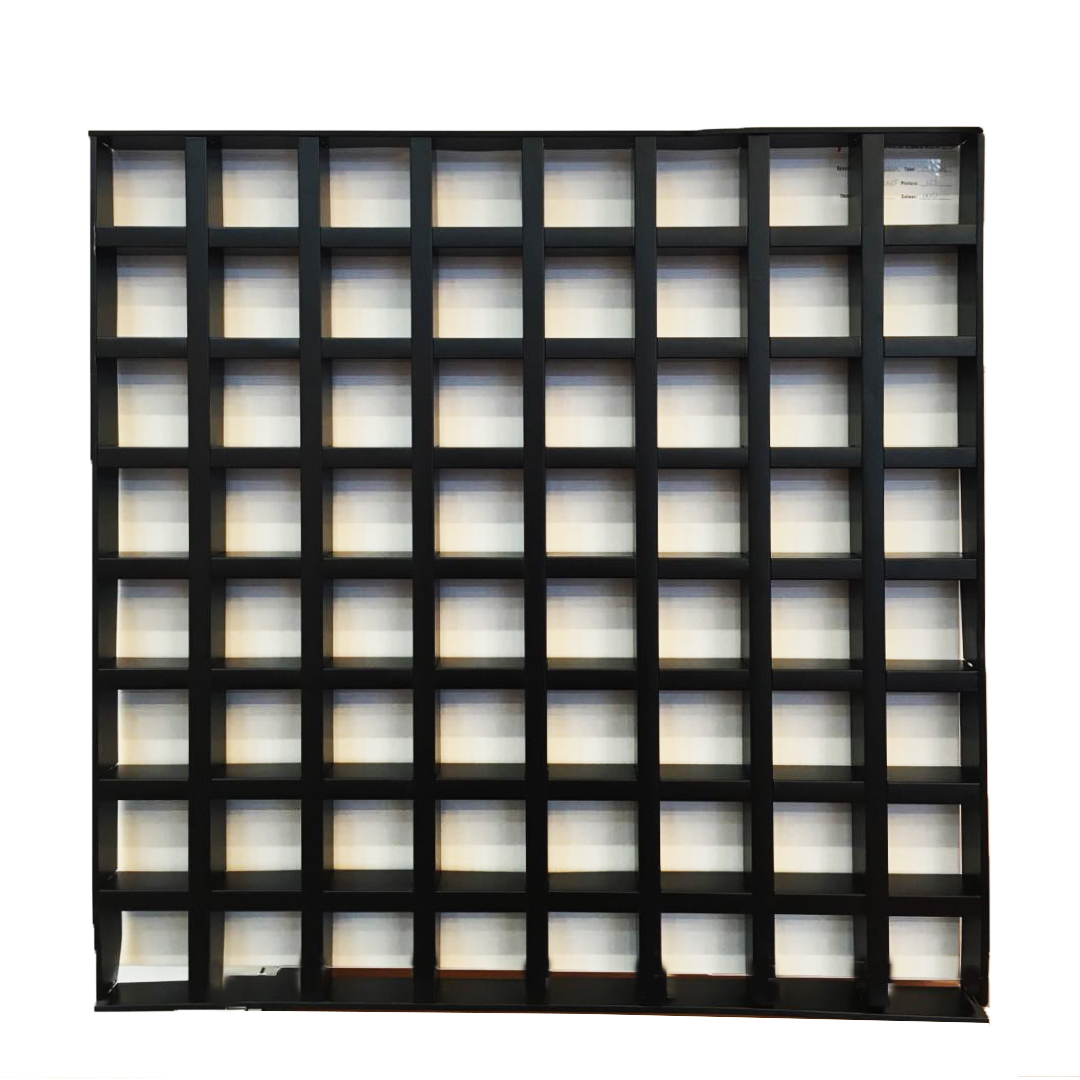

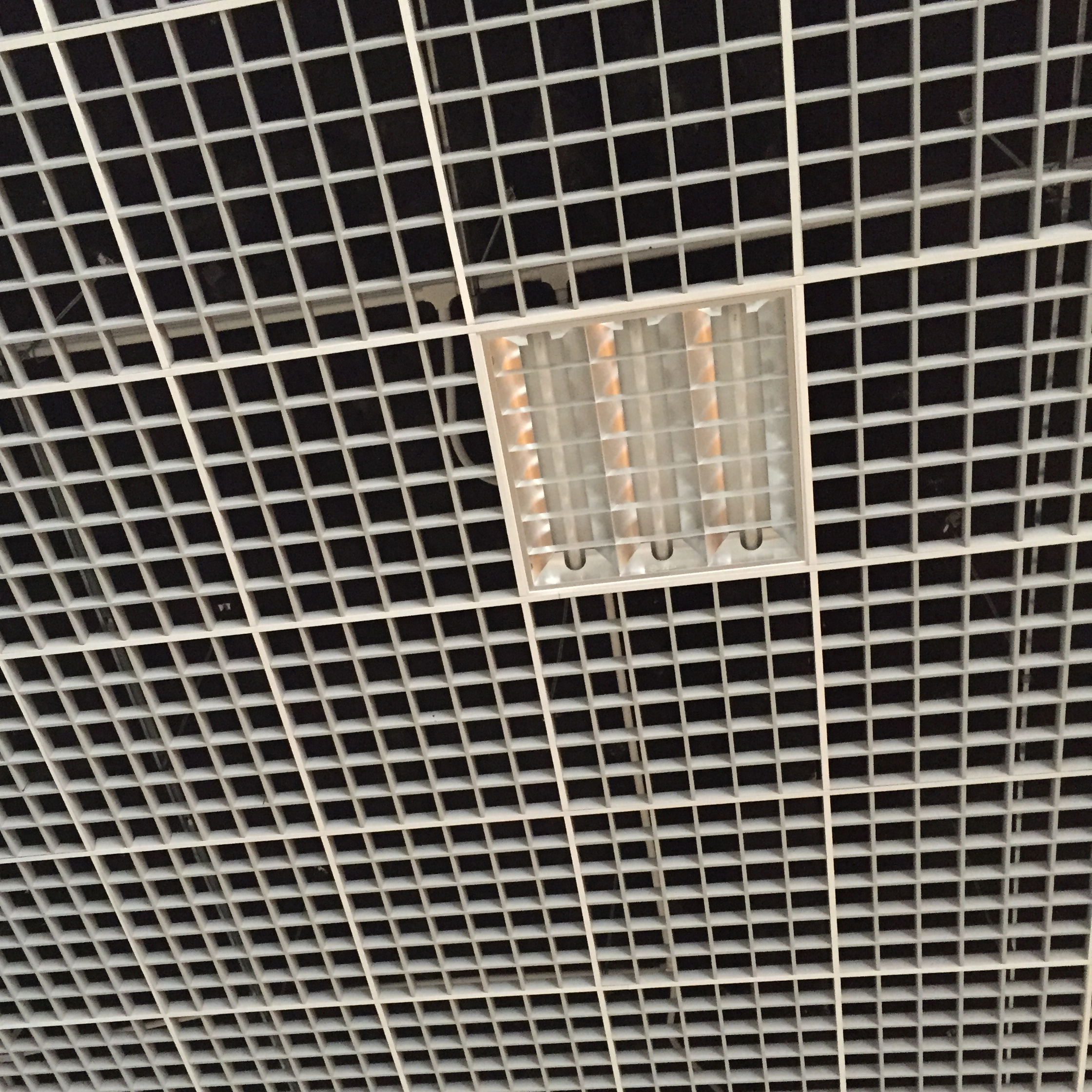

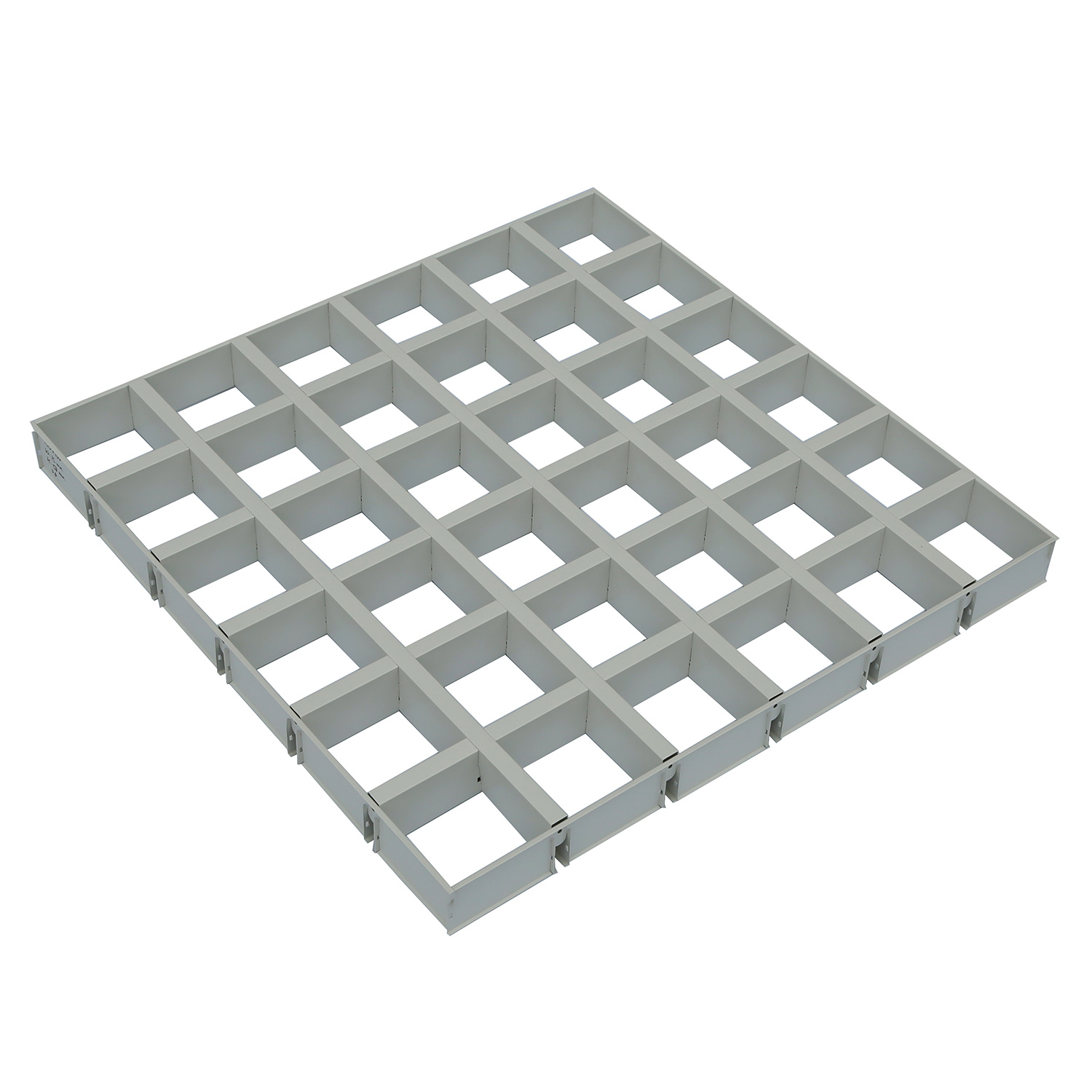

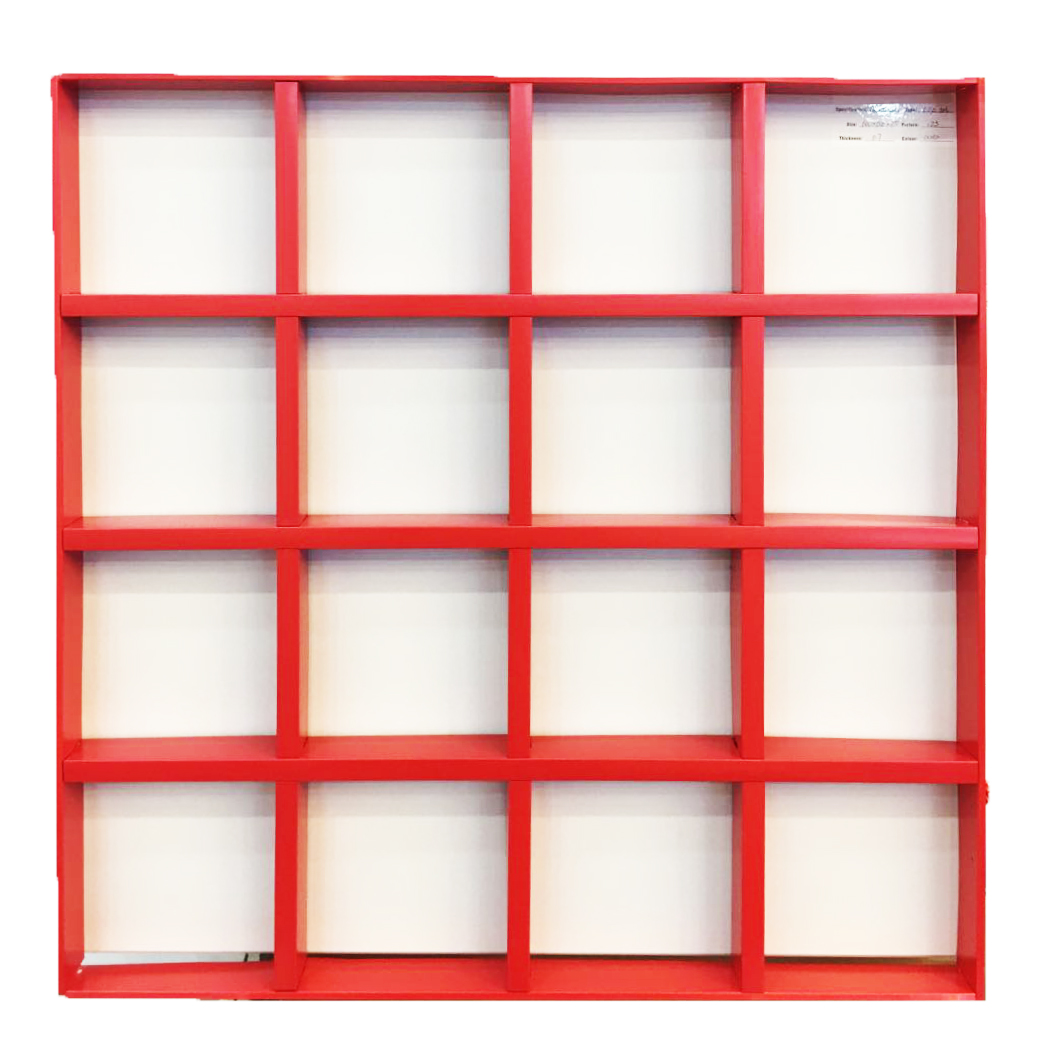

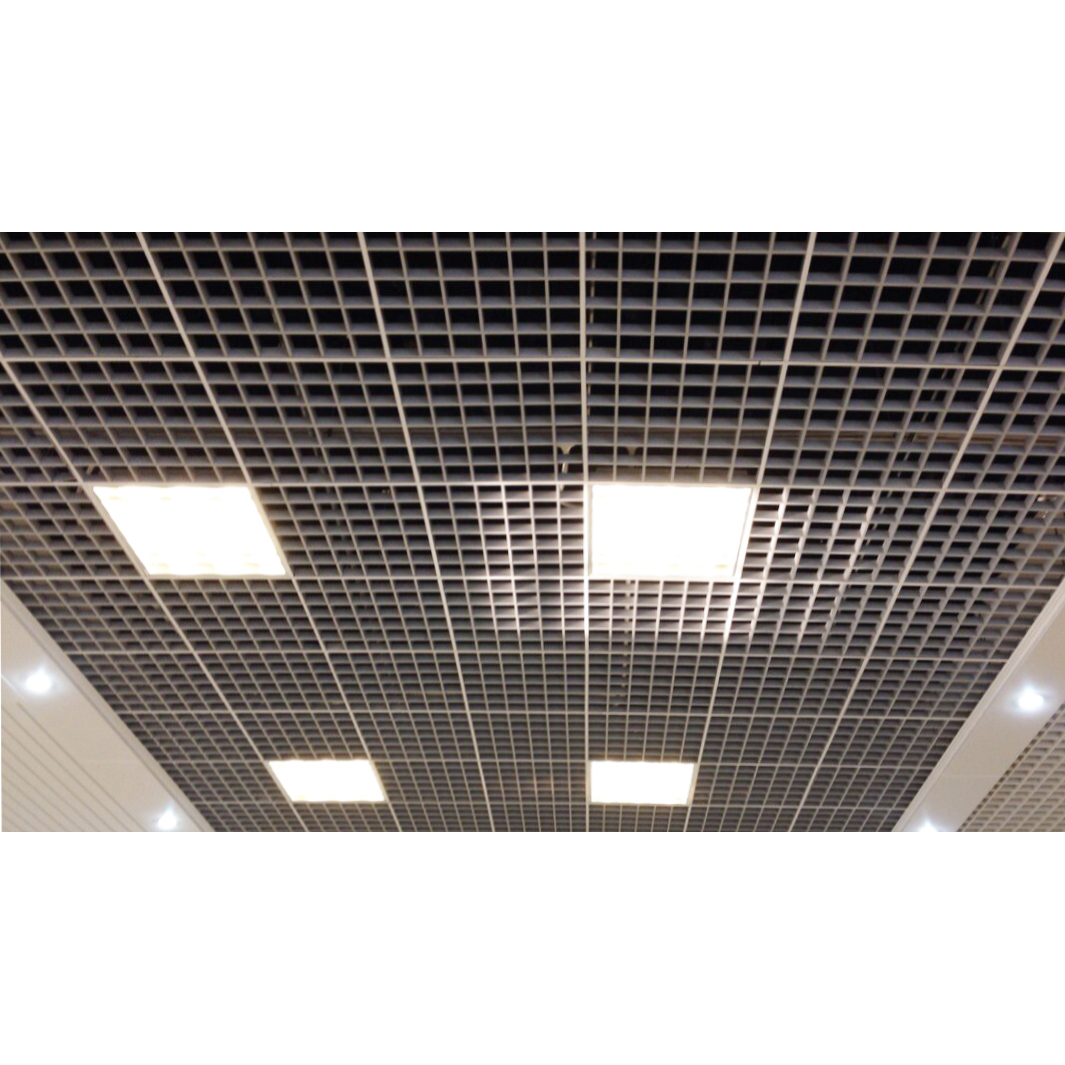

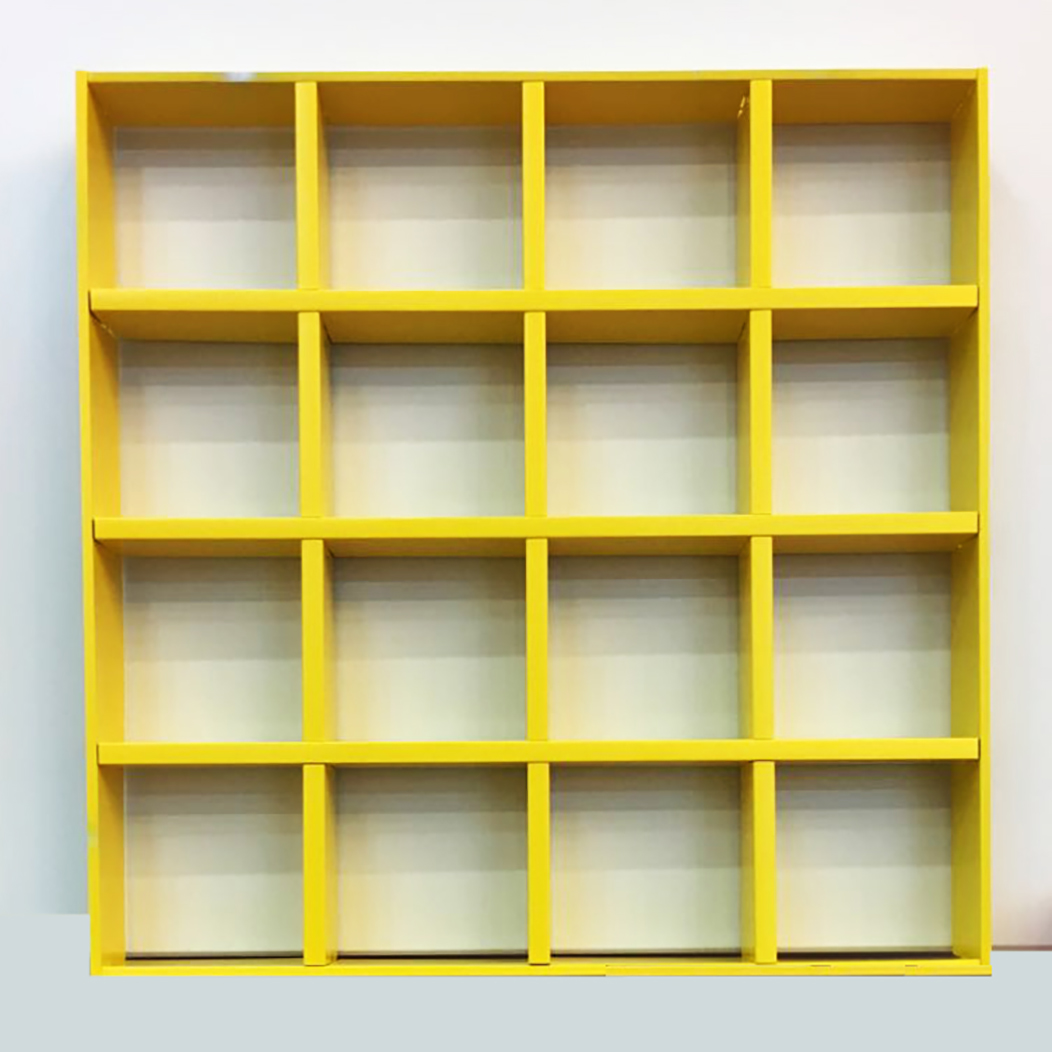

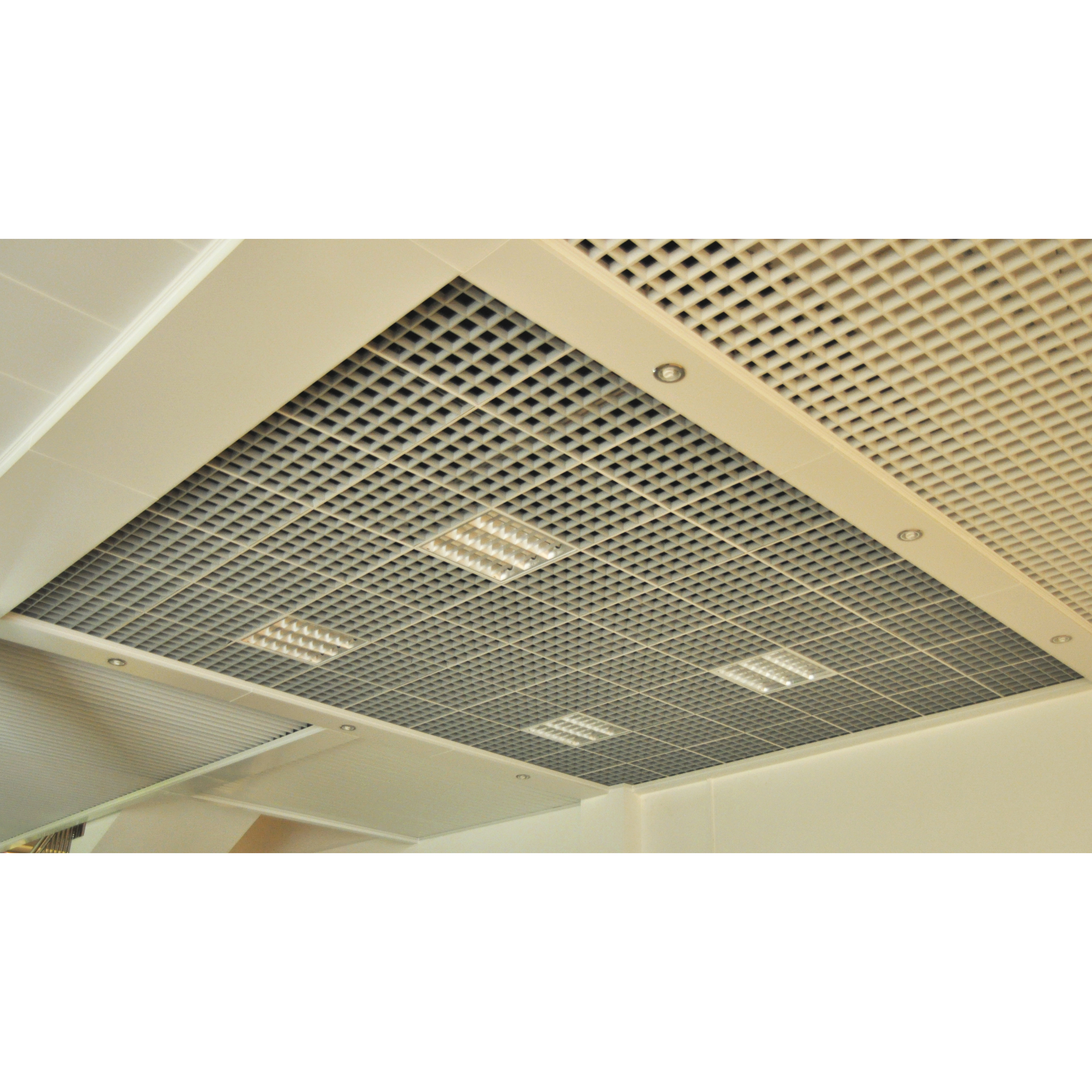

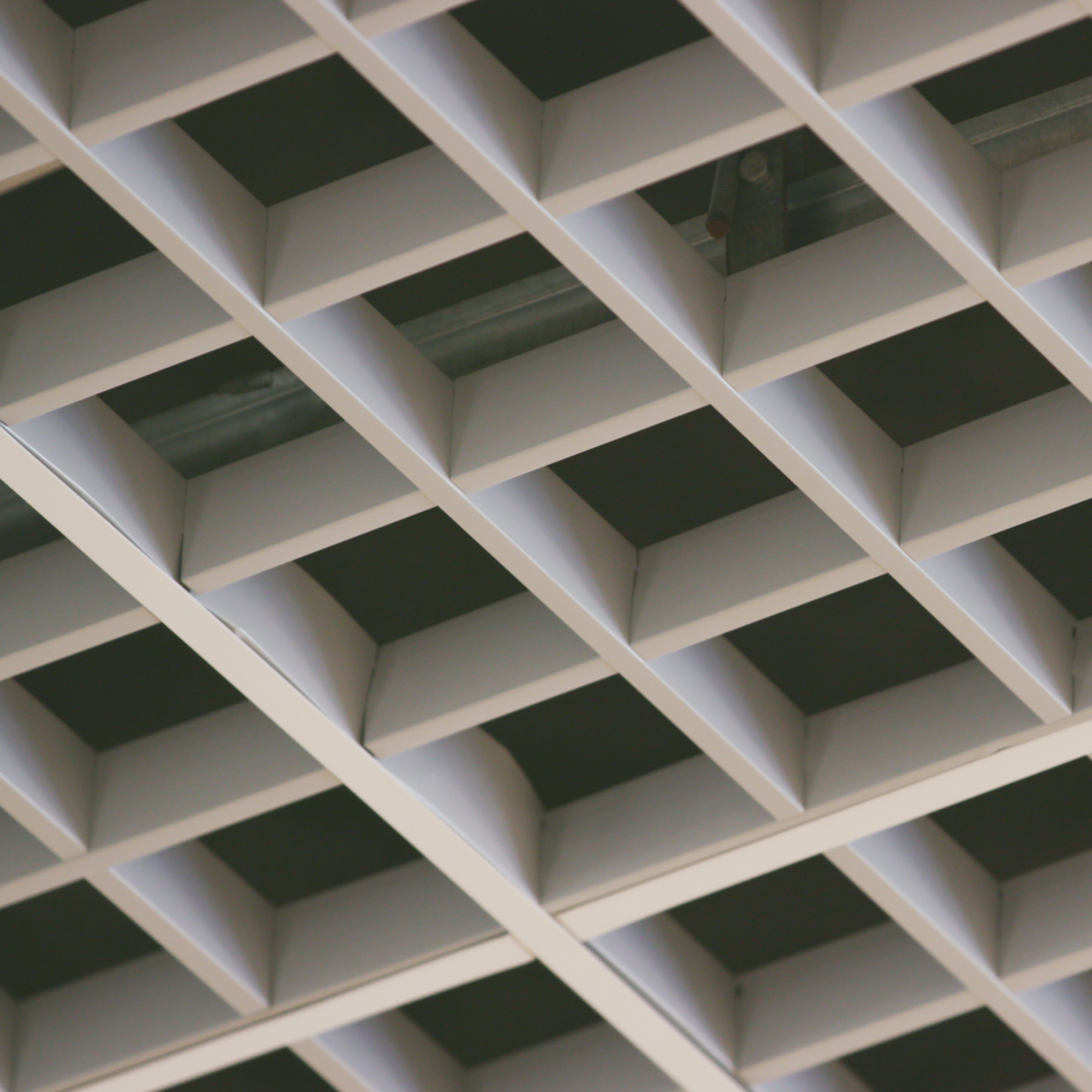

Grille CeilingProductAluminum Grille CeilingWidth10mm, 15mm, 20mm Height40mm, 50mm, 60mm, ect.thicknesses0.4mm ~ 0.6mmLength600mm, 1200mm,2000mmNormal standard50x50, 75x75, 100x100, 125x125,150x150, 200x200, 250x250mm Surface TreatmentPowder-coated, pre-paintedMaterialAluminumThe open cell ceiling series have well air flow, commonly used in garage, supermarket and transport station. It's ideal for applications with high human traffic flow.
Fixing method
There are 2 ways to install open cell ceiling.
First, open cell ceiling lay onto a suspension T-grid.
After setting upper hanging system, we fix T-grid under the 38# main carrier, connecting with suspension bracket.
And then adjust nuts on the bolt to level the main carrier.
Combining 600mm length main blade and cross blade to make a 600x600mm tile. Put tiles on the T-grid.
Second, it can be installed continuously.
After setting upper hanging system, then adjust nuts on the bolt to level the main carrier.

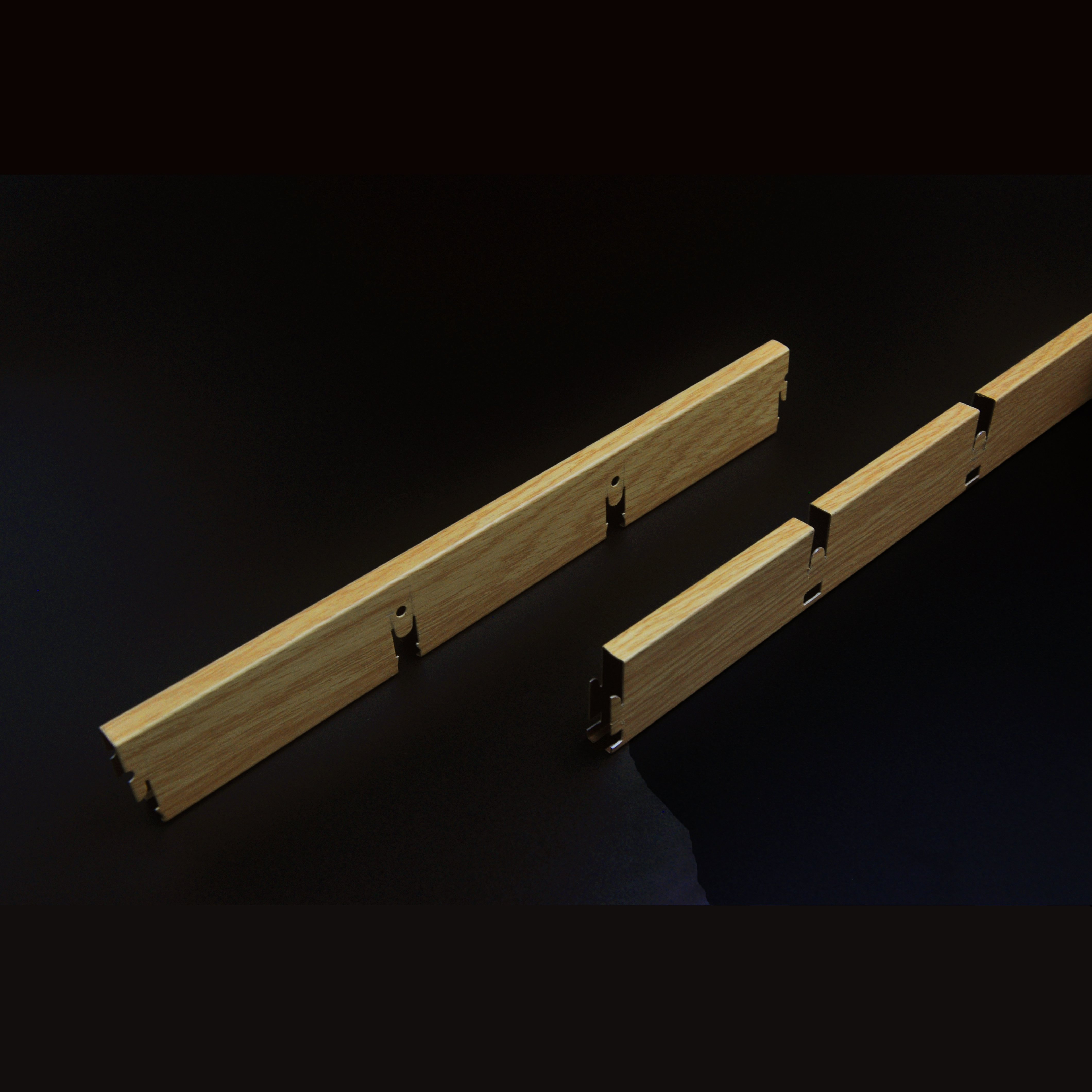

Integrating main blade and cross blade in different length.
Fix open cell ceiling to the 38# main carrier with suspension bracket.
