About this product
- Materials: al FOIL. ALLOY.
- Size: 500MM WIDE
- Color: SILVER
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
About this product
- Materials: al FOIL. ALLOY.
- Size: 500MM WIDE
- Color: SILVER
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Anhui, China
Product details
| Materials | al FOIL. ALLOY. |
|---|---|
| Size | 500MM WIDE |
| Color | SILVER |
From the supplier

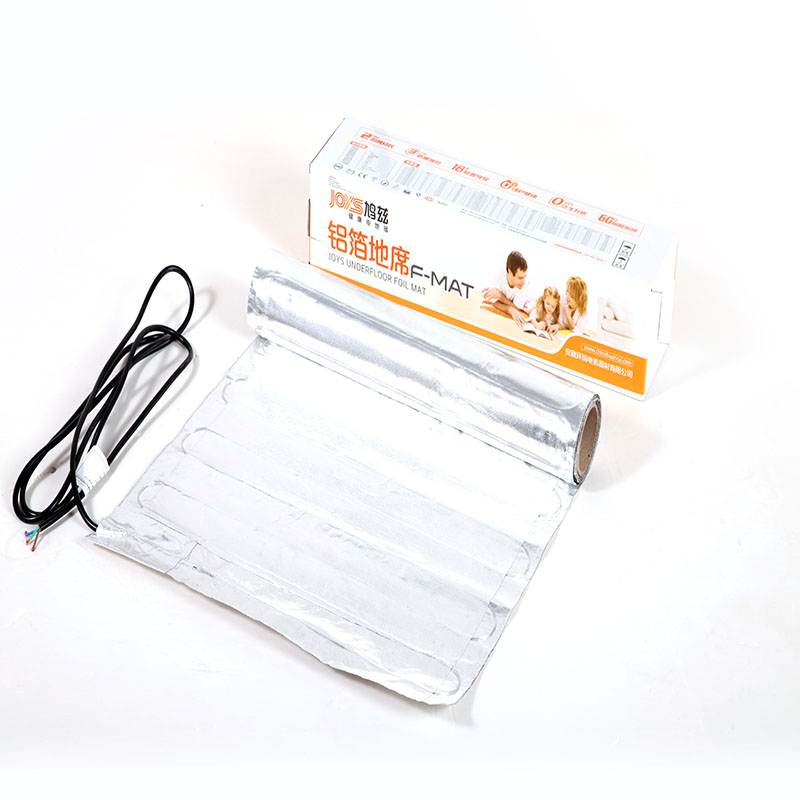

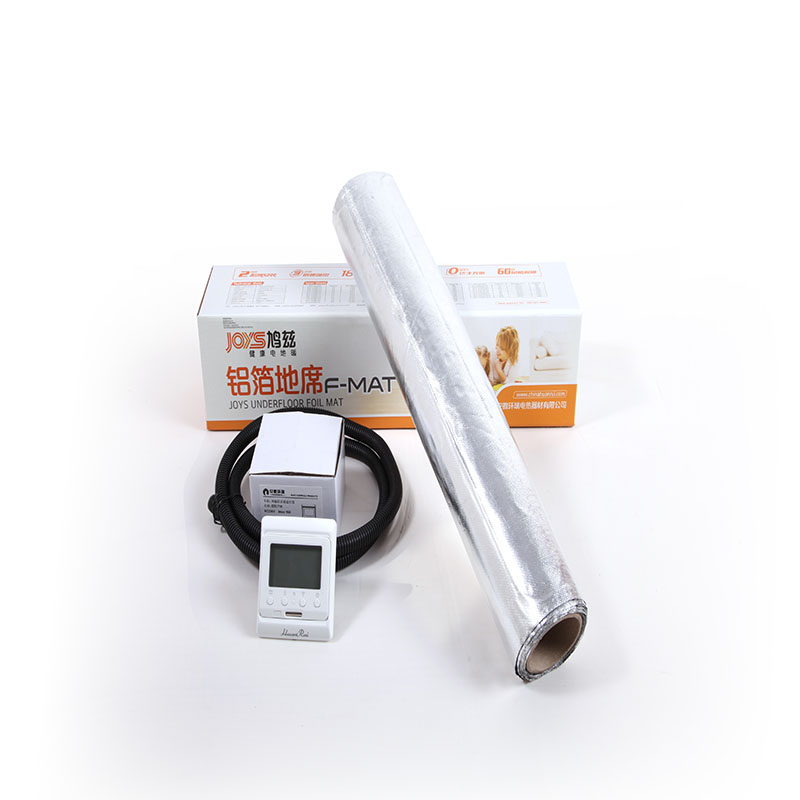

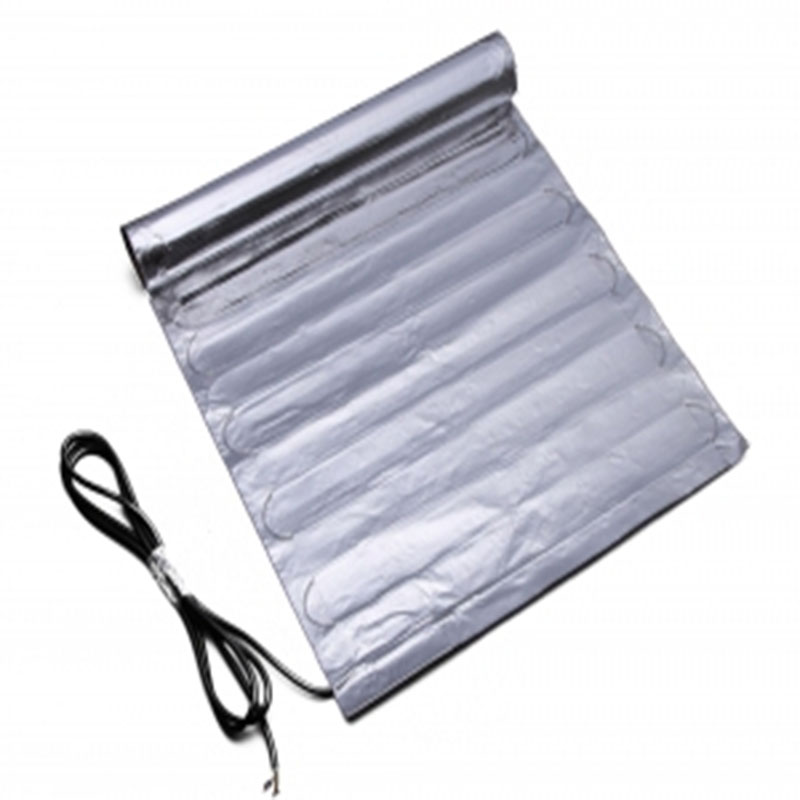

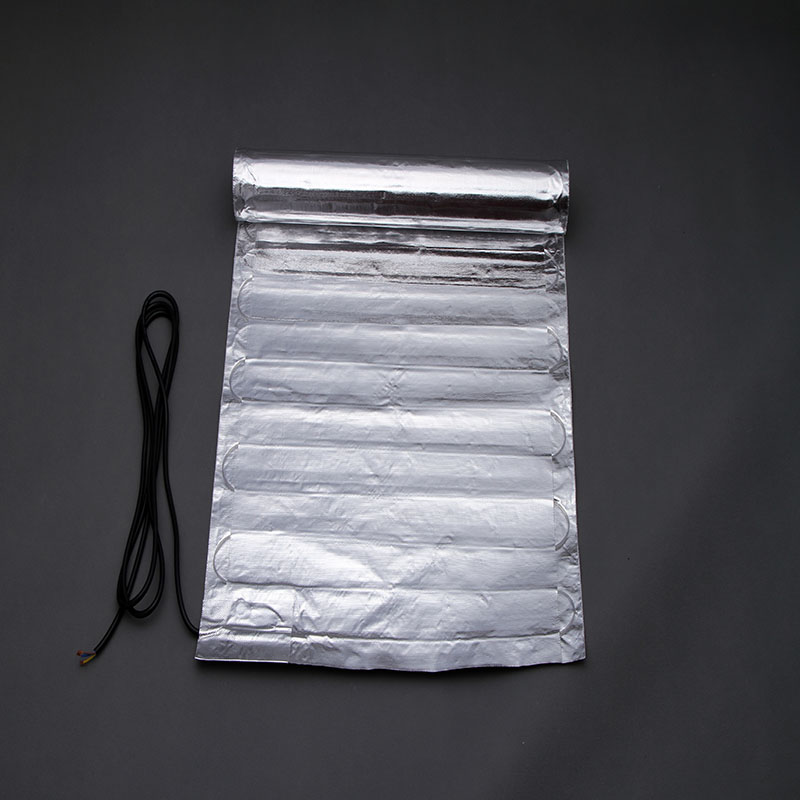

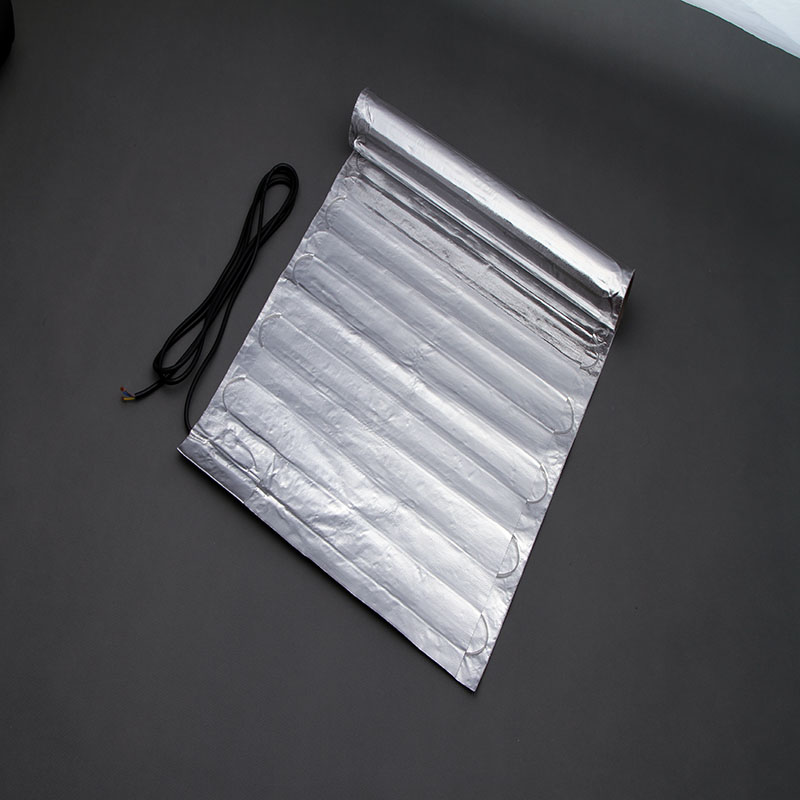

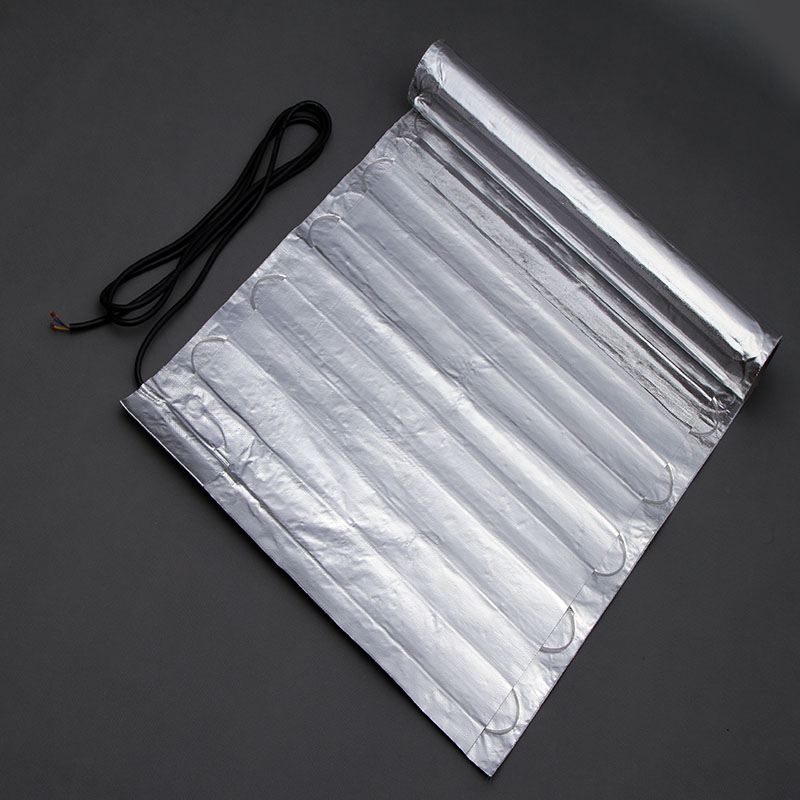

Product Name:Ultra Thin 150w/sqm Laminate Heating Mat F-mat
aluminum foil heating mat
Introduction:
Simple to install, the foil heater delivers a consistent and even heat distribution. It can also be installed under the floor in wet areas without the need for additional earth grids. The thermal properties of the reinforced aluminium foil used in the heater help to spread the heat evenly.
Improved savings can also be achieved by using foil underfloor heating in conjunction with the Insulated Underlay as it dramatically reduces heat-up times by at least 50%. It is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to Building Regulations.
The Foil Heater System is ideal for installation in regular shaped rooms, such as living rooms and bedrooms.
Technical Data:
Cable structure Twin conductor
Conductor Solid heating core
Insulation Fluoropolymer
Cable spacing 50mm
Cable diameter 1.0mm
Connector Out splice
Min. installation temperature 5°C
Rated voltage 230Vac
Power output 80W/m2 150W/m2
Resistance tolerance +10/-5 %
Cold lead 2.5m length
Certifications CE/EAC
Features:
Twin conductor heating cable
Only one cold tail for ease of installation
Ultra thin, only 1.8 mm
Emit zero EMF(electromagnetic field)
Flexible installation
Durable structure
100% screened
Applications:
F-mat is designed for wooden floor, laminate floor and under carpet heating.
80 W/m2 150 W/m2 provided for customers choose.
MOQ: 50 pcs
Part Number
Mat dimensions /m*m
Heating Area/m2
Output power/Watts
Resistance/Ω
F-mat80-80
0.5x2
1
80
661.25
F-mat80-120
0.5x3
1.5
120
440.83
F-mat80-160
0.5x4
2
160
330.63
F-mat80-200
0.5x5
2.5
200
264.50
F-mat80-240
0.5x6
3
240
220.42
F-mat80-280
0.5x7
3.5
280
188.93
F-mat80-320
0.5x8
4
320
165.31
F-mat80-360
0.5x9
4.5
360
146.94
F-mat80-400
0.5x10
5
400
132.25
F-mat80-480
0.5x12
6
480
110.21
F-mat80-560
0.5x14
7
560
94.46
F-mat80-640
0.5x16
8
640
82.66
F-mat80-720
0.5x18
9
720
73.47
F-mat80-800
0.5x20
10
800
66.13
F-mat80-880
0.5x22
11
880
60.11
F-mat80-960
0.5x24
12
960
55.10
Part Number
Mat dimensions/m*m
Heating Area/m2
Output power/Watts
Resistance/Ω
F-mat150-150
0.5x2
1
150
352.67
F-mat150-225
0.5x3
1.5
225
235.11
F-mat150-300
0.5x4
2
300
176.33
F-mat150-375
0.5x5
2.5
375
141.07
F-mat150-450
0.5x6
3
450
117.56
F-mat150-525
0.5x7
3.5
525
100.76
F-mat150-600
0.5x8
4
600
88.17
F-mat150-675
0.5x9
4.5
675
78.37
F-mat150-750
0.5x10
5
750
70.53
F-mat150-900
0.5x12
6
900
58.78
F-mat150-1050
0.5x14
7
1050
50.38
F-mat150-1200
0.5x16
8
1200
44.08
F-mat150-1350
0.5x18
9
1350
39.19
F-mat150-1500
0.5x20
10
1500
35.27
F-mat150-1650
0.5x22
11
1650
32.06
F-mat150-1800
0.5x24
12
1800
29.39
Product Name:Ultra Thin 150w/sqm Laminate Heating Mat F-mat
Introduction:
Simple to install, the foil heater delivers a consistent and even heat distribution. It can also be installed under the floor in wet areas without the need for additional earth grids. The thermal properties of the reinforced aluminium foil used in the heater help to spread the heat evenly.
Improved savings can also be achieved by using foil underfloor heating in conjunction with the Insulated Underlay as it dramatically reduces heat-up times by at least 50%. It is suitable for all applications, providing primary or secondary heating in all rooms or projects that adheres to Building Regulations.
The Foil Heater System is ideal for installation in regular shaped rooms, such as living rooms and bedrooms.
Technical Data:
Cable structure Twin conductor
Conductor Solid heating core
Insulation Fluoropolymer
Cable spacing 50mm
Cable diameter 1.0mm
Connector Out splice
Min. installation temperature 5°C
Rated voltage 230Vac
Power output 80W/m2 150W/m2
Resistance tolerance +10/-5 %
Cold lead 2.5m length
Certifications CE/EAC
Features:
Twin conductor heating cable
Only one cold tail for ease of installation
Ultra thin, only 1.8 mm
Emit zero EMF(electromagnetic field)
Flexible installation
Durable structure
100% screened
Applications:
F-mat is designed for wooden floor, laminate floor and under carpet heating.
80 W/m2 150 W/m2 provided for customers choose.
MOQ: 50 pcs
