About this product
- Materials: colde rolled steel, nickel plated
- Size: 165°/90°/30°/45°/135°/270°
- Color: Nickel
- Usage: Furniture
- Style: Hydraulic
- Thickness: 1.2mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: colde rolled steel, nickel plated
- Size: 165°/90°/30°/45°/135°/270°
- Color: Nickel
- Usage: Furniture
- Style: Hydraulic
- Thickness: 1.2mm
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | colde rolled steel, nickel plated |
|---|---|
| Size | 165°/90°/30°/45°/135°/270° |
| Color | Nickel |
| Usage | Furniture |
| Style | Hydraulic |
| Thickness | 1.2mm |
| Opening angle | 135°90°175°180°270°45° |
| Surface treatment | NickelPlated |
| Arm body type | Other |
From the supplier
Overview：
- Hinges range in the cup diameters from 26 mm to 40 mm, and in opening angles from 45° to 270° , accommodating a variety of special angles and various door thicknesses. soft-closing, rebound, quick release function are available.
Product Description：
Products support customization
Product Aplication：
Related Products ：
Opening angle: 165°
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated, zinc alloy cup
Range of door thickness: 14-32mm

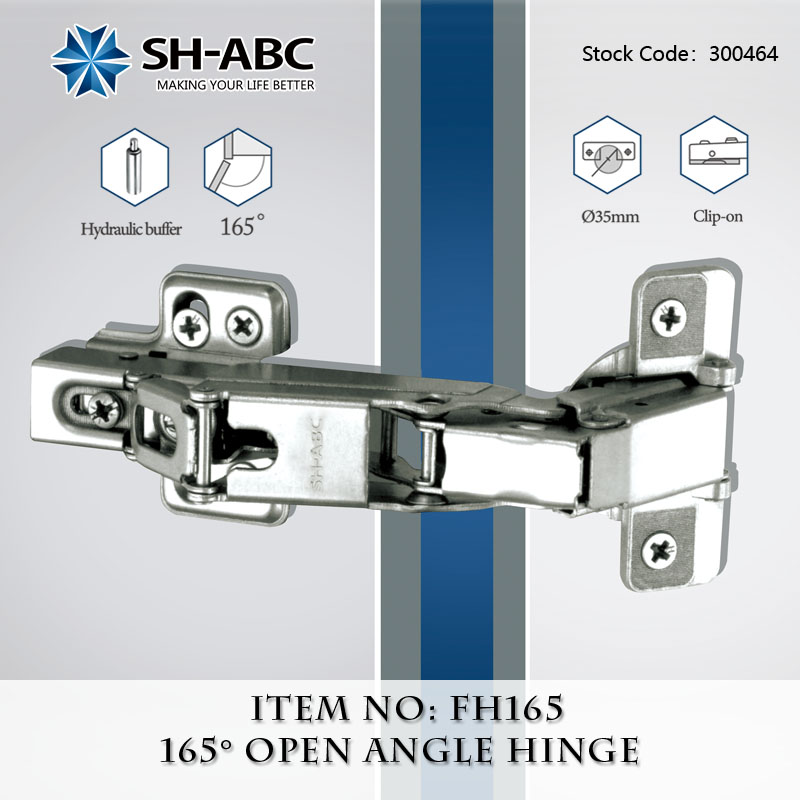

FH165 165°SOFT-CLOSING INDIVISIBLE HINGEZ
Opening angle: 165°
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated, zinc alloy cup
Range of door thickness: 14-32mm

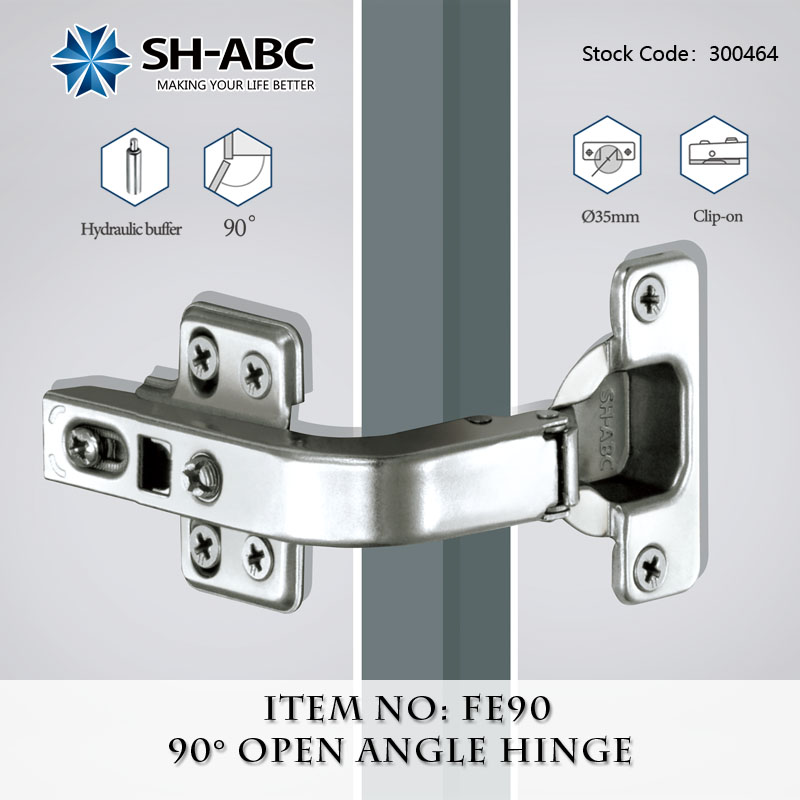

FE90 ANGLED SOFT-CLOSING HINGE
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated
Range of door thickness: 12-26mm
FR30 ANGLED SOFT-CLOSING HINGE
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated
Range of door thickness: 12-26mm
FR45 ANGLED SOFT-CLOSING HINGE
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated
Range of door thickness: 12-26mm

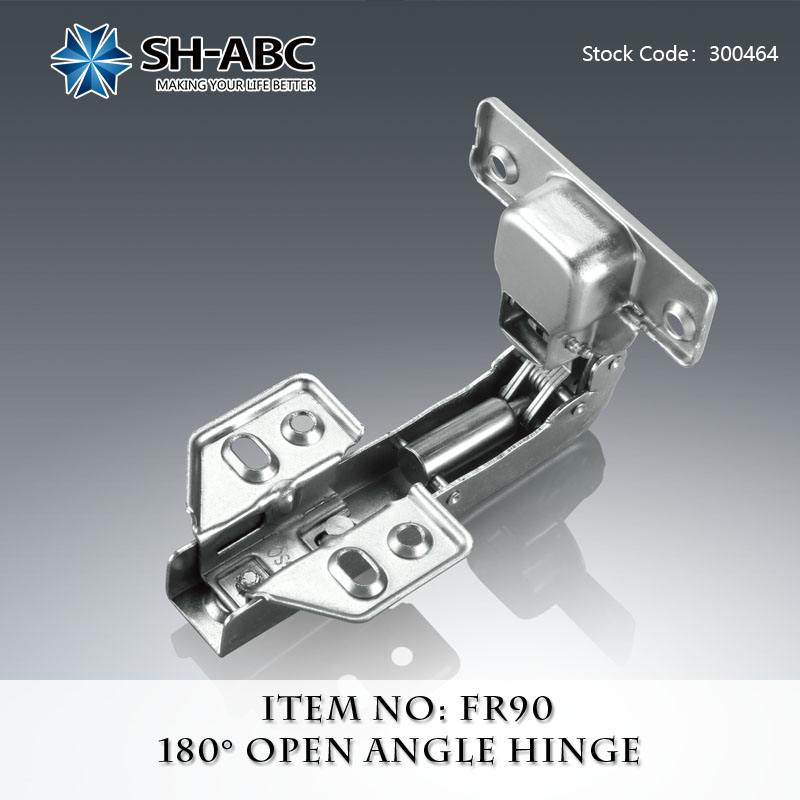

FR90 ANGLED SOFT-CLOSING HINGE
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated
Range of door thickness: 12-26mm

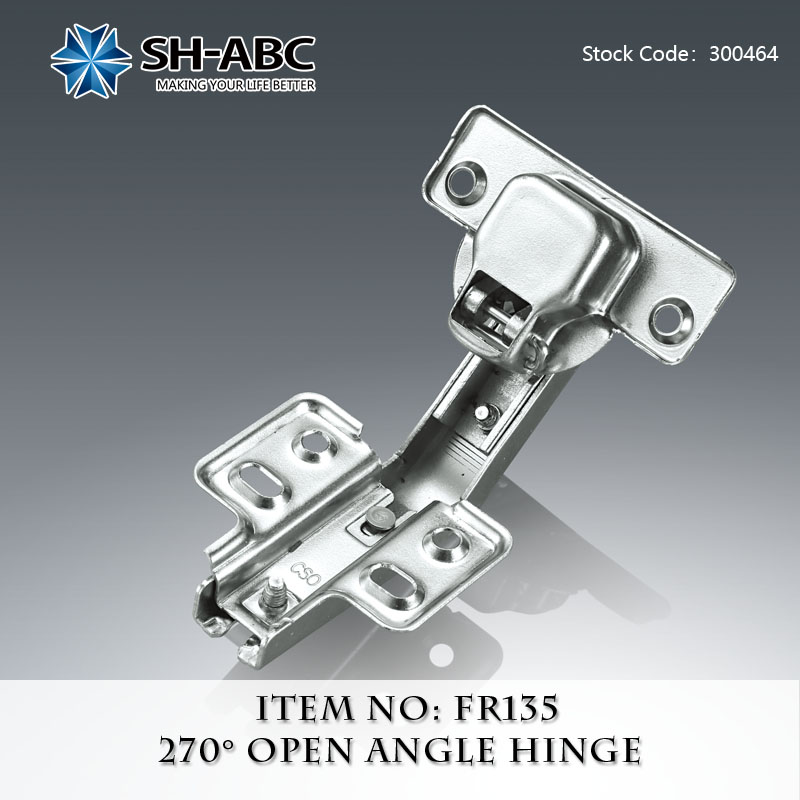

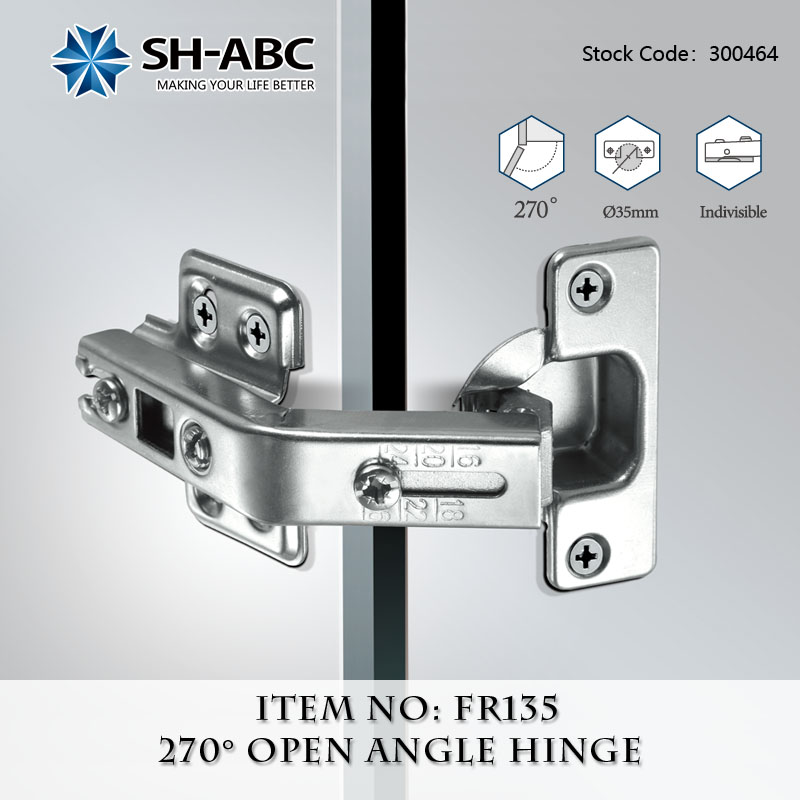

FR135 ANGLED HINGE
Depth of hinge cup: 11.3mm
Diameter of hinge cup: 35mm
Drilling distance on the door(K): 3-7mm
Material: cold rolled steel, nickel plated
Range of door thickness: 12-26mm
Contact information：
Guangdong SACA Precision Manufacturing Co., LTD
Add：No.3 Keye Road, Industrial Park, Beijiao Town, Shunde District, Foshan City, Guangdong Province, China
Tel：0086-757-2633 2266-1050
Mobile phone: 13425711827
E-mail: export@sh-abc.cn ranny.chai@sh-abc.cn
http://www.sh-abc.cn
