About this product
- Size: 330*130*100mm
- Color: aluminum
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries
About this product
- Size: 330*130*100mm
- Color: aluminum
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries
Product details
| Size | 330*130*100mm |
|---|---|
| Color | aluminum |
From the supplier
AUTO underground spring swing door opener：

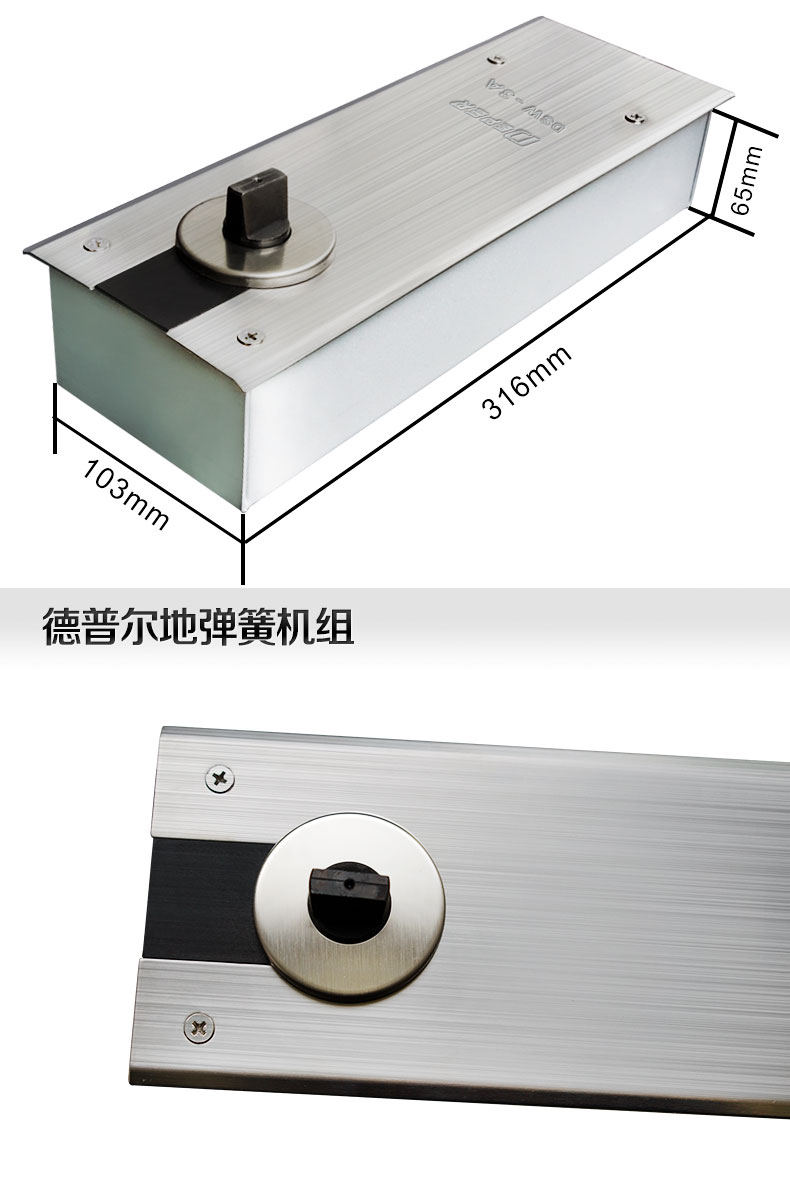

1.Match with 7.8m connection machine line,bearing max 150kg ,operator size is :316*103*65mm,One-way(90 degree)or two-way(180 degree) ;
2.Can be matched with Electric lock, can be double door interlock, waterproof motor IP68,
3.installation method: ground embedding
4.using 1.5mm steel plate for opener and can drain if there is little water
5.Operating temperature :-20℃-55℃
Waterproof swing door, Safe opening & closing,180 Degree open, underground concealed, small space needed, suitable for GMT heavy duty patch fitting(glass clamp)，Can be used for all kinds of Framed door
Max. door weight: 150kg
Max. door width: 1200mm
Max. torque: 165Nm
Unit weight: 5.5kg
Installation method: ground embedding
Running noise: <60dB
Electric lock output: DC12V NO / NC
Opening /Closing time: 6-12S
Opening range: 86°- 95°
Power supply : AC220V±10% , 50/60Hz
Rated power: 55W
Standby power: <2W
Working temperature: -20 ~ +50°C
Protection level: IP68
Unit size: 330 X116 X100 (mm)
Control box size: 215X205X60 (mm)
The controller has display debugging interface, which is easy to operate and is equipped with various function ports such as electric lock and backup battery.
The casing of the machine is injection molded by BMC; all DC motors are sealed to be super waterproof, fireproof and corrosion resistant.
The Max. load is 150KG, the optional DSW-3 unit can be opened 90 degrees or the DSW-3A unit can open the door 180 degrees (automatically sensing the passing direction of pedestrians, and opening the door with the pedestrian walking direction).
It is cold-resistant and high-temperature resistant and can work in -20°C-55°C environment.
Small size, waterproof, heavy load, easy construction, etc., can be used indoors and outdoors.
