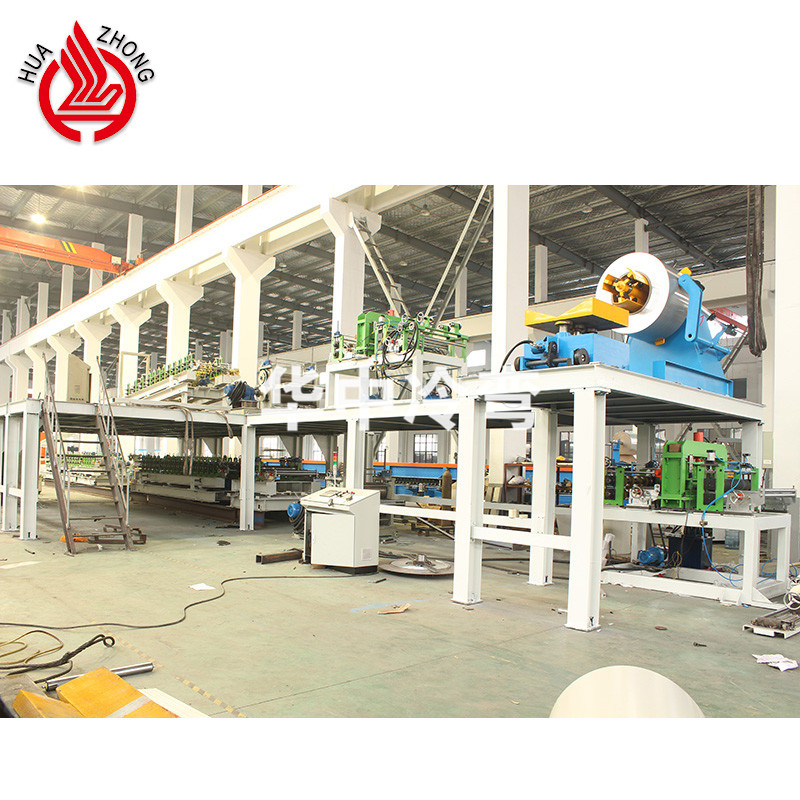

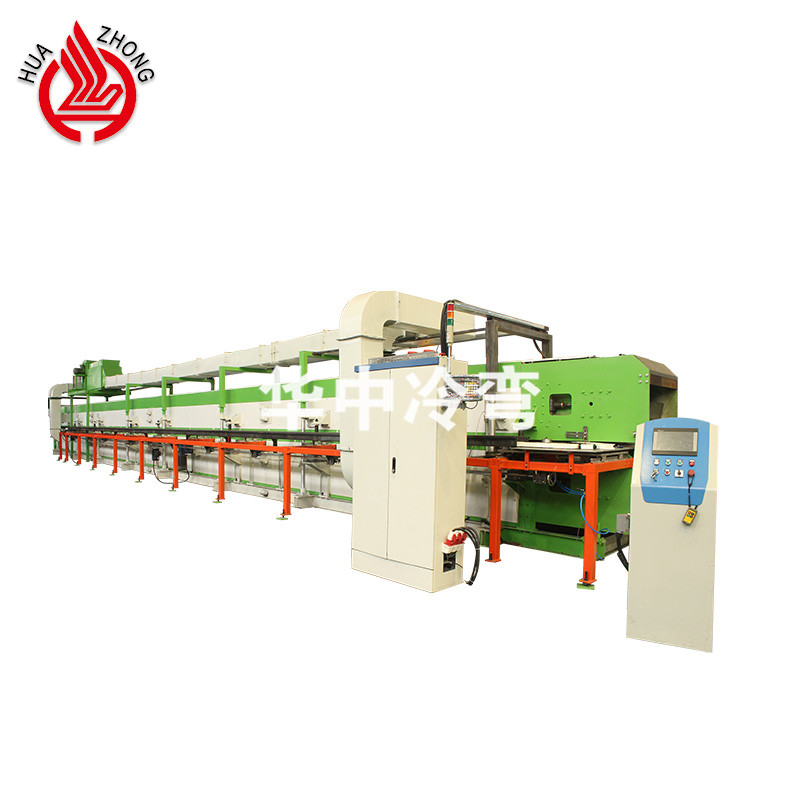

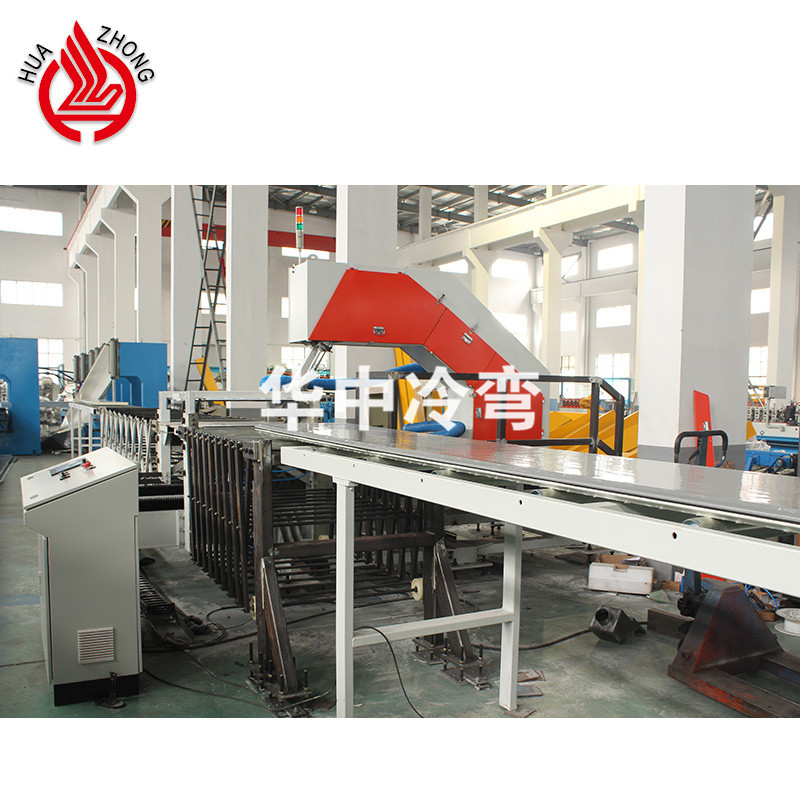

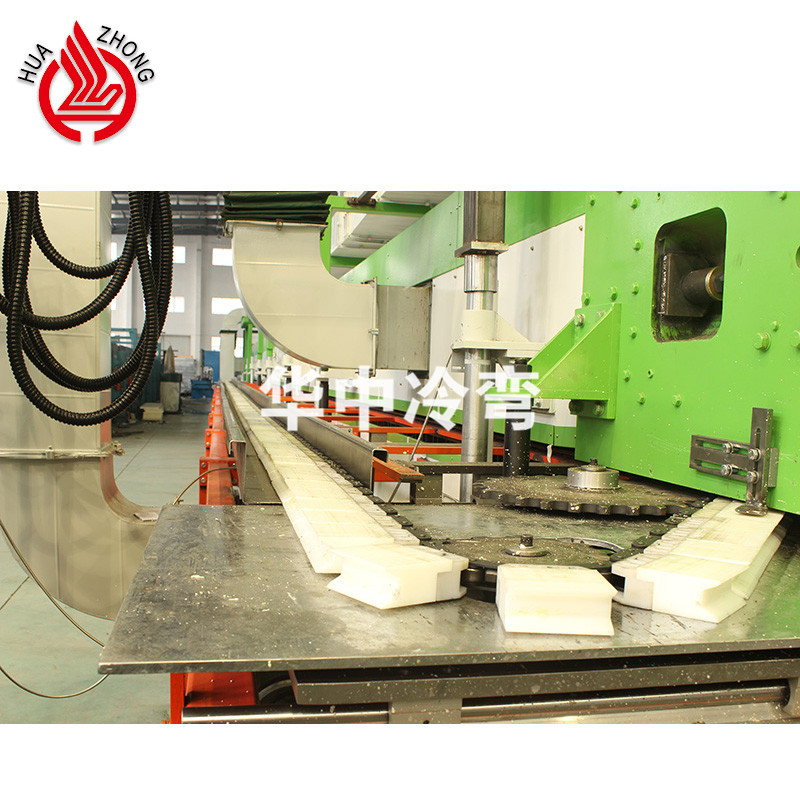

Automatic production line for garage door

10/10 fairsManufacturer
Automatic production line for garage door
$600,00000–$620,00000/ set FOB
MOQ 1 set
Estimated landed cost
$784,627 / set
range $771,765–$797,490 · total ≈ $78,462,705
FOB goods (100)
$61,000,000
Ocean freight + handling (1.0 CBM)
$820
US duty (3.5%)
$2,135,000
Section 301 tariff (25.0%)
$15,250,000
Customs fees (MPF/HMF)
$76,885

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

From the supplier

Product descriptions


Applicable material: color plate

Thickness: 0.3-0.5mm

Width: 500-700mm

PU material: polyurethane A/B

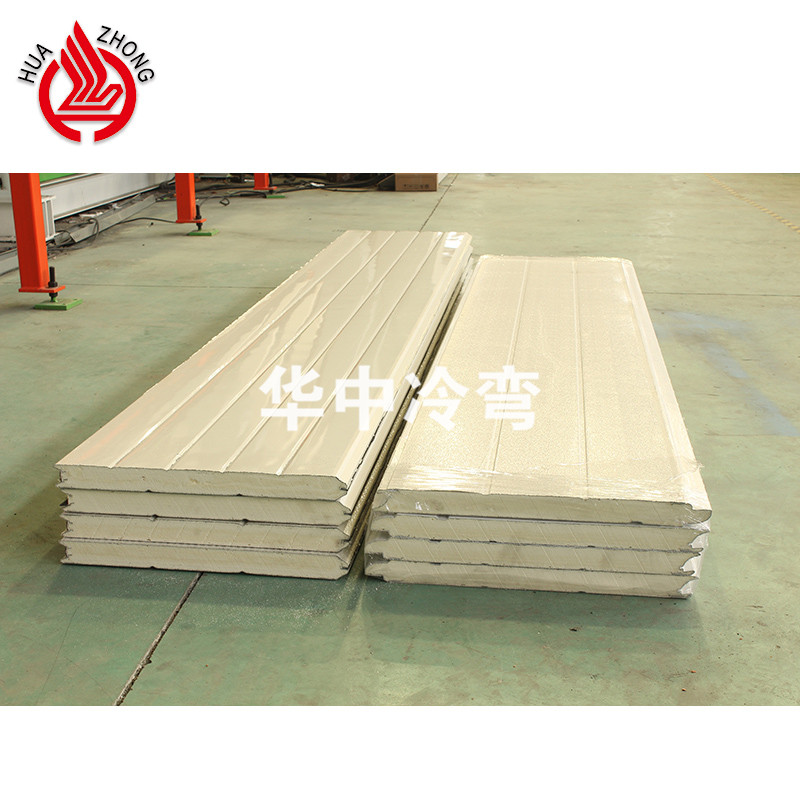

DOOR PANEL SPEC

Width: 400-600mm (adjustable)

Panel thickness: 40mm/50mm (customized)

Length: 2000mm-16000mm (can be set)

PU density: 35-50Kg/M³ (adjustable)

MACHINE TECHNICAL PARAMETER

Speed: 3-8m/min (controlled by transducer)

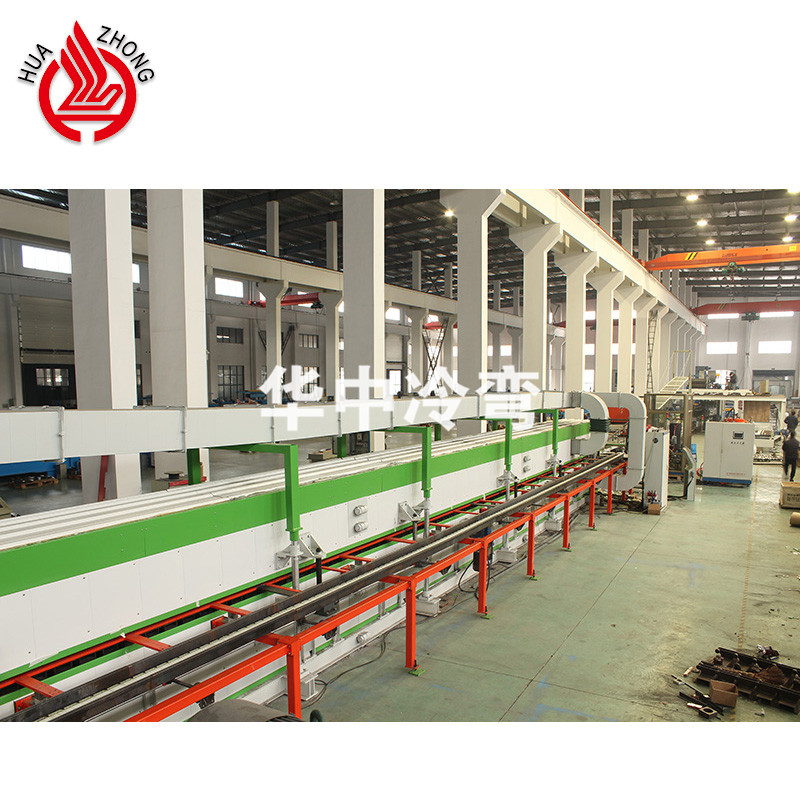

Length of combined conveyor: 24m

Heating temperature: 30-60℃ (automatic temperature control)

Total power: 100KW

Overall dimension: 85m×2m×5m (full line)

Workshop dimension: 100m×15m×7m (5T crane is required)



About the supplier

JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTD

Main products: Other Building Materials Processing Equipment,Steel Plate Forming Machine

  • ✓Exhibited at 10 of the last 10 Canton Fairs
  • ✓Manufacturer
  • ✓Founded 2003
See all products from this supplier →
75
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Manufacturer
  • Founded 2003
Canton Fair booth: 19.1G45-46 · Large Machinery & Equipment (140th session)
