About this product
- Materials: steel
- Size: 8000*2000*2000
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 8000*2000*2000
- Color: red+white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 8000*2000*2000 |
| Color | red+white |
From the supplier
Product Description
Brief Introduction:This is an automatic machine converts either a lay flat sheet or a tubular roll of PE or PP material into a side seal bag and automatically attaches and seals a zipper with
ultrasonic sealing inline on the machine making a Zipper bag. Zipper profile are fed in and attached by continuous sealing units.
Customized sealing blades based on profile styles.The machine is capable of running at 100 pcs of bags /minute.
Automatically zipper slider attaching can be added as optional.
It’s user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system.
Details Images:

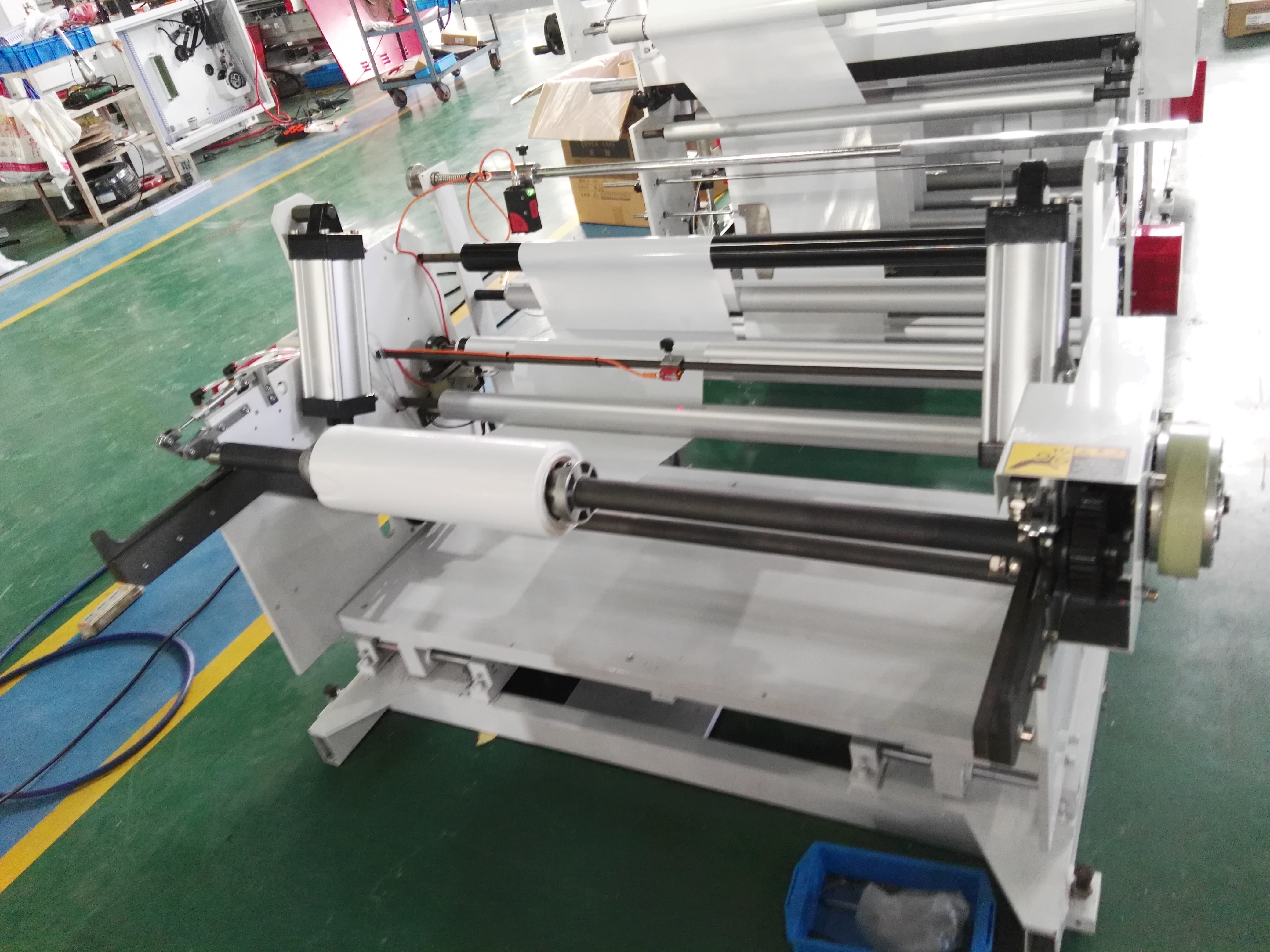

Unwind with auto pneumatic loadingupEPC and auto tension control

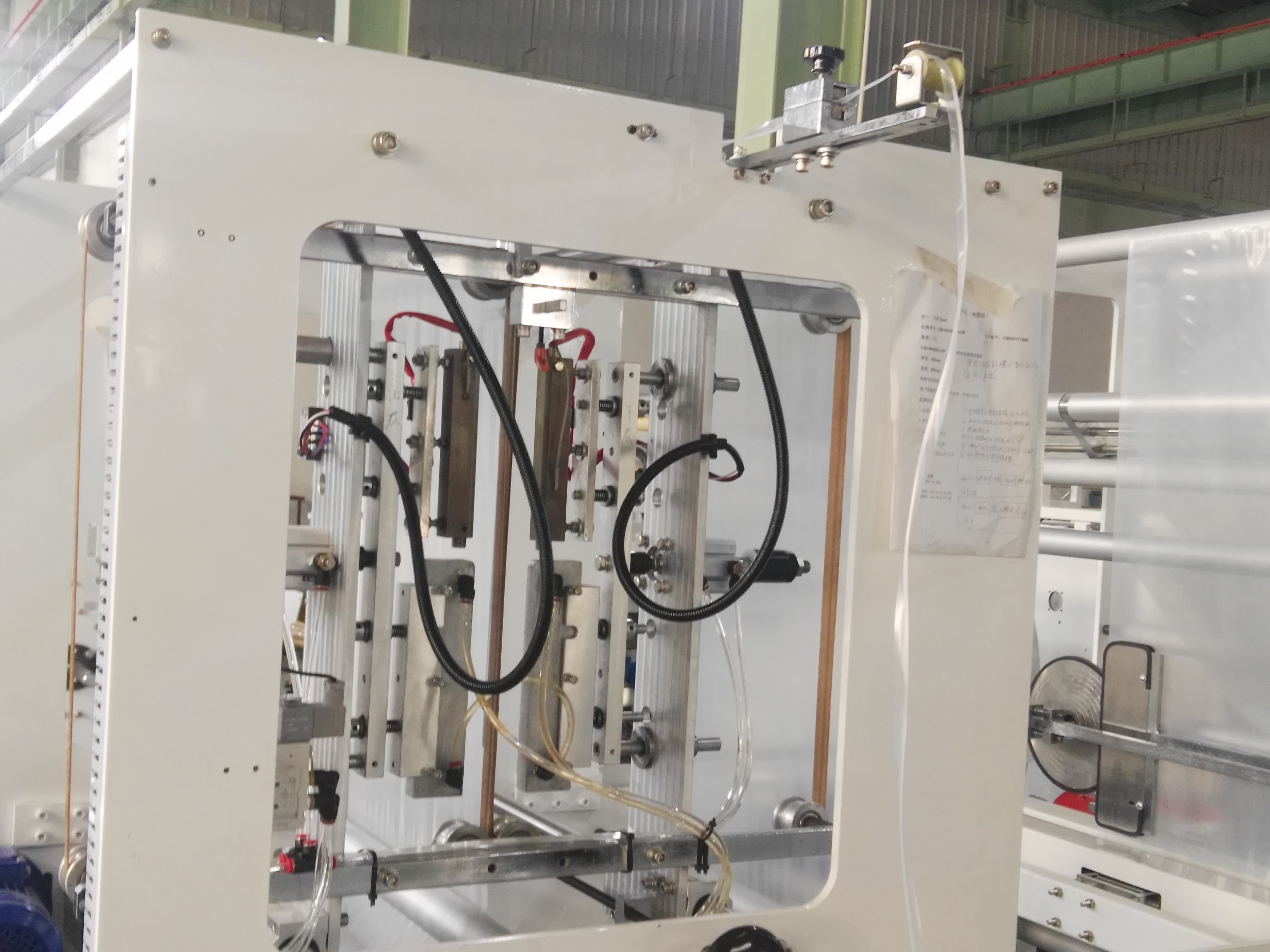

Zipper sealing deviceSpecial Chovyting designed verstical type zipper sealing unit with customized mould changing possibilityNOTE: Horizontal zipper seal unit can be chosed as optional

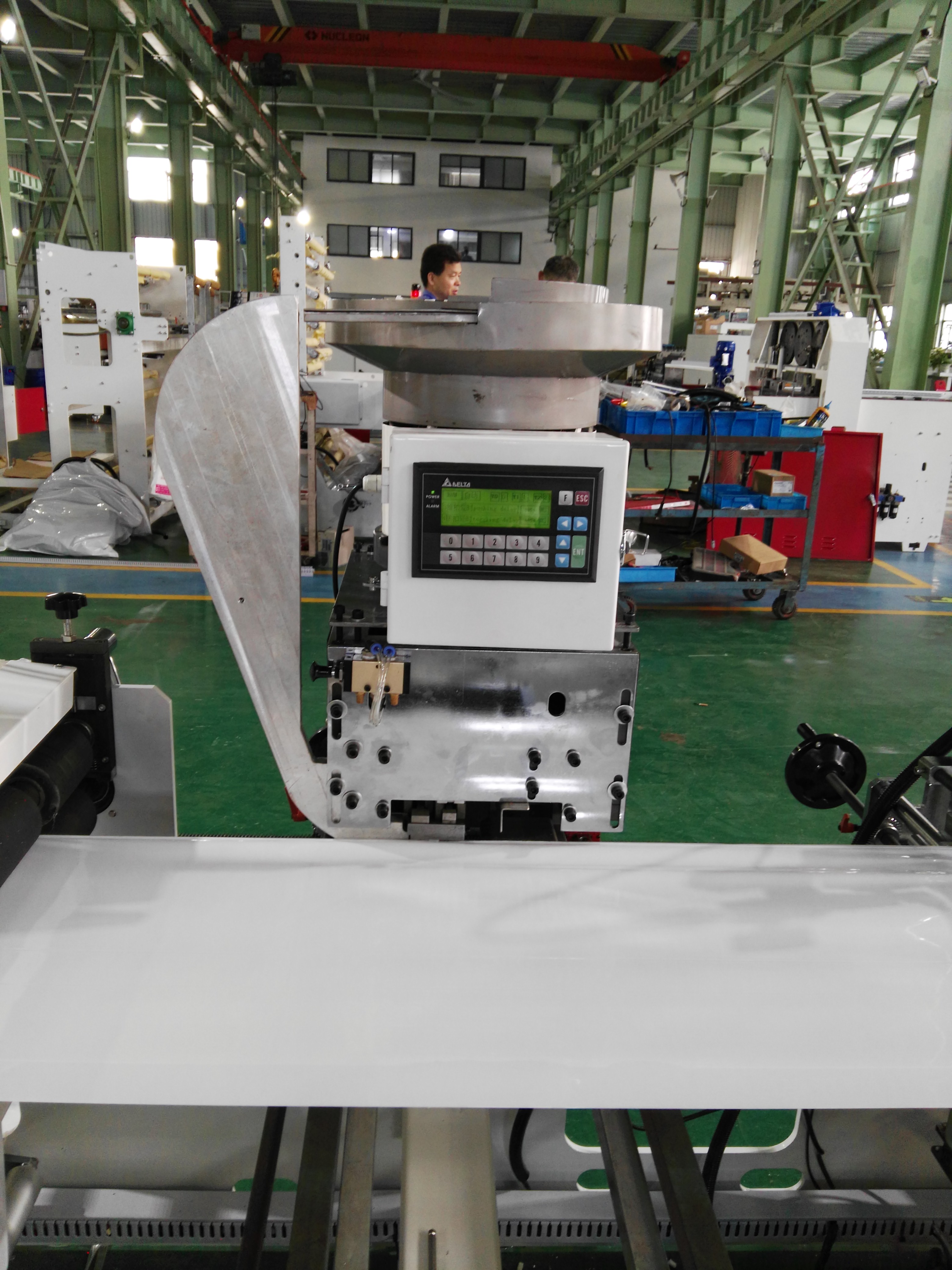

Slidder zipper attaching system
previse slidder zipper attaching with low rejection ratio

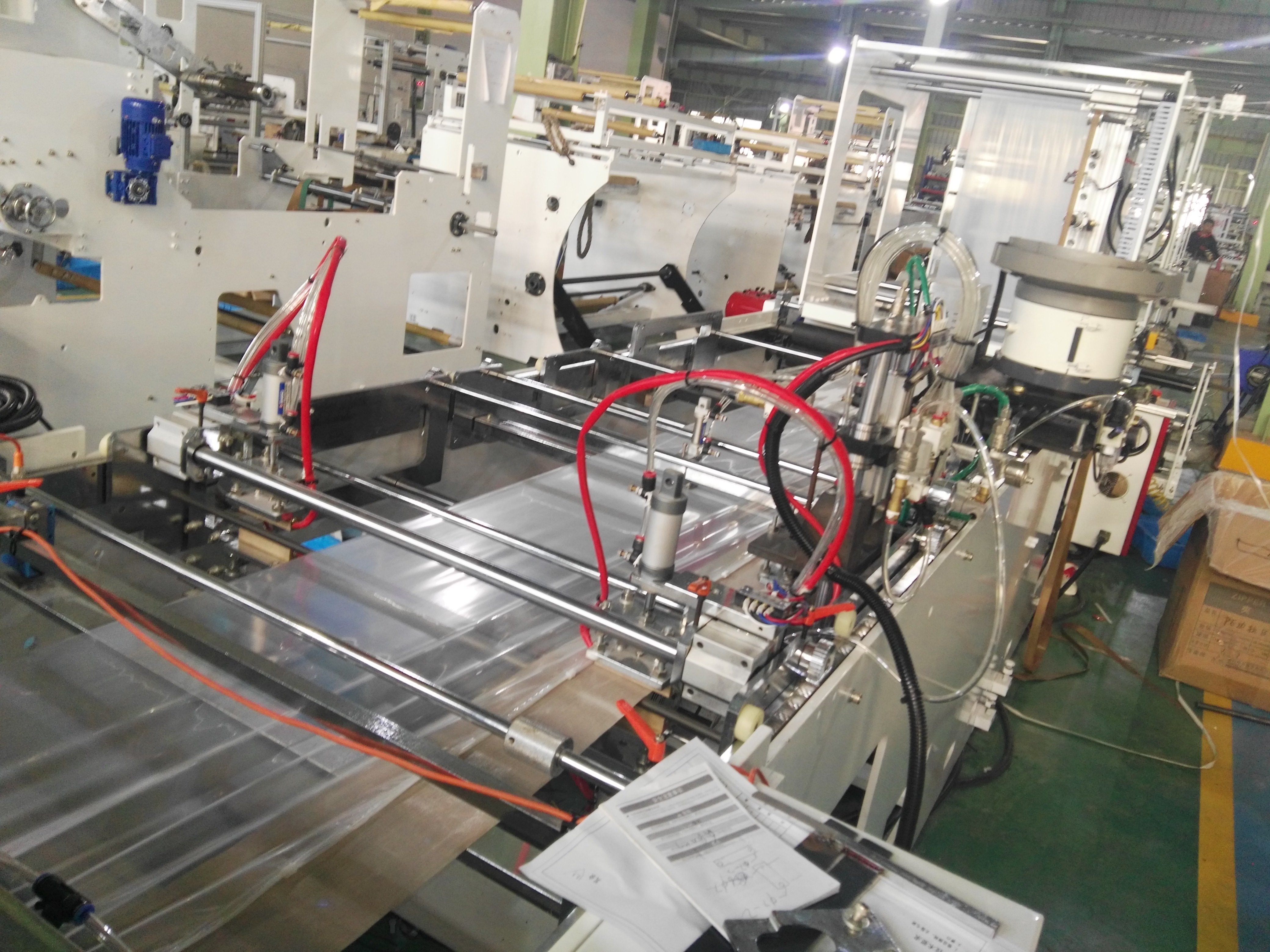

Sealing and cutting device special high temperature duration sealing knife design, pp knife can be added as optional choiceTechnical Parameter :ModelCW-800SBD+ZPBag typePE 、PP side seal bag, zipper bag, zipper slider bagUnwind width1200mm Bag length700mmBottom Gusset20-70mmProduction speed100pcs/minLine speed60m/minTotal power 15 kwMachine dimension8000*2000*2000mmMachine weight2800kgAir compressor6HPMachine ComponentsPacking & Loading
Fully Automatic Plastic PE zipper slider ziplock sealing bag making machine
Brief Introduction:This is an automatic machine converts either a lay flat sheet or a tubular roll of PE or PP material into a side seal bag and automatically attaches and seals a zipper with
ultrasonic sealing inline on the machine making a Zipper bag. Zipper profile are fed in and attached by continuous sealing units.
Customized sealing blades based on profile styles.The machine is capable of running at 100 pcs of bags /minute.
Automatically zipper slider attaching can be added as optional.
It’s user friendly ergonomic design, rigid construction with resistant to vibration
Recipe and production control system with special PLC system.
Unwind with auto pneumatic loadingupEPC and auto tension control
Zipper sealing deviceSpecial Chovyting designed verstical type zipper sealing unit with customized mould changing possibilityNOTE: Horizontal zipper seal unit can be chosed as optional
Slidder zipper attaching system
previse slidder zipper attaching with low rejection ratio
Sealing and cutting device special high temperature duration sealing knife design, pp knife can be added as optional choiceTechnical Parameter :ModelCW-800SBD+ZPBag typePE 、PP side seal bag, zipper bag, zipper slider bagUnwind width1200mm Bag length700mmBottom Gusset20-70mmProduction speed100pcs/minLine speed60m/minTotal power 15 kwMachine dimension8000*2000*2000mmMachine weight2800kgAir compressor6HPMachine ComponentsPacking & Loading
