About this product
- Materials: plastic
- Size: 4 inches
- Color: white
- Electric current type: AC
- Application: KitchenOther
- Certification: CCCCERoHSCB
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries
- Made in: Zhejiang, China
About this product
- Materials: plastic
- Size: 4 inches
- Color: white
- Electric current type: AC
- Application: KitchenOther
- Certification: CCCCERoHSCB
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries
- Made in: Zhejiang, China
Product details
| Materials | plastic |
|---|---|
| Size | 4 inches |
| Color | white |
| Electric current type | AC |
| Application | KitchenOther |
| Certification | CCCCERoHSCB |
| Mounting | WallFan |
| Material | Other |
From the supplier
Product Description
Bathroom exhaust fan with motion sensor
Product Features
The fan is suitable for wall / window / ceiling mounting.

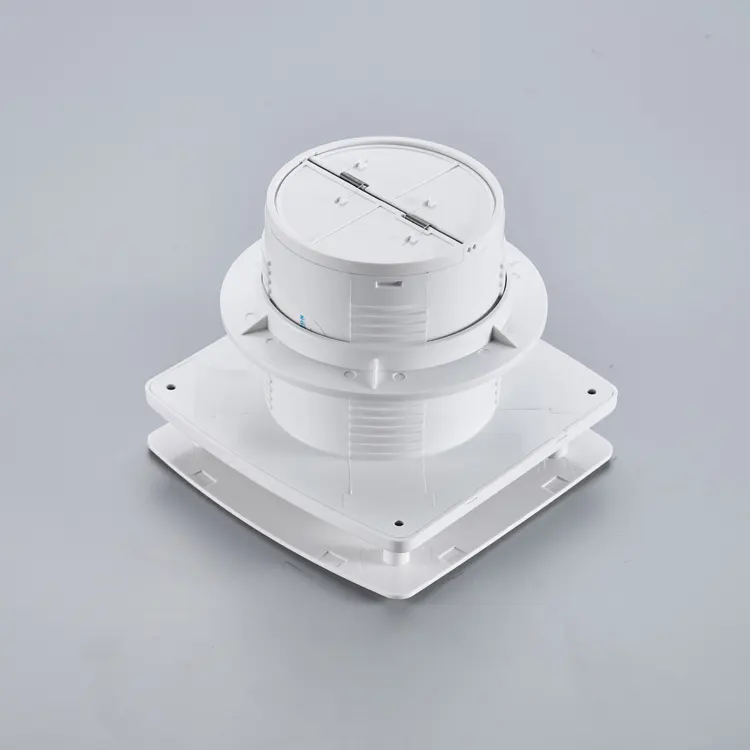

Shutter, ring are optional, ring is needed for window mounting.
Easy installation

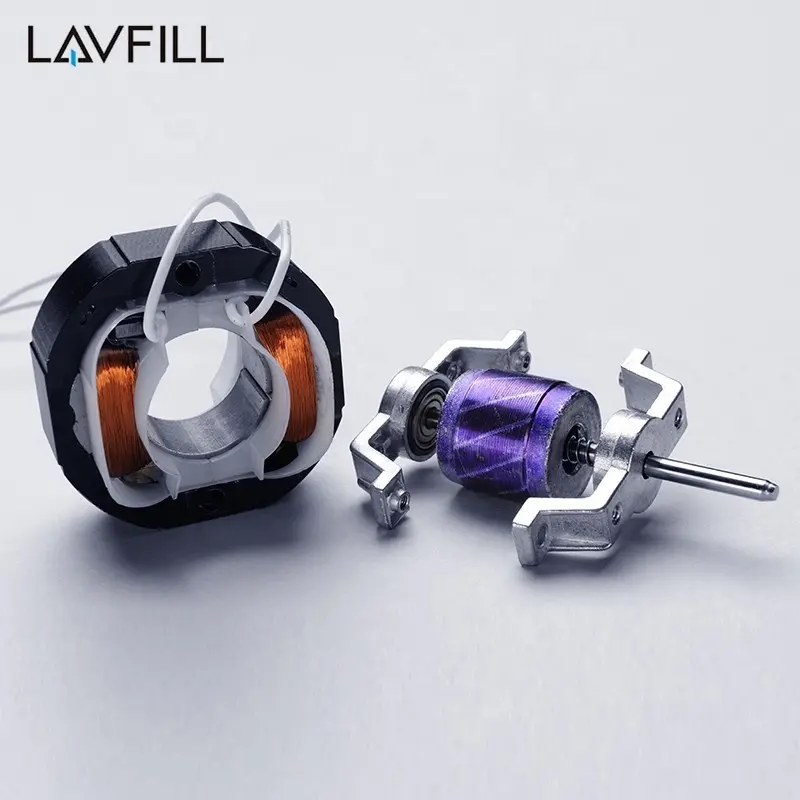

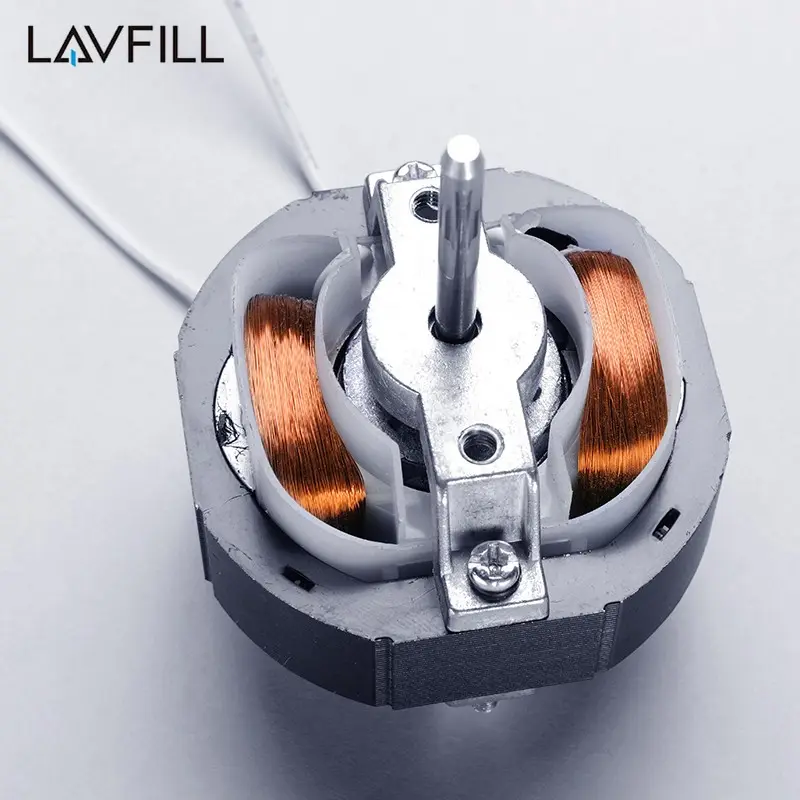

Shaded pole motor with thermo cut-off
Ball bearing motor to reduce friction for long life operation
Modern and functional design
Front louver for safety protection
Safety design based on IEC requirements
Approved by SAA TUV SASO CE RoHS
More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 mins.
+ With motion sensor sensing range of 0.5m ≤ D ≤8m, angle 180°*360° delay timer adjustable time range 1 -30 mins.
Specification
Installation Dimension
Unit: mm
Article No. ∅ A B C DLFWW-09R
∅99
150
90
35
LFWW-09RT
LFWW-09RH
LFWW-09RS
LFWW-13R
∅149 193 100 35LFWW-13RT
LFWW-13RH
LFWW-13RS
Technical Parameter
Article No. Category Rated Voltage/Frequency Ventilator Power Air Volume NoiseLFWW-09R
Wall/Window Type Extractor Fan12v~,50Hz
110V~,60Hz
127V~,60Hz
220V~,50Hz
220V~,60Hz
220V~,50/60Hz
220-240V~,50Hz
12W 95m³/h 34dBLFWW-09RT
LFWW-09RH
LFWW-09RS
LFWW-13R
18W 240m³/h 35dBLFWW-13RT
LFWW-13RH
LFWW-13RS
Note:
T - With Timer
H - With Humidity Sensor
S - With Motion Sensor
