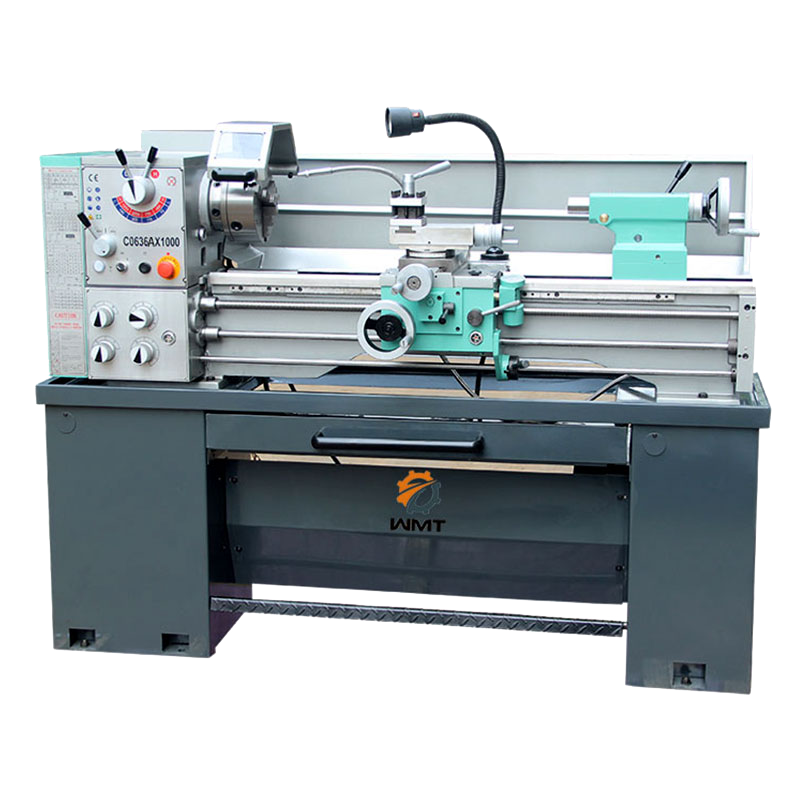

Bench lathe machine C0636A
- FOB goods (100)
- $305,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $10,675
- Section 301 tariff (25.0%)
- $76,250
- Customs fees (MPF/HMF)
- $1,016
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Bench lathe machine C0636A
- FOB goods (100)
- $305,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $10,675
- Section 301 tariff (25.0%)
- $76,250
- Customs fees (MPF/HMF)
- $1,016
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Metal
- Size: 1935X750X1500mm
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 1935X750X1500mm
- Color: Blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 1935X750X1500mm |
| Color | Blue |
From the supplier
Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel ground and hardened
Easy operating gear box has various feeds and thread cutting function
Specifications Specifications C0636A Distance between centers 1000mm Max. swing over bed 360mm Max. swing over cross 212mm Max. swing in gap 491mm Width of bed 187mm Spindle speed range 8 steps 70-2000rpm Spindle bore 38mm Spindle nose D4 Spindle taper MT5 Center height 178mm Threads metric pitches 0.4-7mm/26kinds Threads imperial pitches 4-56TPI/34kinds Compound rest travel 90mm Cross slide travel 170mm Longitudinal feeds 0.052-1.392mm/rev /32kinds Cross feeds range 0.009-0.253mm/rev (Metric lathe)0.015-0.402mm/rev (Inch lathe) External diameter 32mm Max. travel 100mm Taper of bore MT3 Spindle motor power 1.5kw Coolant pump power 40w Tool section 16*16mm Packing dimension 1935*750*1500mm Net/Gross weight 600/700kg
Machine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
