PET Bottle Water Filling Line

Reliable sincerely presents Global Turn-Key Project for professional solutions on water & juice & carbonated drink & wine and so on. Reliable Machinery 200ml-2L pet bottle liquid filling production line can ensure accurate and efficient filling, and also ensure that products are conveyed gently and smoothly on the production line. Accumulatively established 200+ countries and regions acorssing Asia, America, Europe and Africa. Regardless of the bottle types or shapes, we can provide powerful, reliable filling solutions with rich technique knowledge and experiences.

Production capacity: 2000-36000BPH based on 500ml bottles

Bottle type: plastic bottle, glass bottle, can.

We value customer satisfaction the most! You will always have Reliable Machinery full support in all aspects of the production. We are here to help you build, maintain and improve the performance of the production line.

Flow chart (turnkey water filling line ):

A) Bottle production line:

PET Resin -- Injection moulding machine - Botlte blowing machine -- PET bottle

B) Water treatment system:

Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

C) Bottle Filling & Packing part:

Bottles--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine –Palletizer --Stock

Model

CGF8-8-3

CGF12-12-6

CGF18-18-6

CGF24-24-8

CGF32-32-8

CGF40-40-10

CGF50-50-12

CGF60-60-15

Application

Spring water / mineral water / pure water / non-gas wine drink and so on

Number of washing, filling and capping heads

8-8-3

12-12-6

18-18-6

24-24-8

32-32-8

40-40-10

50-50-12

60-60-15

Production capacity(500ml)

2000

4000

6000-7000

10000-12000

13000-15000

15000-18000

20000-22000

24000-25000

Filling precision

≤±5mm(liquid level)

User Ambient Conditions

Temperature:10~40℃;

Humidity: No dew

Suitable bottle specification

Volume=100-2000ml

Diameter φ=50-110

Bottle height H=150 ~350mm

Volume=100-2500ml

Diameter φ=50-110

Bottle height H=150 ~350mm

Bottle type

Plastic bottle / PET Bottle

Bottle neck/Cap Style

Plastic Screw Cap

φ=20-50

Machine material

Food stage SS304 OR SS316

Air source pressure (Mpa)

0.5-0.6

Control System

SIMENS PLC+ TOUCH SCREEN

Features

No Bottle No Filling

No Bottle No Capping

Certificates

CE / SGS / ISO 9001/ COC

1. Water Treatment System

Water purification system can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the raw water resource. It can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh drinking water standards, even standard of healthy mineral water.

Purify Process:

Raw water>Water pump>Silica sand filter>Active carbon filter>Sodium ion exchanger>High pressure pump>Reverse osmosis>Ozone generator>Water tank>Pure water

2. Bottle Blowing Machine

Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing water bottles, soda bottles, cola bottles. Bottle shapes are all customized and can be adjusted according to your requirements.

Blowing process:

1) Preform inlet controlling

2) Bottle preform heating controlling

3) Blowing technology controlling

4) Bottle check and outlet

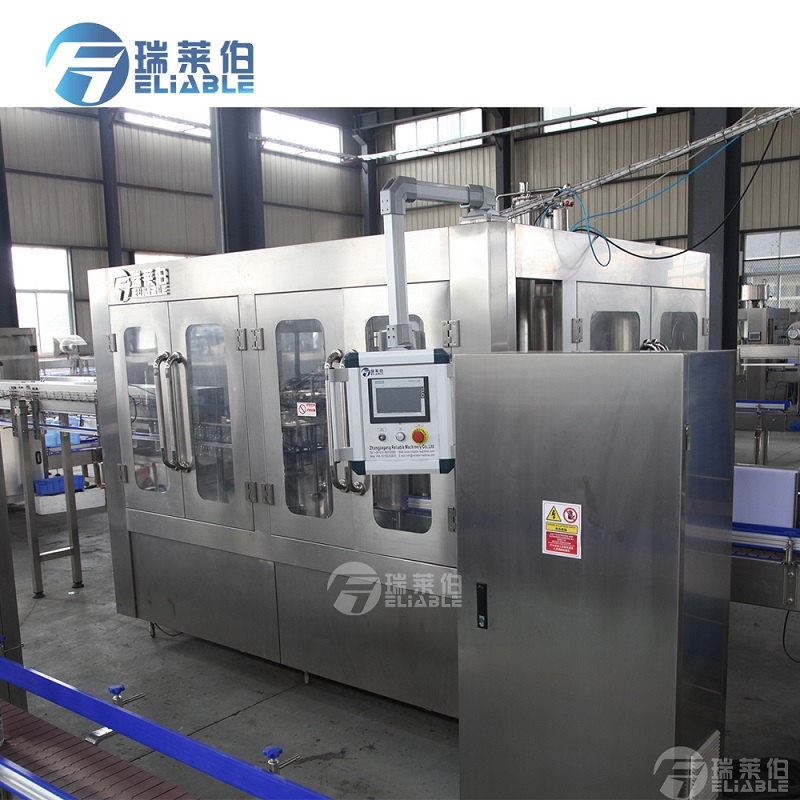

3. Filling System

Reliable Machinery ace and top choice, medium & high capacity from 2000BPH to 36000BPH bottled water filling Machine for PET bottles.

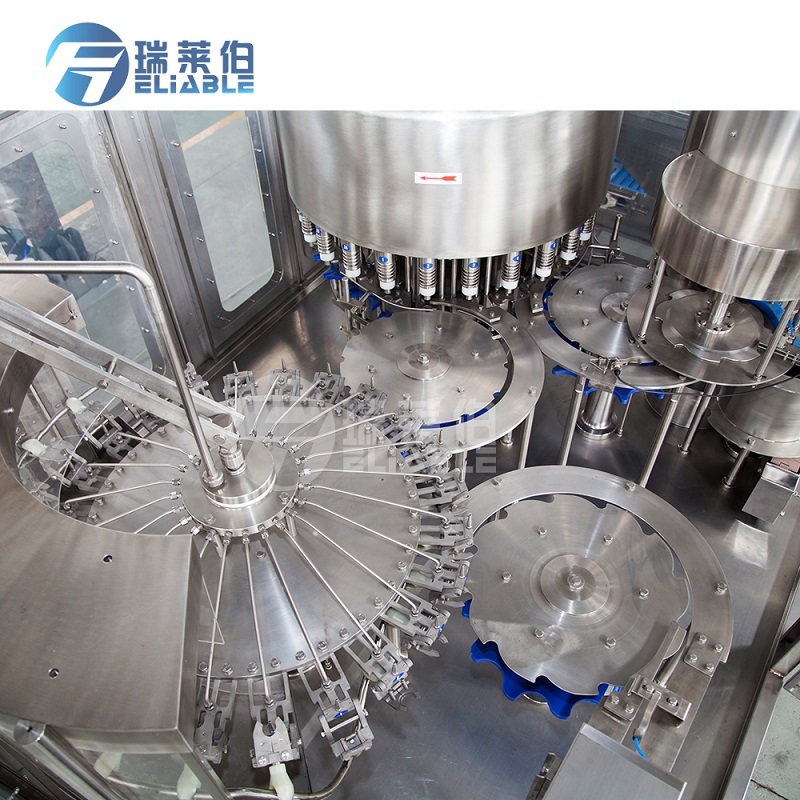

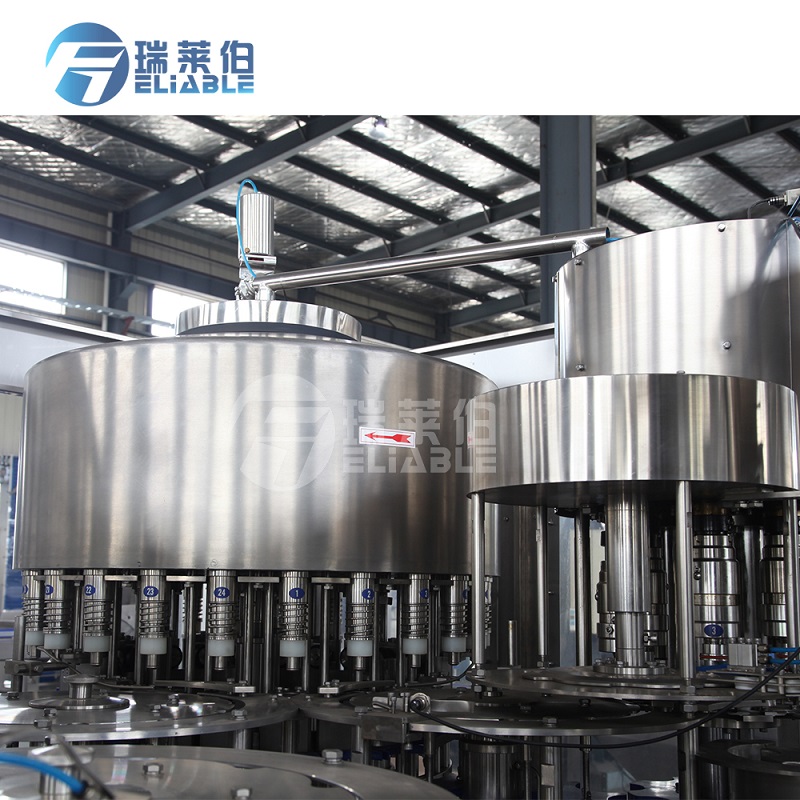

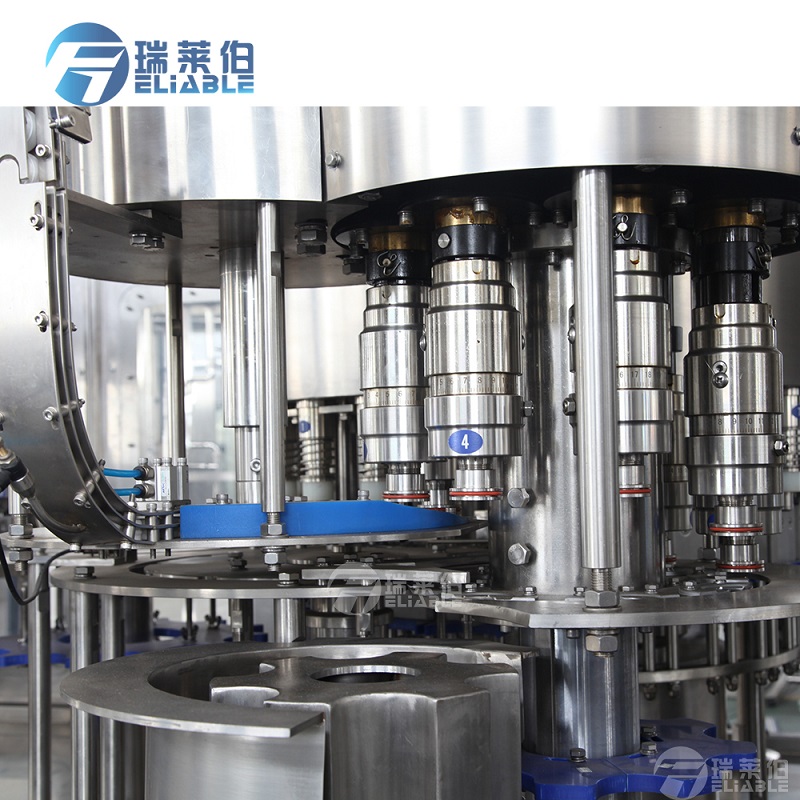

Machine integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water, barrel jar water etc.

The main electric and air-drive components are from world famous brand. All control is advanced PLC touch-screen operation and realize people-computer dialogue operation.

4. Labeling Machine

It's used for placing labels on bottles after filling process. Have different types for chosen: PVC shrink sleeve label, self adhesive label, OPP hot melt glue label. Free & beautiful label designs and one-stop label purchase service are offered, welcome to inquiry.

5. Final Products Film / Case Packing Machine

It can automatically array, aggregate and align PET beverage bottle or other similar articles, then package it with shrinking film or cartons. It’s suitable for final group packing process, such as 12 bottles/pack, 24 bottles/pack and so on. The packaged product is firmly bound with excellent appearance, which can be opened conveniently. Have option of shrink wrapper and case packer.
