Butt fusion welding machine
HANGZHOU WELPING MACHINERY EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Butt fusion welding machine
HANGZHOU WELPING MACHINERY EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
For use on building sites, drain pipe laying, and in the workshop. Suitable for PE, PP, PVDF

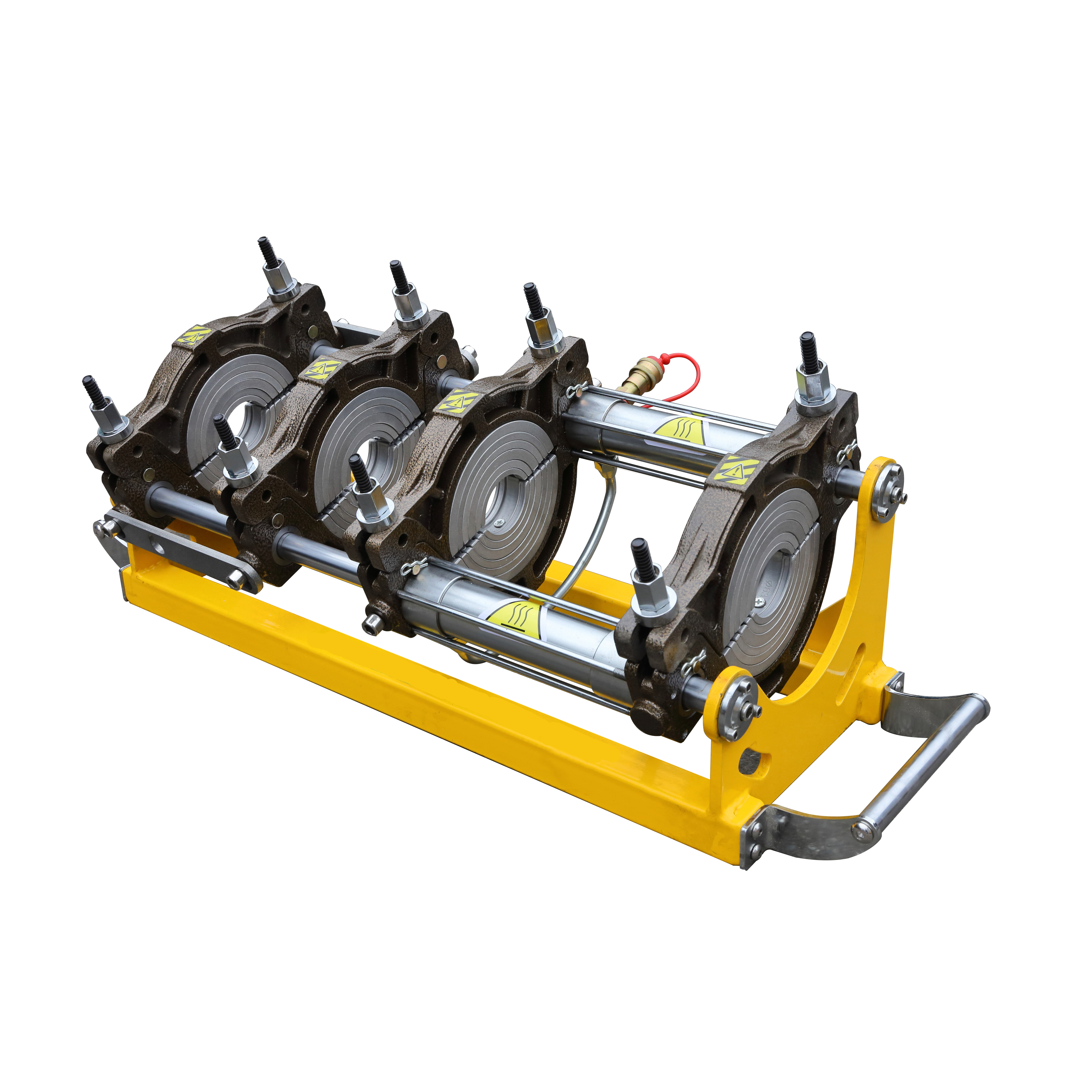

Integrated die casting aluminum frame, high-strength steel base with cylinder, provides stable heavy-duty performance.

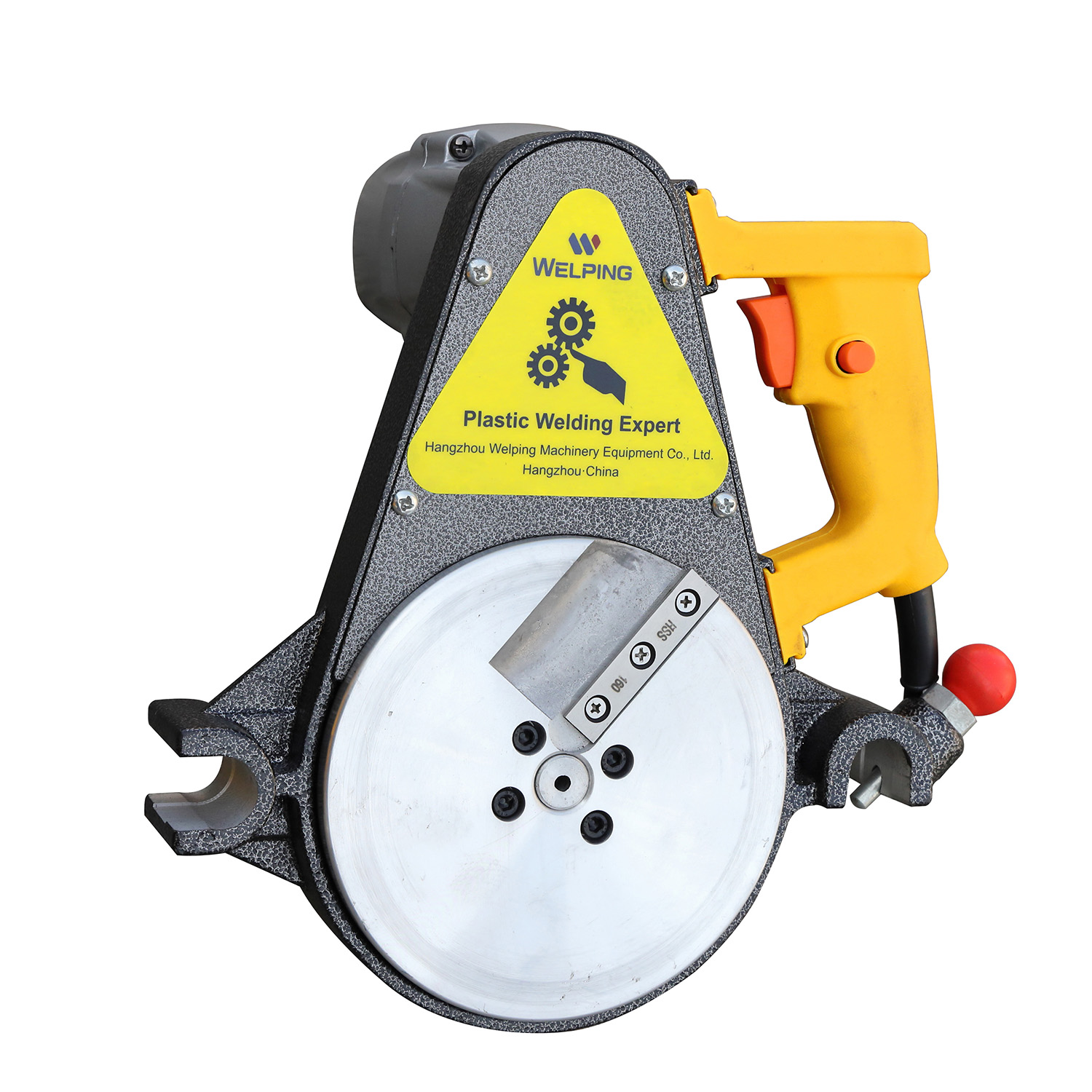

Planing tool with full-gear transmission structure. Durable and long life HSS blade.

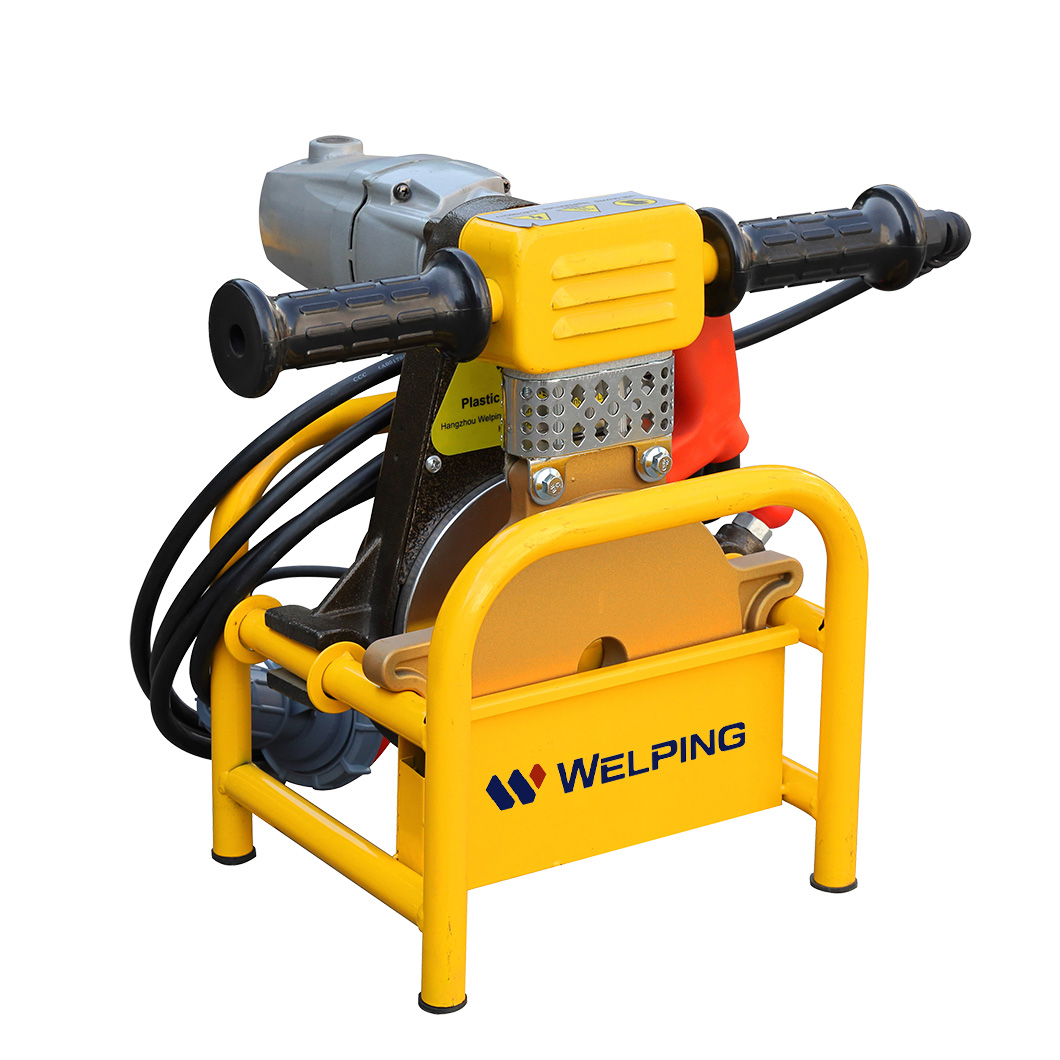

Heating plate with high quality PTFE coating, enables swift temperature control. Hydraulic station of integrated enclosure shielding splash & dirt

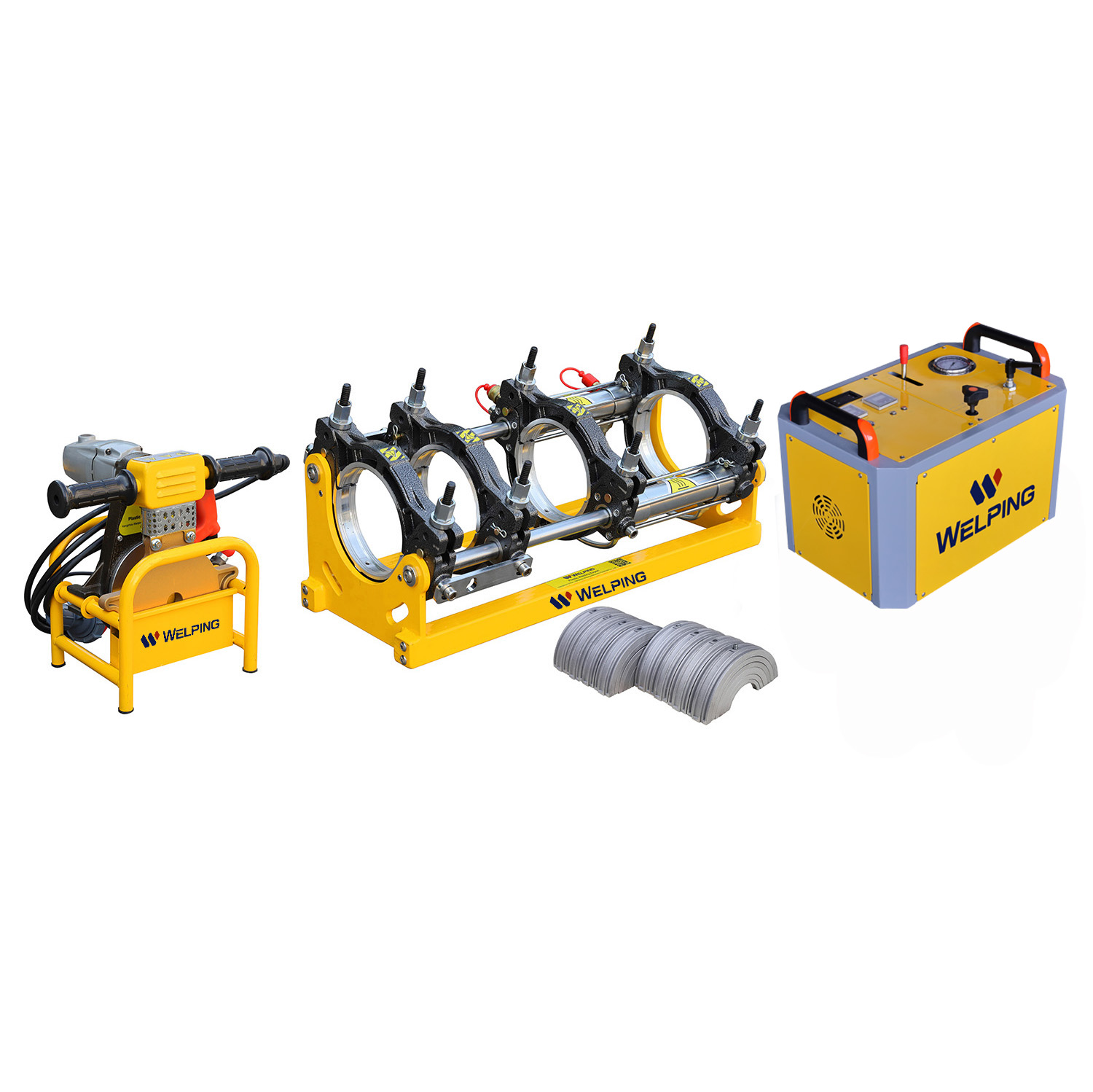

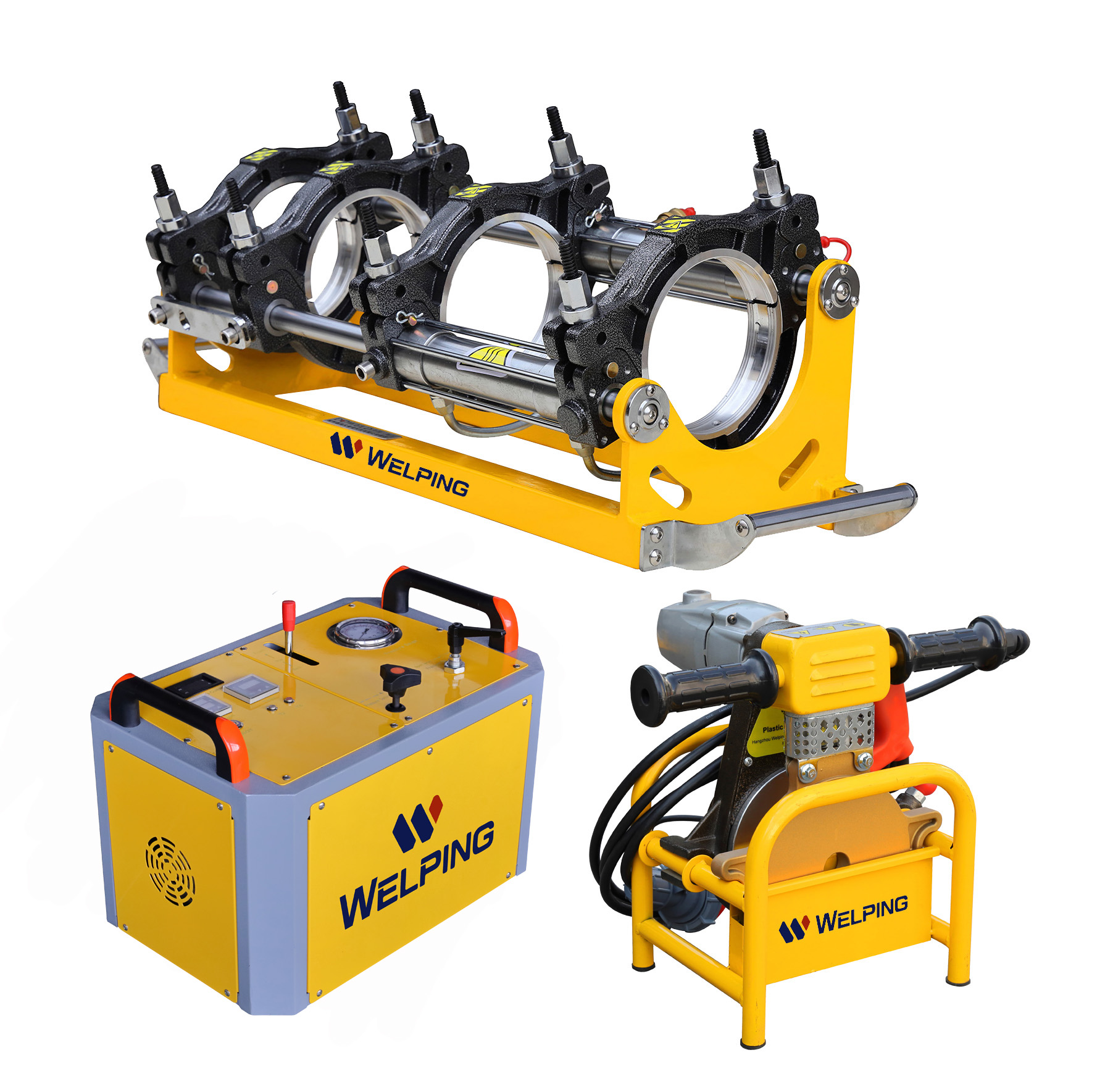

WP160A hydraulic butt fusion welding machine Model WP160A Suitable materials PE,PP, PB. PVDF Range 63-75-90-110-125-140-160mm Power supply 110V/220V Frequency 50HZ Total power 3.65 KW Heating plate 1.5 KW Planing tool 1.4KW Hydraulic station 0.75 KW Max.Pressure 16Mpa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ±5ºC Total Weight 111kg Net weight 99kg Basic Frame & planing tool & heating plate （plywood case） 84*45*62cm Hydraulic Unit （plywood case） 54*49*58cm WP160A hydraulic butt fusion welding machine Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
- Products Description
- Packing & Delivery
From the supplier
For use on building sites, drain pipe laying, and in the workshop. Suitable for PE, PP, PVDF
Integrated die casting aluminum frame, high-strength steel base with cylinder, provides stable heavy-duty performance.
Planing tool with full-gear transmission structure. Durable and long life HSS blade.
Heating plate with high quality PTFE coating, enables swift temperature control. Hydraulic station of integrated enclosure shielding splash & dirt
WP160A hydraulic butt fusion welding machine Model WP160A Suitable materials PE,PP, PB. PVDF Range 63-75-90-110-125-140-160mm Power supply 110V/220V Frequency 50HZ Total power 3.65 KW Heating plate 1.5 KW Planing tool 1.4KW Hydraulic station 0.75 KW Max.Pressure 16Mpa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ±5ºC Total Weight 111kg Net weight 99kg Basic Frame & planing tool & heating plate （plywood case） 84*45*62cm Hydraulic Unit （plywood case） 54*49*58cm WP160A hydraulic butt fusion welding machine Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.
- Products Description
- Packing & Delivery
