Butt fusion welding machine
HANGZHOU WELPING MACHINERY EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Butt fusion welding machine
HANGZHOU WELPING MACHINERY EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier
For use on building sites, drain pipe laying, and in the workshop. Suitable for PE, PP, PVDF

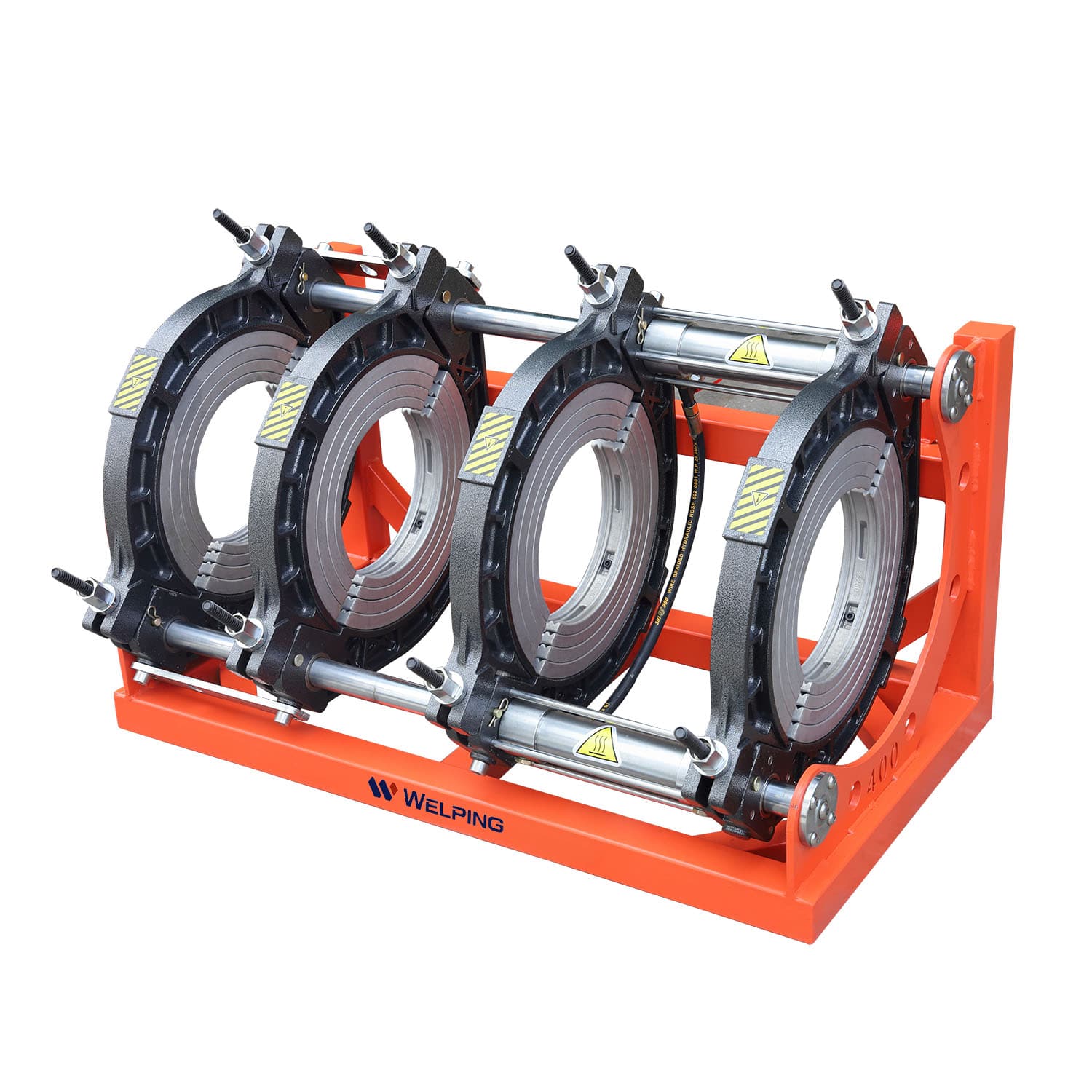

Integrated die casting aluminum frame, high-strength steel base with cylinder, provides stable heavy-duty performance.

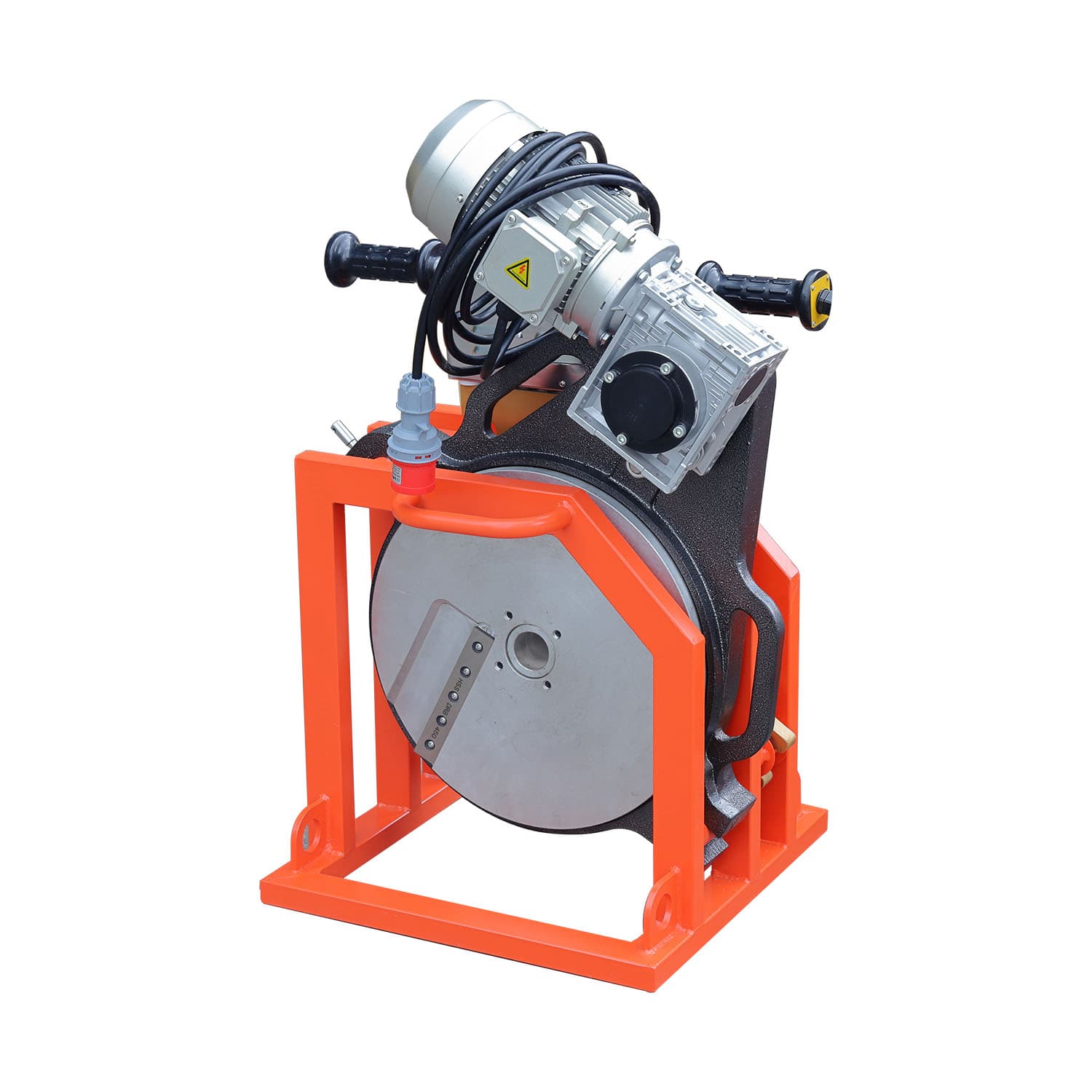

Planing tool with full-gear transmission structure. Durable and long life HSS blade.

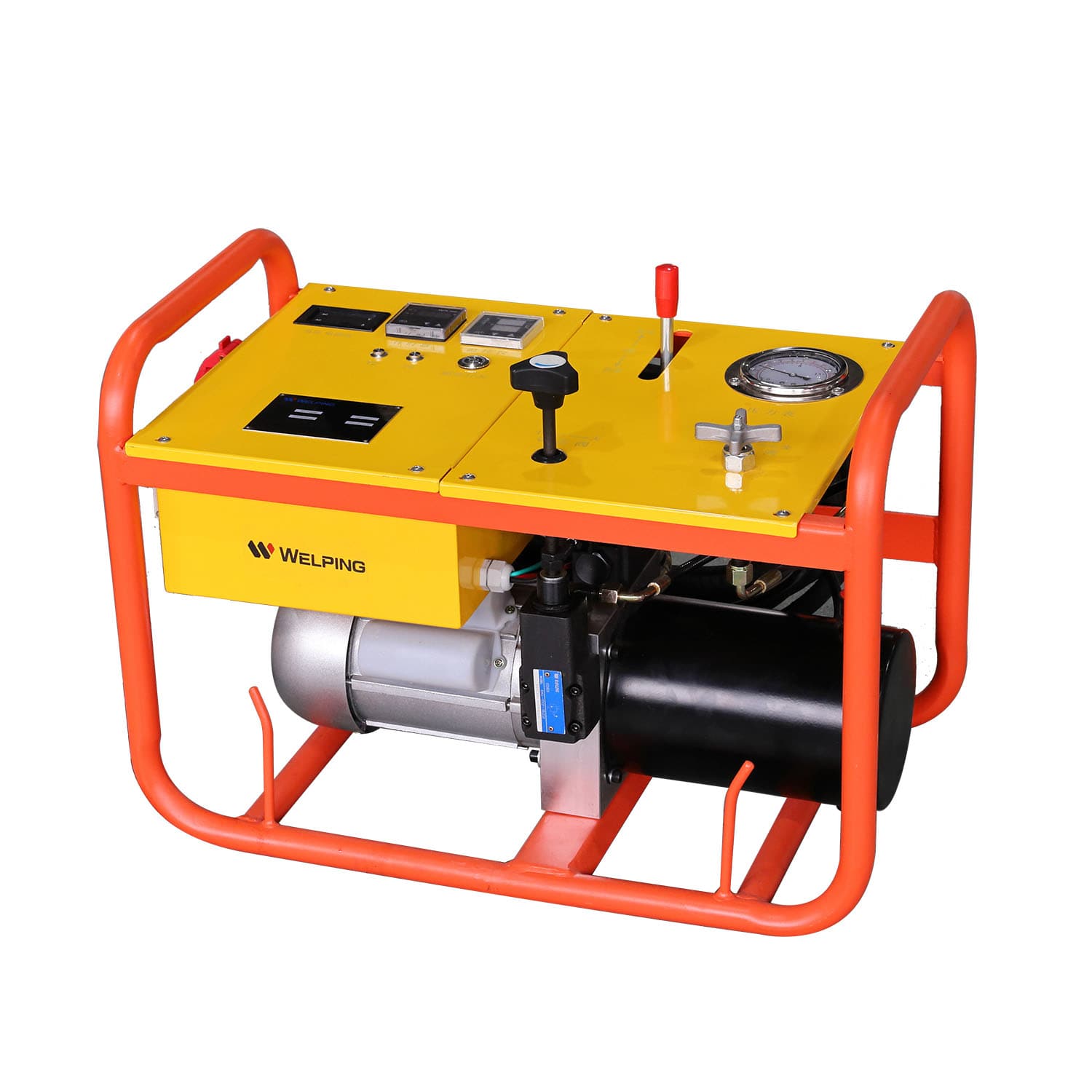

Heating plate with high quality PTFE coating, enables swift temperature control. Hydraulic station of integrated enclosure shielding splash & dirt
WP400B hydraulic butt fusion welding machine Model WP400B Suitable materials PE,PP, PB. PVDF Range 180-200-225-250-280-315-355-400 mm Power supply 110V/220V Frequency 50HZ Total power 7.7 KW Heating plate 5.5 KW Planing tool 1.1 KW Hydraulic station 1.1 KW Pressure adjusting range 0-16 Mpa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ±5ºC Total Weight 362kg Net weight 330kg Basic Frame （plywood case） 133*68*75cm planing tool & heating plate（plywood case） 86*61.5*102cm Hydraulic Unit （plywood case） 70*49*50cm WP200B hydraulic butt fusion welding machine Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty. Products Description Packing & Delivery WP400B butt welding Length (cm) Width (cm) Height (cm) N.W. G.W. package 1 133 68 75 150 162 package 2 86 61.5 102 115 125 package 3 70 49 50 65 75From the supplier
For use on building sites, drain pipe laying, and in the workshop. Suitable for PE, PP, PVDF
Integrated die casting aluminum frame, high-strength steel base with cylinder, provides stable heavy-duty performance.
Planing tool with full-gear transmission structure. Durable and long life HSS blade.
Heating plate with high quality PTFE coating, enables swift temperature control. Hydraulic station of integrated enclosure shielding splash & dirt
WP400B hydraulic butt fusion welding machine Model WP400B Suitable materials PE,PP, PB. PVDF Range 180-200-225-250-280-315-355-400 mm Power supply 110V/220V Frequency 50HZ Total power 7.7 KW Heating plate 5.5 KW Planing tool 1.1 KW Hydraulic station 1.1 KW Pressure adjusting range 0-16 Mpa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ±5ºC Total Weight 362kg Net weight 330kg Basic Frame （plywood case） 133*68*75cm planing tool & heating plate（plywood case） 86*61.5*102cm Hydraulic Unit （plywood case） 70*49*50cm WP200B hydraulic butt fusion welding machine Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty. Products Description Packing & Delivery WP400B butt welding Length (cm) Width (cm) Height (cm) N.W. G.W. package 1 133 68 75 150 162 package 2 86 61.5 102 115 125 package 3 70 49 50 65 75About the supplier
