WP630B hydraulic butt fusion welding machine HDPE, PE, PP pipes have been used extensively around the world. Butt fusion welding is an effective, trouble free connectingmethod for PE, HDPE pipes. In pressurized piping applications, butt fusion welding can provide excellent performance, just like awhole pipe.
To achieve a good jointing, a steady, precise, robust butt welding machine is critical. WELPING had been developing, manufacturing and distributing various butt fusion welding machine since 2005. It's our pleasure to help you build reputation in the piping project.

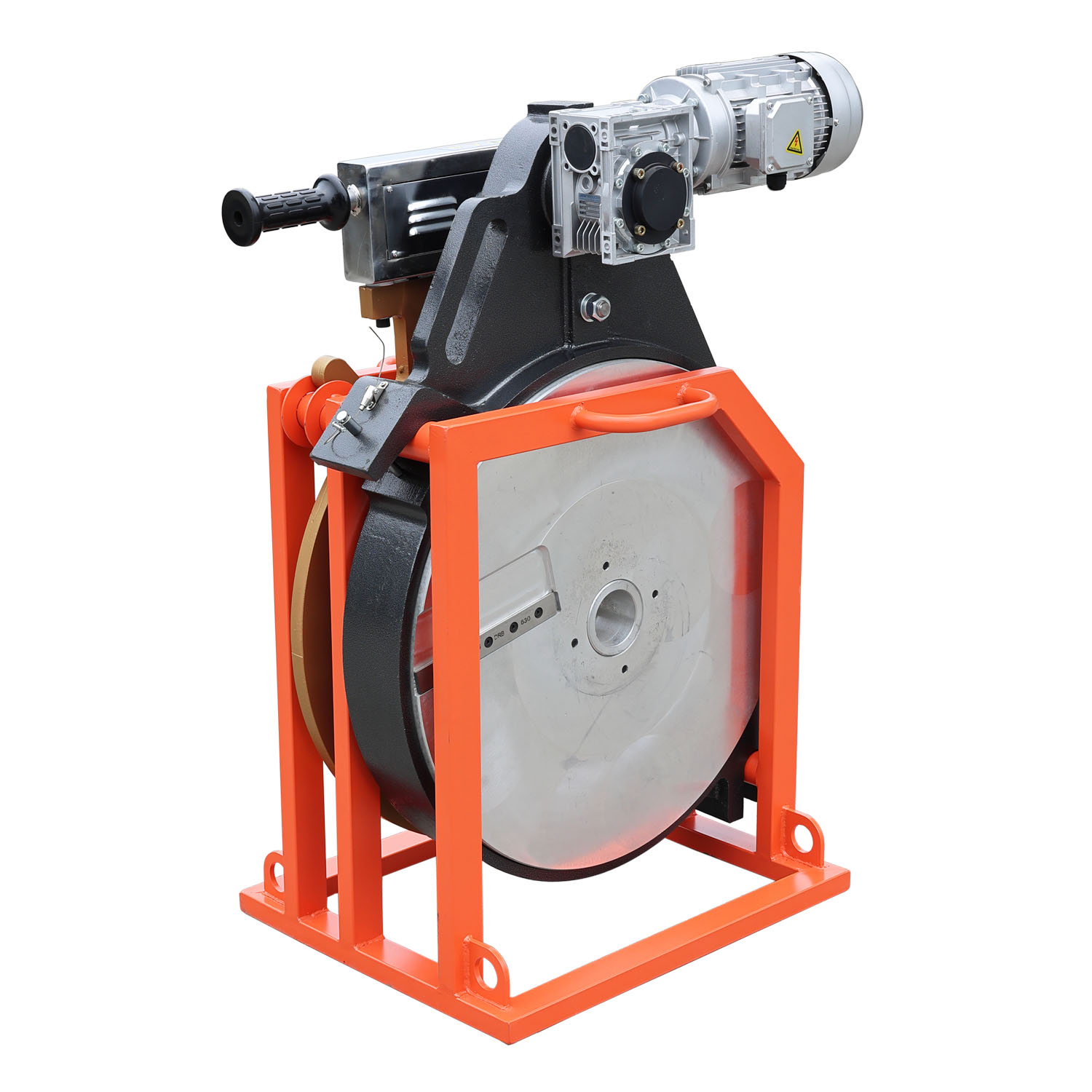

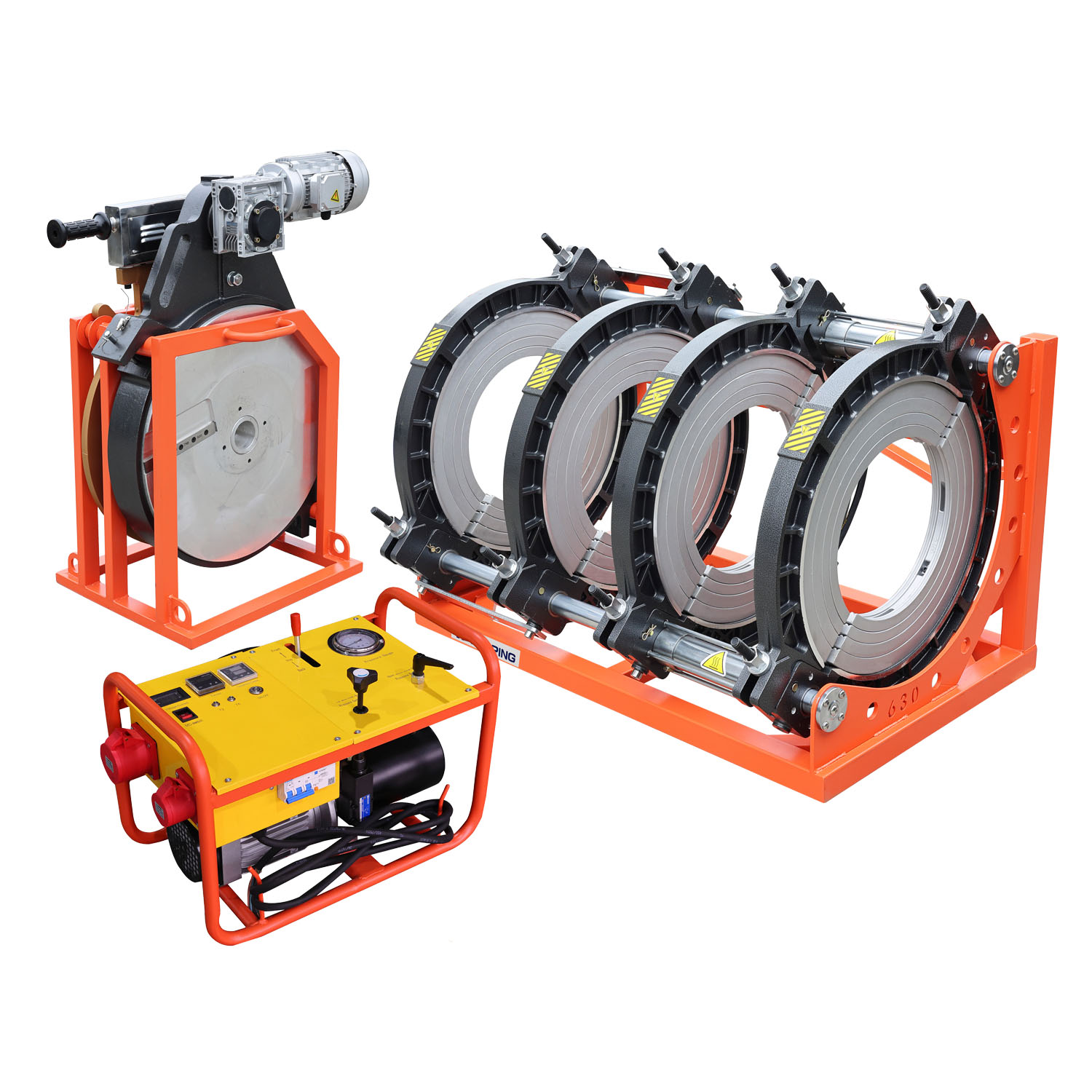

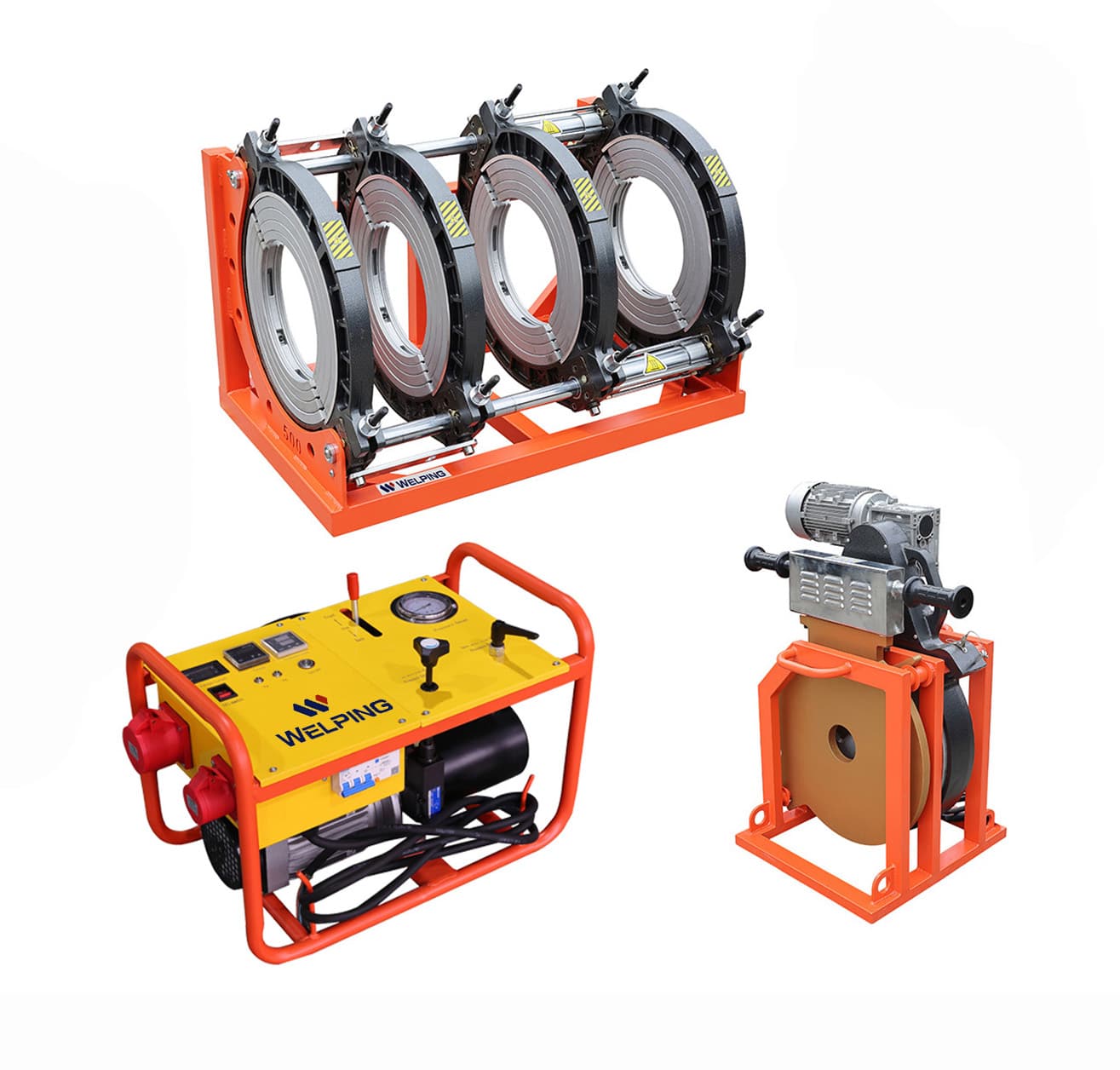

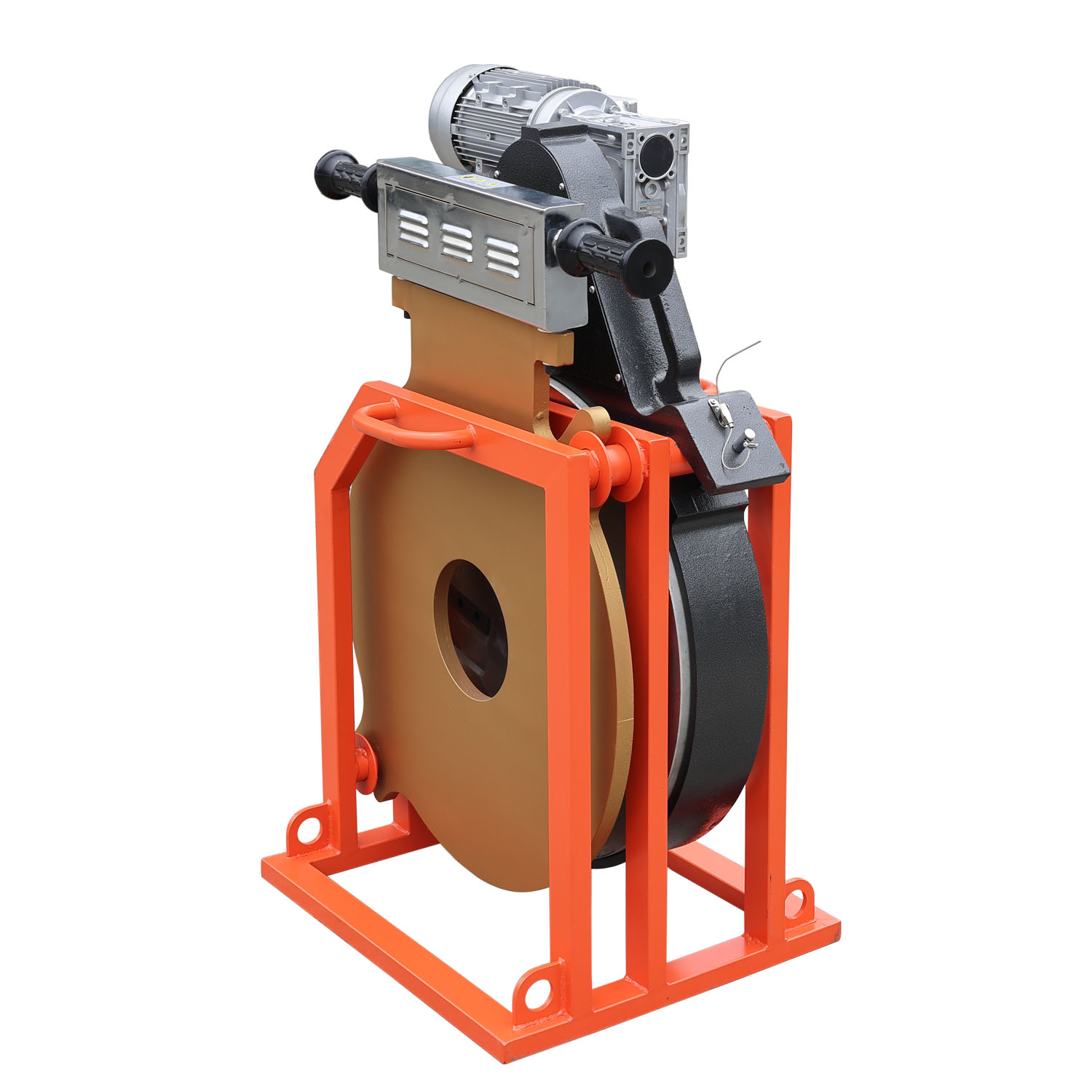

The Hydraulic butt fusion welding machine, mainly consists of 3 major parts: Carriage (also called frame or base), planing tool(also called trimmer or facer) and heater, hydraulic station with control device. Carriage for precise face joint and steady pipe clamping, planing tool and heater responsible for accurate trimming and heating, hydraulic station provides actuation and control. Model WP630B Suitable materials PE,PP, PB. PVDF Range 315-355-400-450-500-560-630 mm Power supply 110V/220V Frequency 50HZ Total power 10.1 KW Heating plate 7.5 KW Planing tool 1.5 KW Hydraulic station 1.1 KW Pressure adjusting range 0-16 Mpa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ±5ºC Total Weight 560kg Net weight 475kg Basic Frame （plywood case） 135.5*91.5*100.5cm planing tool & heating plate（plywood case） 103*62*125cm Hydraulic Unit （plywood case） 67.5*53*73cm WP630B hydraulic butt fusion welding machine Our Machines And Tools Accept Customizing Requirement, Such As Color, Different Parts Combination, Even Minor StructureModifications. Our Sales Representatives And Experienced Engineers Can Help You Decide The Optimized Options.We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty. Product Features Recommended by seller
