Cabinet Flat In-Line Sliding Door System
Shanghai TEMAX Industrial Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Cabinet Flat In-Line Sliding Door System
Shanghai TEMAX Industrial Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Nickel+Plastic
- Color: Gray
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
About this product
- Materials: Nickel+Plastic
- Color: Gray
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
Product details
| Materials | Nickel+Plastic |
|---|---|
| Color | Gray |
Product details
| Materials | Nickel+Plastic |
|---|---|
| Color | Gray |
From the supplier
Rated Loading: 20Kg/Door
Width per Door: 450-1000mm
Maximum Door Height: 1600mm
Door Height Should Not Above 1200mm if Door Width Is Lower Than 550mm.
Door Thickness: 18mm, Drilling Depth: 12mm, 2*Pads
Door Thickness: 20mm, Drilling Depth: 14mm, 1*Pads
Door Thickness: 22mm, Drilling Depth: 16mm, No Pads

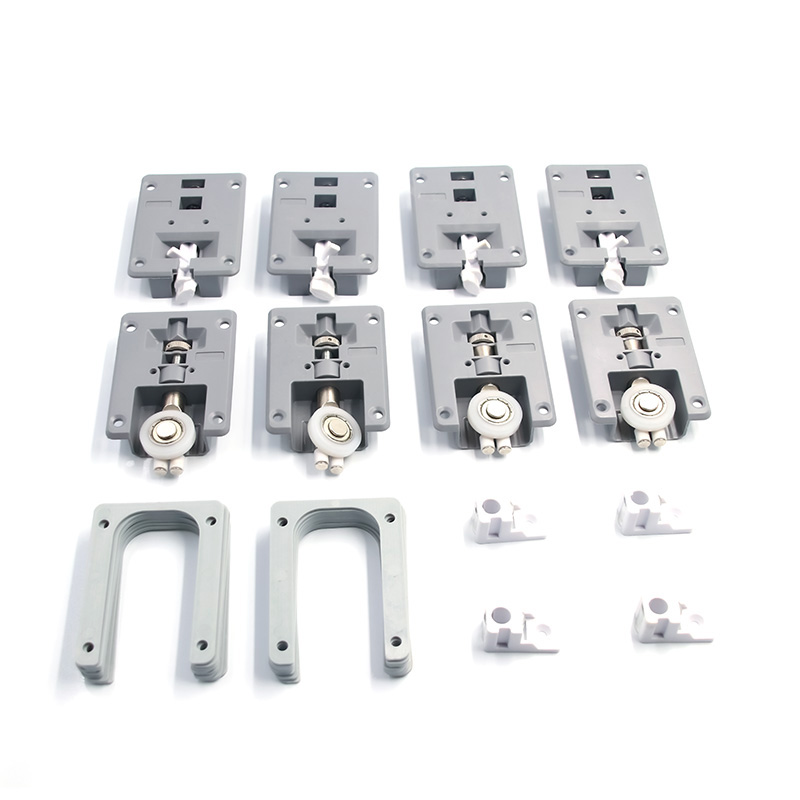

4*Pairs of Wheels+4*Positioning Bucket+16*Plastic Pads+Wrench+Screws
1. Humanized Design of The In-Line Sliding Door.
- The Door Panel Adopts an Internal Push Structure, The Top and Bottom Do Not Need to Be Left Empty, And the Cabinet Can Be Fully Utilized.
- The Cabinet Is in A Flat State When Closed, Keeping the Same Plane, Better Sealing.
- Suitable for Plates with Thicknesses of 18/20/22mm.
2. Easy to Install.
- The Upper and Lower Rails Are the Same and Can Be Cut Freely.
- Embedded Track Structure, Quick Installation and Simple Adjustment.
3. Wide Application Range.
- The Product Can Be Applied to Kitchen Wall Cabinets and Floor Cabinets, Bathroom Cabinets, Bookcases and Side Cabinets.
- The Minimum Door Width Can Be 450mm, Suitable for All Kinds of Small Cabinets.
From the supplier
Rated Loading: 20Kg/Door
Width per Door: 450-1000mm
Maximum Door Height: 1600mm
Door Height Should Not Above 1200mm if Door Width Is Lower Than 550mm.
Door Thickness: 18mm, Drilling Depth: 12mm, 2*Pads
Door Thickness: 20mm, Drilling Depth: 14mm, 1*Pads
Door Thickness: 22mm, Drilling Depth: 16mm, No Pads
4*Pairs of Wheels+4*Positioning Bucket+16*Plastic Pads+Wrench+Screws
1. Humanized Design of The In-Line Sliding Door.
- The Door Panel Adopts an Internal Push Structure, The Top and Bottom Do Not Need to Be Left Empty, And the Cabinet Can Be Fully Utilized.
- The Cabinet Is in A Flat State When Closed, Keeping the Same Plane, Better Sealing.
- Suitable for Plates with Thicknesses of 18/20/22mm.
2. Easy to Install.
- The Upper and Lower Rails Are the Same and Can Be Cut Freely.
- Embedded Track Structure, Quick Installation and Simple Adjustment.
3. Wide Application Range.
- The Product Can Be Applied to Kitchen Wall Cabinets and Floor Cabinets, Bathroom Cabinets, Bookcases and Side Cabinets.
- The Minimum Door Width Can Be 450mm, Suitable for All Kinds of Small Cabinets.
