From the supplier

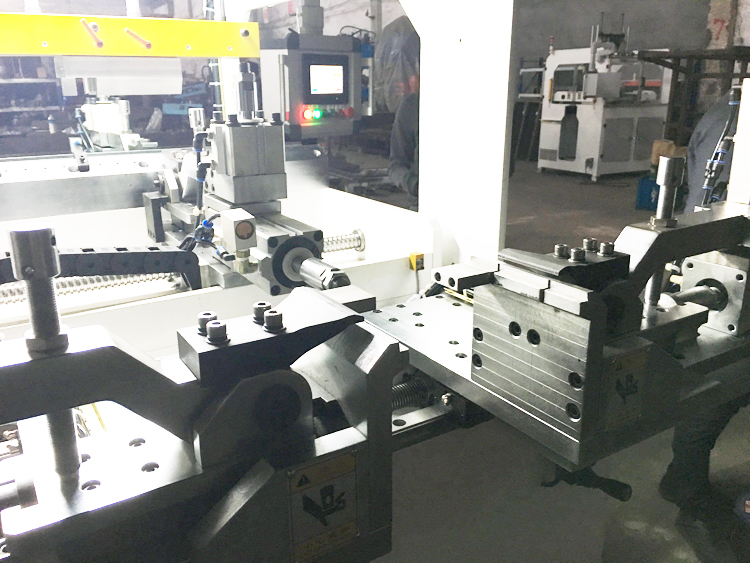

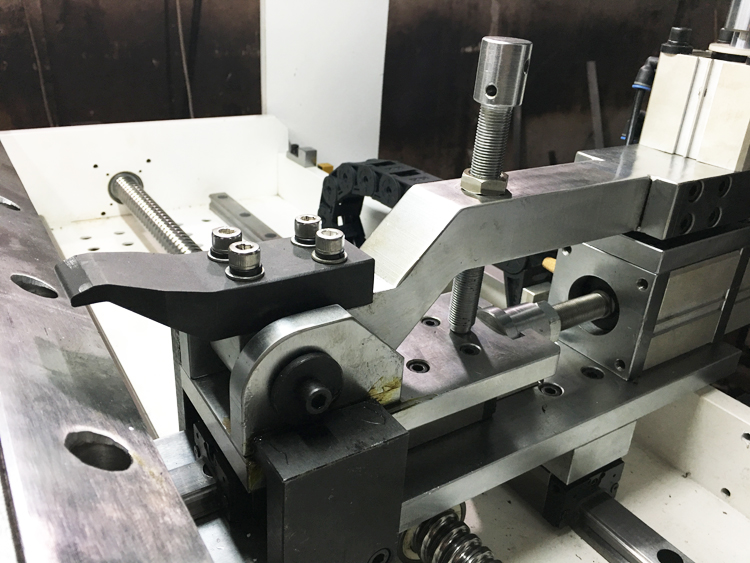

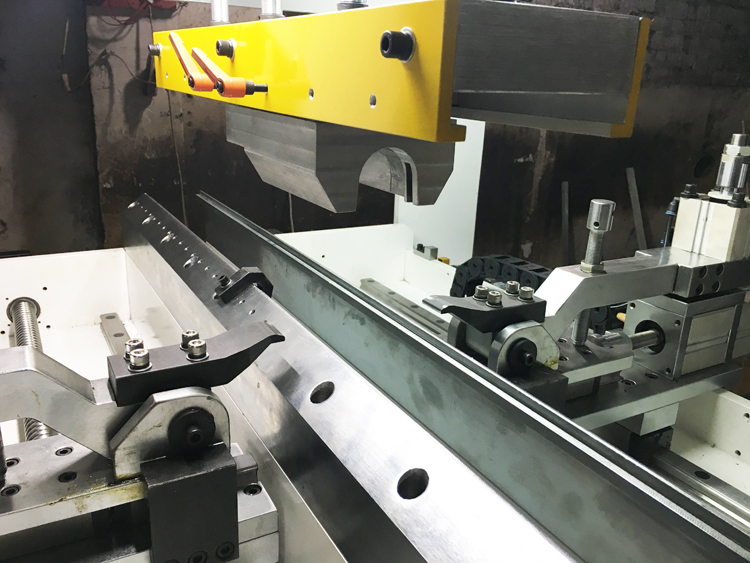

This semi-automatic radiator tank clinching machine, also called as radiator tank crimping machine or water chamber assembling machine, is our state-of-the-art design for clinching plastic tank with header plate of radiator.
This machine has two working stations. After finishing clinching long edge of tank on the main station, workpiece should be manually moved to the auxiliary station for clinching the short edge.
This machine processes high automation, suitable for most type of existing water tanks.
Main features
-- PLC control, HMI operation, servo driven, automatic clinching
--Automatic leaving gap for tank mouth, idle stroke quick moving, suitable for various plastic tank clinching.
-- PLC control, technological parameters can be preset and displayed on HMI.
-- Quick and easy changing clinching tool for other size tanks
-- Many units radiator tank parameters can be saved and recalled.
-- Both auto and manual control methods available. Auto method is for working, and manual method is for sampling & testing.
-- Safety measures: alarming lamp, actions interlock, safety grating ruler
-- HMI displaying working conditions
Main technical data
No.
Item
Data
1
Suitable core width
350-800mm
2
Suitable header plate width (core thickness)
15-100mm
3
Suitable header plate length (core height)
Max. 1000mm
4
Clinching pitch
Adjustable, default 10mm
5
Clinch speed
1-20 times per minute
6
Deformation of core and header plate after clinching
Less than 0.5mm
7
Clinching tool changeover time
Less than 10min (for another size tank)
8
Servo motor power
0.75kW x 2
9
Air source
0.6MPa, 0.01m3/min
10
Machine dimension
About 2200 x 2200 x 1700mm
11
Machine weight
About 2800kg
