About this product
- Materials: Q235
- Color: Customizable
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
About this product
- Materials: Q235
- Color: Customizable
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Henan, China
Product details
| Materials | Q235 |
|---|---|
| Color | Customizable |
From the supplier

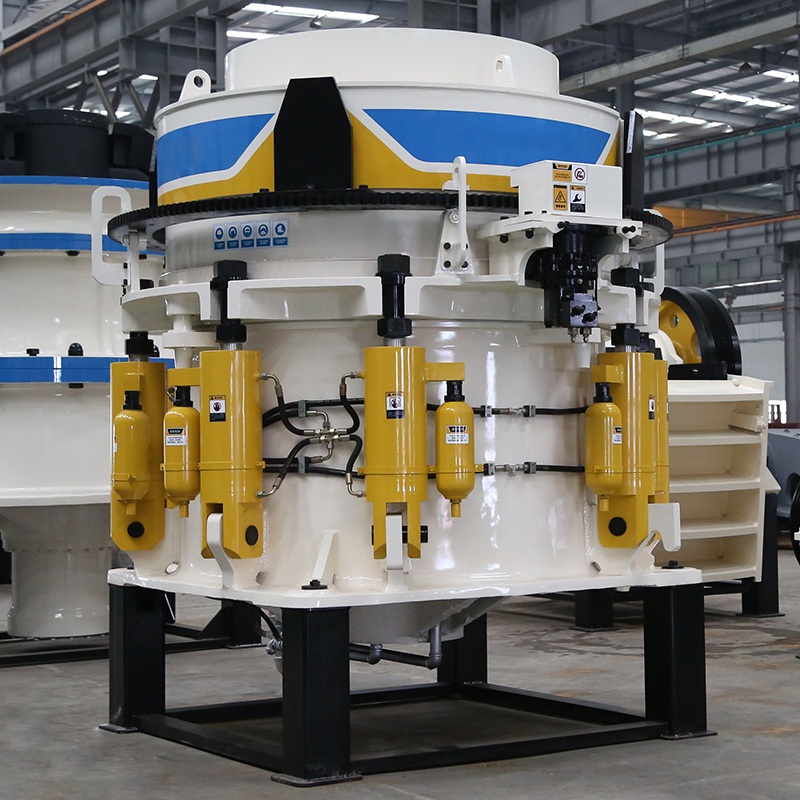

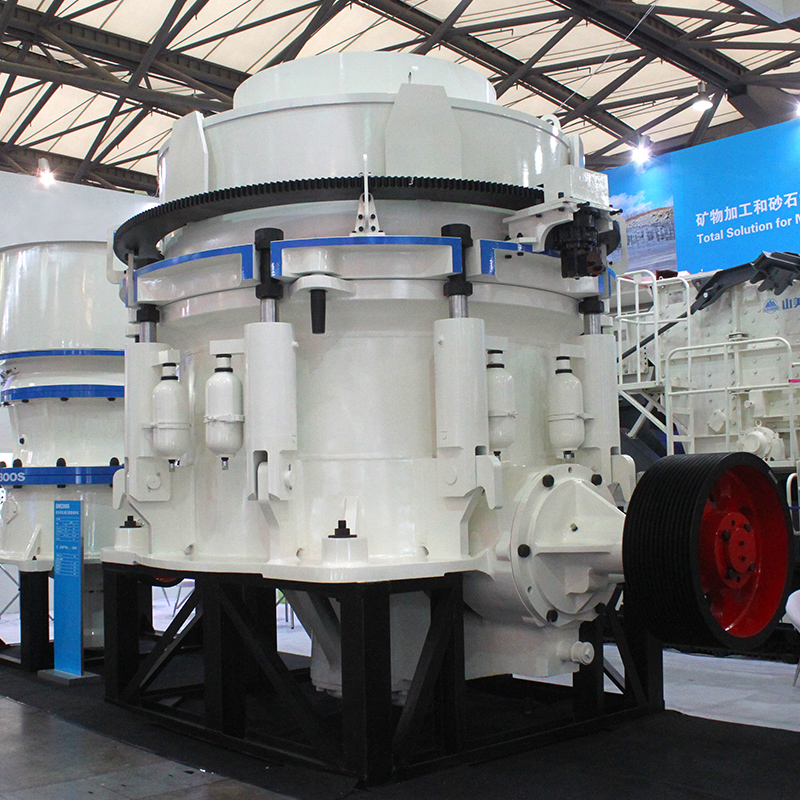

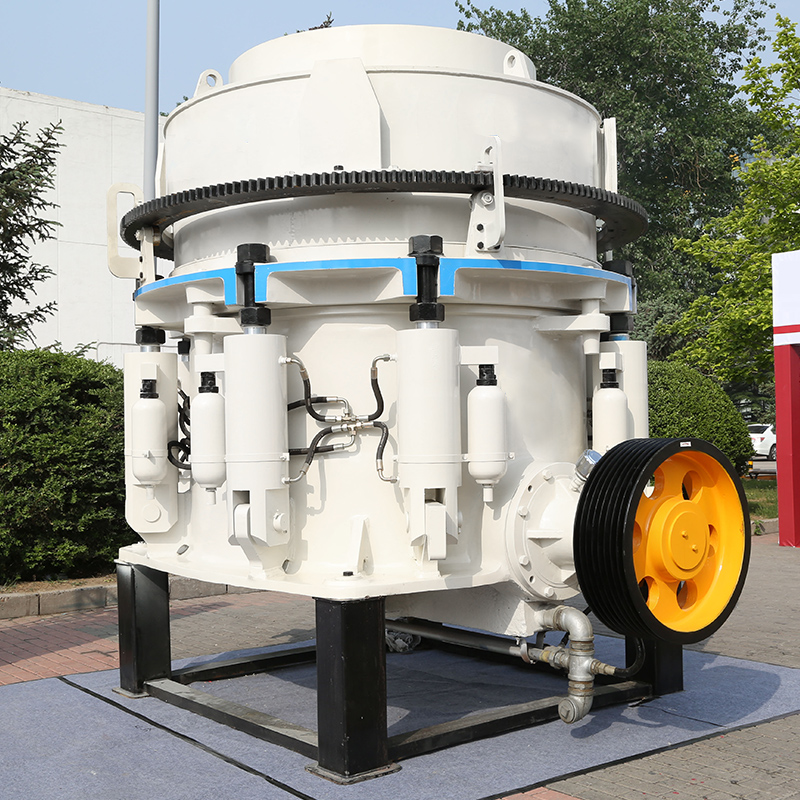

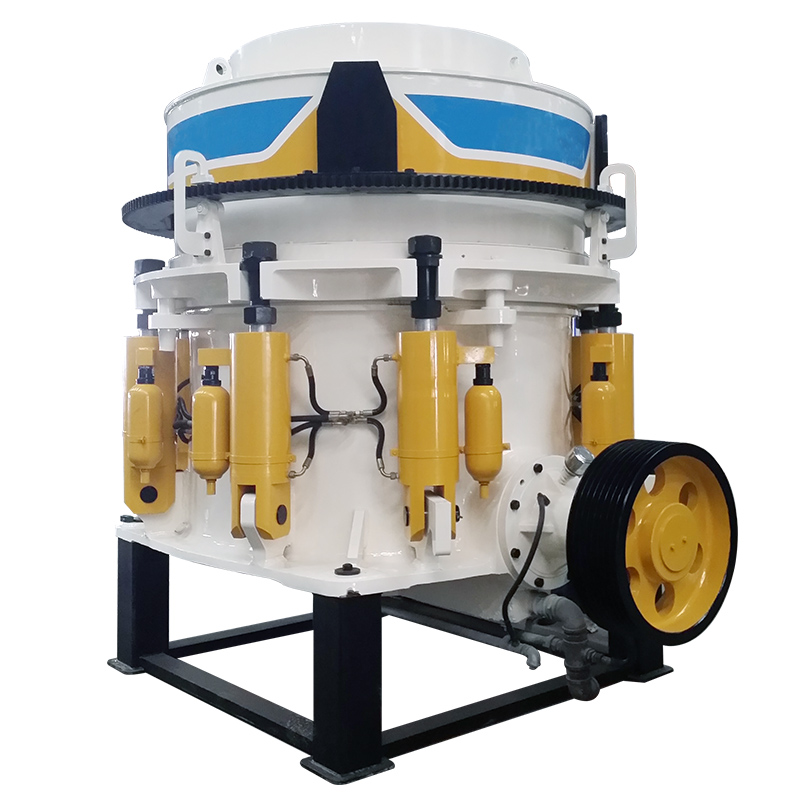

CCM series hydraulic cone crusher is a high-performance cone crusher. By optimized combination of the rotation rate, stroke and the crushing cavity, it realizes the laminated crushing and improves the yield greatly.
FEATURES OF CCM SERIES CONE CRUSHERStrong crushing ability, high efficiency productivity, high capacity.
Hydraulic system is reliable, provide safe and effective overload protection.
Types of crushing cavity are for wide range of product size requirement.
Reasonable structure, advanced crushing principle and technical data, reliable work and low cost.
Use hydraulic adjustment and hydraulic clean cavity setting, greatly increase automation.
WORKING PRINCIPLE OF CCM SERIES HYDRAULIC CONE CRUSHERWhen CCM series hydraulic cone crusher works, the motor drives the outer copper rotate through V-belt, host pulley, drive shaft, a small bevel gear, a large bevel gear. The outer copper forces crushing cone shaft axis of the outer copper to make rotating swing, making crushing surface sometimes near and sometimes leave the concave surface, so that the material is impacted, squeezed and bent in the ringlike crushing chamber consist of fixed cone and movable cone. After repeated squeezed, shocked, and bent, the material crushing to the required particle size is discharged from the lower part.
The particular crushing chamber adopting principle of intergranular lamination and matching rotor speed obviously improves the crushing ratio and productivity, largely increase the amount of cubic final product.
Adopting hydraulic protection and hydraulic cavity clearing, high degree of automation, the hydraulic system can be up top and discharge automatically when the crusher is blocked instantly or over-iron, which eliminates trouble of halting to clear the material manually. It makes the maintenance more easier, cost lower.
The hydraulic adjustment and oil lubrication make the crusher more steady and reliable. It also adopts labyrinth sealing mode, which avoids oil mixing with water easily.
