Product Description

Standard Configurations For GEM-636 Wheel Loader

1) Standard bucket
2) Weichai Deutz engine
3) Backward camera, USB, Radio
4) Closed cabin
5) Joystick
6) E4 Lamps
7)Original Weichai air filter

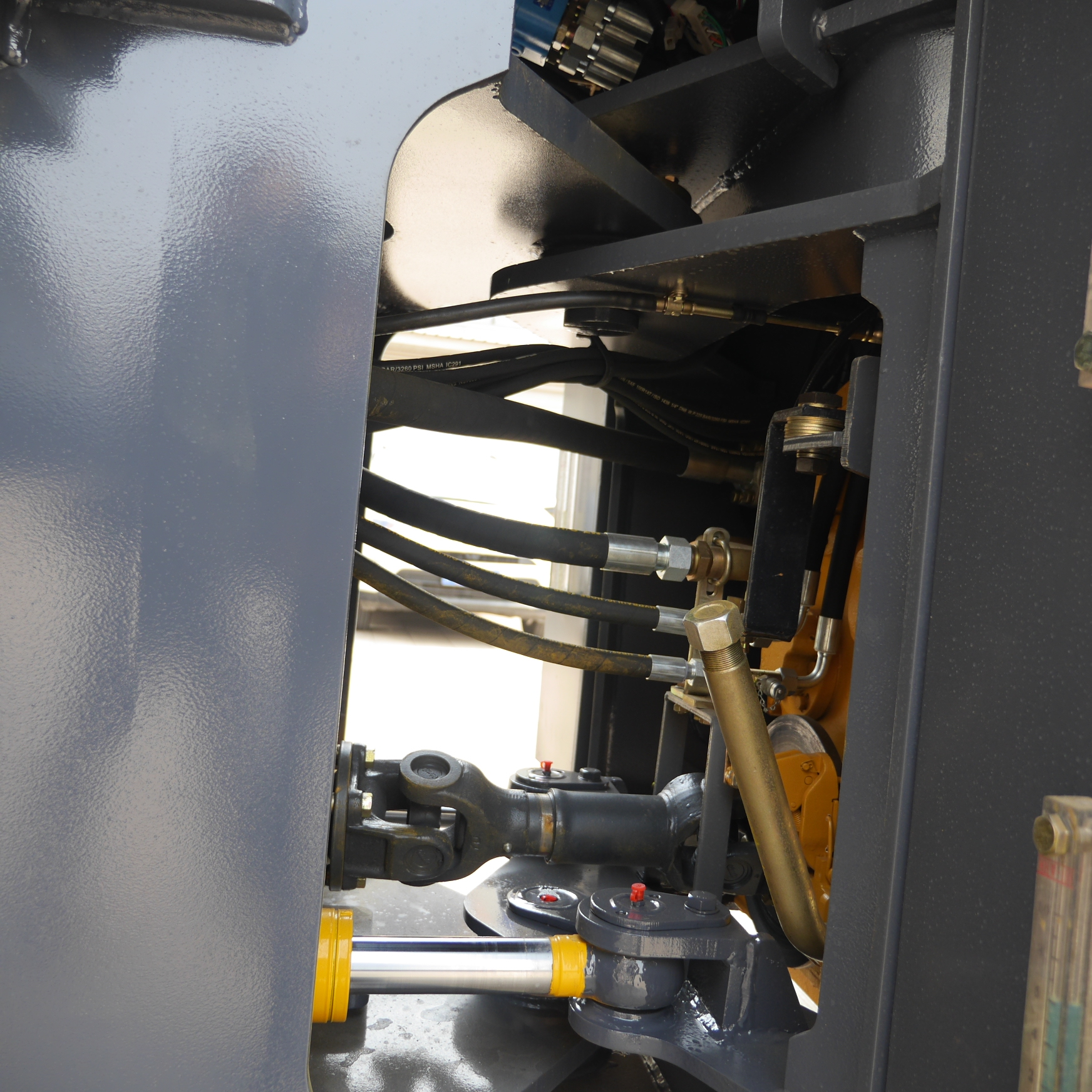

8) New heavy-duty articulation
9) 17.5-25 tyres
10) Adjustable seat
11) Luxury interior

Optional Configurations For GEM-636 Wheel Loader

1) Cummins 97kw engine
2) Quick hitch
3) Pallet fork
4) LED working lamp
5) Digital display instrument, electronic control joystick
6) Pneumatic seat
7) A/C
8) New style dashboard
9) All kinds of attachments

Specifications

1.0 Engine Details

  (1) Model:

WEICHAI/CUMMINS

  (2) Engine Type:

In-line arrangement,water-cooled,six-cycle diesel engine

  (3) Rated Power:

92KW/97KW

  (4) Rated Speed:

2200 r/min(rpm)

  (4) Fuel Consumption ration in Standard working condition:260g/kw.H

2.0 Transmission System

  (1) Type:

Fixed-spindle power shift

  (2) Rated input speed:

2500(rpm)

  (3) Working Pressure :

16MPA

3.0 Bucket

  (1) Bucket capacity:

1.5m3

  (2) Bucket Width:

2200mm

  (3) Bucket type:

Heavy-duty bolt on teeth

  (4) Rated load:

3600kg

  (5)Operating Weight

10000kg

4.0 Overall Dimensions

  (1) Overall length(bucket on ground)

7120mm

  (2) Overall Height

3137mm

  (3) Dumping height:

3430mm

  (4) Overall width

2440mm

5.0 Operating Specifications

  (1) Steering system:

Articulated frame with hydraulic power steering

  (2) Min.turning radius:

3100mm

  (2) Max.turning radius:

5100mm

  (3) Driving system:

Hydraulic converter

6.0 Brake System

  (1) Service Brake

Four wheel hydraulic spread-shoed brake

  (2) Parking Brake

Hand operated

7.0 Tyre

17.5-25 Tires

8.0 Wheelbase

2770mm

Why customers choose us?

1, Japanese steel plate, laser cutting, high strength, long service life.
2, high quality hydraulic working pump, hydraulic cylinder.
3, brand-name gearbox, hydraulic torque converter.
4, professional design team, the design is more reasonable, the appearance is beautiful, and the kinetic energy conversion is reasonable.
5, brand-name engine,yanmar brand, famous Jananese engine.
6, custom high pressure hose to ensure no oil leakage during use.
7, very low failure rate, saving your maintenance costs and time.Less malfunction means making money.

Our customers

The company has over 200 engineering technicians, a strong technical strength. According to the development strategy, in early 2011, Phase II project started to be built in Caterpillar Industrial Park. The project total investment is 320 million yuan, covers an area of 35000 square meters, is planning to build a high standard modern production base, including workshop, R&D center and administrative office.The project is expected to be completed at the end of 2012. Annual growth in sales is expected to be more than 230 million yuan after the project is put into production.

The company is mainly engaged in the production and management of medium and small loaders and other engineering machinery. Our leading products are Oujin 915, 916, 918, 920, 926, 928, 929, 930, 630 series of wheel loaders, OJ60 crawler hydraulic excavator, Oujin Grass-grasper, Log-grasper, Pushing Snowboard and other engineering machinery deformation products. With reliable quality and perfect after-sale service, the demand for our products exceeds the supply in domestic and overseas. It has become a strong contingent in machinery industry in recent years. Furthermore, our company has also developed rapidly in other fields, such as chemical products, transport and logistics, metal processing, crushing machine, etc. Our company are developing steadily and orderly in the direction of diversification and collectivization.

The enterprise of Oujin Machinery was accredited ISO9001:2000 by international quality management system. We absorb the advanced technology and management experience from the same industry at home and abroad. At the same time, with our own tireless efforts and strict management, we adhere to the concept "committed to human science and technology, creating the brand legend", are always in the front of the industry.

We warmly welcome friends from all walks of life to qingzhou to negotiate business, exchange experiences. May our products give a helping hand in your way to success!

Our certification

Our service

RFQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
