Engine
ModelZS1115ZS1115MZS1115NZS1115NM
Model
TypeHorizontal,Four-Stroke
TypeHorizontal, 4-stroke
Combustion MethodDirect Injection
Combustion systemDirect injection
Cylinder Count-Bore×Stroke (mm)1-115×115
No. of cylinders×Bore×Stroke (mm)
Piston Total Displacement (L)1.1945
Total Displacement (L)
Compression Ratio17:1
Compression ratio
1Power Rating (kW)/Rotate/min)16.2/2200
1 hour rated output (kw / r / m)
12Power Rating (kW)/Rotate/min)14.7/2200
12 hour
Fuel Consumption Rate (g/kWh)≤238
Specific fuel consumption (g / kw.h)
Oil Consumption Rate (g/kWh)2.04
Specific lube consumption (g / kw.h)
Cooling MethodEvaporationRadiator
Cooling systemWater evaporationRadiator
Lubrication MethodSplash Lubrication
Lubrication systemCombined pressure and splash
Starting MethodHand Crank Electric Start Hand Crank Electric Start
Starting methodHand crankingStarting motorHand crankingStarting motor
Net Weight (kg)185190195205
Net weight (kg)
External Dimensions858×450×699947×517×699965×457×713965×457×713
Overall dimension L×W×H (mm)
ModelZS1115ZS1115MZS1115NZS1115NM
Model
TypeHorizontal,Four-Stroke
TypeHorizontal, 4-stroke
Combustion MethodDirect Injection
Combustion systemDirect injection
Cylinder Count-Bore×Stroke (mm)1-115×115
No. of cylinders×Bore×Stroke (mm)
Piston Total Displacement (L)1.1945
Total Displacement (L)
Compression Ratio17:1
Compression ratio
1Power Rating (kW)/Rotate/min)16.2/2200
1 hour rated output (kw / r / m)
12Power Rating (kW)/Rotate/min)14.7/2200
12 hour
Fuel Consumption Rate (g/kWh)≤238
Specific fuel consumption (g / kw.h)
Oil Consumption Rate (g/kWh)2.04
Specific lube consumption (g / kw.h)
Cooling MethodEvaporationRadiator
Cooling systemWater evaporationRadiator
Lubrication MethodSplash Lubrication
Lubrication systemCombined pressure and splash
Starting MethodHand Crank Electric Start Hand Crank Electric Start
Starting methodHand crankingStarting motorHand crankingStarting motor
Net Weight (kg)185190195205
Net weight (kg)
External Dimensions858×450×699947×517×699965×457×713965×457×713
Overall dimension L×W×H (mm)
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
From the supplier

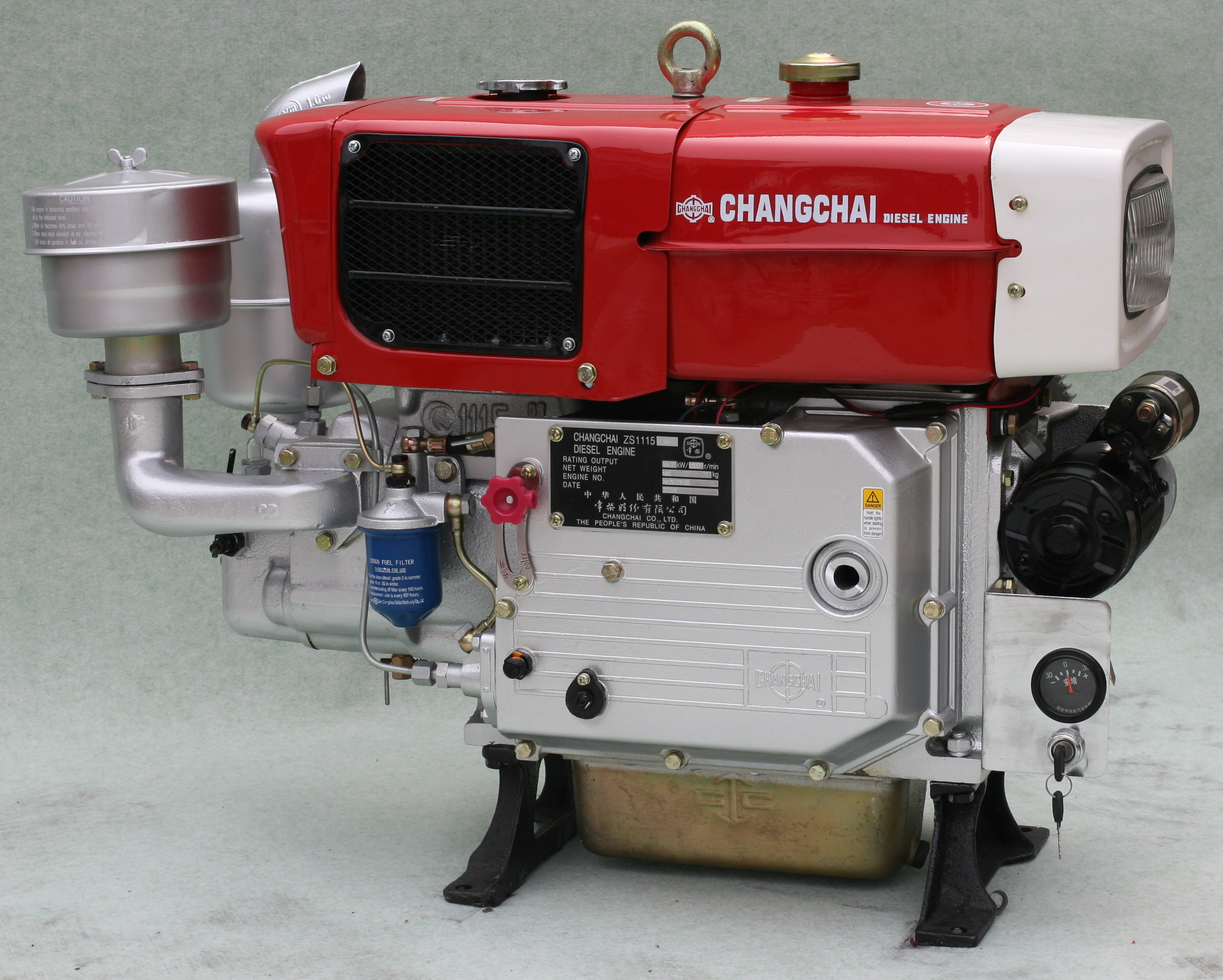

S1115 Diesel Engine SerialMain Technical Specifications Main Specifications
ModelZS1115ZS1115MZS1115NZS1115NM
Model
TypeHorizontal,Four-Stroke
TypeHorizontal, 4-stroke
Combustion MethodDirect Injection
Combustion systemDirect injection
Cylinder Count-Bore×Stroke (mm)1-115×115
No. of cylinders×Bore×Stroke (mm)
Piston Total Displacement (L)1.1945
Total Displacement (L)
Compression Ratio17:1
Compression ratio
1Power Rating (kW)/Rotate/min)16.2/2200
1 hour rated output (kw / r / m)
12Power Rating (kW)/Rotate/min)14.7/2200
12 hour
Fuel Consumption Rate (g/kWh)≤238
Specific fuel consumption (g / kw.h)
Oil Consumption Rate (g/kWh)2.04
Specific lube consumption (g / kw.h)
Cooling MethodEvaporationRadiator
Cooling systemWater evaporationRadiator
Lubrication MethodSplash Lubrication
Lubrication systemCombined pressure and splash
Starting MethodHand Crank Electric Start Hand Crank Electric Start
Starting methodHand crankingStarting motorHand crankingStarting motor
Net Weight (kg)185190195205
Net weight (kg)
External Dimensions858×450×699947×517×699965×457×713965×457×713
Overall dimension L×W×H (mm)
From the supplier
S1115 Diesel Engine SerialMain Technical Specifications Main Specifications
ModelZS1115ZS1115MZS1115NZS1115NM
Model
TypeHorizontal,Four-Stroke
TypeHorizontal, 4-stroke
Combustion MethodDirect Injection
Combustion systemDirect injection
Cylinder Count-Bore×Stroke (mm)1-115×115
No. of cylinders×Bore×Stroke (mm)
Piston Total Displacement (L)1.1945
Total Displacement (L)
Compression Ratio17:1
Compression ratio
1Power Rating (kW)/Rotate/min)16.2/2200
1 hour rated output (kw / r / m)
12Power Rating (kW)/Rotate/min)14.7/2200
12 hour
Fuel Consumption Rate (g/kWh)≤238
Specific fuel consumption (g / kw.h)
Oil Consumption Rate (g/kWh)2.04
Specific lube consumption (g / kw.h)
Cooling MethodEvaporationRadiator
Cooling systemWater evaporationRadiator
Lubrication MethodSplash Lubrication
Lubrication systemCombined pressure and splash
Starting MethodHand Crank Electric Start Hand Crank Electric Start
Starting methodHand crankingStarting motorHand crankingStarting motor
Net Weight (kg)185190195205
Net weight (kg)
External Dimensions858×450×699947×517×699965×457×713965×457×713
Overall dimension L×W×H (mm)
About the supplier
CHANGCHAI CO.,LTD.
Main products: Diesel engine,Generating Sets,Gasoline engine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1913
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
- ✓AEO-certified exporter (customs-trusted)
95
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1913
- Canton Fair Premium Supplier
Canton Fair booth: 17.1H33-35，17.1I10-12 · Power Machinery and Electric Power (140th session)
