About this product
- Size: 详情咨询
- Color: For detailed consultation
- Fuel: Other
- Structure: Single-Stage Pump
- Application: FireOther
- Usage: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 详情咨询
- Color: For detailed consultation
- Fuel: Other
- Structure: Single-Stage Pump
- Application: FireOther
- Usage: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 详情咨询 |
|---|---|
| Color | For detailed consultation |
| Fuel | Other |
| Structure | Single-Stage Pump |
| Application | FireOther |
| Usage | Other |
| Standard | Standard |
| Theory | Centrifugal Pump |
From the supplier
●Din 24255 / BS EN733 standard
●Drived by IEC standard motor.
●Pumps manufactured to the Din24255/EN 733 Standard
Applications
- Water supply/distribution
- Fire protection
- Irrigation
- Pressure boosting
- Circulating
- Refrigeration
- Chemical industry
- Sea water
Specifications
Inlet Diamater: 50~300mm
Out Diameter: 32~250mm
Capacity: Q up to 1100 m3/h (50Hz)
Head: H up to 150 m (50Hz)
Temperature: T up to 105°C
Working Pressure: 10Bar standard, 16Bar optional
Speed: n 2900/1450/980/740/580 rpm
3500/1750/1180/890/710 rpm
Materials
Casing: Cast iron/Stainless steel
Impeller: Cast iron/Stainless steel304 as standard, Duplex stainless steel on request

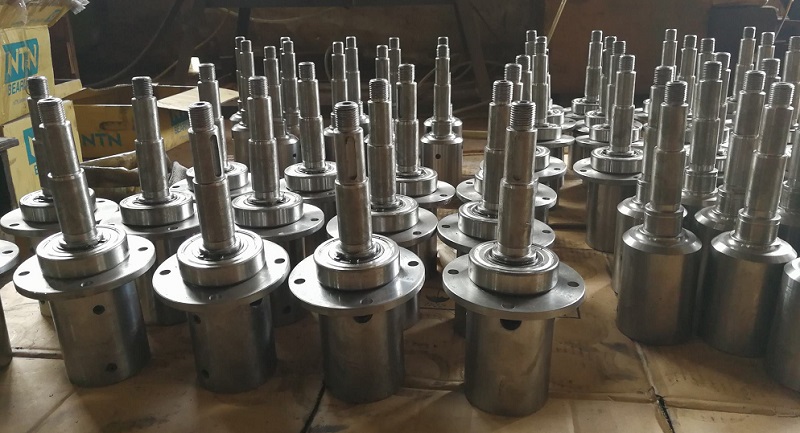

Shaft: Stainless steel 420 standard,option SUS304,SUS316 ,Duplex steel
Wear ring: Cast iron/Stainless steel
Bearing: Original Japanese Brand NTN as standard
Standard shaft sealing is mechanical seal , Gland packing on request.
-Single mechanical seal: Carbon/Silicon carbide /Viton
Shaft carried in Grease life lubricated bearings
