Product details

Materials	Cast iron, steel, electrical components, etc.
Size	5200/650034004000 6500/750034404500
Color	Custom color

From the supplier

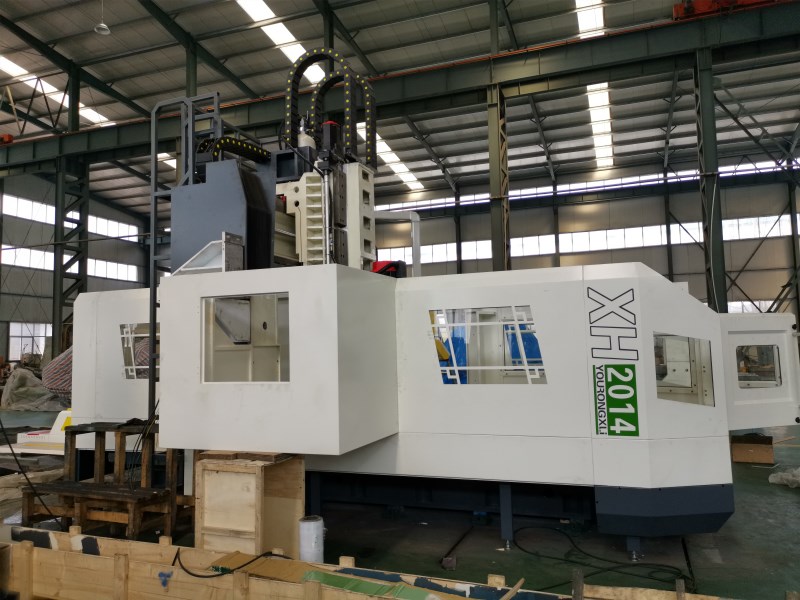

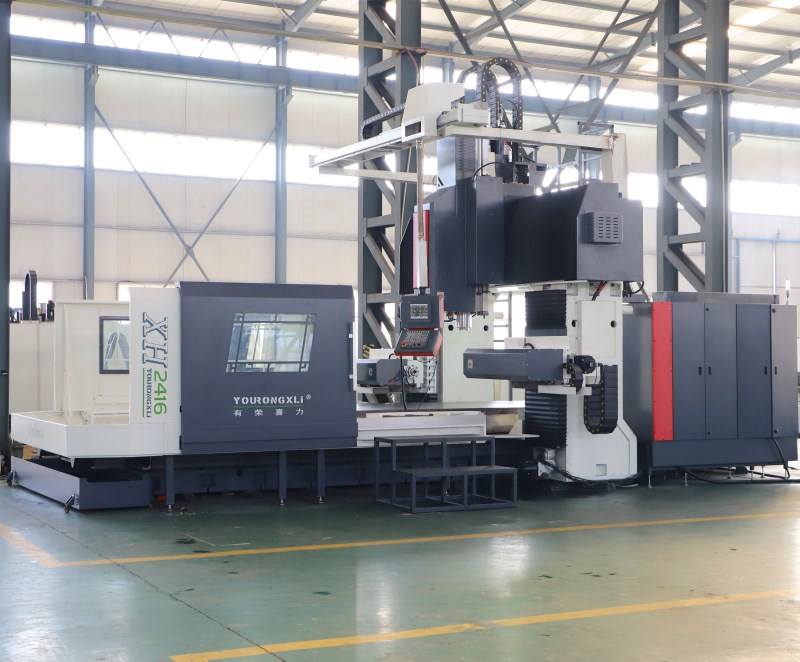

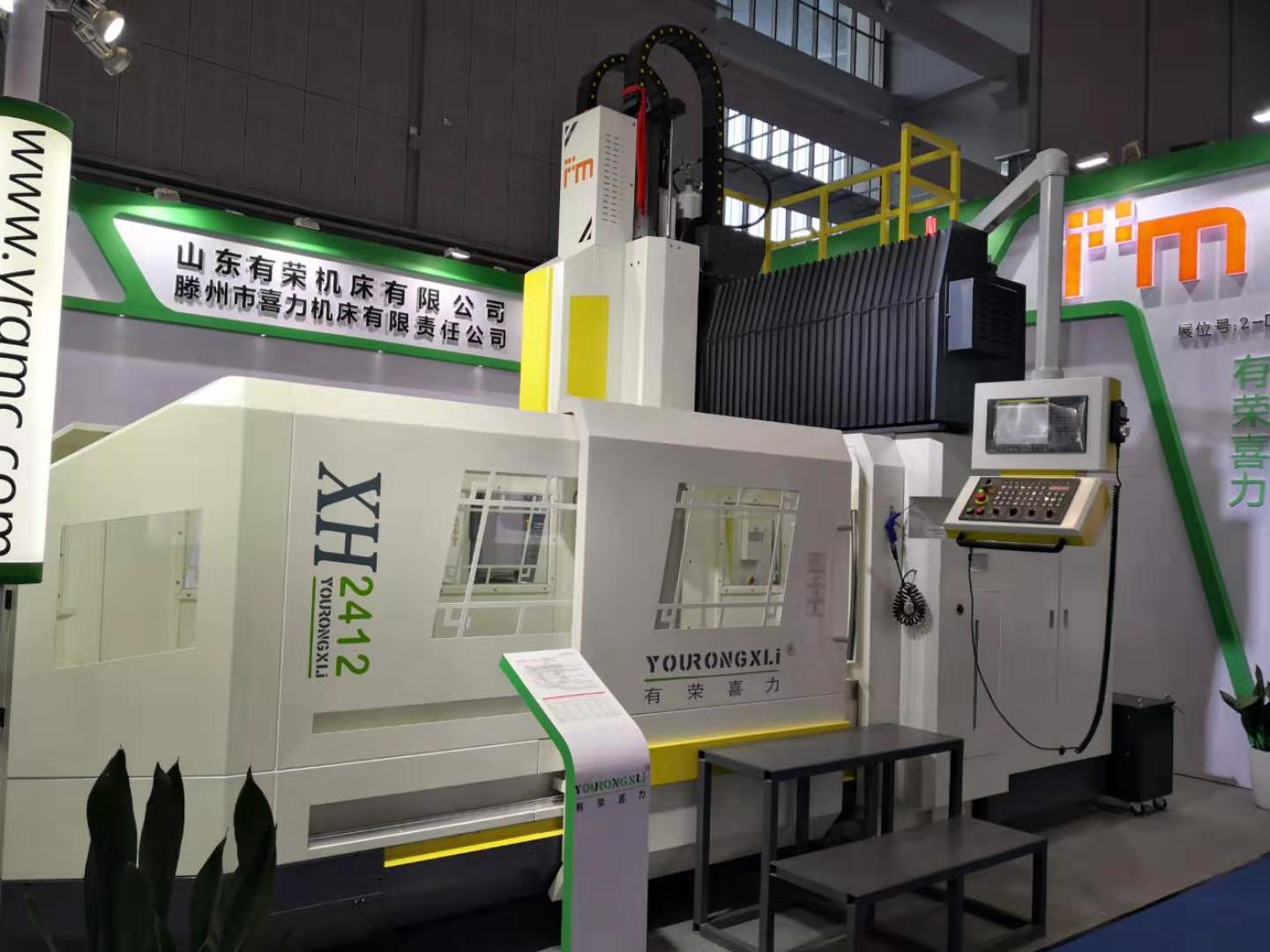

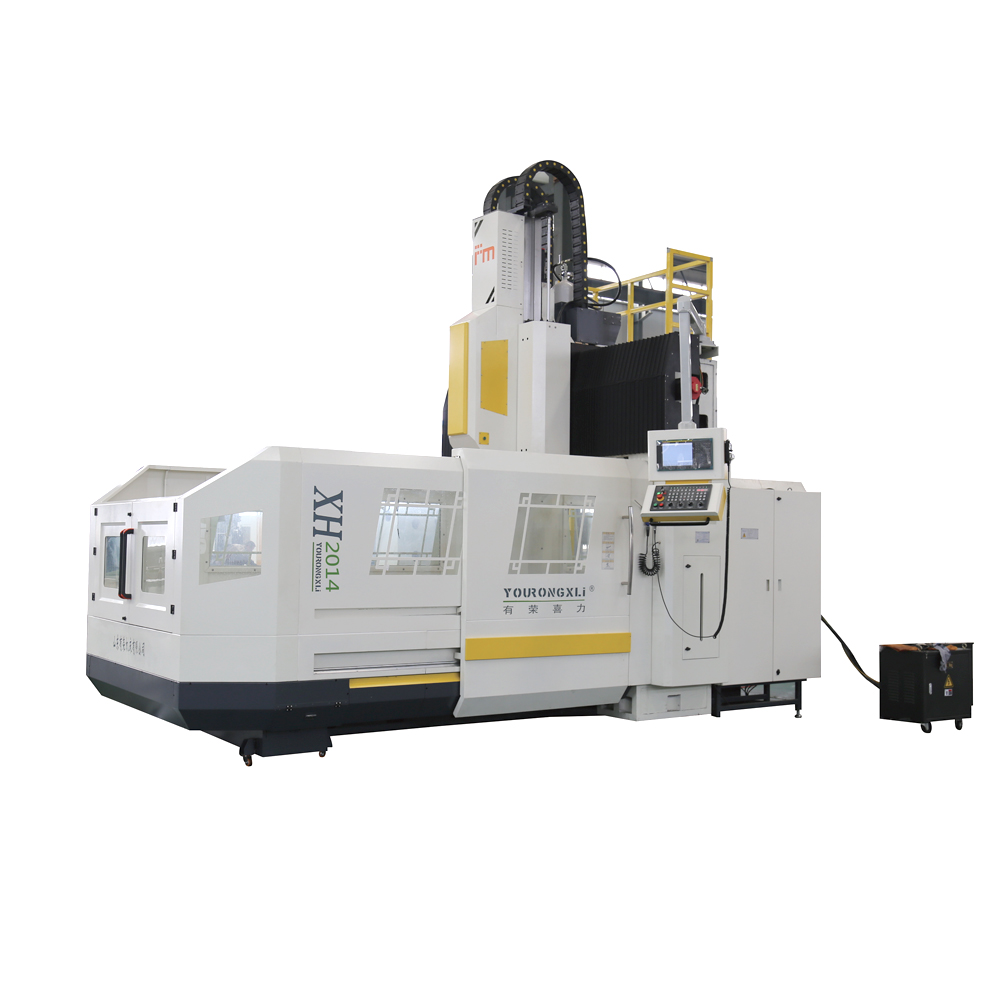

CNC Gantry-type Machining Center

Standard :

1. FANUC 0i MF5 CNC Controller or MITSUBISHI M80B

2. Taiwan Deta 24 disc type tool magazine

3. BT50-155 Taiwan spindle 6000rpm

4. Chain-type chip conveyor

Brand of Main Component:
1.Ball screw: Taiwan HIWIN
2.Linear guideway: Taiwan HIWIN/PMI
3.Bearing: NSK
4.Spindle: Taiwan ROYAL
5.eletronic component: Schneider
6.Central lubrication : Japan HERG
7.Tool magazine: Taiwan Deta

Specification

参数

Specification

Unit

XH2014/XH2514

XH2519/XH3019

工作台尺寸

Table size

2000/2500*1000

2500/3000*1500

最大承重

Max table load

ton

6/8

10/12

X轴行程

Table travel X

2100/2600

2600/3100

Y轴行程

Table travel Y

1400

1900

Z轴行程

Table travel Z

800

900

主轴鼻端至工作台面距离

Spindle nose to table surface

150-950

150-1050

两立柱间距离

Distance between tow column

1400

1900

主轴转速及传动方式

Spindle speed range and driving method

rpm

6000

belt driving

6000

belt driving

主轴锥孔

Spindle taper

BT50

主轴头套管孔径

Spindle diameter

155

X轴快速进给速度

Rapid traverse speed – X axis

mm/min

12000

Y轴快速进给速度

Rapid traverse speed – Y axis

mm/min

12000

Z轴快速进给速度

Rapid traverse speed – Z axis

mm/min

10000

X, Y, Z轴进给速度

Feed rate ( X / Y / Z axes)

mm/min

8000

刀库数量

Number of tool magazine--opt.

24/opt.-32

刀库类型

Tool magazine type

Disc type

数控系统

Controller

FANUC/Siemens

主轴电机(连续/15分钟)

Spindle motor power（straight/15 minutes）

15/18.5

定位精度(JIS标准)

Positioning accuracy(JIS standard)

±0.005/300

重复精度(JIS标准)

Repeatability Positioning accuracy(JIS standard)

±0.003/1000

净重

Net weight

ton

15/17

20/22

外形尺寸

Overall size

5200/6500*3400*4000

6500/7500*3440*4500

Company information:

Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.

We are manufacturer.All our products passed CE, ISO9001. You can trust our quality and service.

Hope we can built long-term business relationship with you.
