About this product
- Materials: Cast Iron
- Size: 2420/2860/3110/3620x1600x1750mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Cast Iron
- Size: 2420/2860/3110/3620x1600x1750mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Cast Iron |
|---|---|
| Size | 2420/2860/3110/3620x1600x1750mm |
| Color | Grey |
From the supplier

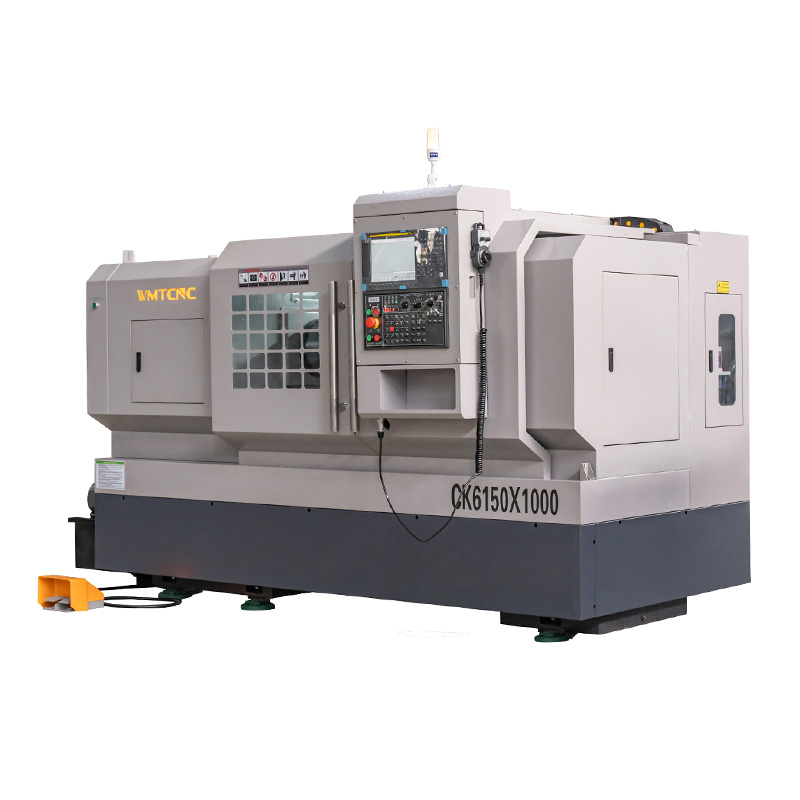

Main Features
1.High rigidity casting bed;
2. High precision spindle bearing;
3. The bed guideway is industrially hardened.
Specifications
Specification CK6150 Capacity Chuck size 10'' Max. swing dia. over bed 500mm Max. swing dia. over slide 280mm Distance between center 750/1000/1500/2000mm Width of bed 400mm Spindle Spindle speed range 150-1500rpm Spindle bore Φ82mm Max. dia. of through-hole Φ60mm Spindle nose A2-8(*105mm for A2-11) Spindle taper Φ90mm 1:20,*105mm for 105mm 1:20 Axis X axis travel 350mm Z axis travel 750/1000/1500/2000mm X/Z axis rapid traverse 6/8m/min Turret Type Electrical type No. of tool stations 4,*6,*8 position Max. section of tool 25x25mm Tailstock External diameter Φ80mm Travel of tailstock quill 150mm Taper of tailstock quill MT5 Motor Spindle motor power 7.5kw,*11kw Coolant pump power 180w(120w) Machine Dimensions Overal dimension (L×W×H) 2420/2860/3110/3620x1600x1750mm Packing size(L×W×H) 2600/3050/3350/3850x1800x2220mm N.w 2750/3100/3350/3550kg G.w 3000/3450/3750/3950kgMachine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
