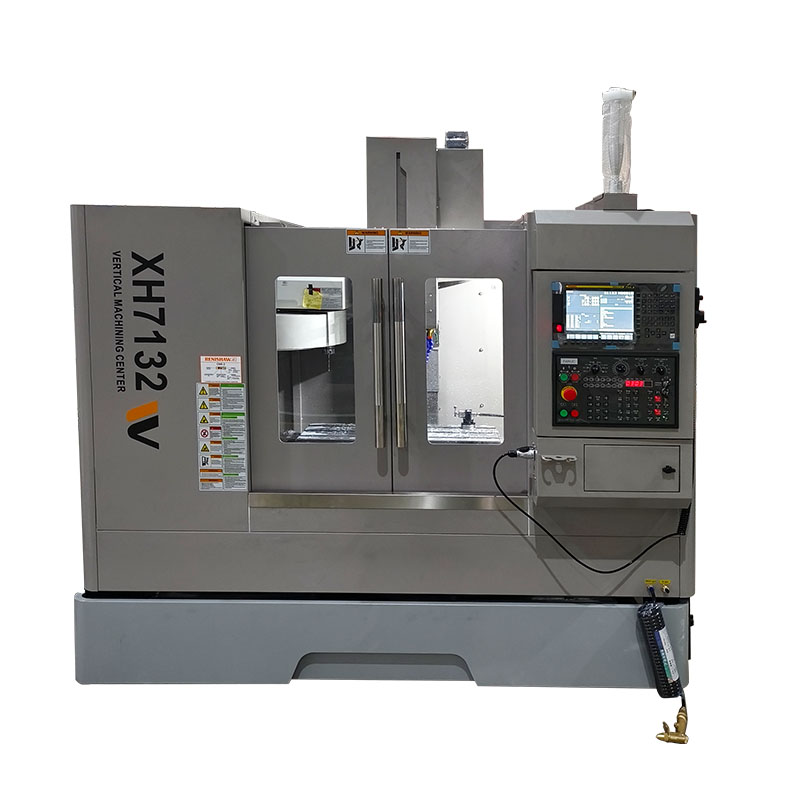

CNC Milling Machine XH7132
- FOB goods (100)
- $1,900,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $66,500
- Section 301 tariff (25.0%)
- $475,000
- Customs fees (MPF/HMF)
- $3,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
CNC Milling Machine XH7132
- FOB goods (100)
- $1,900,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $66,500
- Section 301 tariff (25.0%)
- $475,000
- Customs fees (MPF/HMF)
- $3,010
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Size: 2200x1950x2300mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 2200x1950x2300mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 2200x1950x2300mm |
| Color | Gray |
From the supplier
Description
Used for machining box parts, shell parts, disc-shaped parts and etc.Dovetail guideway with plastic sticking, high rigidity, high stability and strong support. WMTCNC BRAND 3 axis cnc milling machine XH7132 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.
Speicfication
Specification XH7132 Worktable Worktable size（LxW） 800x320mm T-slot (NxWxD) 3-16x100mm Travel X/Y/Z axis travel 600/400/450mm Machining range Distance from spindle center to column 400mm Distance from spindle nose to worktable surface 100-550mm Spindle Spindle taper BT40 Spindle power 5.5kw Max.spindle speed 8000rpm Feed Max.feed speed 10m/min Rapid feed speed（X/Y/Z) 20/20/18m/min Power AC servo motor torque(X/Y/Z) 7.7/7.7/15N.m X/Y/Z feed motor power 1.5/1.5/2kw Rated power 11kw Ball screw(diameter+lead) X/Y/Z axis ball screw 3210 Tool magazine Tool magazine capacity 12T/16T(optional) Max.length of tool 200mm Tool change time(T-T) 7s Positioning accuracy(National standard) Positioning accuracy (X/Y/Z) ±.0.01mm Re-positioning accuracy(X/Y/Z) ±.0.005mm Machine dimension LxWxH 2200x1950x2300mm Machine weight Max.loading of worktable 300kg Machine weight 2400kg
Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
