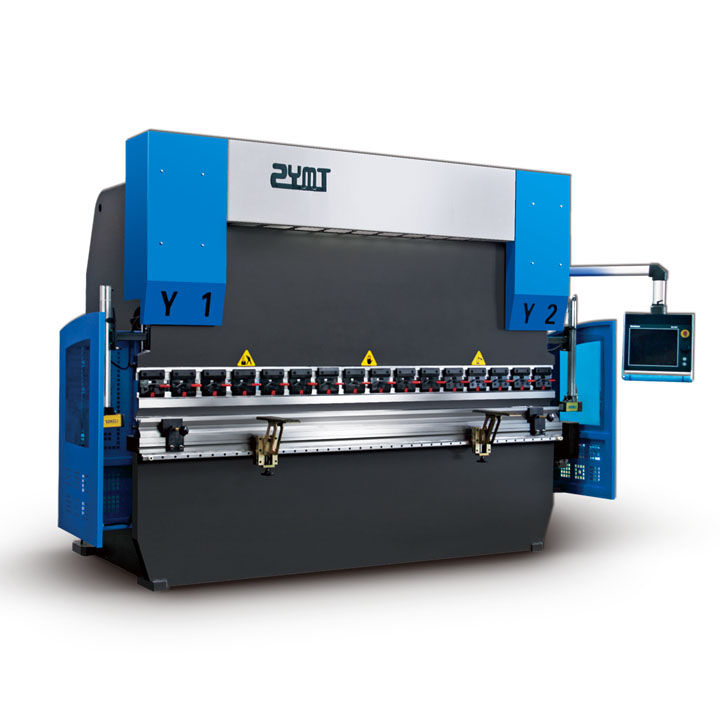

Main Feature● Overall welded and processed structure.
● Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.
● Ensure the highest control precision, bending accuracy and repositioning accuracy are also reachto the highest level.
● ZYMT Back gauge mechanism can be multi-axes controlled.
● Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
● Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenient and accuracy.
● CNC press brake machine's controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.
Standard Components● Delem DA66T
● 8+1 axis control (Y1, Y2, X1, X2,Z1, Z2+V)
● Grating ruler (Spanish FAGOR)
● Germany BOSCH-REXROTH proportional valve
● Germany BOSCH-REXROTH oil pump
● SIEMENS main motor
● Ball screw & linear guide -Taiwan PMI
● Backgauge positioning system
● Double servo motor & servo drive
● Manual mechanical crowning (below 300T)
● Motorized crowning (above 300T)
● 180° adjustable front support arm with linear guide
● X,Y axis servo motor control
● Fast clamp
● Amada or Euro type tooling

Optional● Wila Hydraulic Clamp (Top & Bottom)
● Main servo motor
● Front light curtain
● Rear light curtain
● Front laser protection
● Air cooling system

Controller FunctionDA66T feature
2D graphical touch screen programming mode
3D visualization in simulation and production
17” high resolution color TFT
Full Windows application suite
Delem Modusys compatibility(module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the controllers multitasking environment
Sensor bending & correction interface
Profile-TL offline software
Other controllers can be choose: Delem DA52S, DA58T, DA53T controller and Esa S530, S630 controller. Cybelec CT8, CT12.Main Motor and pumpDouble servo motor and pump is energy saving, lower noise, fast ram speed, better accuracy, less oil consumption

Backgauge SystemThe positioning accuracy and repeated positioning accuracy of the Boke multi-axis rear stopper are high, fast, stable and noiseless, with beautiful appearance and low energy consumption.

Electrical SystemSchneider electrical components make the CNC press brake machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world.

Punch & Die/Fast clampingStandard double-V lower dies with different size and various shaped slots for choice,
convenient for exchanging dies, capable for bending regular plates, with high cost-performance-ratio. More cnc press brake machines can be selected as per your practical use.
The dies are made by 42CrMo steel, hardness after heat treatment up to 42 degrees, ensure the die service lifetime.
Fast clamp will help you replace the top punch conveniently and time-saving.
Optional configuration

Technical ParametersModelNormal ForceBending LengthPoles DistanceThroat
DepthStrokeMax. OpeningMain PowerX-travelWeightDimensionCompensation (KN)(mm)(mm)(mm)(mm)(mm)(KW)(mm)(KG)LxWxH(mm) 40T2200400220017003803501505.550045002500x1350x2000Hydraulic
Compensation63T2500630250020004001503805.550058003100x1450x2300100T32001000320027004002004507.550085003500x1580x2500100T40001000400027004002004507.550095004500x1600x2500125T32001250320027004002004501150095003500x1580x2500125T400012504000350040020045011500110004500x1700x2800160T320016003200270040020045011500110003500x1650x2600160T400016004000350040020045011500125004500x1700x2800200T320020003200270040020045015500140003500x1680x2700200T400020004000350040020045015500130004500x1700x2800250T320025003200270040020045015500155003500x1700x2760250T400025004000350040020045015500180004500x1800x2800300T320030003200270040030050022500168003500x1800x2900Motorized
Compensation300T400030004000350040030050022500190004500x2100x3000400T400040004000310040030060030500310004500x2450x3500500T600050006000490050030060037800530006500x2810x4500600T600060006000490050030060045800680006500x2910x5100800T600080006000472060040080055800900006500x2950x5300800T8000800080005900600400800558001200008500x2950x59001000T600010000600049006004008002x378001000006500x3000x56001000T800010000800069006004008002x378001300008500x3000x61001000T10000100001000080006004008002x3780015000010500x3000x58501200T600012000600042207004008002x4510001300006500x3100x58501200T700012000700052207004008002x4510001600008500x3100x71501600T600016000600049007004008002x5510001500006500x3300x65001600T700016000700059007004008002x5510001700007200x3300x70001600T800016000800069007004008002x5510001900008500x3300x80001600T10000160001000080007004008002x55100021000010500x3300x80002000T800020000800062007004008002x7510002600008500x3500x80002000T10000200001000080007004008002x75100029000010500x3500x83002000T12000200001200090507004008002x75100032000012500x3500x83002000T140002000014000110007004008002x75100035000014500x3500x83003000T800030000800062007004008002x751000/8500x3700x86003000T10000300001000080007004008002x751000/10500x3700x86003000T12000300001200090507004008002x751000/12500x3700x86003000T140003000014000110007004008002x751000/14500x3700x8600Competitive Advantage
