CNC slotting machine BK5032
- FOB goods (100)
- $1,090,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $38,150
- Section 301 tariff (25.0%)
- $272,500
- Customs fees (MPF/HMF)
- $1,997
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
CNC slotting machine BK5032
- FOB goods (100)
- $1,090,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $38,150
- Section 301 tariff (25.0%)
- $272,500
- Customs fees (MPF/HMF)
- $1,997
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Metal
- Size: 2800x2400x2500mm
- Color: Black and White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Metal
- Size: 2800x2400x2500mm
- Color: Black and White
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Metal |
|---|---|
| Size | 2800x2400x2500mm |
| Color | Black and White |
From the supplier

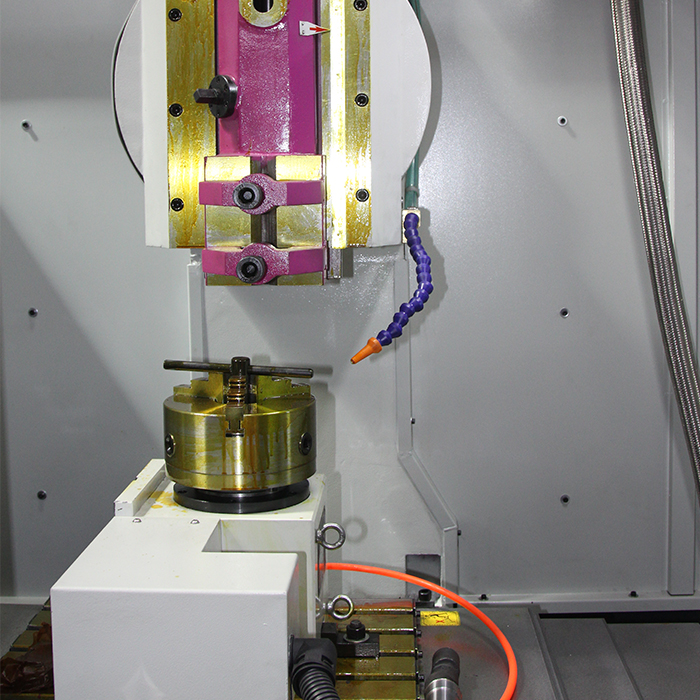

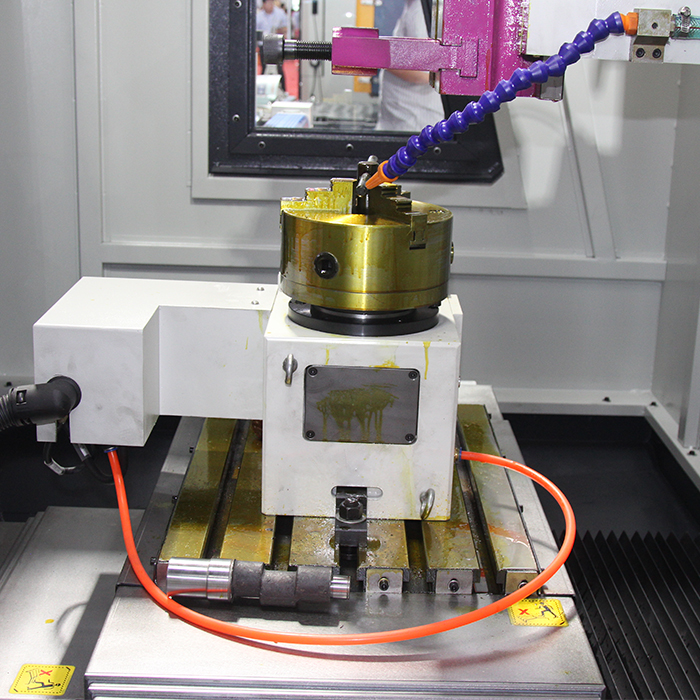

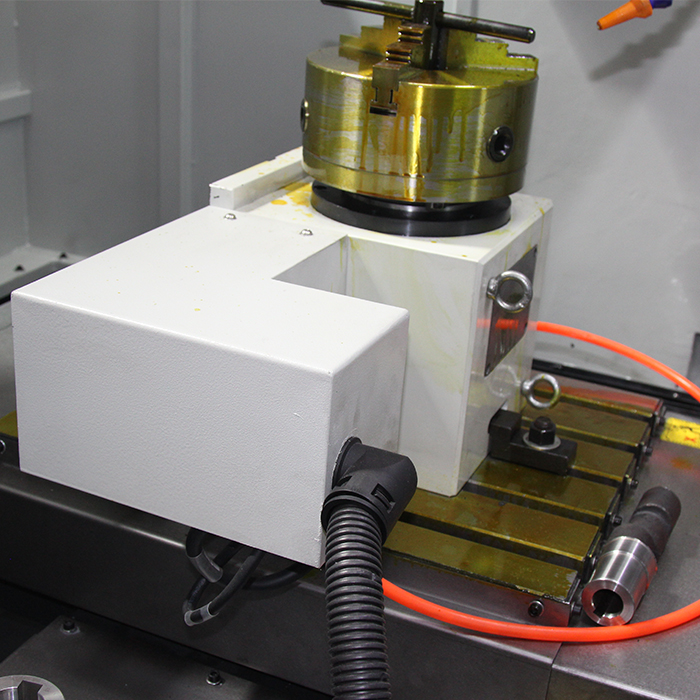

Metal CNC slotting machine BK5032:

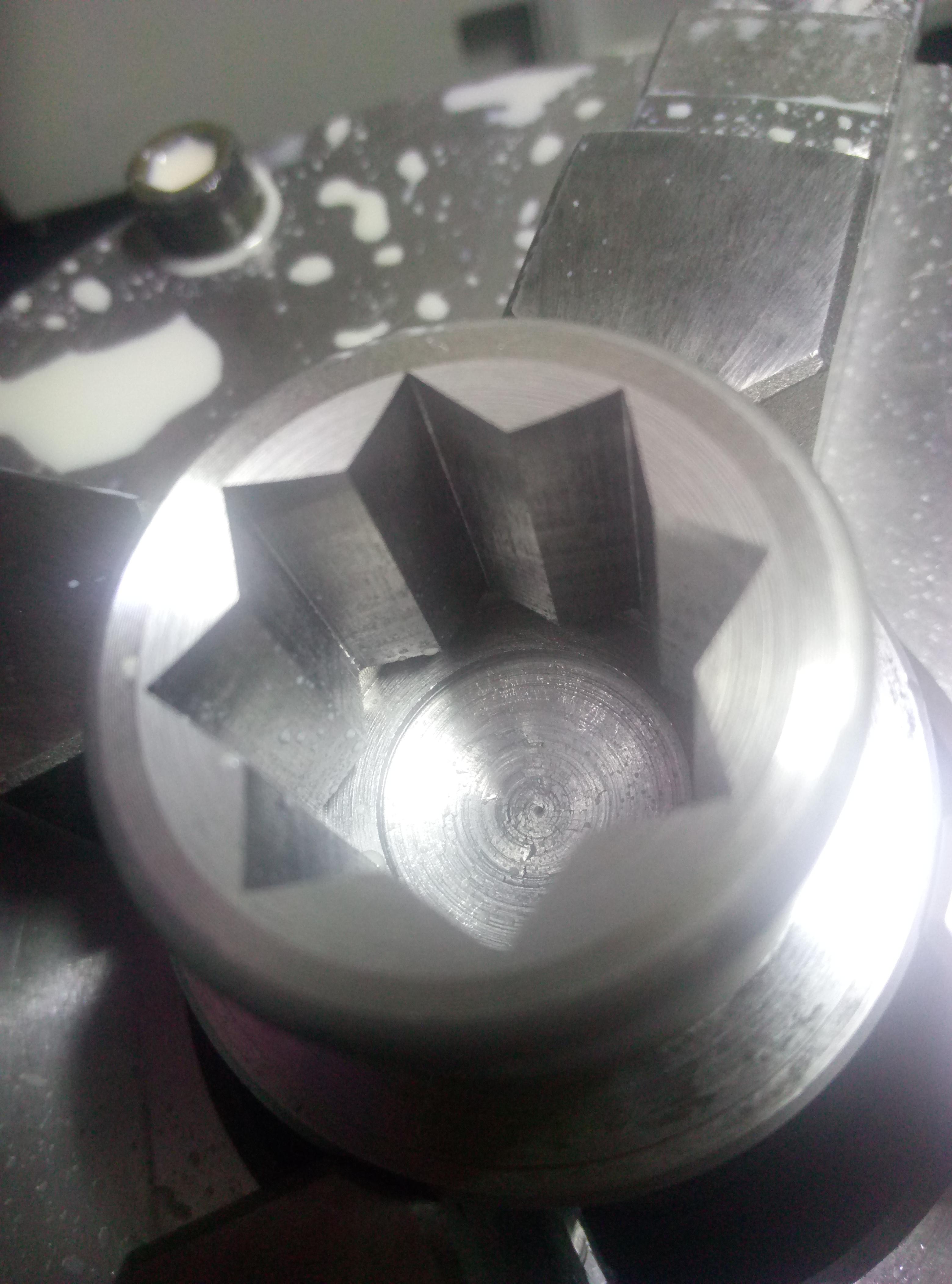

•Suitable for processing of keyway spline and the inner keyway of blind hole.
•High motor power, strong rigidity, Large precision margin, cheap price and Long service life.
•Popular for machine and cars manufacture and has been widely applied in many industries as those of spaceflight and aviation, machine and electric.
•Best choice for various materials and keyway machining.
Specification: Specification BC5032 The maximum length of ram 320mm Ram adjustment stroke 315mm Number of ram movement 20/32/50/80n/min Working desk size 600×320mm table travel(X,Y) 620×560mm The distance between the axis of the tool bearing hole and the forearm of the column 600mm The distance between the end face of the cutter head support hole and the table 590mm X direction motor torque 7.7(N/M) Y direction motor torque 7.7(N/M) Fast-moving 5X(m/min) 5Y(m/min) Ball screw(X) FFZD3205-3/P4 Ball screw(Y) FFZD3205-3/P4 Main motor power 4KW Machine tool weight(about) 3700KW package dimensions 2800/2400/2500mm Machine Details:
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
