CNC TURRET PUNCH & LASER CUTTING COMBINED MACHINE

CNC Servo Turret Punch Machine  32stations/24stations & CNC Fiber Laser Cutting Machine

All-Electric Servo CNC Turret Punching Machine & CNC Fiber Laser Cutting Machine

MAIN ADVANTAGES

• China's top monopoly technology, mix fiber laser and turret punch machine advantages.
•

• Low energy consumption, high efficiency, stable machine performance
•

• High accuracy processing no less than GERMAN TRU***/ JAPAN AMA**
•

• Greatly improve the cutting efficiency, make up for the shortcoming of laser cutting in high reflection material processing,multiply the life of laser source, greatly reduce the laser cutting consumables.
•

• Very strong machine bed processed in large processing center, after heat treatment, finishing,etc. 20 years without deformation.
•

• Any sheet metal processing can be easily processed, greatly simplify the process, a variety of complex sheet metal process just need 1 machine.
•

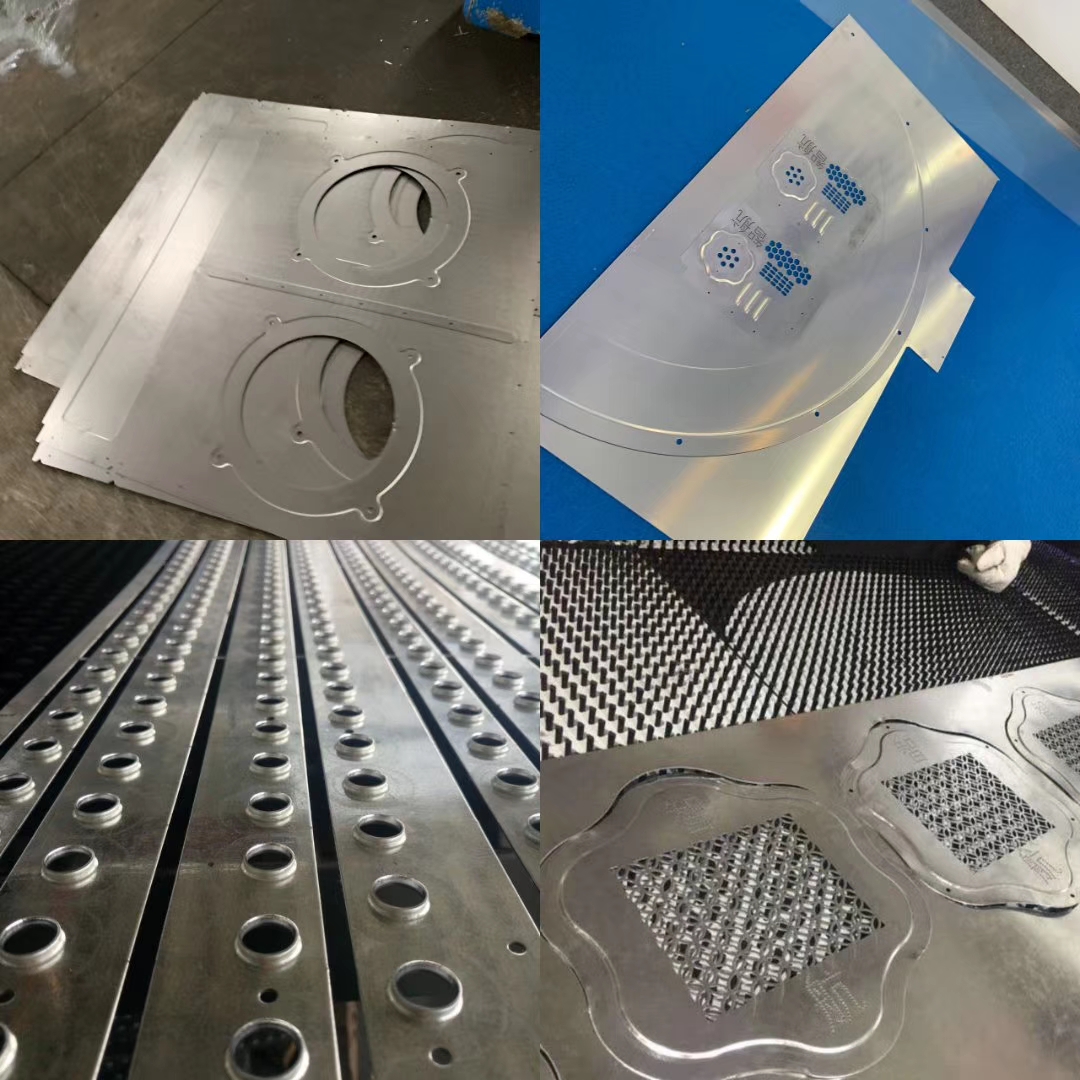

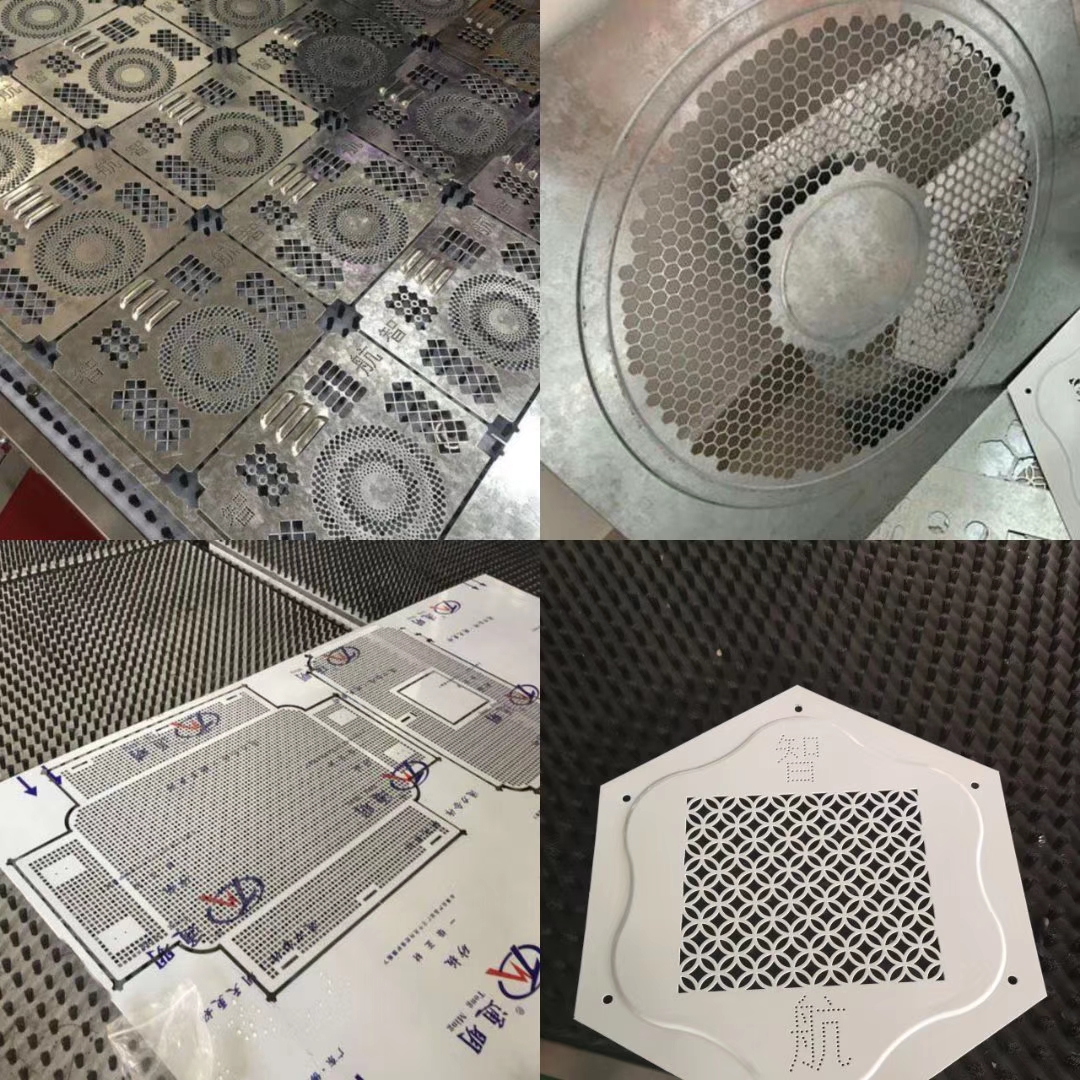

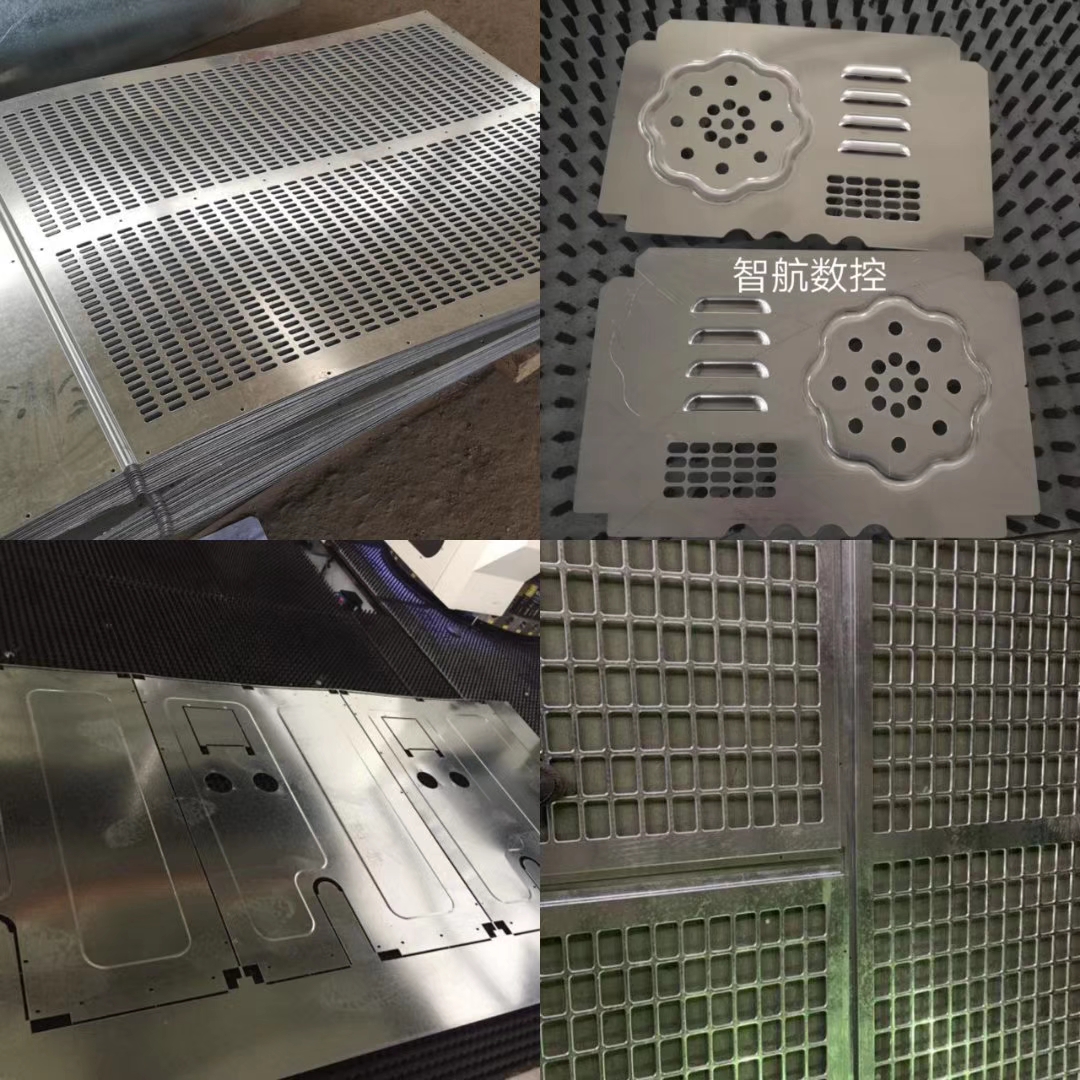

• The punch part can process standard contours and molded parts (such as blinds, convex hulls, and reverse edges).
•

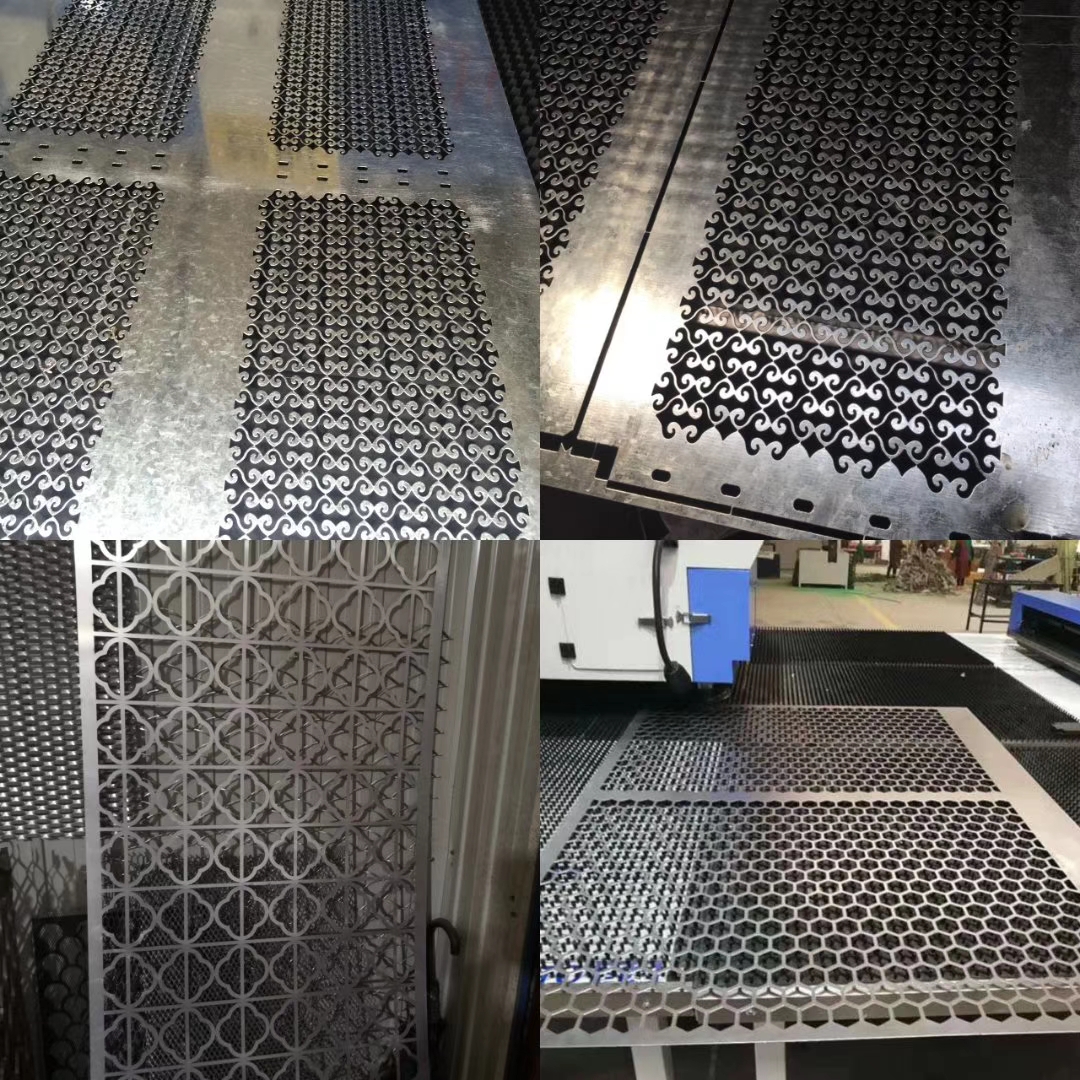

• Laser cutting part can easily process shaped openings and complex outer contours without molds.

MAIN FEATURES

1. It is applied to the processing of sheet metal with different shapes such as punching and drawing, and is suitable for the processing of batch or sample, so as to reduce mold input and production cost;Mainly used in all kinds of large high and low switch cabinets, control panel, air conditioning panel, cabinet, cabinet, shell, metal furniture, kitchenware, advertising industry.

2. Standard thick brick tower, using international 85 series mold, long guide, strong versatility, high stability, sales measurement.

3. Type O closed bed, good rigidity, small deformation, stable feeding support.

4. Special system for numerical control, WINDOWS interface, English and Chinese system, easy to learn, easy to operate.

5.With 1000w laser cutting ，use for cutting edge and other Irregular pattern, higher efficiency.

TECHNICAL SOLUTIONS

Name

All-electric Servo CNC Laser Turret Punching-Cutting Machine

Brand

Acme Laser-Zhihang Series

Punching type

Servo

Control System

Punching-cutting composite system

(patent exclusive technoogy)

Laser Source

IPG 3000w

Laser Head

Raytools (Switzerland)

Machine Bed

Closed structure, steel plate welding, heat aging treatment, finishing treatment

Water Chiller

TongFei(China)

Servo Motor System

YASKAWA (Japan)

Guide Rail

PMI (Taiwan)

Ball Screw

TBI(Taiwan)

screw bearing

NSK(Japan)

Punch Servo motor system

BONFIGLIOL(Italy)

Electrical components

Schneider (Fance) / Omron (Japan)

Pneumatic components

AirTAC(Taiwan)

Punch force

300KN(T)

Processing sheet size

(with one re-positioning)

1500/2000*5000mm

Max. sheet thickness

6.35mm

Max. punching diameter

Φ88.9mm

Max. punching speed

1500hpm

No. of clamps

3pcs

No. of     stations

National standard thick turret 32 station

Rotary die station B/C

1B、1C

No. of controlling axis

6pcs

Max. feeding speed

100m/min

Turret rotation speed

30rpm

Processing accuracy

±0.10

Max. loading weight

150kg

Air pressure

0.6-1.0mpa（Air cutting pressure is greater than 1.6）

Red light positioning

√

Centralized automatic oiling

√

Turret structure

80mm thick turret

whole high strength ductile iron material

Dimension

5300x5100x2200mm

CERTIFICATION & PATENTS

CE / FDA  / SGS / ISO9001  CERTIFICATIONS

AFTERSALES SERVICE

1.  OEM&ODM services.
2. Two or Thrree years guarantee time.
3. Life-long free technical support.
4. Consumable parts continuous supply.
5. English Speaking Engineers available to overseas services.
6. Free Training on machine installation, commissioning, operation, maintenance, etc.

TRANSPORTATION AND SHIPPING

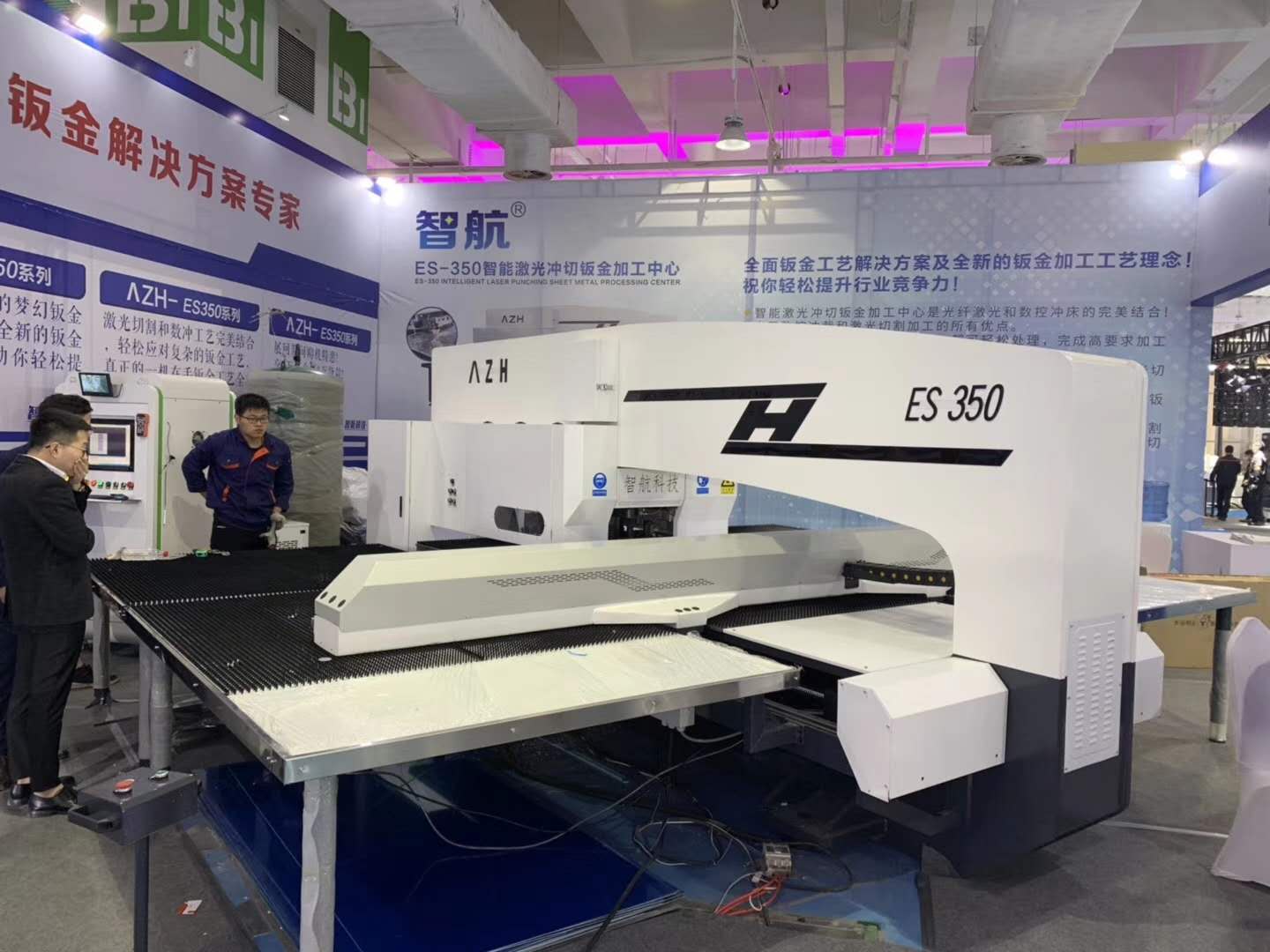

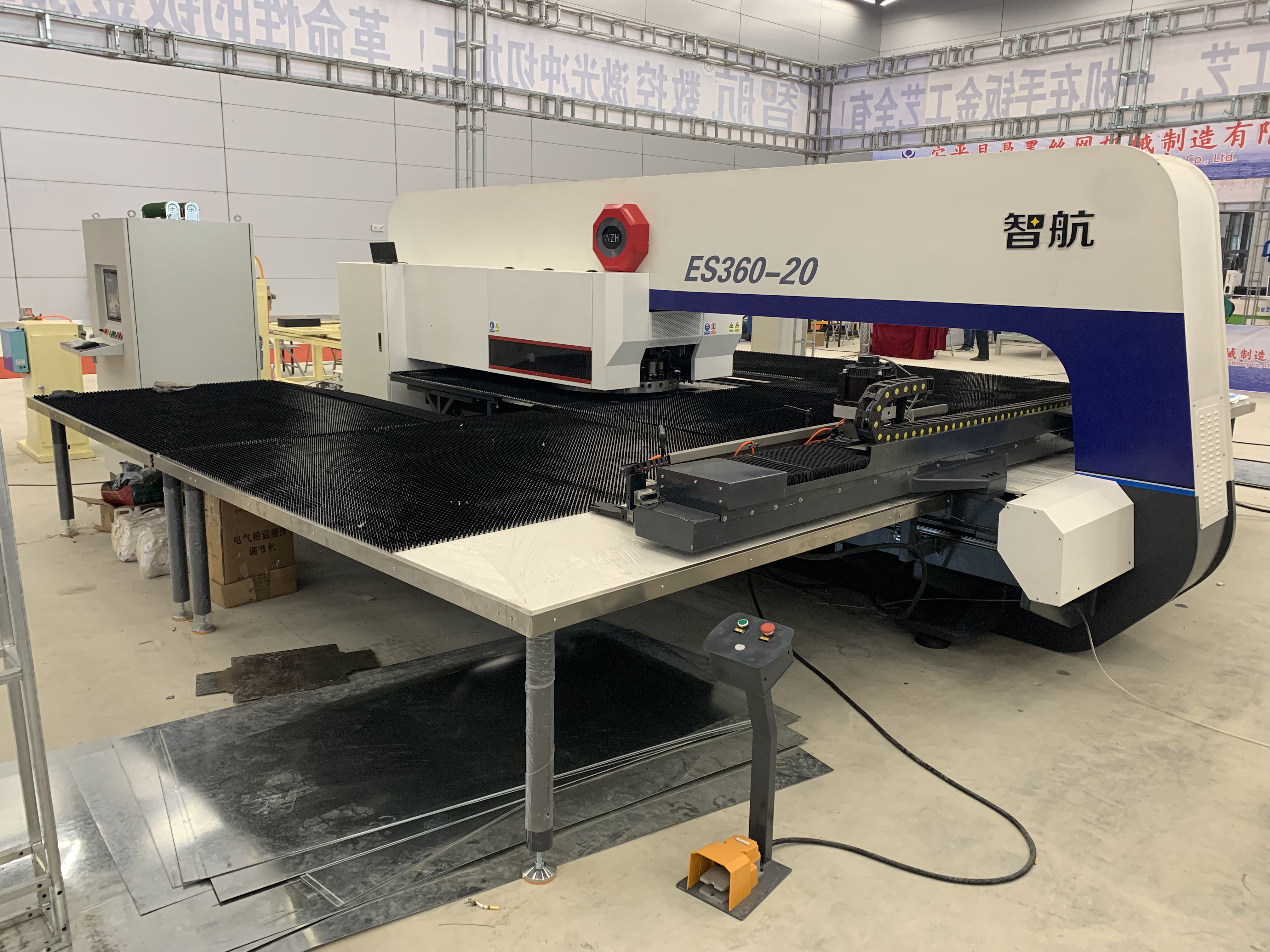

CUSTOMERS SHOW

ABOUT FACTORY

Jinan Acme CNC Equipment Co., Ltd. (Acme Laser) was founded in 2016 and is a national high-tech enterprise integrating R&D, production and sales of CNC equipments. Based on customer needs, Acme Laser focuses on the R&D and production of CNC machines, providing customers around the world with intelligent integrated solutions for laser machines.

Our production base in Jinan covers an area of 45,000 square meters, with dozens of high-precision imported CNC machining centers and large-scale gantry milling machines. The total value of production equipment exceeds 3 million US dollars. It realizes independent research and development design and high-precision manufacturing of the core components of the cutting machine. The company has more than 200 talents of various types and has an annual production capacity of 1,000 fiber laser cutting machines, of which more than 1,200 laser pipe cutting machines have been sold in total, and the products are sold in more than 60 countries and regions around the world.

Our core team has more than 15 years of experience in the field of laser equipment, has core advantages in the field of laser tube cutting, and is committed to providing customers with cost-effective laser tube cutting equipment. We have obtained more than 80 product and technology patents, and more than 40 new patent applications in 2020. The company has passed ISO9001 quality system certification, and its products have obtained EU CE and US FDA certifications. We have a number of scientific research results.

The professional core R&D team of Acme Laser accounts for more than 15% of the company's total employees, including professional teams such as mechanical engineers, software engineers, electrical engineers, and industrial designers. The company has a comprehensive grasp of core technologies such as precision manufacturing of chucks, software cutting technology, and numerical control systems to ensure the stability and production efficiency of the equipment.

Acme CNC high efficiency customer service team, accounts for 20% of the company’s total employees, including professional teams such as pre-sales service, in-sale service, after-sales service, customer training, etc., from technical process consultation, incoming proofing reception, installation and commissioning, and free customers In terms of personnel induction training, equipment maintenance and repair, etc., we provide 24-hour all-round quick response services.

Our feteaured product laser pipe cutting machine is widely used in sports equipment, automobile manufacturing, steel and wood furniture, medical equipment, architectural decoration, mechanical equipment, electrical equipment, elevator equipment and other fields. Thanks to the good customer reputation and the continuous improvement of products, the market recognition of the our products is steadily increasing, and it is moving towards the goal of "becoming a global leading laser tube cutting machine manufacturer ".
