About this product
- Size: 4300*3200*3100
- Color: blue and white
- Control method: Open-Loop Control
- Numerical control: CNC/MNC
- Processing precision: 0.06~0.070.08~0.090.04~0.050.07~0.080.03~0.040.05~0.06
- Process usage: Metal-Cutting CNC Machine Tools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 4300*3200*3100
- Color: blue and white
- Control method: Open-Loop Control
- Numerical control: CNC/MNC
- Processing precision: 0.06~0.070.08~0.090.04~0.050.07~0.080.03~0.040.05~0.06
- Process usage: Metal-Cutting CNC Machine Tools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 4300*3200*3100 |
|---|---|
| Color | blue and white |
| Control method | Open-Loop Control |
| Numerical control | CNC/MNC |
| Processing precision | 0.06~0.070.08~0.090.04~0.050.07~0.080.03~0.040.05~0.06 |
| Process usage | Metal-Cutting CNC Machine Tools |
| Performance classification | Mid-Range CNC Machine ToolsHigh-End CNC Machine ToolsEconomical CNC Machine Tools |
| Certification | ISO 9001CE |
| Movement method | Linear Control |
Product details
| Size | 4300*3200*3100 |
|---|---|
| Color | blue and white |
| Control method | Open-Loop Control |
| Numerical control | CNC/MNC |
| Processing precision | 0.06~0.070.08~0.090.04~0.050.07~0.080.03~0.040.05~0.06 |
| Process usage | Metal-Cutting CNC Machine Tools |
| Performance classification | Mid-Range CNC Machine ToolsHigh-End CNC Machine ToolsEconomical CNC Machine Tools |
| Certification | ISO 9001CE |
| Movement method | Linear Control |
From the supplier

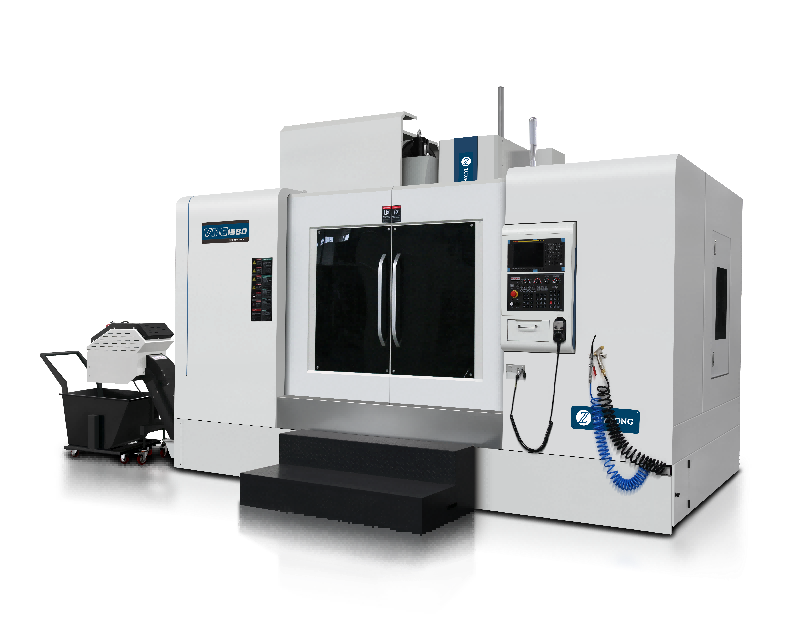

CNC Milling Machine
This vertical machining center is standardly equipped with XYZ three-axis system. It is widely used for machining impellers, blades, heavy-duty generator rotors, and steam turbine rotors.
Machine Configuration:
l GSK25i control system , can achieve 5 axis linked .
l HT300 hardness casting
l Taiwan KENTURN BT50 spindle 6000rpm
l Taiwan HIWIN Screw and HIWIN Linear railway
l Taiwan OKADA 24T arm tool magazine
l Taiwan TENIO tool upclamp cylinder
l Spindle ring cooling
l Strong chip punching
l Industrial Air conditioner
l Schneider electric components
l Quick plug
Parameters:
SPECIFICATIONS
Units
VMC1580
Table size
mm
1600*800
X axis travel
mm
1500
Y axis travel
mm
800
Z axis travel
mm
700
Max. worktable load
kg
1500
T slot(number-width*pitch)
-
7-22*110
Max. spindle speed
rpm
6000
Spindle taper
mm
BT50
Main motor power
kw
15/18.5
X/Y/Z rapid traverse speed
m/min
20/20/15
Cutting feed speed
mm/min
1-5000
Guide rail type
-
Linear GuideLinear rail /Dual Wire One Hard
X/Y axis linear rail Z axis hard rail
Distance from spindle axis to column surface
mm
860
Distance between spindle nose and table surface
mm
150-850
Tool magazine
-
DiscArm 24
Max. tool diameter
mm
112/200
Max. tool weight
kg
18
Machine weight
kg
11800
Overall dimension(L*W*H)
mm
4300*3200*3100
From the supplier
CNC Milling Machine
This vertical machining center is standardly equipped with XYZ three-axis system. It is widely used for machining impellers, blades, heavy-duty generator rotors, and steam turbine rotors.
Machine Configuration:
l GSK25i control system , can achieve 5 axis linked .
l HT300 hardness casting
l Taiwan KENTURN BT50 spindle 6000rpm
l Taiwan HIWIN Screw and HIWIN Linear railway
l Taiwan OKADA 24T arm tool magazine
l Taiwan TENIO tool upclamp cylinder
l Spindle ring cooling
l Strong chip punching
l Industrial Air conditioner
l Schneider electric components
l Quick plug
Parameters:
SPECIFICATIONS
Units
VMC1580
Table size
mm
1600*800
X axis travel
mm
1500
Y axis travel
mm
800
Z axis travel
mm
700
Max. worktable load
kg
1500
T slot(number-width*pitch)
-
7-22*110
Max. spindle speed
rpm
6000
Spindle taper
mm
BT50
Main motor power
kw
15/18.5
X/Y/Z rapid traverse speed
m/min
20/20/15
Cutting feed speed
mm/min
1-5000
Guide rail type
-
Linear GuideLinear rail /Dual Wire One Hard
X/Y axis linear rail Z axis hard rail
Distance from spindle axis to column surface
mm
860
Distance between spindle nose and table surface
mm
150-850
Tool magazine
-
DiscArm 24
Max. tool diameter
mm
112/200
Max. tool weight
kg
18
Machine weight
kg
11800
Overall dimension(L*W*H)
mm
4300*3200*3100
