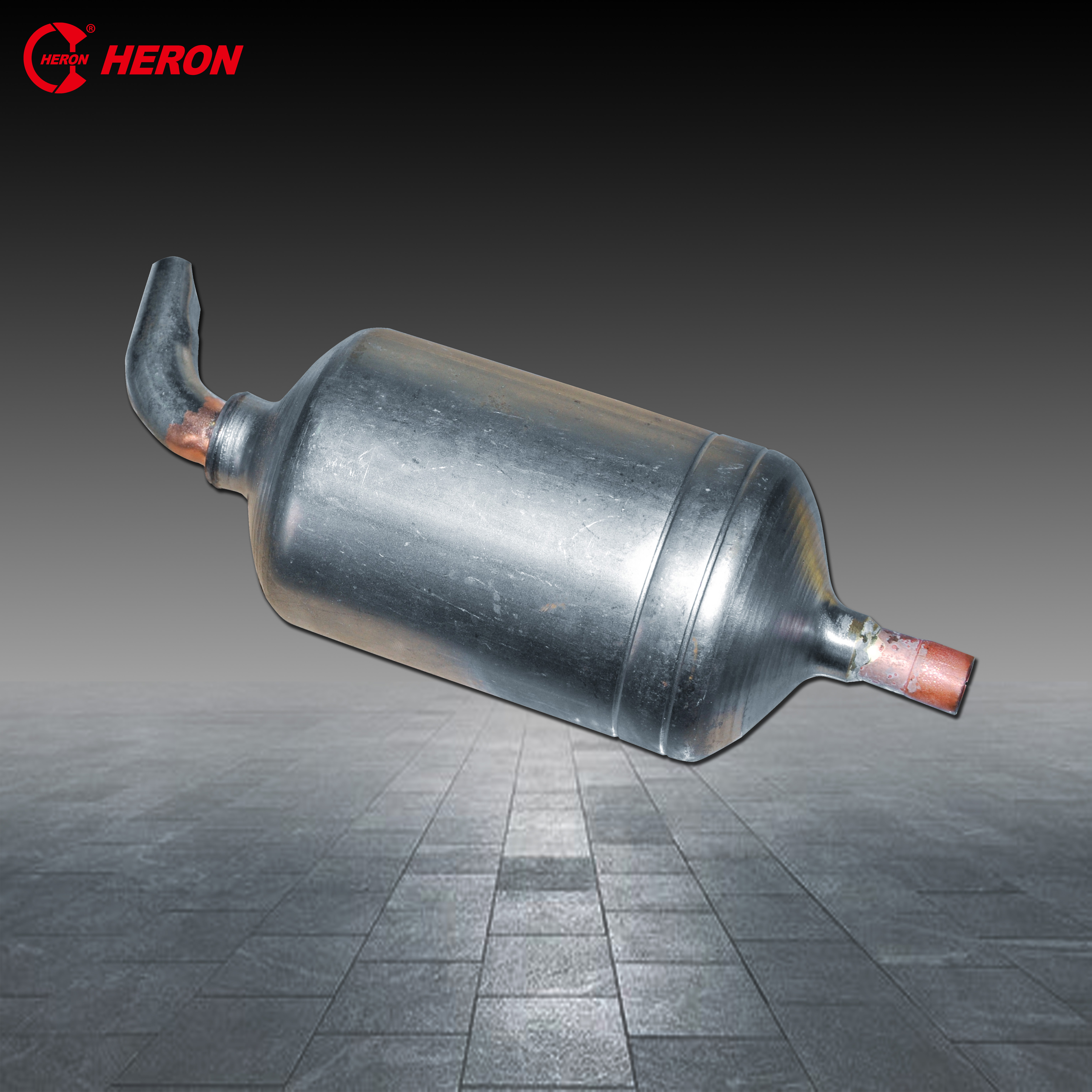

Compressor Tank Resistance MFDC Welding Machine For Reservoir
Heron Intelligent Equipment Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Compressor Tank Resistance MFDC Welding Machine For Reservoir
Heron Intelligent Equipment Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 1309(L)*1500(W)*3076(H)
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
About this product
- Size: 1309(L)*1500(W)*3076(H)
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
Product details
| Size | 1309(L)*1500(W)*3076(H) |
|---|
Product details
| Size | 1309(L)*1500(W)*3076(H) |
|---|
From the supplier
Compressor Tank Resistance MFDC Welding Machine For Reservoir
Welding machine parameter
Rated capacity660KVAPower supply380V+-10%/50Hz/3PhRated duty cycle20%Max. short circuit current86KAPrimary current380AMax. working force35KNCotroller introduction:
1) Output frequency of the inverter power is 1000HZ;
2) With automatic correcting system for welding current.
3) Support total Max 64 welding programs, which can be selected form internal or external.
4) It supports proportional valve function: The output voltage is 0-10V. With automatic pressure
calibrating function and pressure can be programmed . With the proportional valve,it can achieve stepper pressure, saddle pressure. It supports two kinds of pressure setting modes, one is percentage mode and the other is KN mode (this function is optional).
5) The welding time for each current pulse is 0 ms to 2000ms;
6) Automatic Repeat Welding Function. When the real time welding current is lower than the lowest-set value,the welder wautomatic execute the repeat welding and the repeat welding times can also be set by user.
7) Counter for Welds. This welder can count the number of welding spots for each part, each shift production, total production, and total welds. It can monitor the missing welds or more welds.
8)Welding parameter can be copied. The welding programs can be input and output by the flash drive. And through thepanel ,the welding programs can be uploaded and downloaded between different machines.
From the supplier
Compressor Tank Resistance MFDC Welding Machine For Reservoir
Welding machine parameter
Rated capacity660KVAPower supply380V+-10%/50Hz/3PhRated duty cycle20%Max. short circuit current86KAPrimary current380AMax. working force35KNCotroller introduction:
1) Output frequency of the inverter power is 1000HZ;
2) With automatic correcting system for welding current.
3) Support total Max 64 welding programs, which can be selected form internal or external.
4) It supports proportional valve function: The output voltage is 0-10V. With automatic pressure
calibrating function and pressure can be programmed . With the proportional valve,it can achieve stepper pressure, saddle pressure. It supports two kinds of pressure setting modes, one is percentage mode and the other is KN mode (this function is optional).
5) The welding time for each current pulse is 0 ms to 2000ms;
6) Automatic Repeat Welding Function. When the real time welding current is lower than the lowest-set value,the welder wautomatic execute the repeat welding and the repeat welding times can also be set by user.
7) Counter for Welds. This welder can count the number of welding spots for each part, each shift production, total production, and total welds. It can monitor the missing welds or more welds.
8)Welding parameter can be copied. The welding programs can be input and output by the flash drive. And through thepanel ,the welding programs can be uploaded and downloaded between different machines.
